Model Whirlpool ACQ184XD1 AIR CONDITIONER – Common Parts & Diagrams

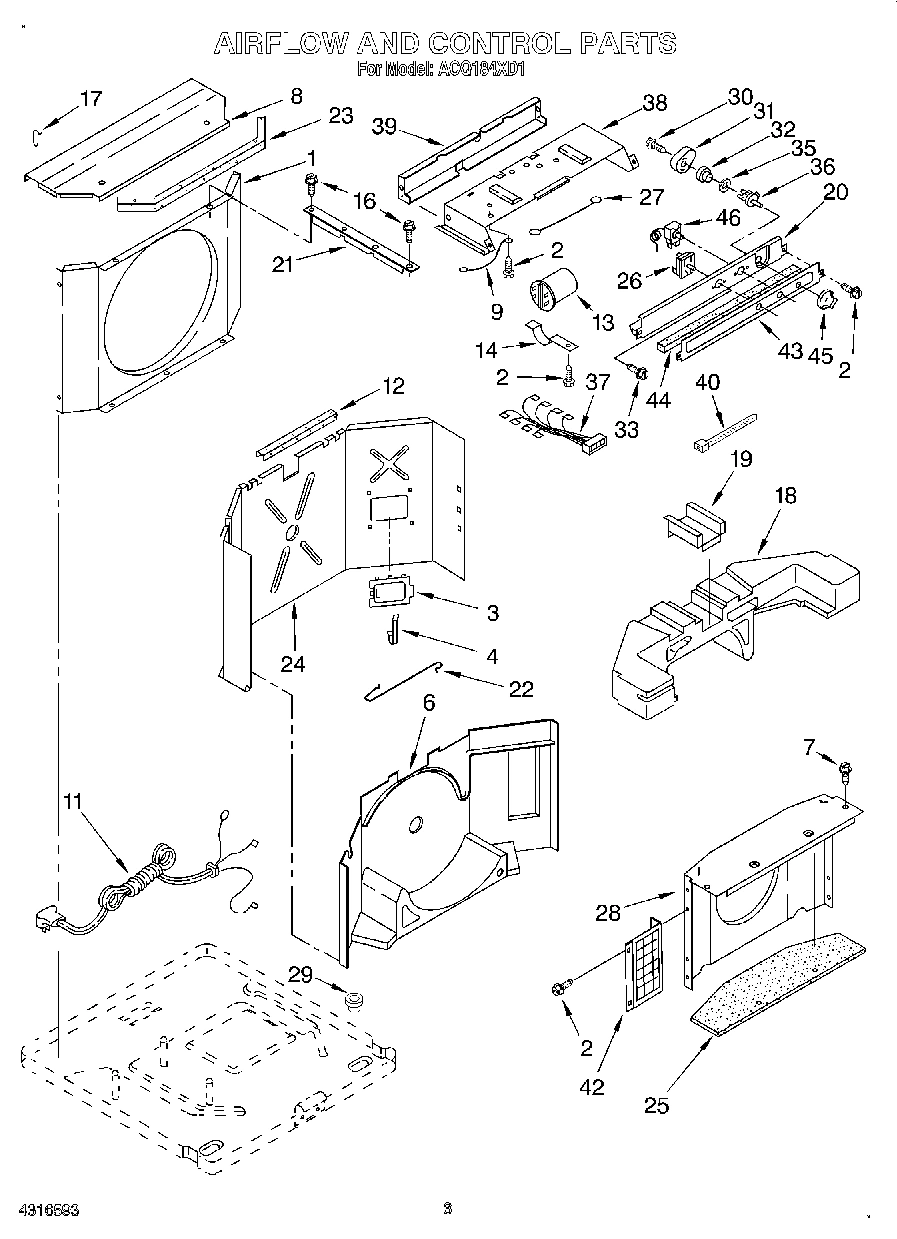

02 - AIRFLOW AND CONTROL

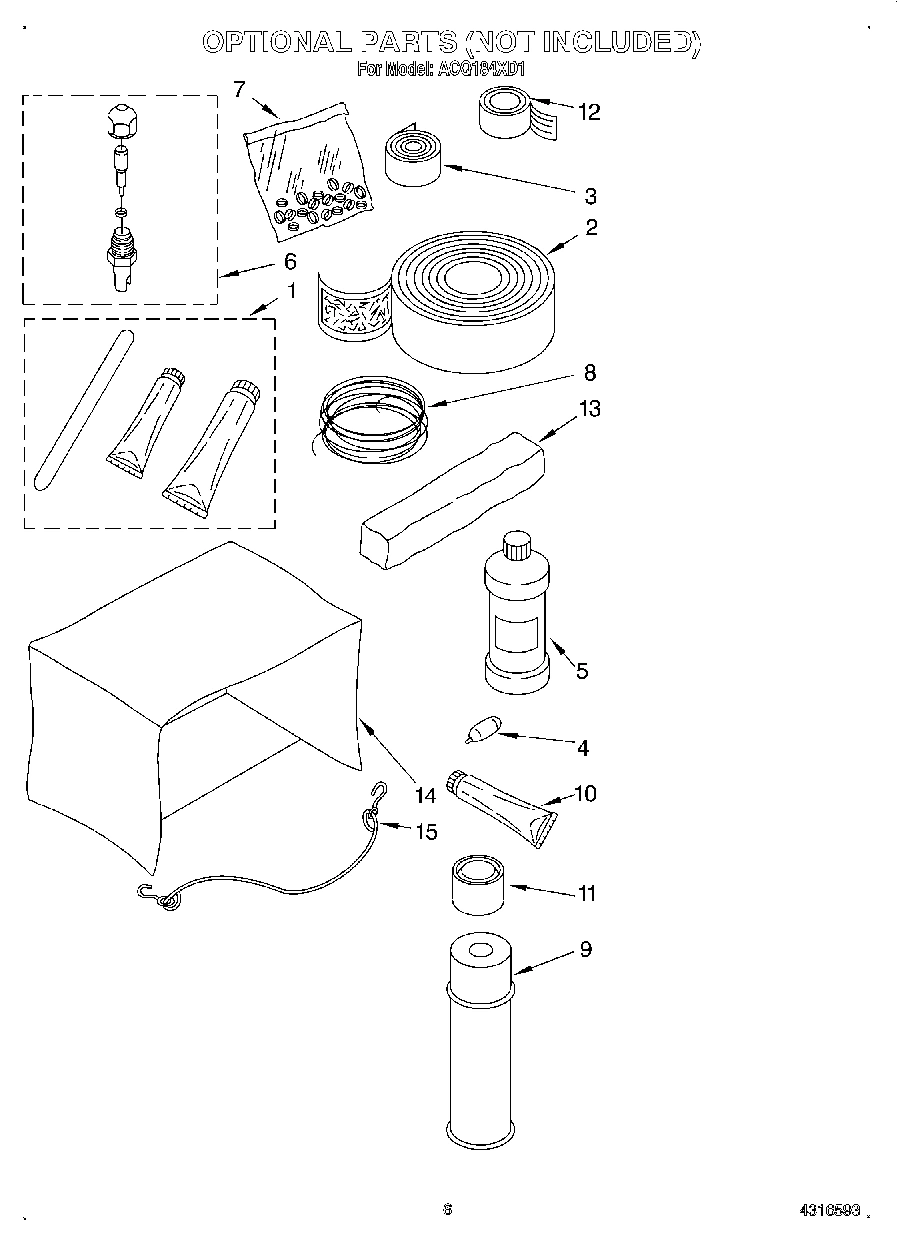

04 - OPTIONAL

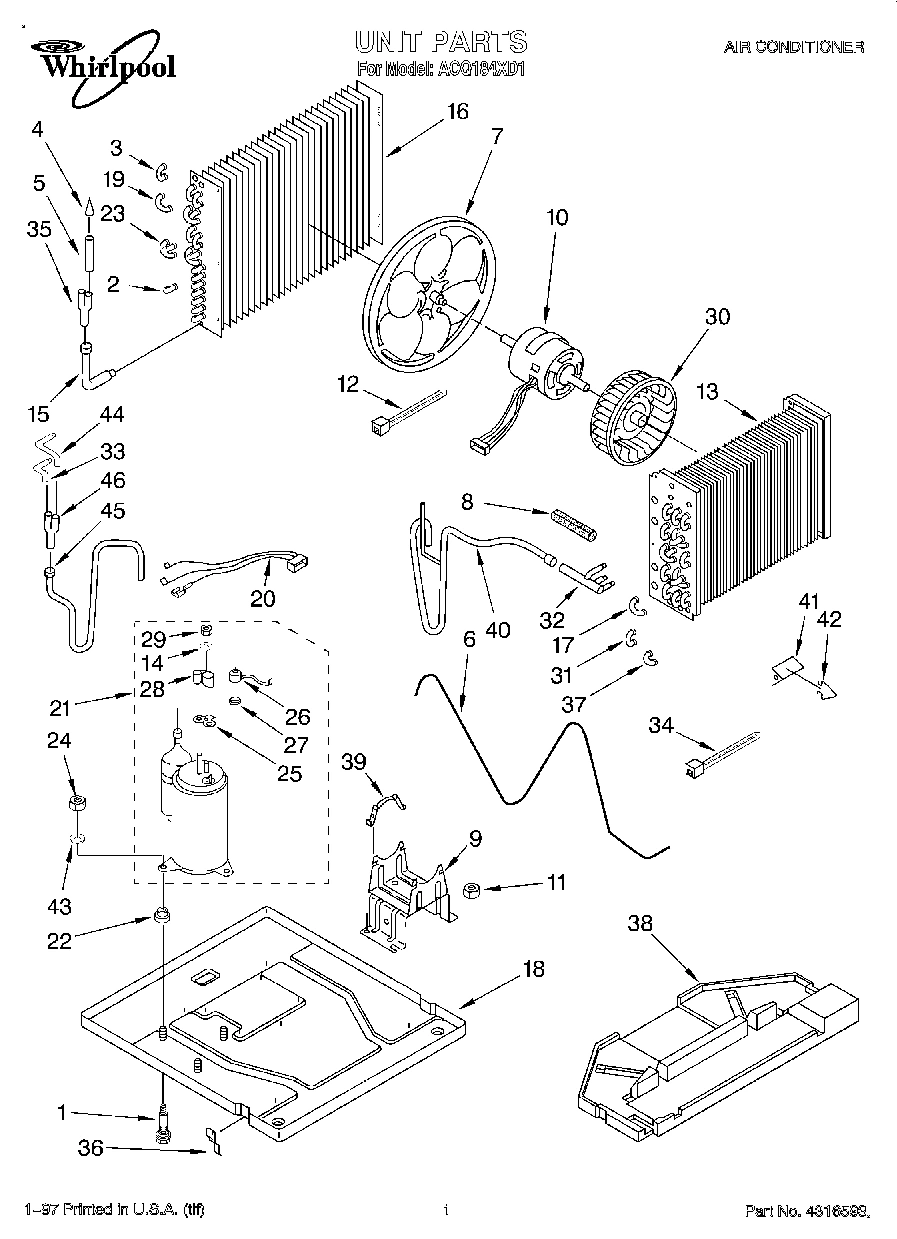

01 - UNIT, LITERATURE

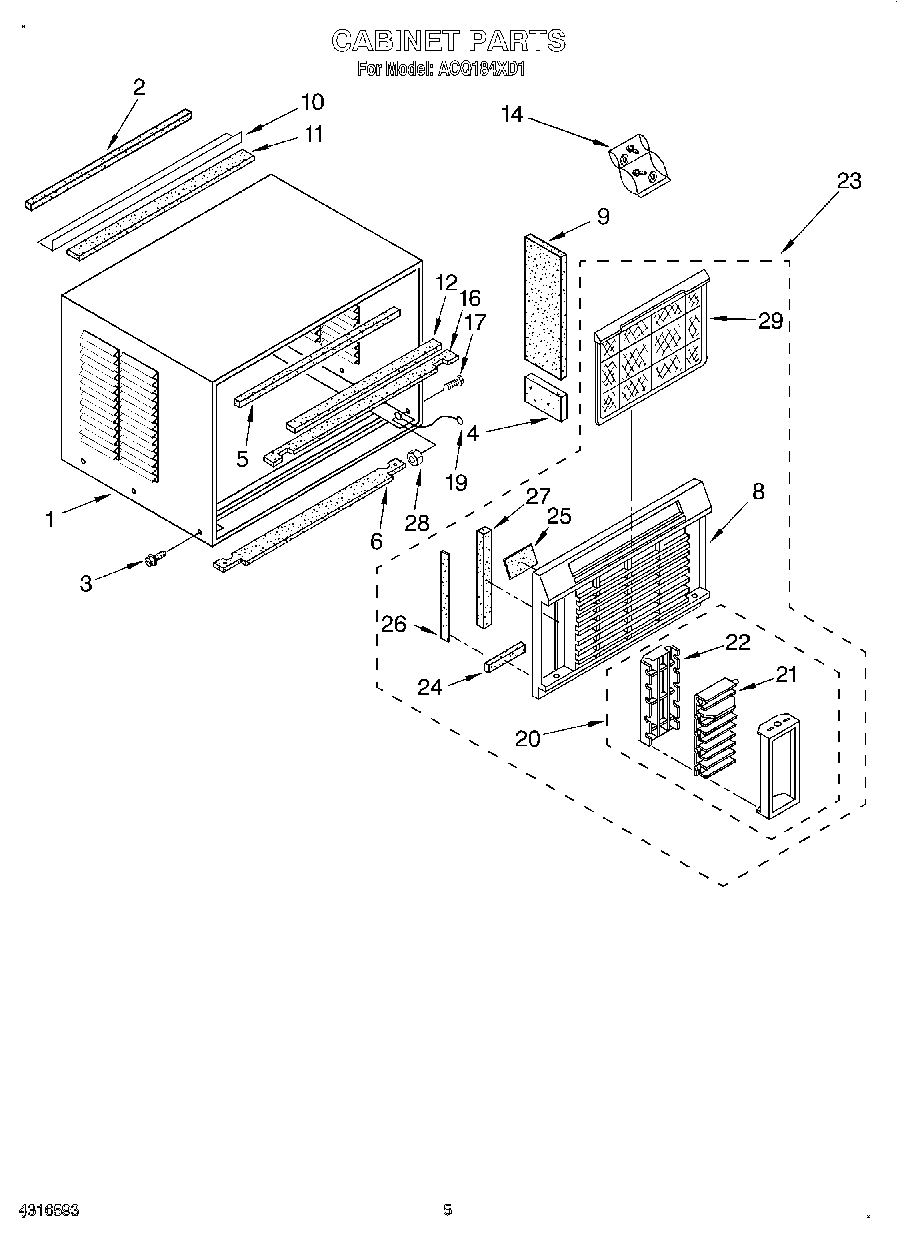

03 - CABINET

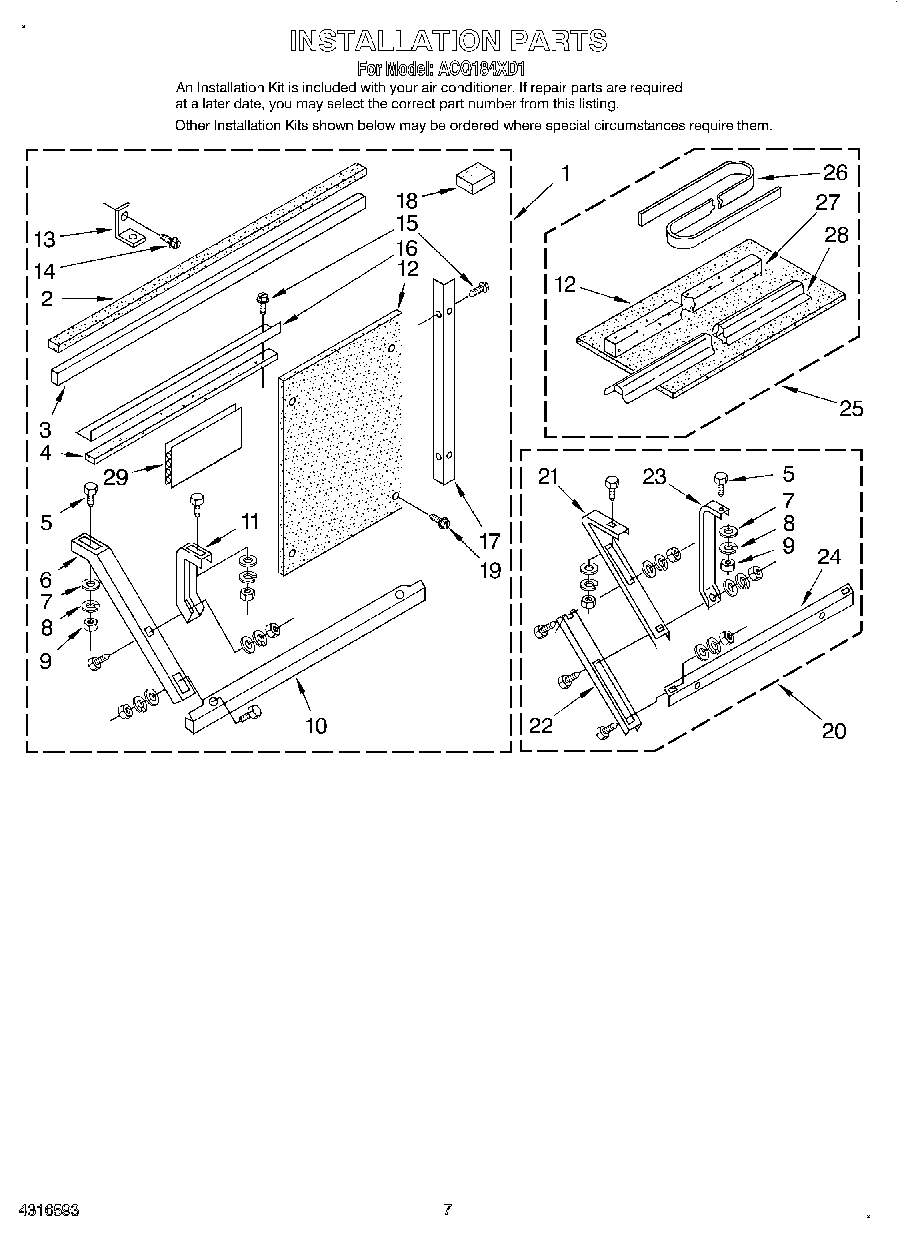

05 - INSTALLATION
Common parts from model Whirlpool ACQ184XD1 AIR CONDITIONER
Wiring Diagram WPL LIT1157445 Contact Us For Availability
Tech Sheet WPL LIT1157446 Contact Us For Availability
Owners Manual (English) WPL LIT1169276 Contact Us For Availability
Owners Manual (Spanish) WPL LIT1172007 Contact Us For Availability
Instructions, Installation (Wide Window Kit) WPL LIT1155965 Contact Us For Availability
Instructions, Installation (Standard Mounting WPL LIT1166072 Contact Us For Availability
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Bolt, Compressor WPL 1165674 Contact Us For Availability
1
Cabinet WPL 1162272 Contact Us For Availability
1
Kit, Standard Installation WPL 1162147 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (10) WPL 708532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 708531 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1165208 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1166225 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Seal WPL 1163784 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
12
Board, Filler WPL 1166266 Contact Us For Availability
13
Evaporator WPL 1165217 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
16
Condenser WPL 1161511 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Seal, Cabinet Top WPL 1160762 Contact Us For Availability
17
Bend, Return (4) WPL 855644 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
18
Base WPL 1162146 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend (1) WPL 1158407 Contact Us For Availability
19
Wire, Ground WPL 857022 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1158689 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Support, Unit (2) WPL 1164561 Contact Us For Availability
21
Compressor WPL 1166237 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1166751 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Seal (2) WPL 1160764 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Seal, Evaporator WPL 1160820 Contact Us For Availability
25
Seal (Seal, Front (2)) WPL 1160769 Contact Us For Availability
25
Seal (Right Side) WPL 1160770 Contact Us For Availability
25
Seal (Left Side) WPL 1161864 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal (2) WPL 1160763 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Cup, Condensate WPL 997285 Contact Us For Availability
29
Filter WPL 1166750 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (11) WPL 855199 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Manifold, Suction WPL 1163753 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Tube, Feeder WPL 1161071 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1167524 Contact Us For Availability
37
Bend, Return (4) WPL 854624 Contact Us For Availability
38
Box, Control WPL 1167612 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube, Suction WPL 1163936 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard WPL 1161555 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1166499 Contact Us For Availability
44
Tube, Feeder WPL 1160358 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Tube, Discharge WPL 1166239 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
46
Divider, Flow WPL 1159832 Contact Us For Availability
× ![]()
