Model Whirlpool ACQ158PT0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
01 - UNIT PARTS

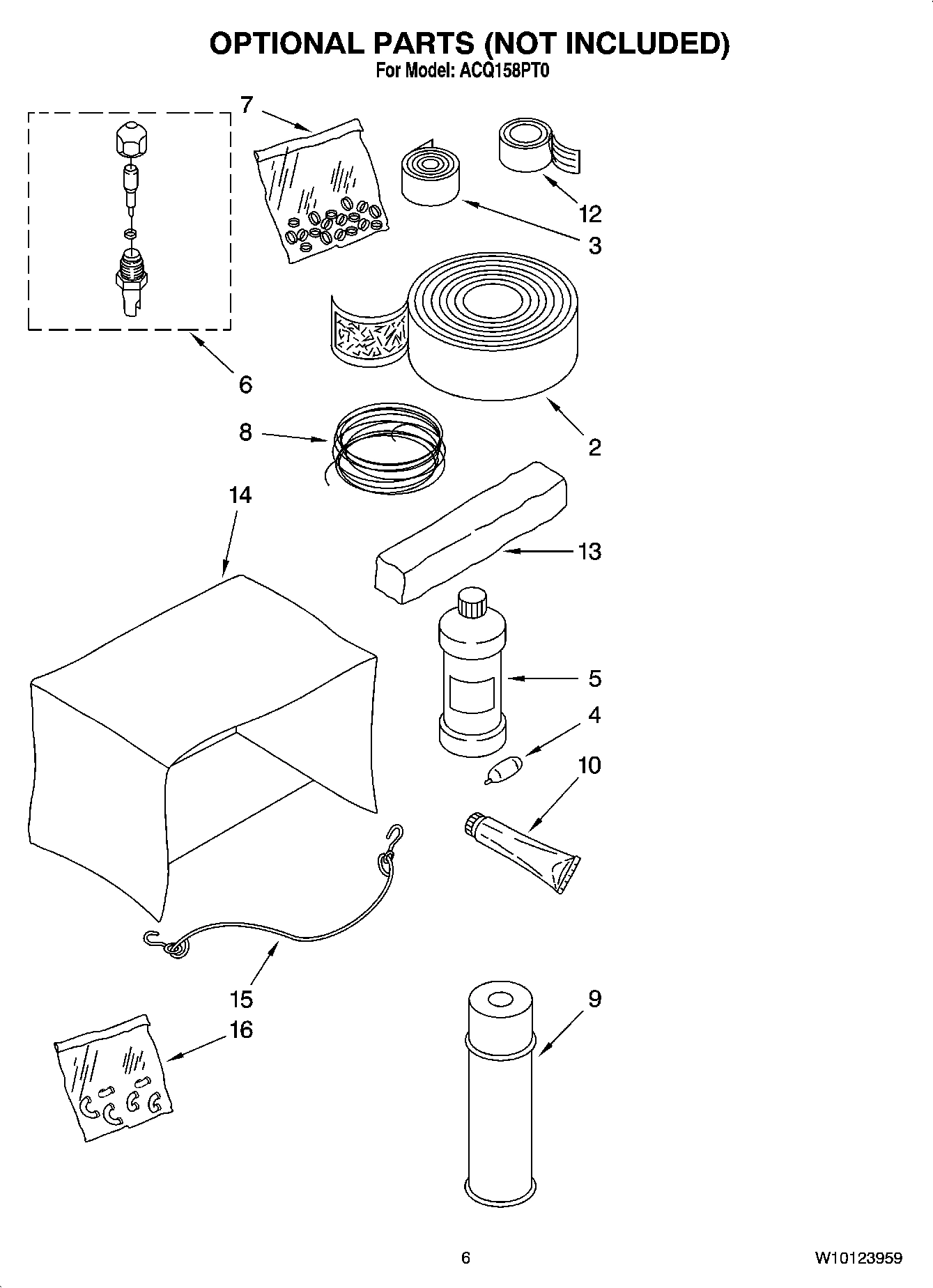

04 - OPTIONAL PARTS (NOT INCLUDED)

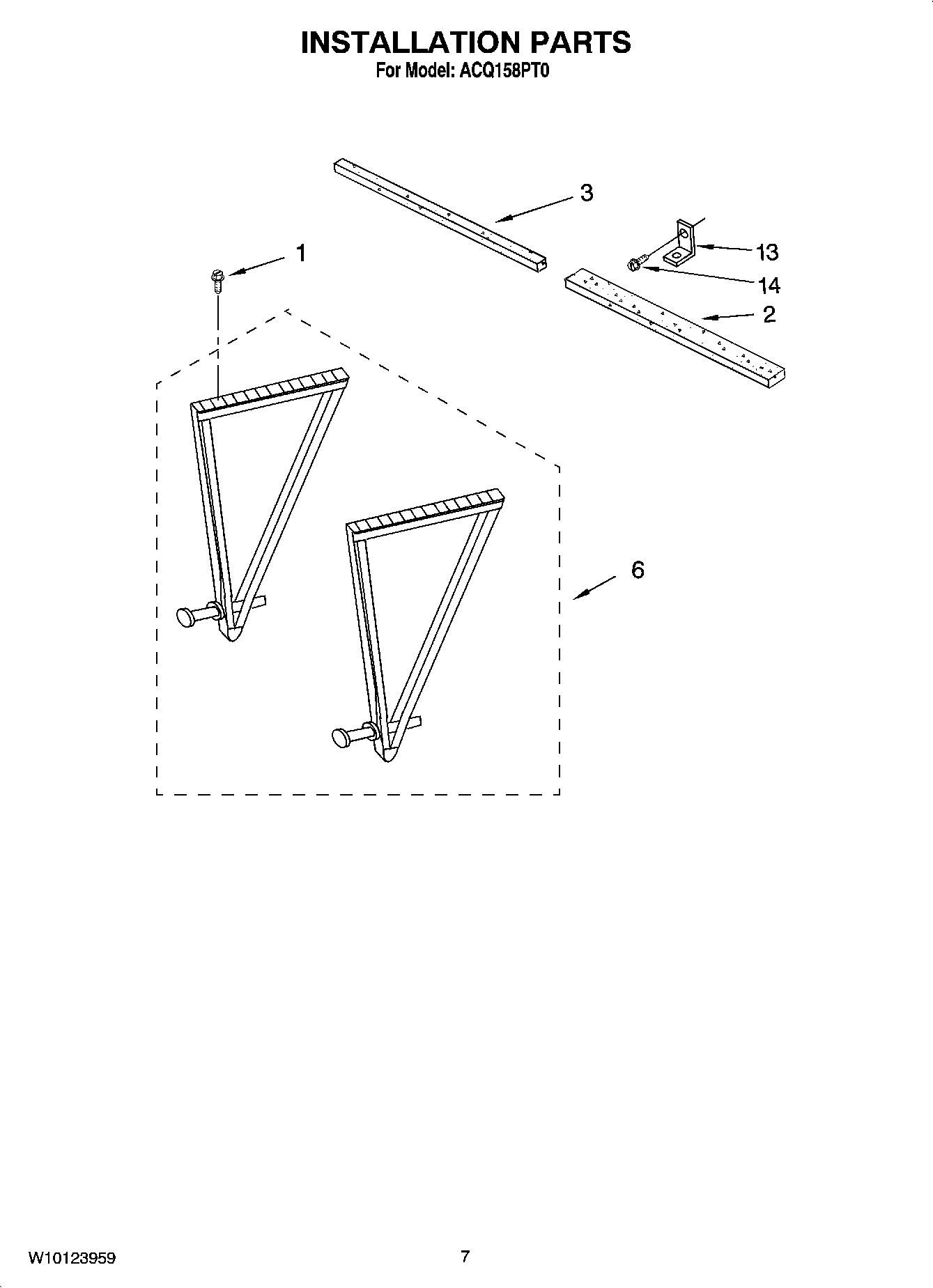

05 - INSTALLATION PARTS

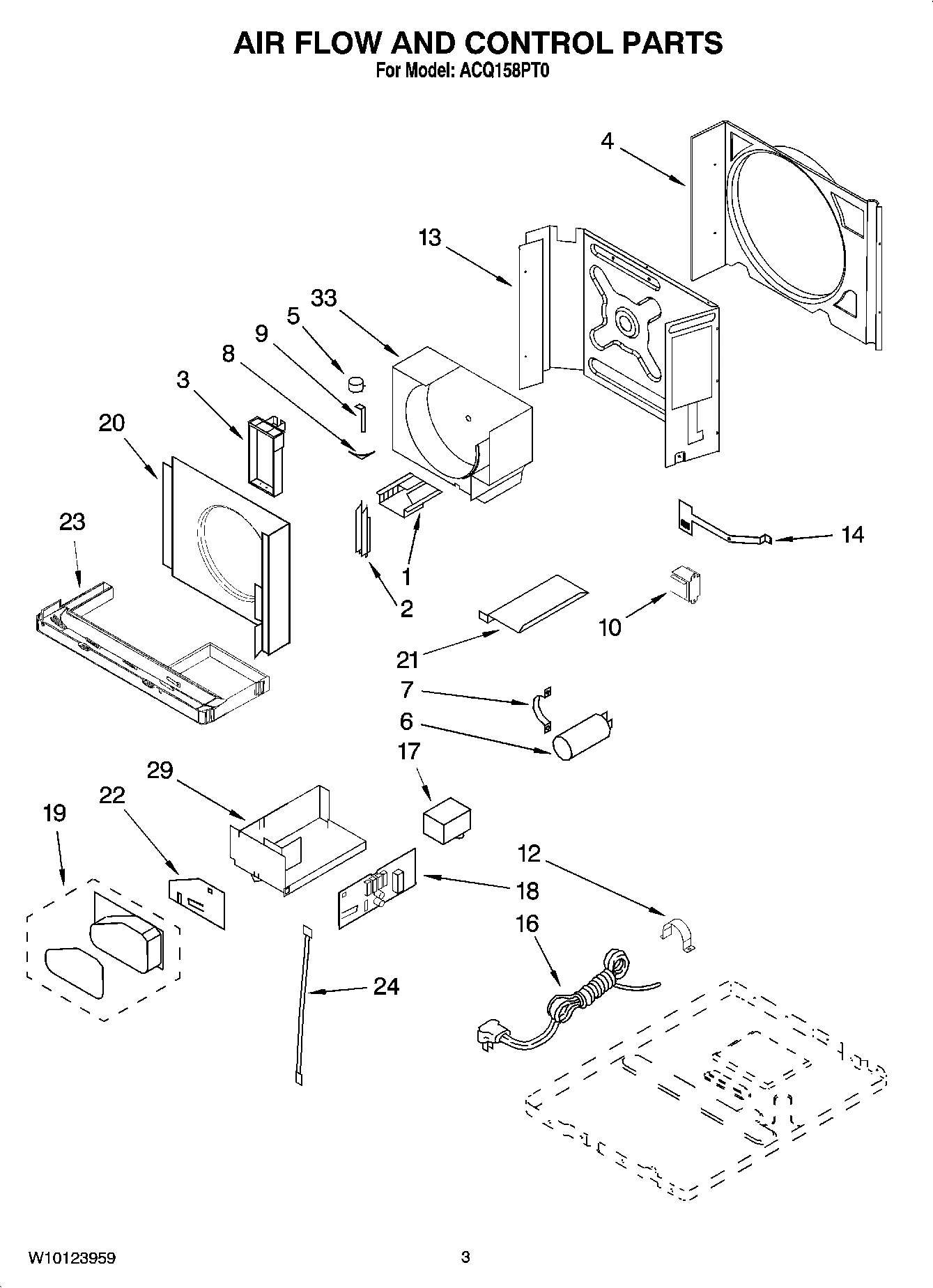

02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACQ158PT0 AIR CONDITIONER
1
Wiring Diagram WPL 8215241 Contact Us For Availability
1
Use & Care Guide WPL 8215279 Contact Us For Availability
1
Energy Guide WPL W10122486 Contact Us For Availability
1
Screw (6) WPL 8215271 Contact Us For Availability
1
Housing, Air WPL 8215111 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Nut W/Washer WPL 8215290 Contact Us For Availability
2
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
2
Louver WPL 8215112 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Support, Tube Sensor WPL 8209771 Contact Us For Availability
3
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
3
Cartridge, Louver WPL 8215116 Contact Us For Availability
4
CLIP WPL 8215148 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 8215119 Contact Us For Availability
5
Drain Plug WPL 8215149 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
5
Motor, Louver WPL 8215293 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor WPL 8215298 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet WPL 8215098 Contact Us For Availability
6
Capacitor, Running WPL 8215299 Contact Us For Availability
7
Blade, Fan WPL 8215104 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 8215301 Contact Us For Availability
8
Bracket, Fan Motor WPL 8215107 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Linkage, Louver WPL 8215113 Contact Us For Availability
9
RELAY WPL 8215300 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Linkage, Louver WPL 8215115 Contact Us For Availability
10
Motor, Fan WPL 8215292 Contact Us For Availability
11
OVERLOAD WPL 8215294 Contact Us For Availability
12
WASHER WPL 8215291 Contact Us For Availability
12
Wire Clamp WPL 8215135 Contact Us For Availability
13
EVAPORATOR WPL 8215121 Contact Us For Availability
13
Bracket WPL 8209930 Contact Us For Availability
13
Wall, Dividing WPL 8215109 Contact Us For Availability
14
Front, Cabinet Assembly WPL 8215140 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 8205272 Contact Us For Availability
14
Door, Exhaust WPL 8215117 Contact Us For Availability
15
Gasket WPL 8215296 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Cover, Evaporator WPL 8215106 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Cord, Appliance WPL 8215303 Contact Us For Availability
17
Guide, Louver WPL 8215143 Contact Us For Availability
17
Nut W/Washer WPL 8215297 Contact Us For Availability
17
Capacitor WPL 8209948 Contact Us For Availability
18
Guide, Filter (Up) WPL 8215145 Contact Us For Availability
18
Guide, Filter (Down) WPL 8215146 Contact Us For Availability
18
BASE WPL 8215306 Contact Us For Availability
18
Microcomputer WPL 8215302 Contact Us For Availability
19
Guide, Louver WPL 8215144 Contact Us For Availability
19
Escutcheon WPL 8215138 Contact Us For Availability
20
Shroud, Evaporator WPL 8215105 Contact Us For Availability
21
CONDENSER WPL 8215289 Contact Us For Availability
21
Cover, Air Duct WPL 8215120 Contact Us For Availability
22
Display Board WPL 8215137 Contact Us For Availability
23
Pan, Evaporator WPL 8215127 Contact Us For Availability
24
Thermistor WPL 8209739 Contact Us For Availability
29
Box, Control WPL 8215133 Contact Us For Availability
33
Housing, Air WPL 8215110 Contact Us For Availability
39
Compressor Assy. WPL 8215295 Contact Us For Availability
40
Wheel, Blower WPL 8215118 Contact Us For Availability
40
REFRIGERANT CHARGE 28.56 oz. WPL ARI144108A Contact Us For Availability
× ![]()
