Model Whirlpool ACQ154XX0 AIR CONDITIONER – Common Parts & Diagrams

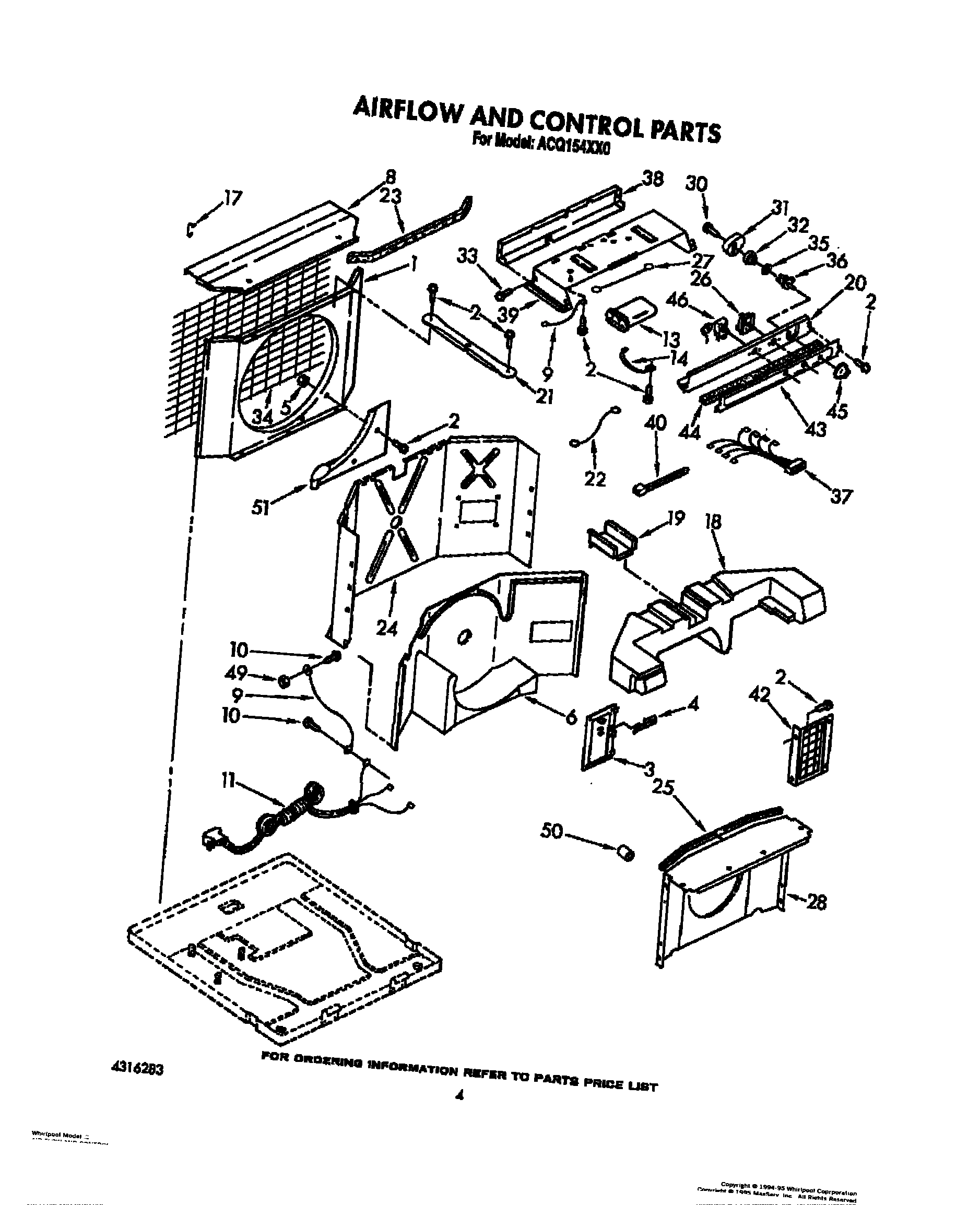

03 - AIR FLOW AND CONTROL

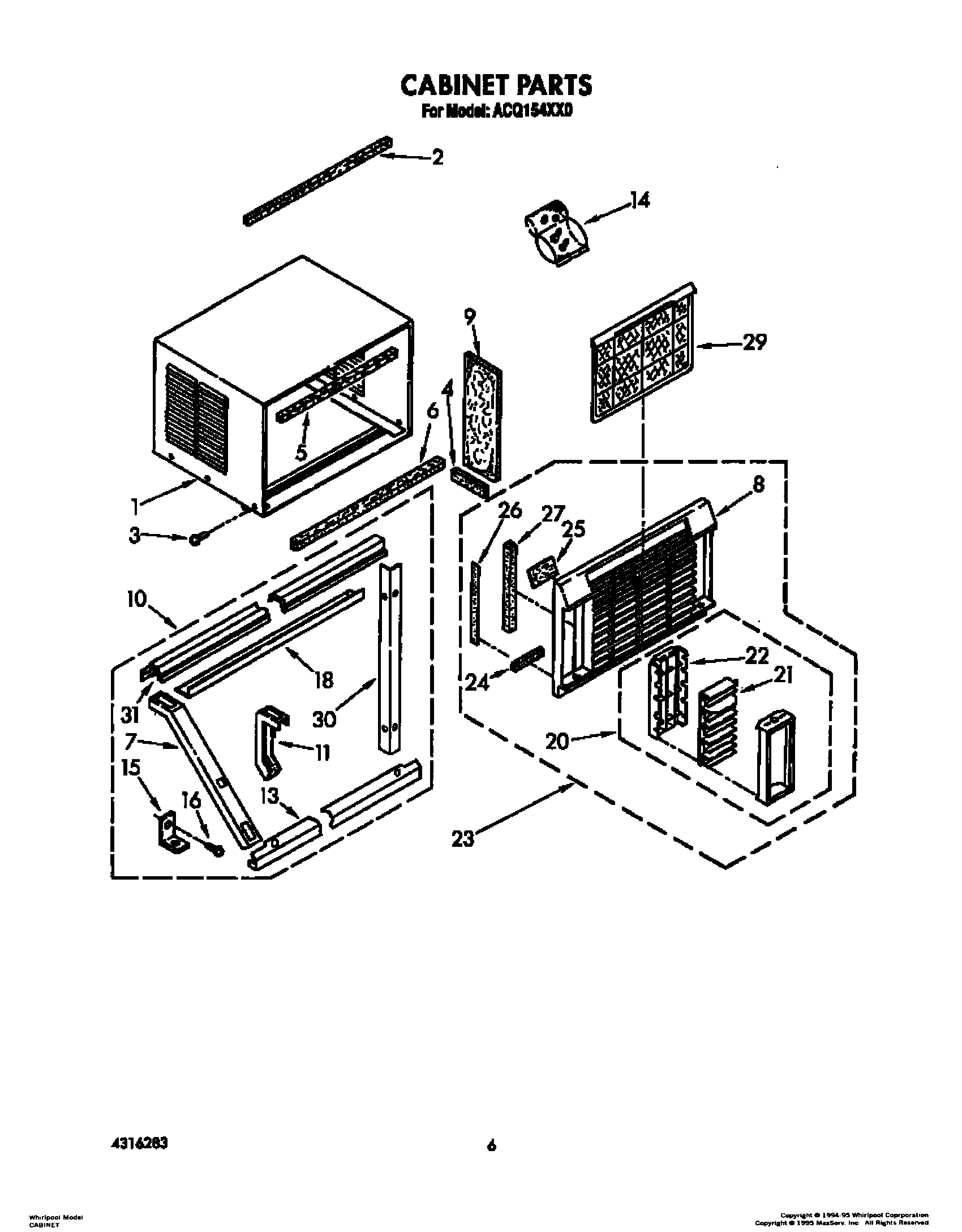

04 - CABINET
02 - UNIT, LIT/OPTIONAL
05 - OPTIONAL
Common parts from model Whirlpool ACQ154XX0 AIR CONDITIONER
1
Cabinet WPL 1157426 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (17) Evaporator (2) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (13) WPL 708531 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1160789 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Support Cabinet WPL 649945 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
8
Seal, Suction Tube WPL 1158672 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
9
Bracket, Fan Motor WPL 1157411 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Kit, Window Mounting WPL 1160600 Contact Us For Availability
10
Motor, Fan WPL 1158381 Contact Us For Availability
11
Retainer, Cabinet Support WPL 649946 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
13
Bracket, Support WPL 649947 Contact Us For Availability
13
EVAPORATOR WPL 1157498 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bag, Accessory WPL 1158746 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Condenser WPL 1158662 Contact Us For Availability
17
Tube, Riser (2) WPL 1156329 Contact Us For Availability
18
Angle, Top Mtg. WPL 644271 Contact Us For Availability
18
Base WPL 1158678 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
19
Seal, Restrictor Tube WPL 1160772 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1158689 Contact Us For Availability
21
Support, Unit (2) WPL 1157420 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
21
Compressor WPL 4210305 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1157462 Contact Us For Availability
24
Dividing Wall WPL 1157402 Contact Us For Availability
24
Seal (2) WPL 1160764 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Evaporator WPL 1158733 Contact Us For Availability
25
Seal (Right Side) WPL 1160770 Contact Us For Availability
25
Seal (Left Side) WPL 1160771 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Seal (2) WPL 1160763 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
29
Filter WPL 1157468 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Angle, Side Mtg. WPL 644272 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Gasket, Sash WPL 644288 Contact Us For Availability
31
Return Bend (2) WPL 1158692 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Manifold, Suction WPL 1158690 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Grill, Rear WPL 1158722 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
42
Impeller Guard (2) WPL 1158651 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1158658 Contact Us For Availability
43
Buy Guide WPL LIT1157430 Contact Us For Availability
43
Tech Sheet WPL LIT1157446 Contact Us For Availability
43
Use And Care Guide WPL LIT1157501 Contact Us For Availability
43
Instructions, Installation WPL LIT1157502 Contact Us For Availability
43
Literature Parts (List, Repair Parts) WPL LIT4316283 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
50
Spacer, (2) WPL 1158656 Contact Us For Availability
51
Cup, Condensate WPL 1158387 Contact Us For Availability
× ![]()
