Model Whirlpool ACQ142XJ0 AIR CONDITIONER – Common Parts & Diagrams

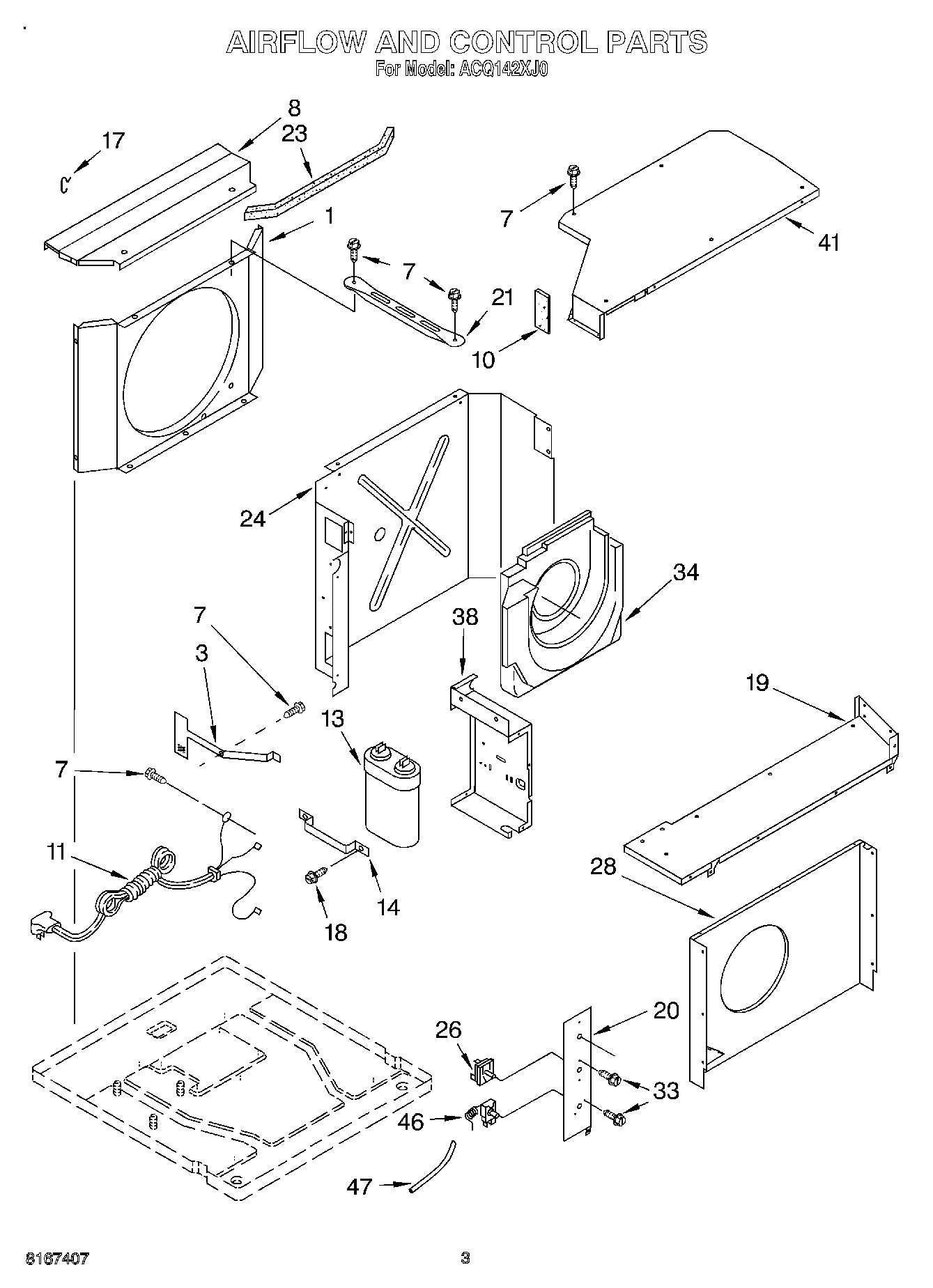

02 - AIR FLOW AND CONTROL

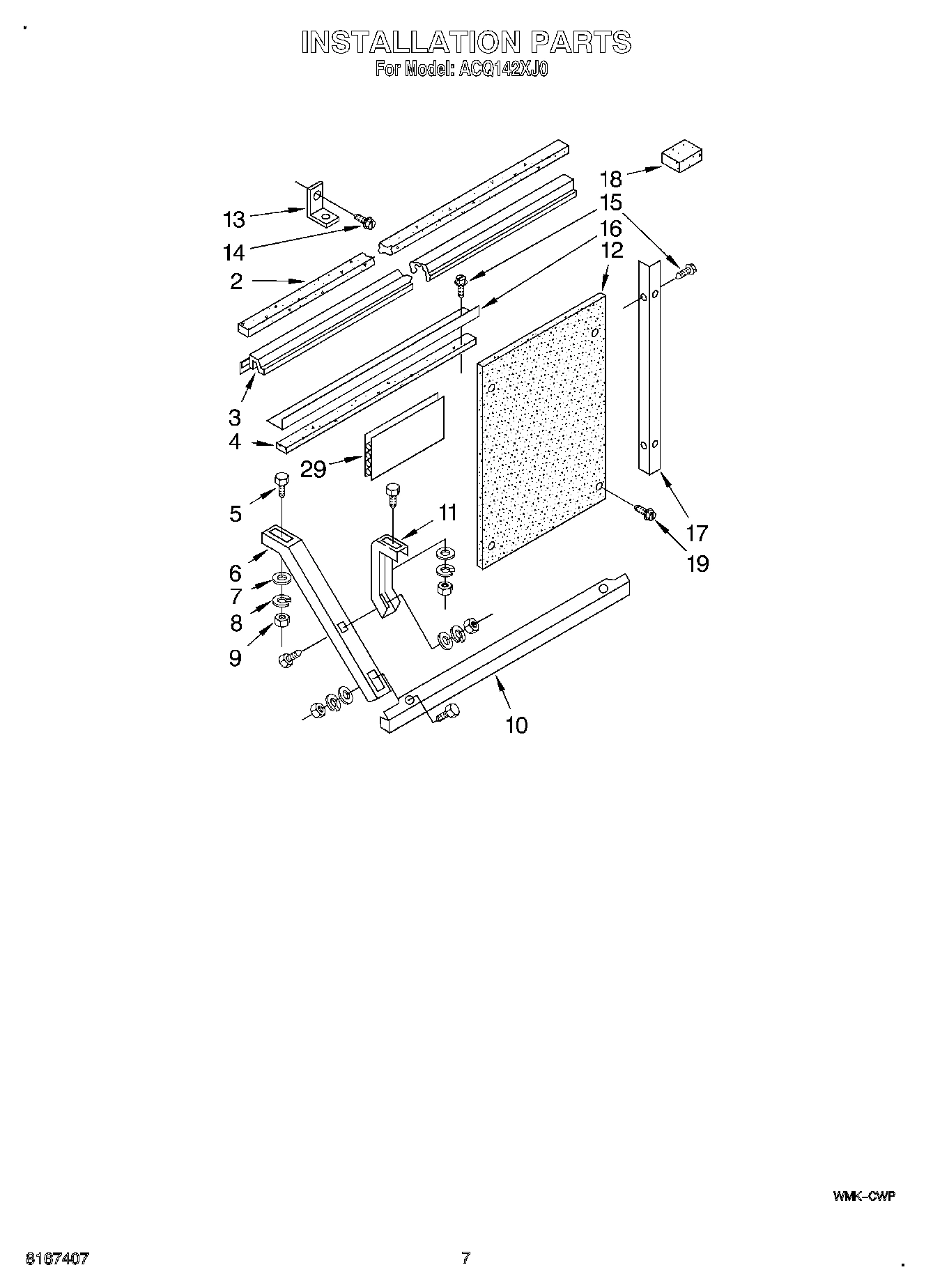

05 - INSTALLATION

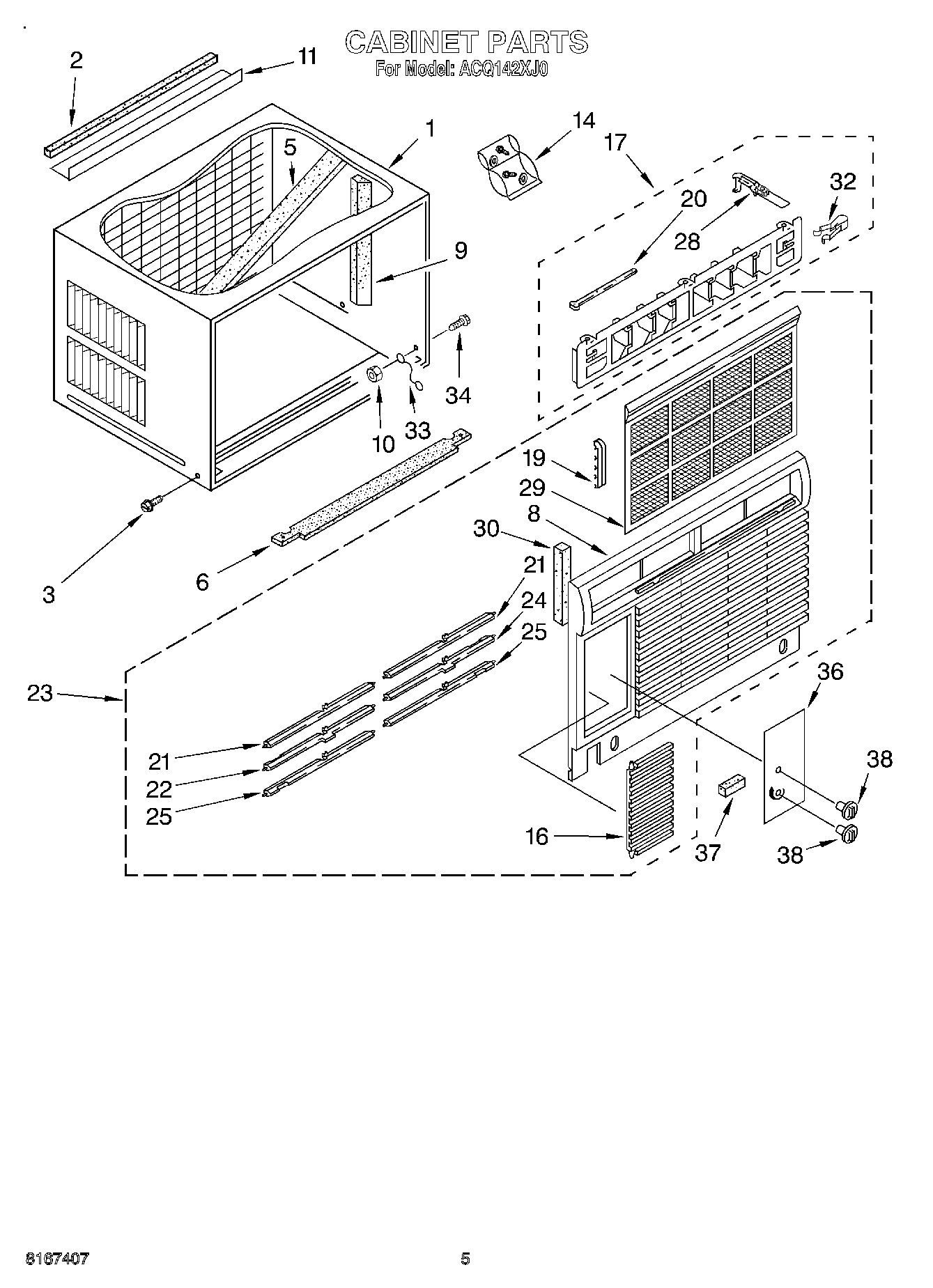

03 - CABINET

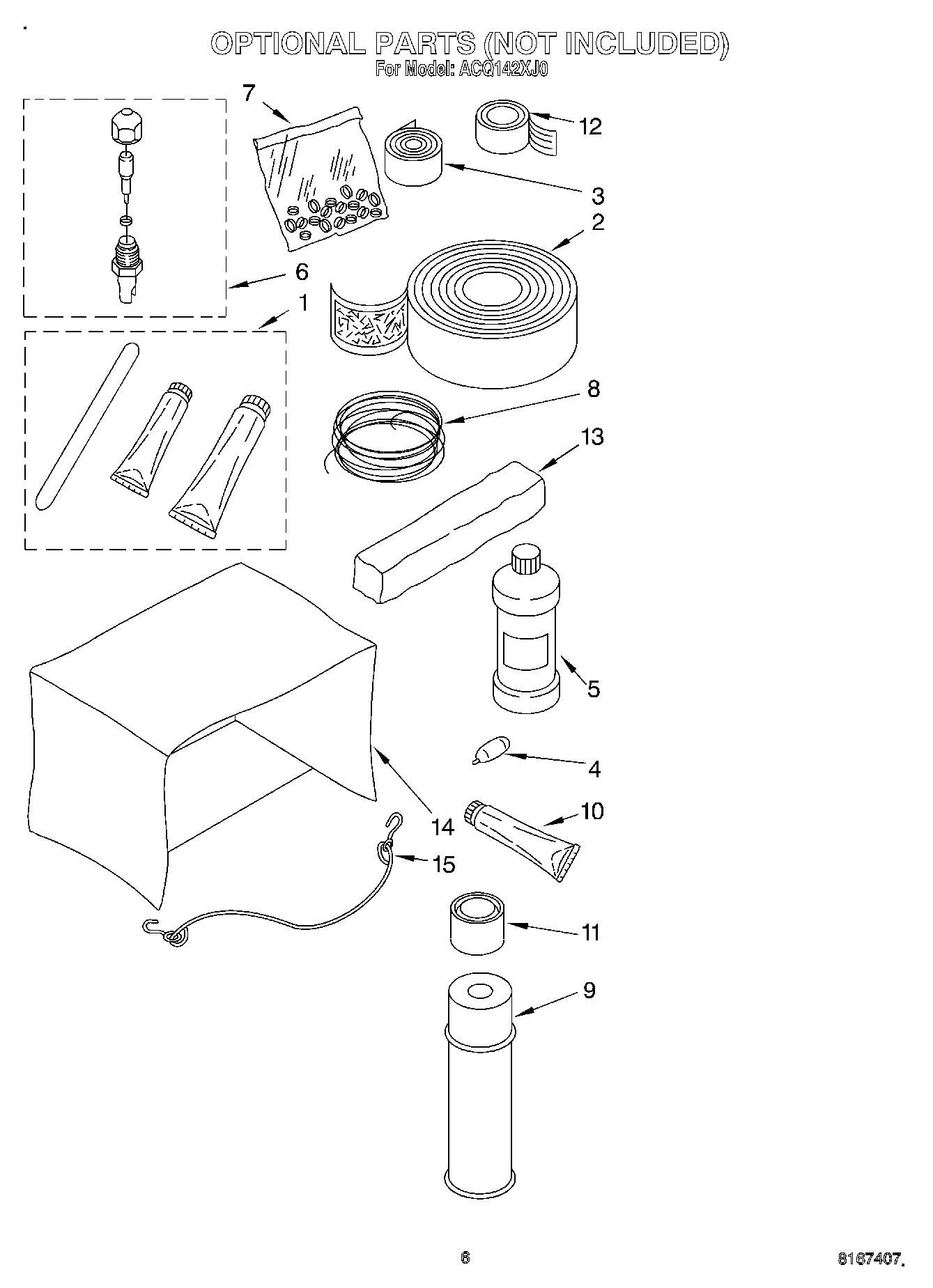

04 - OPTIONAL

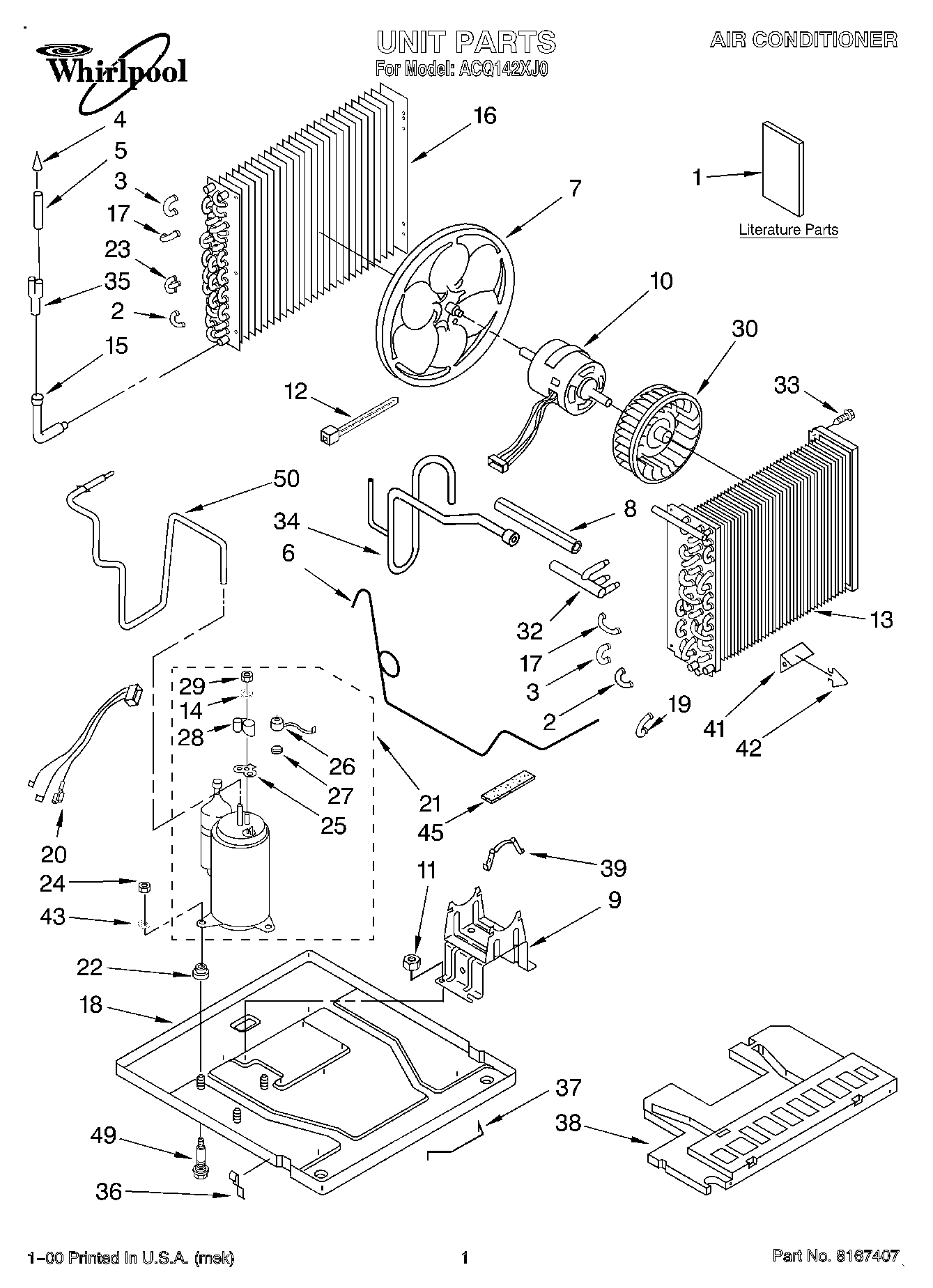

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACQ142XJ0 AIR CONDITIONER
1
Cabinet WPL 1168478 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1172260 Contact Us For Availability
1
Use & Care Guide WPL LIT1182935 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (11) Evaporator (10) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Bend, Return Condenser (12) Evaporator (8) WPL 708531 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Insulation, Cab. WPL 1183415 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus 4) WPL 950825 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1161074 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Front, Cabinet WPL 1183665 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1161045 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
10
Motor, Fan WPL 1183430 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Angle, Top Mount. WPL 1168490 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1169381 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
16
Door, Control WPL 1168507 Contact Us For Availability
16
Condenser WPL 1161332 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (3) WPL 1156329 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Link, Louver (Horizontal) WPL 1168496 Contact Us For Availability
19
Return Bend (2) WPL 1158407 Contact Us For Availability
20
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1183656 Contact Us For Availability
21
Louver, Horizontal (8) WPL 1168509 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
22
Louver, Horizontal W/ Handle, Left WPL 1168511 Contact Us For Availability
23
Front, Complete WPL 1183666 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
24
Louver, Horizontal W/ Handle, Right WPL 1168510 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Louver, Horizontal (Notch Right) WPL 1168512 Contact Us For Availability
25
Louver, Horizontal (Notch Left) WPL 1168513 Contact Us For Availability
26
Switch, Rotary WPL 1182964 Contact Us For Availability
26
Overload, Protector WPL 1155007 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
29
Filter WPL 1168514 Contact Us For Availability
30
Seal, Front (3) WPL 1163767 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Manifold, Suction WPL 1161502 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Tube, Suction WPL 1163922 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Plate, Escutcheon WPL 1182940 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Insulation, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183372 Contact Us For Availability
47
Sleeve, Insulating WPL 8011238 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Discharge WPL 1167366 Contact Us For Availability
× ![]()
