Model Whirlpool ACQ142XH0 AIR CONDITIONER – Common Parts & Diagrams

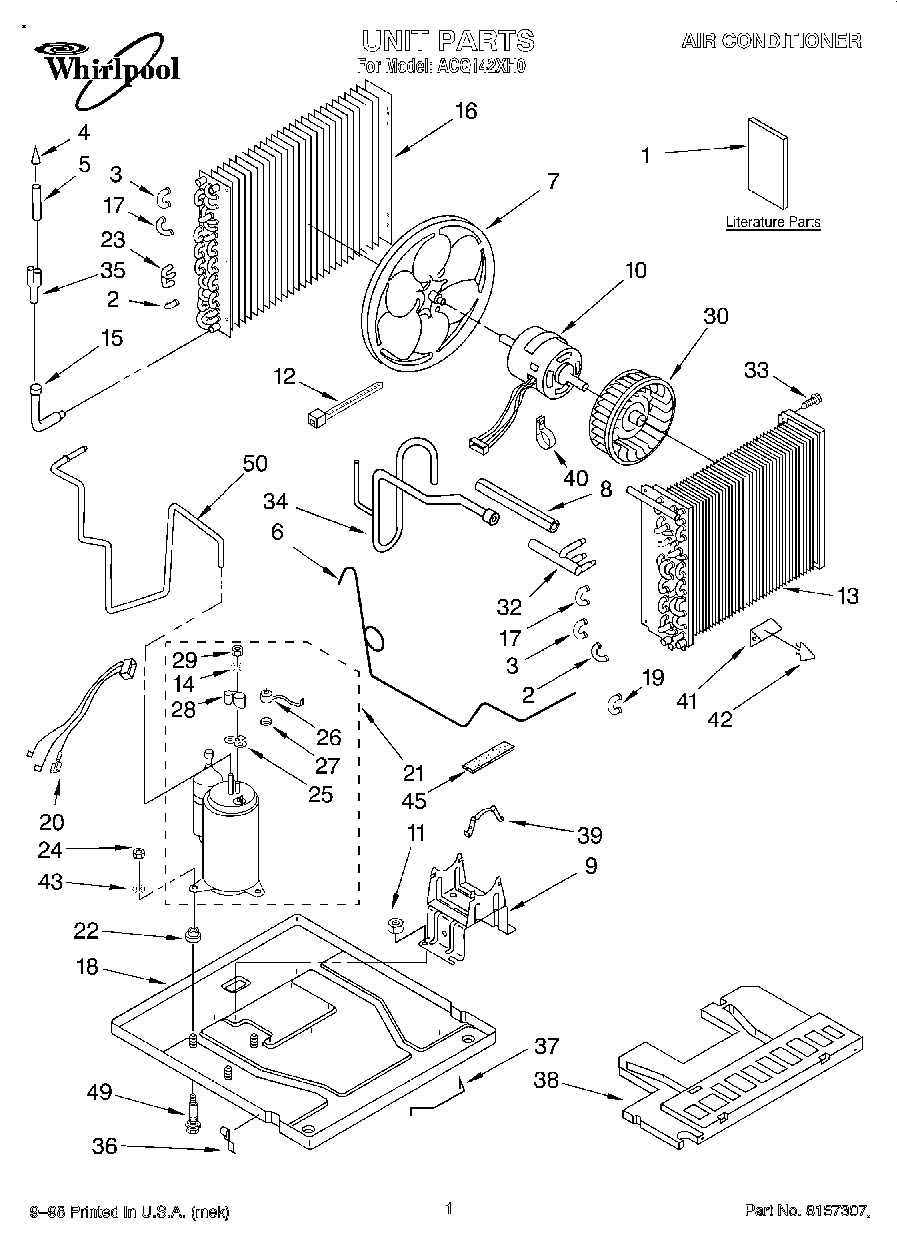

01 - UNIT, LITERATURE

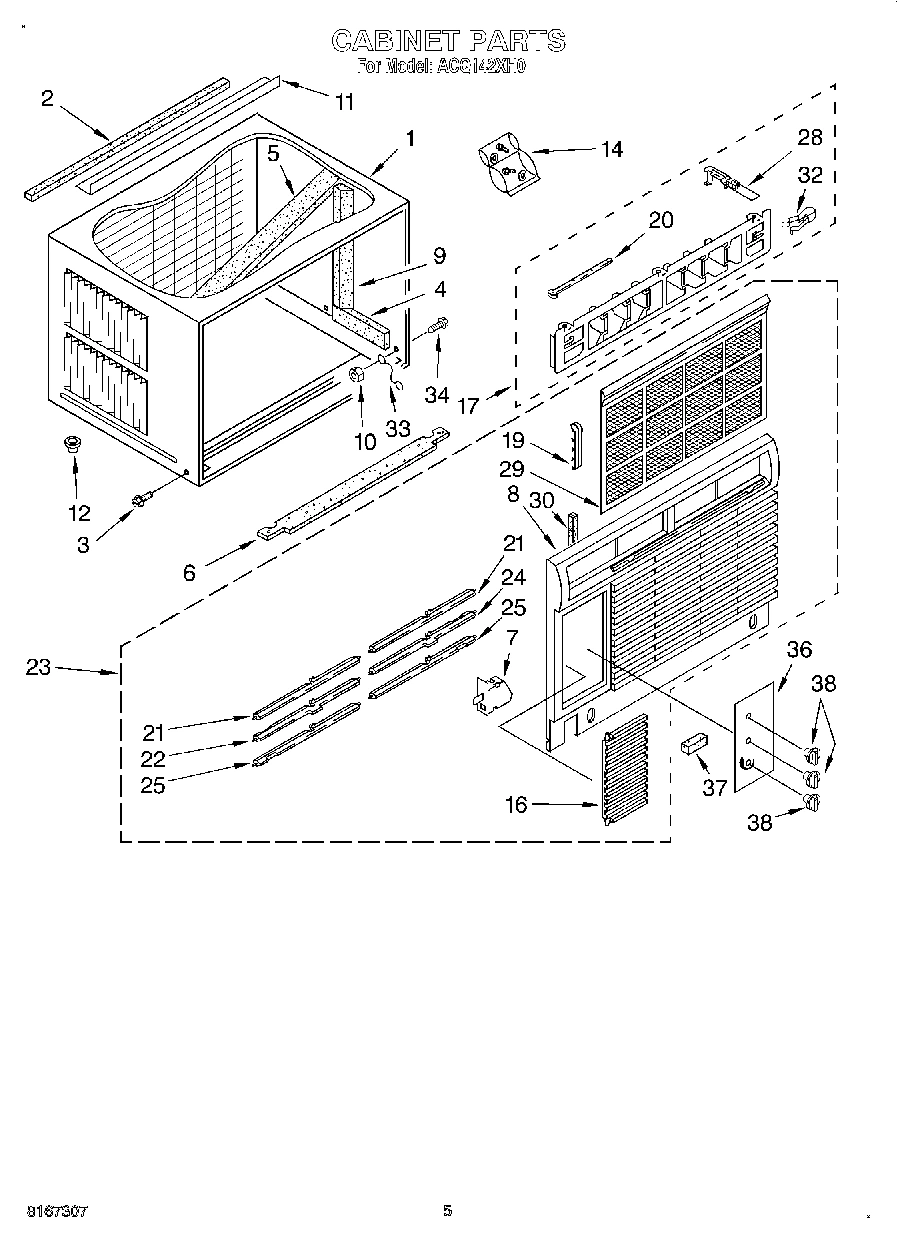

03 - CABINET

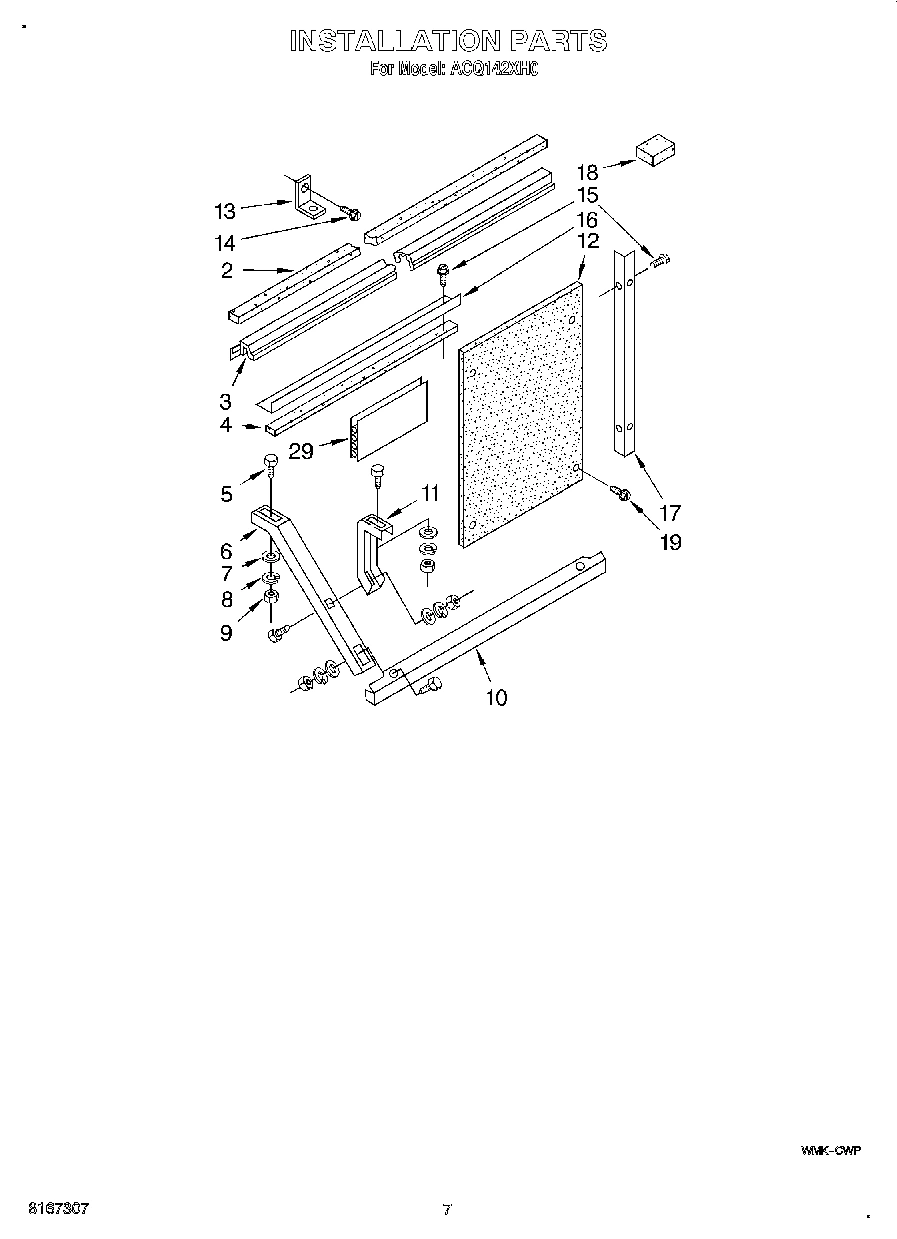

05 - INSTALLATION

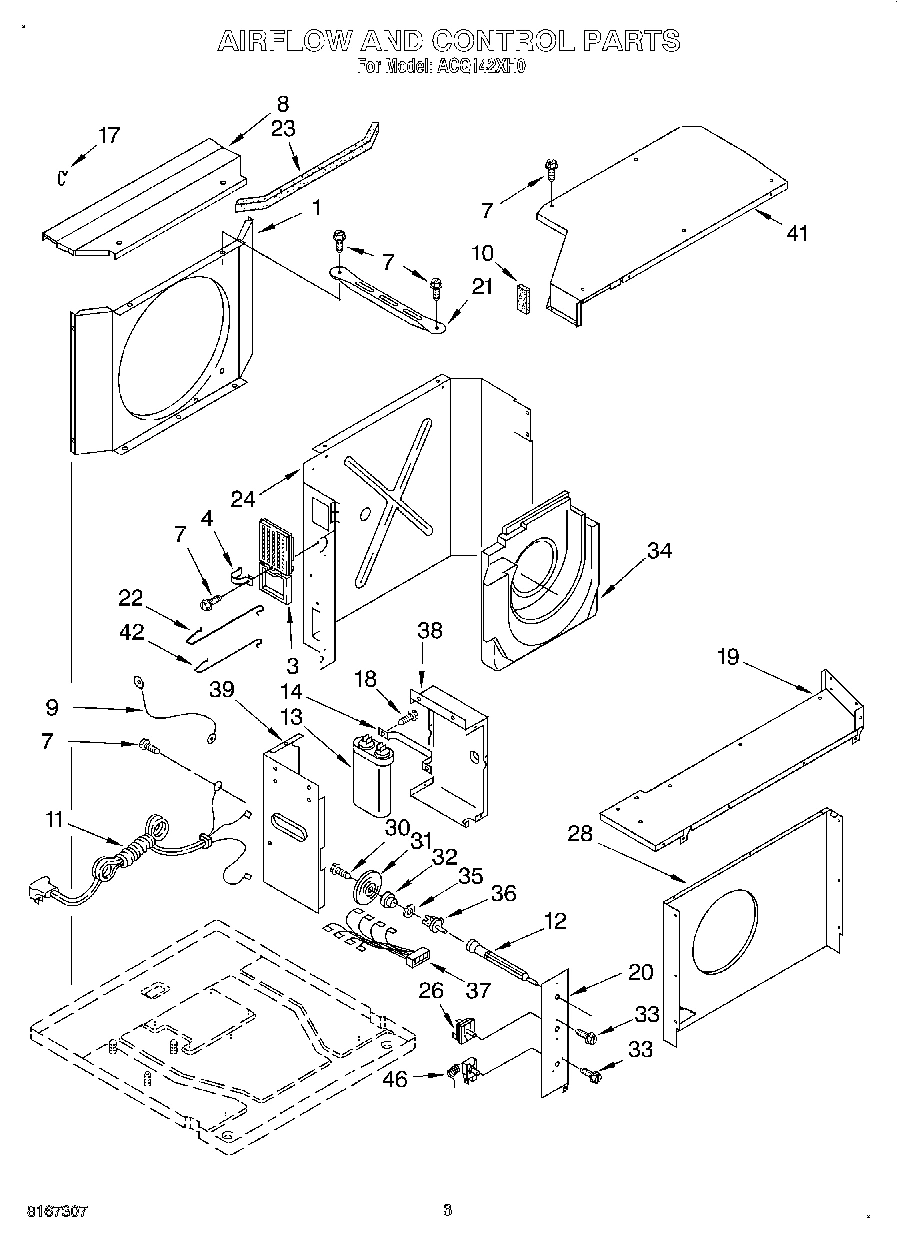

02 - AIRFLOW AND CONTROL

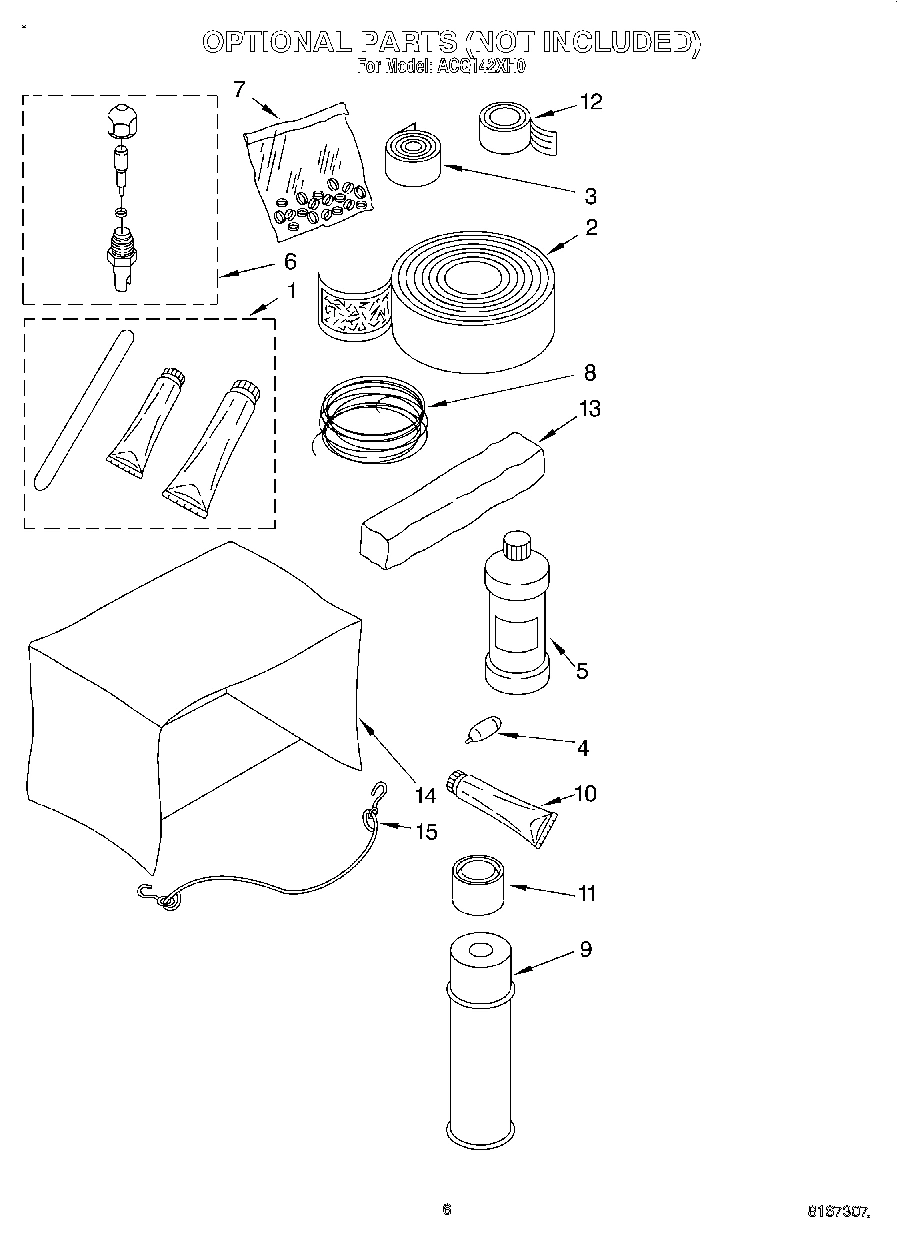

04 - OPTIONAL
Common parts from model Whirlpool ACQ142XH0 AIR CONDITIONER
1
Cabinet WPL 1168479 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Air WPL 1160652 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Spring, Door WPL 1160653 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Insulation, Cab. WPL 1167203 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Monitor, Filter WPL 1168506 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Front, Cabinet WPL 1168508 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1162099 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
10
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cable, Appliance WPL 1167644 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Cup, Condensate Drain WPL 997285 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Control, Shaft WPL 1161504 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
CAPACITOR WPL 1162606 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1161332 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Door, Control WPL 1168507 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (3) WPL 1156329 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend (2) WPL 1158407 Contact Us For Availability
19
Link, Louver (Horizontal) WPL 1168496 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Evap. Shroud Top WPL 1168484 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1161054 Contact Us For Availability
20
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
20
Panel, Control WPL 1160676 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
21
Louver, Horizontal (8) WPL 1168509 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Louver, Horizontal W/ Handle, Left WPL 1168511 Contact Us For Availability
22
Wire, Control Fresh Air WPL 1162063 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1168502 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Louver, Horizontal W/ Handle, Right WPL 1168510 Contact Us For Availability
24
Dividing Wall WPL 1161706 Contact Us For Availability
25
Louver, Horizontal (Notch Right) WPL 1168512 Contact Us For Availability
25
Louver, Horizontal (Notch Left) WPL 1168513 Contact Us For Availability
26
Overload, Protector WPL 1155007 Contact Us For Availability
26
Switch Rotary WPL 1172177 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Filter WPL 1168514 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
30
Seal, Front (3) WPL 1163767 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
32
Manifold, Suction WPL 1161502 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1163922 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1168522 Contact Us For Availability
36
Shaft, Control Exhaust WPL 854369 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1167524 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Knobs (3) WPL 1168491 Contact Us For Availability
38
Control Box (R.S.) WPL 1161704 Contact Us For Availability
39
Control Box (L.S.) WPL 1164516 Contact Us For Availability
40
Clamp, Wiring WPL 1163775 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Cover, Top WPL 1168477 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
45
Insulation, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1168919 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Discharge WPL 1167366 Contact Us For Availability
× ![]()
