Model Whirlpool ACQ142XD0 AIR CONDITIONER – Common Parts & Diagrams

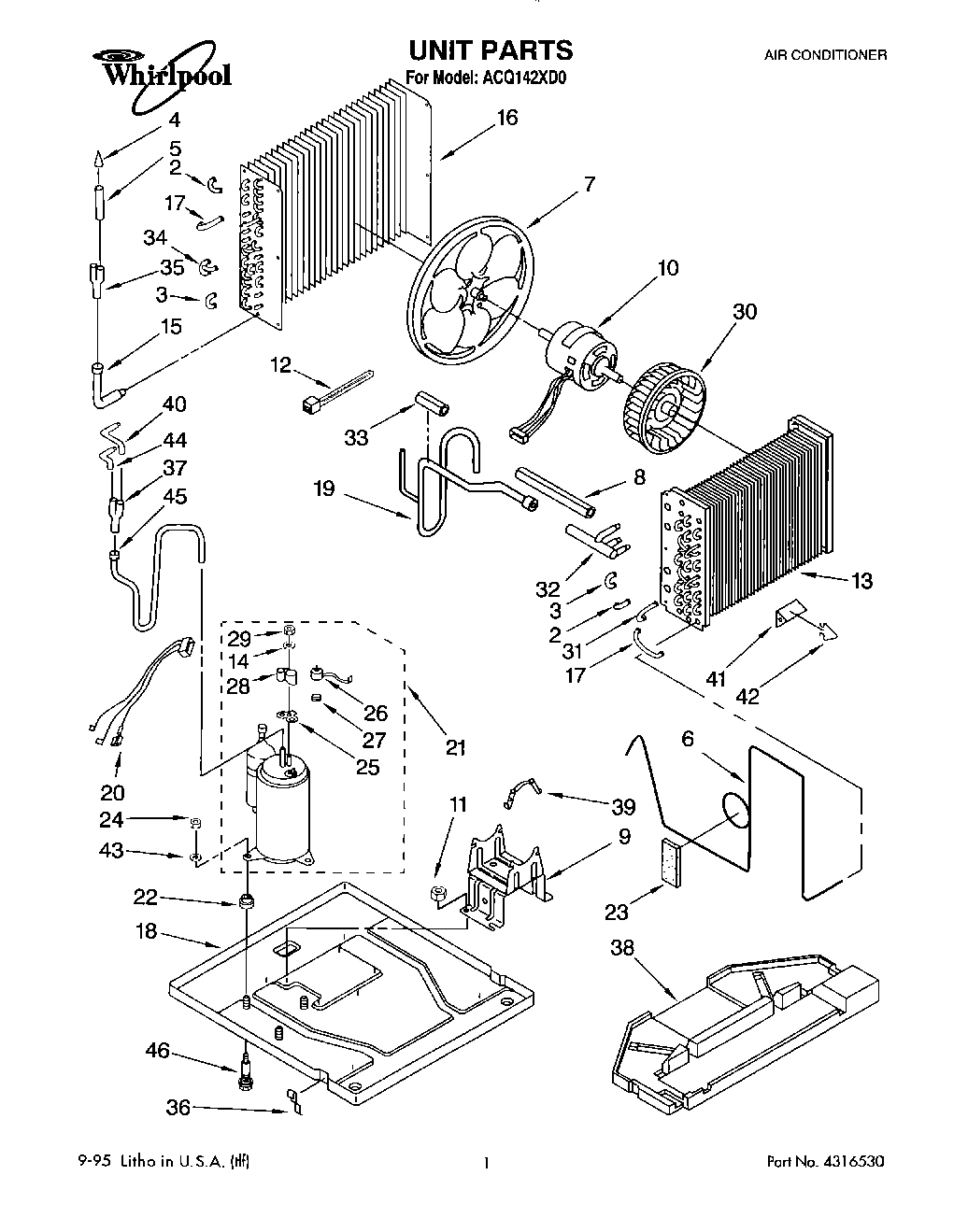

01 - UNIT, LITERATURE

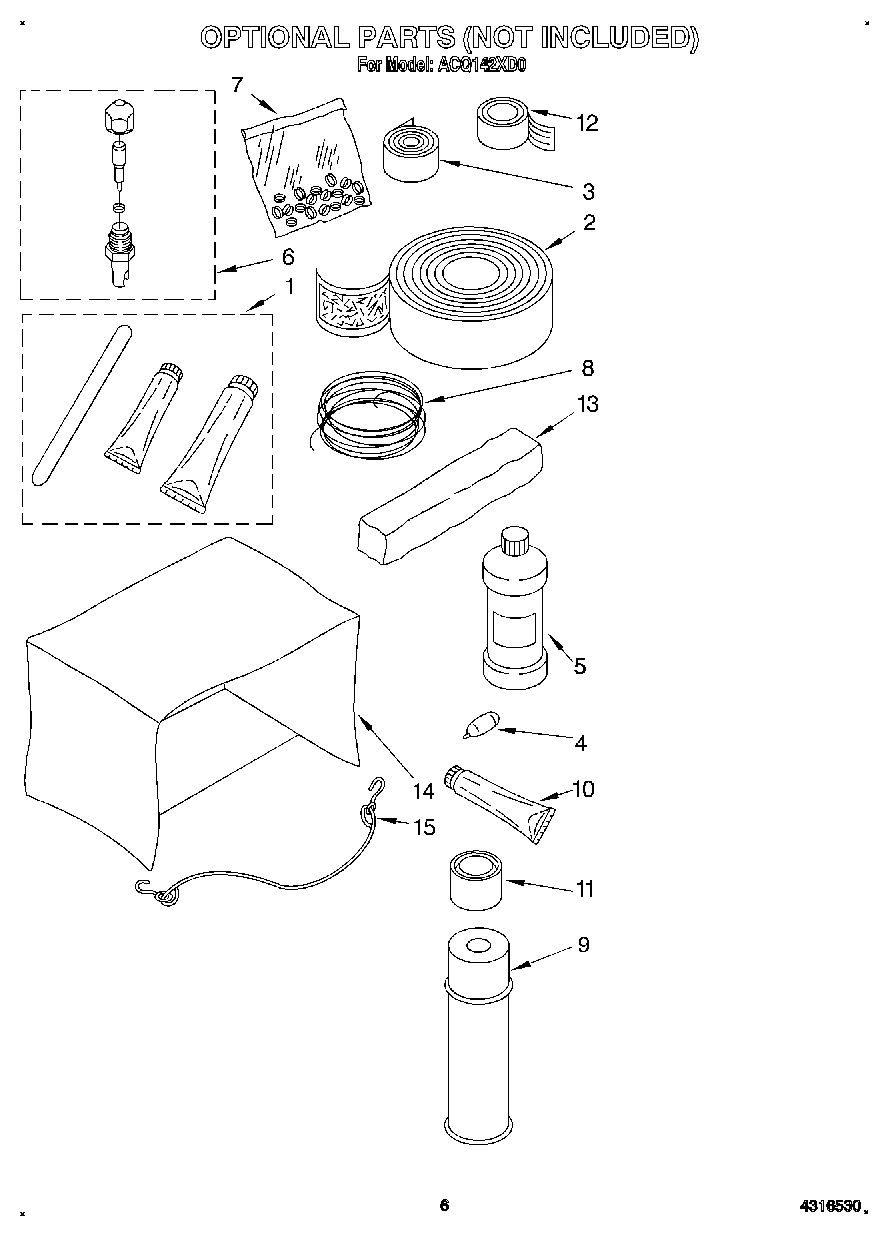

04 - OPTIONAL

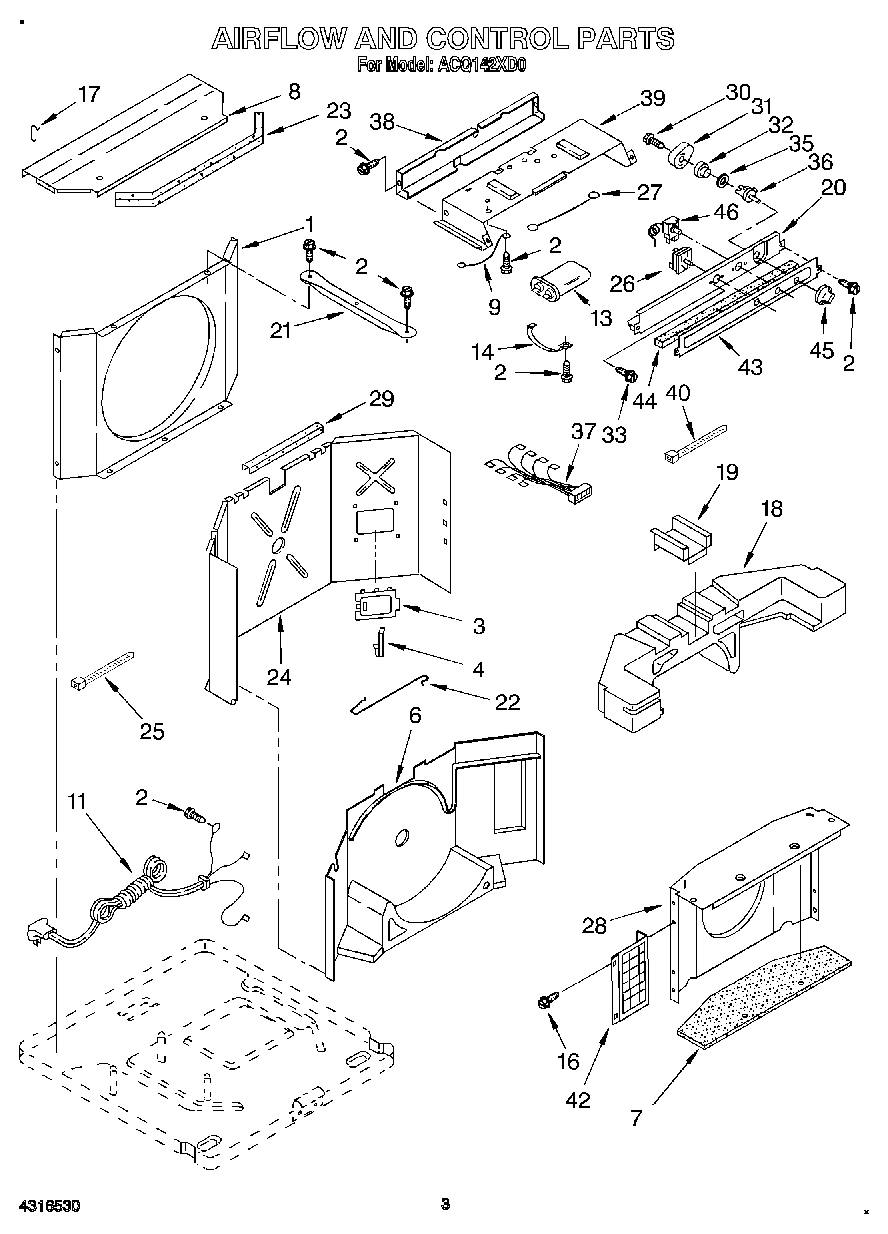

02 - AIRFLOW AND CONTROL
03 - CABINET

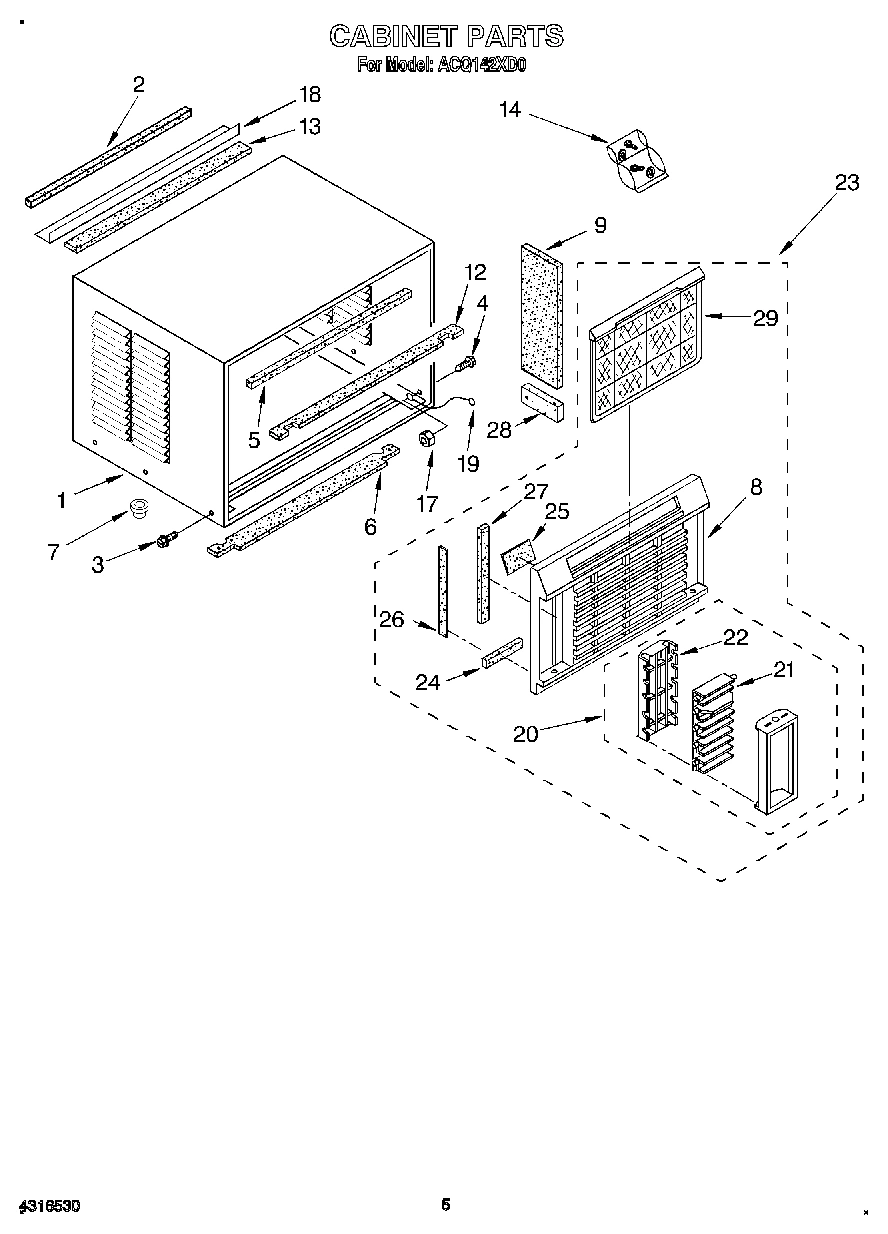

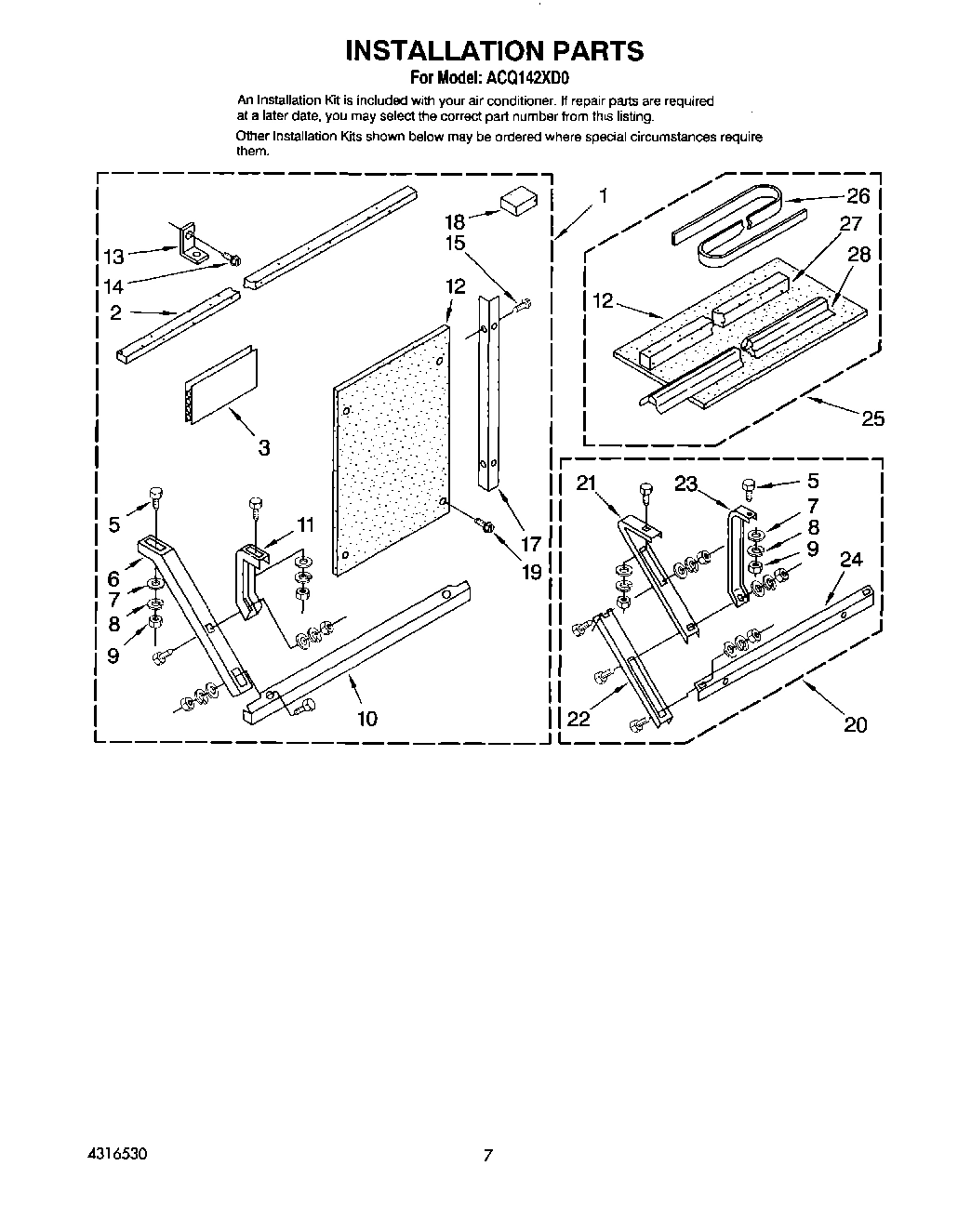

05 - INSTALLATION
Common parts from model Whirlpool ACQ142XD0 AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Cabinet WPL 1162272 Contact Us For Availability
1
Kit, Standard Installation WPL 1163842 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 997221 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Spring, Door WPL 859369 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Scroll (Lower) WPL 1158653 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Seal, Evaporator WPL 1160820 Contact Us For Availability
7
Cup, Condensate WPL 997285 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cord, Appliance WPL 1163527 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
12
Seal WPL 1160762 Contact Us For Availability
12
Board, Filler WPL 1166266 Contact Us For Availability
13
Capacitor, Running WPL 1159893 Contact Us For Availability
13
Seal, Top Mount. WPL 1163784 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1163522 Contact Us For Availability
16
Screw, 8-18 x 3/8 WPL 1161561 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (2) WPL 1156329 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
18
Base (Includes 46) WPL 1162146 Contact Us For Availability
18
Scroll, Upper WPL 1158654 Contact Us For Availability
18
Angle, Top Mtg. WPL 644271 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Tube, Suction WPL 1163412 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
19
Ground, Cabinet WPL 857022 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1158689 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
21
Support, Unit (2) WPL 1164561 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1166751 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
24
Seal (Left Side) WPL 1160763 Contact Us For Availability
24
Seal (Right Side) WPL 1160764 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Seal (Right Side) WPL 1160770 Contact Us For Availability
25
Seal (Left Side) WPL 1161864 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Overload WPL 1155007 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
26
Seal WPL 1160769 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
28
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
29
Filter WPL 1166750 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163407 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (2) WPL 1158692 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Manifold, Suction WPL 1162043 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Dampener WPL 1163850 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Bend, Return WPL 1158685 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Flow, Divider WPL 1162071 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube, Feeder WPL 1160357 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1161555 Contact Us For Availability
43
Escutcheon WPL 1166499 Contact Us For Availability
44
Tube, Feeder WPL 1160358 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Tube, Discharge WPL 1161047 Contact Us For Availability
46
Bolt, Compressor WPL 1165674 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
× ![]()
