Model Whirlpool ACQ128PT1 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT PARTS
02 - AIR FLOW AND CONTROL PARTS

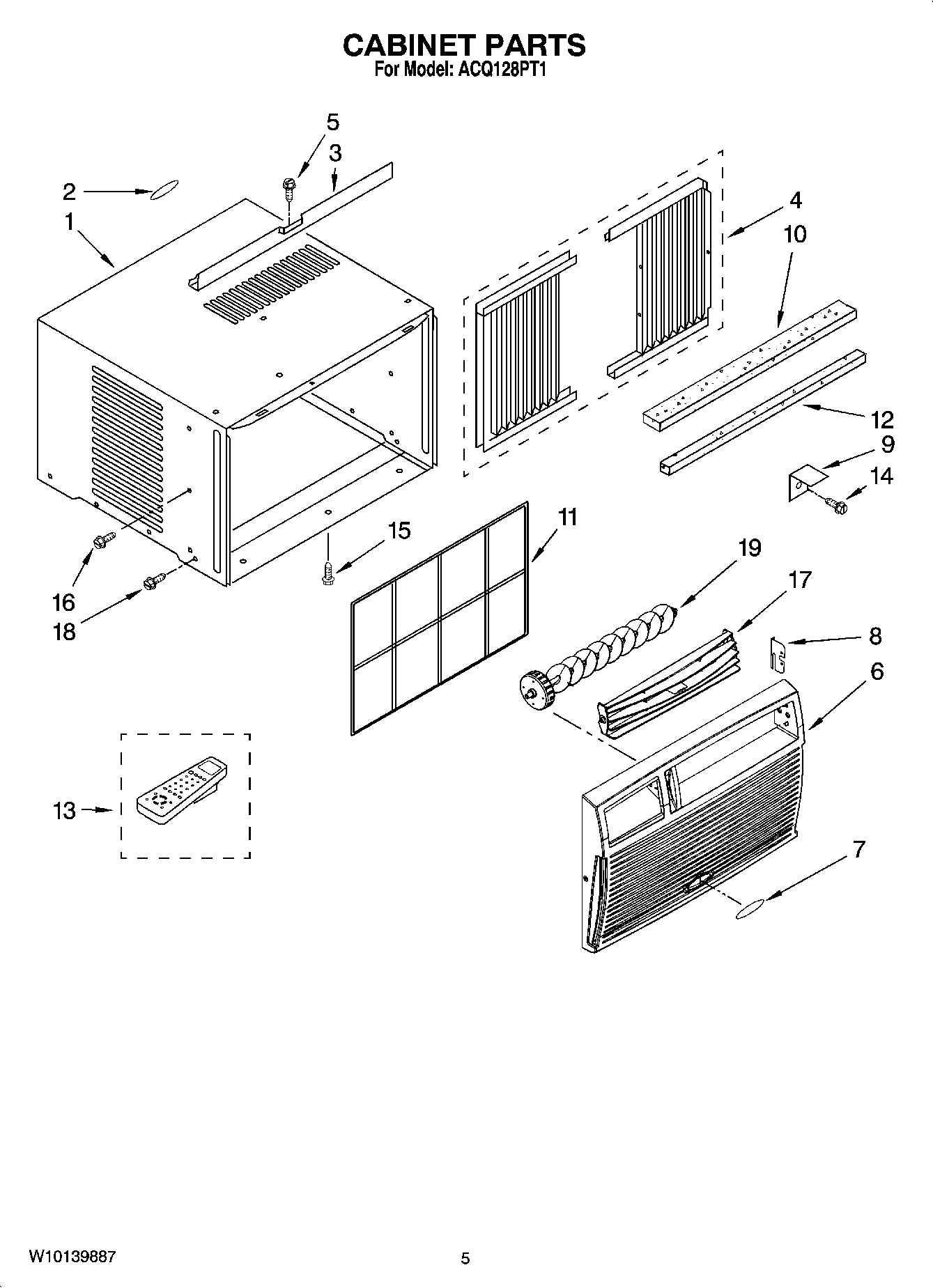

03 - CABINET PARTS
Common parts from model Whirlpool ACQ128PT1 AIR CONDITIONER
1
Wiring Diagram WPL 8215239 Contact Us For Availability
1
Use & care Guide WPL 8215278 Contact Us For Availability
1
Energy Guide WPL W10122485 Contact Us For Availability
1
Screw WPL 8209674 Contact Us For Availability
1
CABINET WPL 8215067 Contact Us For Availability
2
Overload WPL 8215058 Contact Us For Availability
2
Shroud, Condenser WPL 8215064 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Tube, Restrictor WPL 8215075 Contact Us For Availability
3
Capacitor, Running WPL 8215274 Contact Us For Availability
3
Channel, Top WPL 8215364 Contact Us For Availability
4
Blade, Fan WPL 8215065 Contact Us For Availability
4
Bracket, Capacitor WPL 8215050 Contact Us For Availability
4
Curtain Assembly Right & Left Side (Includes WPL 8215068 Contact Us For Availability
5
Grommet (3) WPL 8215077 Contact Us For Availability
5
Main Board WPL 8209790 Contact Us For Availability
6
Motor, Fan WPL 8215062 Contact Us For Availability
6
Interface Board WPL 8209792 Contact Us For Availability
6
Front Cabinet WPL 8209929 Contact Us For Availability
7
Nut, Hex WPL 8209660 Contact Us For Availability
7
Panel, Control WPL 8209945 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Tube, Discharge WPL 8215366 Contact Us For Availability
8
Overlay WPL 8209944 Contact Us For Availability
8
Support, Louver WPL 8209940 Contact Us For Availability
9
EVAPORATOR WPL 8215273 Contact Us For Availability
9
Ground Wire WPL 8215361 Contact Us For Availability
9
Bracket, Window Lock WPL 8209930 Contact Us For Availability
10
Wall, Dividing WPL 8215061 Contact Us For Availability
10
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
11
Cover, Evaporator WPL 8215063 Contact Us For Availability
11
WASHER WPL 8215285 Contact Us For Availability
11
Filter WPL 8209938 Contact Us For Availability
12
Support, Tube Sensor (2) WPL 8215082 Contact Us For Availability
12
Cord, Appliance WPL 8215265 Contact Us For Availability
12
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
13
Shroud, Evaporator WPL 8209943 Contact Us For Availability
13
Control, Remote WPL 8209730 Contact Us For Availability
14
BASE WPL 8215277 Contact Us For Availability
14
Screw WPL 8215069 Contact Us For Availability
15
Nut With Washer WPL 8215252 Contact Us For Availability
15
Capacitor, Motor WPL 8209948 Contact Us For Availability
15
SCREW WPL 8215271 Contact Us For Availability
16
Condenser WPL 8215376 Contact Us For Availability
16
Pan, Evaporator WPL 8215053 Contact Us For Availability
16
SCREW WPL 8215282 Contact Us For Availability
17
Nut, Hex WPL 8215276 Contact Us For Availability
17
Hood, Air Housing WPL 8215055 Contact Us For Availability
17
Louver, Assembly WPL 8209939 Contact Us For Availability
18
Tube, Suction WPL 8215074 Contact Us For Availability
18
Cover, Control Box WPL 8209947 Contact Us For Availability
18
Screw WPL 8215362 Contact Us For Availability
19
Compressor Assembly WPL 8215275 Contact Us For Availability
19
Housing, Air WPL 8215054 Contact Us For Availability
19
Louver, Vertical WPL 8209941 Contact Us For Availability
20
Wheel, Blower WPL 8215052 Contact Us For Availability
20
REFRIGERANT CHARGE 25.39 oz. WPL ARI20082A3 Contact Us For Availability
20
Panel, Front- Control Box WPL 8209946 Contact Us For Availability
22
SCREW WPL 8215284 Contact Us For Availability
× ![]()
