Model Whirlpool ACQ122XR0 AIR CONDITIONER – Common Parts & Diagrams

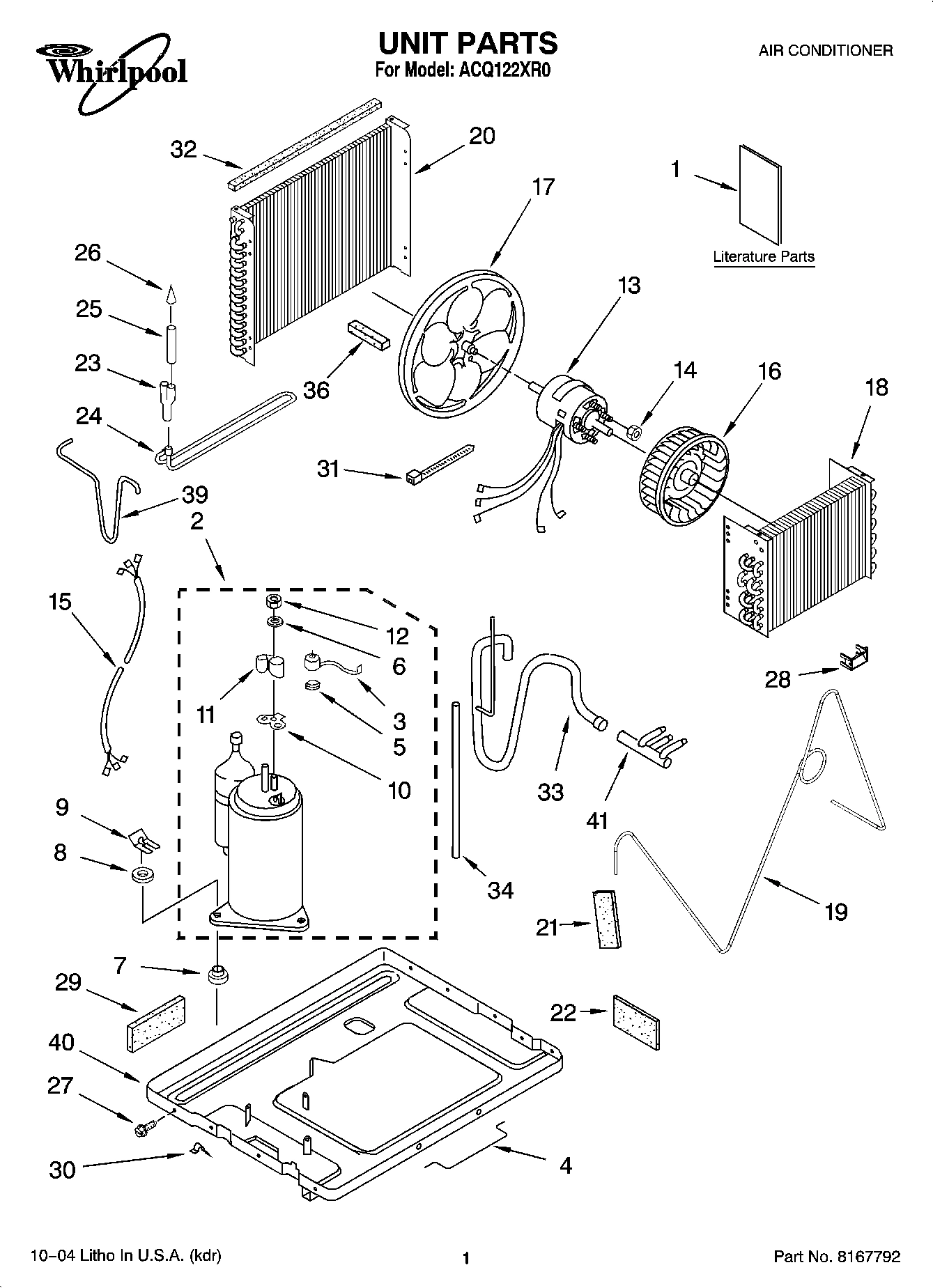

01 - UNIT PARTS

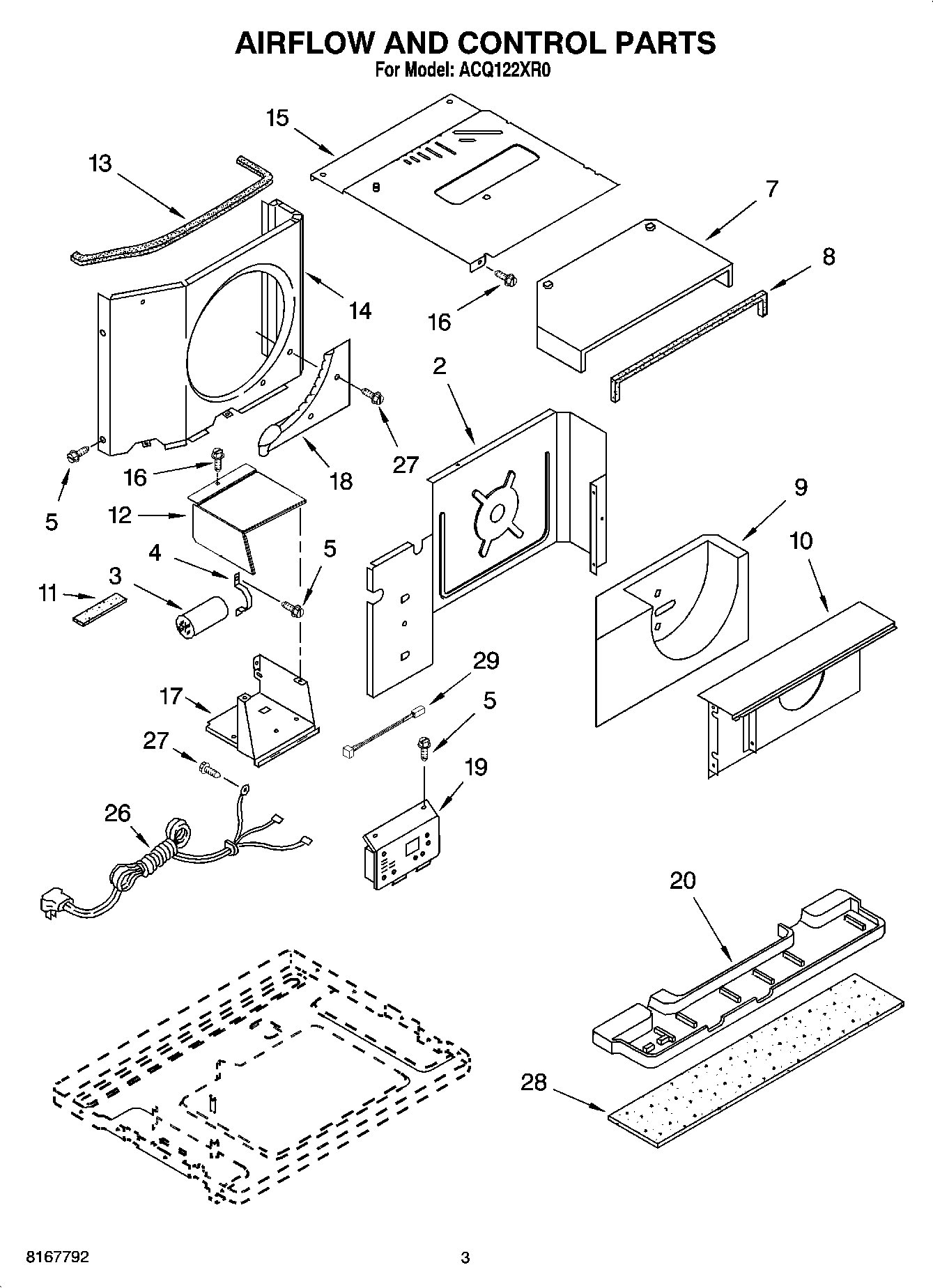

02 - AIR FLOW AND CONTROL PARTS
03 - CABINET PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ACQ122XR0 AIR CONDITIONER
1
Cabinet WPL 8031388 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1187473 Contact Us For Availability
3
Bag, Accessory (Curtains) WPL 1185948 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
BulK Seal, Ring Access Valve (20-Pack) WPL 978865 Contact Us For Availability
8
Front WPL 1187333 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Shroud, Evaporator WPL 8031479 Contact Us For Availability
10
Grille, Front WPL 1187325 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Seal, Control Box WPL 1187047 Contact Us For Availability
12
Cover, Control Box WPL 1186666 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
13
Wire, Ground WPL 1186626 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Control, Remote WPL 1187760 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cover, Unit WPL 1186766 Contact Us For Availability
15
Nameplate WPL 1187171 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Return Bend Replacement Kit ((5/16 Inch Tubin WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit ((3/8 Inch Tubing WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 1187819 Contact Us For Availability
17
Bag, Accessory WPL 1157654 Contact Us For Availability
18
Cup, Condensate WPL 1184776 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1187802 Contact Us For Availability
19
Control, Electronic WPL 1187925 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Condenser WPL 1185015 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
21
Seal WPL 1162616 Contact Us For Availability
22
Seal, Anti Rub (Restrictor Tube) WPL 1184625 Contact Us For Availability
22
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Seal, Cabinet Top WPL 8031322 Contact Us For Availability
24
Tube, Wet Loop WPL 1185062 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 1188089 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Clip, Thermistor WPL 1185337 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Seal, Anti-Rub WPL 1187084 Contact Us For Availability
29
Thermistor WPL 1188148 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1186873 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1186874 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 1187822 Contact Us For Availability
41
REFRIGERANT CHARGE 23.50 oz. WPL ARI144100A Contact Us For Availability
× ![]()
