Model Whirlpool ACQ122XK0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
01 - UNIT, LITERATURE

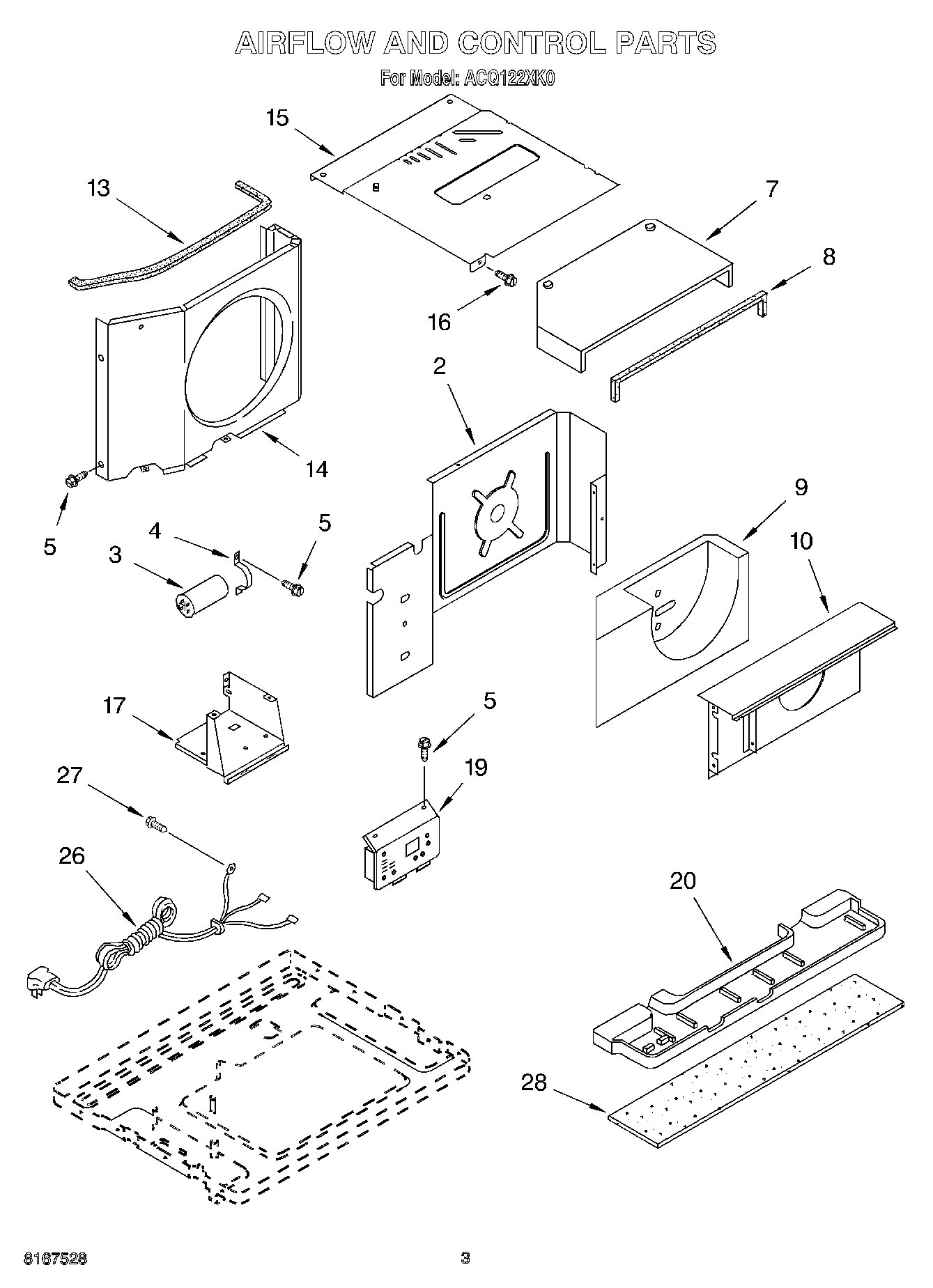

02 - AIR FLOW AND CONTROL

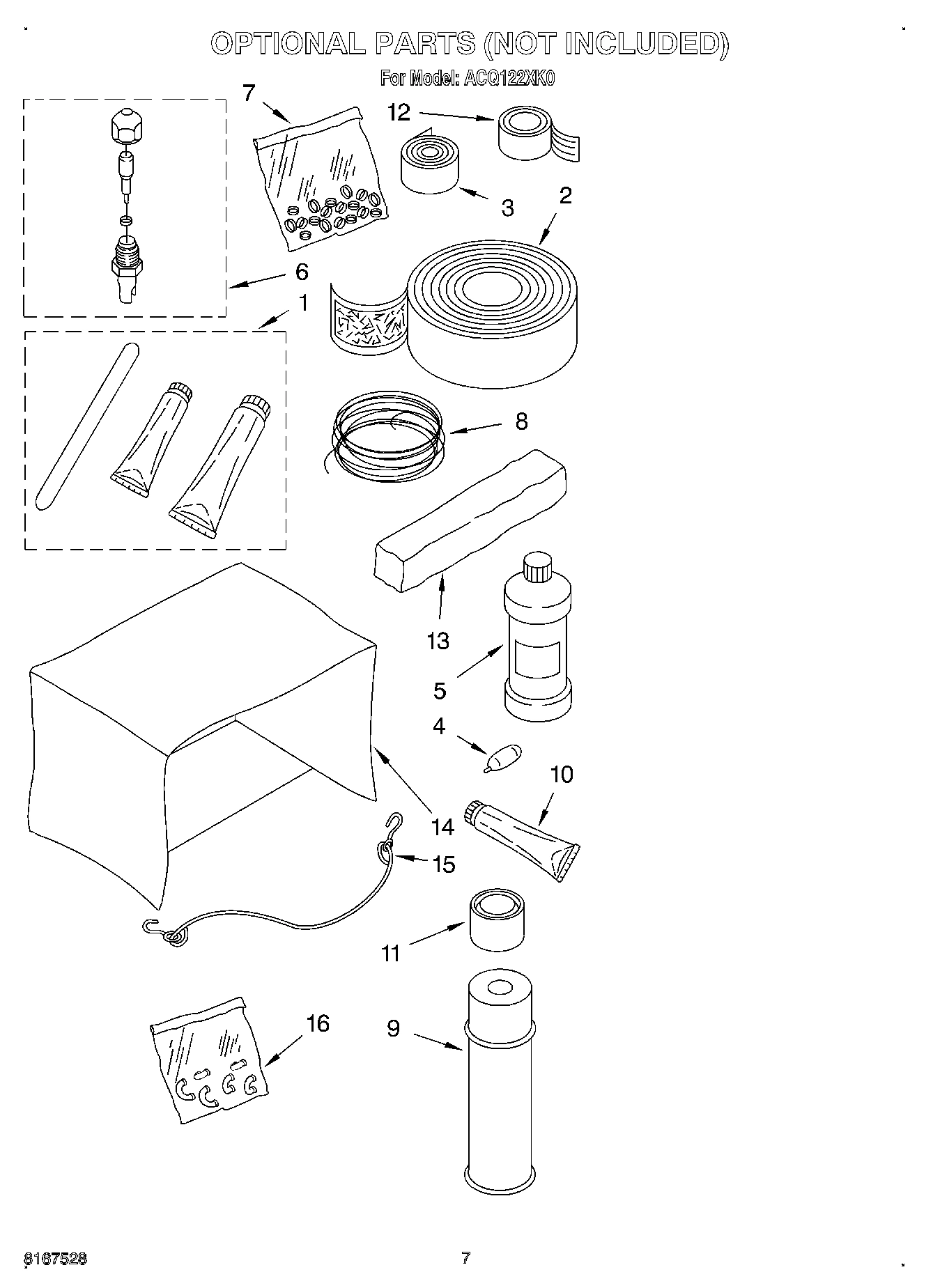

04 - OPTIONAL
Common parts from model Whirlpool ACQ122XK0 AIR CONDITIONER
1
Energy Guide WPL LIT1184510 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1184690 Contact Us For Availability
1
Use & Care Guide WPL LIT1184698 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1184476 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1184621 Contact Us For Availability
3
Capacitor, Running WPL 1182171 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1168449 Contact Us For Availability
10
Shroud, Evaporator WPL 8031479 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1182200 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Nut, Hex WPL 1168451 Contact Us For Availability
13
Motor, Fan WPL 1184496 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wiring Harness, Compressor WPL 1185236 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
16
Screw 8-18 x .375 WPL 1161561 Contact Us For Availability
16
Return Bend Replacement Kit ((5/16 Inch Tubin WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit ((3/8 Inch Tubing WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 1184600 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
19
Tube, Restrictor WPL 1184498 Contact Us For Availability
19
Control, Electronic WPL 1184686 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 1184687 Contact Us For Availability
27
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Clip, Thermistor WPL 8040169 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1185169 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
39
Tube, Discharge WPL 8031522 Contact Us For Availability
40
Base WPL 8031393 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
× ![]()
