Model Whirlpool ACQ122PT1 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL PARTS
01 - UNIT PARTS

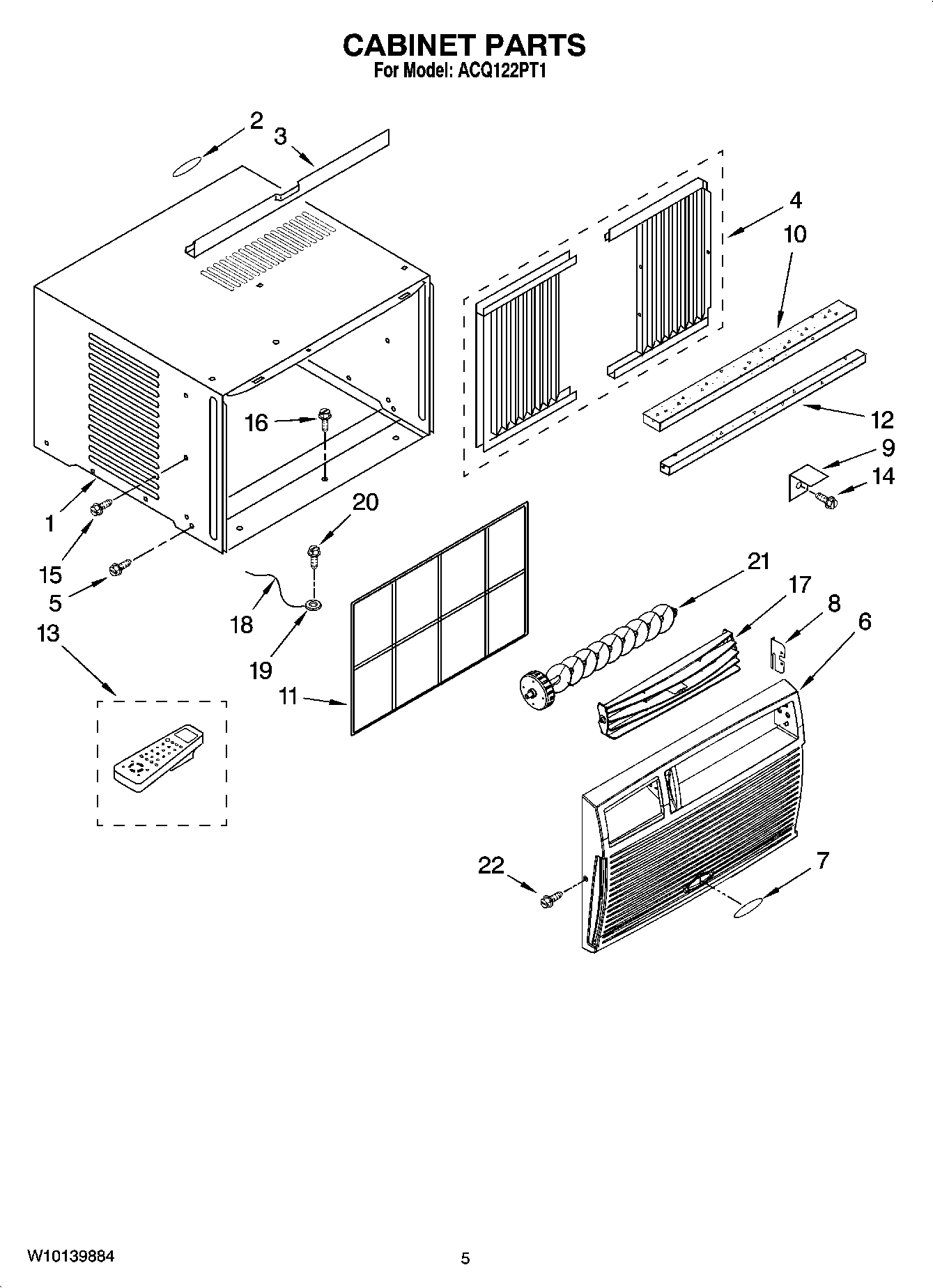

03 - CABINET PARTS
Common parts from model Whirlpool ACQ122PT1 AIR CONDITIONER
1
Energy Guide WPL 8215240 Contact Us For Availability
1
Use & care Guide WPL 8215278 Contact Us For Availability
1
Wiring Diagram WPL W10121862 Contact Us For Availability
1
Cabinet WPL 8215392 Contact Us For Availability
2
Shroud, Condenser WPL 8215064 Contact Us For Availability
2
Overload WPL 8215385 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Terminal Board WPL 8215089 Contact Us For Availability
3
Tube, Restrictor WPL 8215384 Contact Us For Availability
3
Channel, Top WPL 8215364 Contact Us For Availability
4
Capacitor, Running WPL 8209949 Contact Us For Availability
4
Blade, Fan WPL 8215065 Contact Us For Availability
4
Curtain Assembly Right & Left Side (Includes WPL 8215068 Contact Us For Availability
5
Box, Capacitor WPL 8215389 Contact Us For Availability
5
Grommet (3) WPL 8215077 Contact Us For Availability
5
Screw WPL 8215362 Contact Us For Availability
6
Main Board WPL 8209790 Contact Us For Availability
6
Motor, Fan WPL 8215062 Contact Us For Availability
6
Front Cabinet WPL 8209929 Contact Us For Availability
7
Interface Board WPL 8209792 Contact Us For Availability
7
Nut, Hex WPL 8209660 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Panel, Control WPL 8209945 Contact Us For Availability
8
Tube, Discharge WPL 8215388 Contact Us For Availability
8
Support, Louver WPL 8209940 Contact Us For Availability
9
Overlay WPL 8209944 Contact Us For Availability
9
Evaporator WPL 8215377 Contact Us For Availability
9
Bracket, Window Lock WPL 8209930 Contact Us For Availability
10
Wall, Dividing WPL 8215061 Contact Us For Availability
10
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
11
Cord, Appliance WPL 8215265 Contact Us For Availability
11
Cover, Evaporator WPL 8215390 Contact Us For Availability
11
Filter WPL 8209938 Contact Us For Availability
12
Shroud, Evaporator WPL 8215378 Contact Us For Availability
12
Support, Tube Sensor WPL 8209771 Contact Us For Availability
12
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
13
Screw WPL 8209674 Contact Us For Availability
13
Control, Remote WPL 8209730 Contact Us For Availability
14
Capacitor, Motor WPL 8209948 Contact Us For Availability
14
BASE WPL 8215387 Contact Us For Availability
14
SCREW WPL 8215272 Contact Us For Availability
15
Pan, Evaporator WPL 8215381 Contact Us For Availability
15
Nut W/Washer WPL 8215252 Contact Us For Availability
15
SCREW WPL 8215282 Contact Us For Availability
16
Hood, Air Housing WPL 8215382 Contact Us For Availability
16
Condenser WPL 8215391 Contact Us For Availability
16
SCREW WPL 8215271 Contact Us For Availability
17
Rear, Control Box WPL 8215394 Contact Us For Availability
17
Nut, W/Washer WPL 8215276 Contact Us For Availability
17
Louver, Assembly WPL 8209939 Contact Us For Availability
18
Cover, Control Box WPL 8215380 Contact Us For Availability
18
Tube, Suction WPL 8215383 Contact Us For Availability
18
Ground Wire WPL 8215361 Contact Us For Availability
19
Housing, Air WPL 8215054 Contact Us For Availability
19
Compressor Assembly WPL 8215386 Contact Us For Availability
19
WASHER WPL 8215285 Contact Us For Availability
20
Panel, Front- Control Box WPL 8215393 Contact Us For Availability
20
Wheel, Blower WPL 8215052 Contact Us For Availability
20
REFRIGERANT CHARGE 21.51 oz. WPL ARI20080A3 Contact Us For Availability
20
SCREW WPL 8215284 Contact Us For Availability
21
Louver, Vertical WPL 8209941 Contact Us For Availability
22
Screw WPL 8209690 Contact Us For Availability
× ![]()
