Model Whirlpool ACQ108XP0 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)

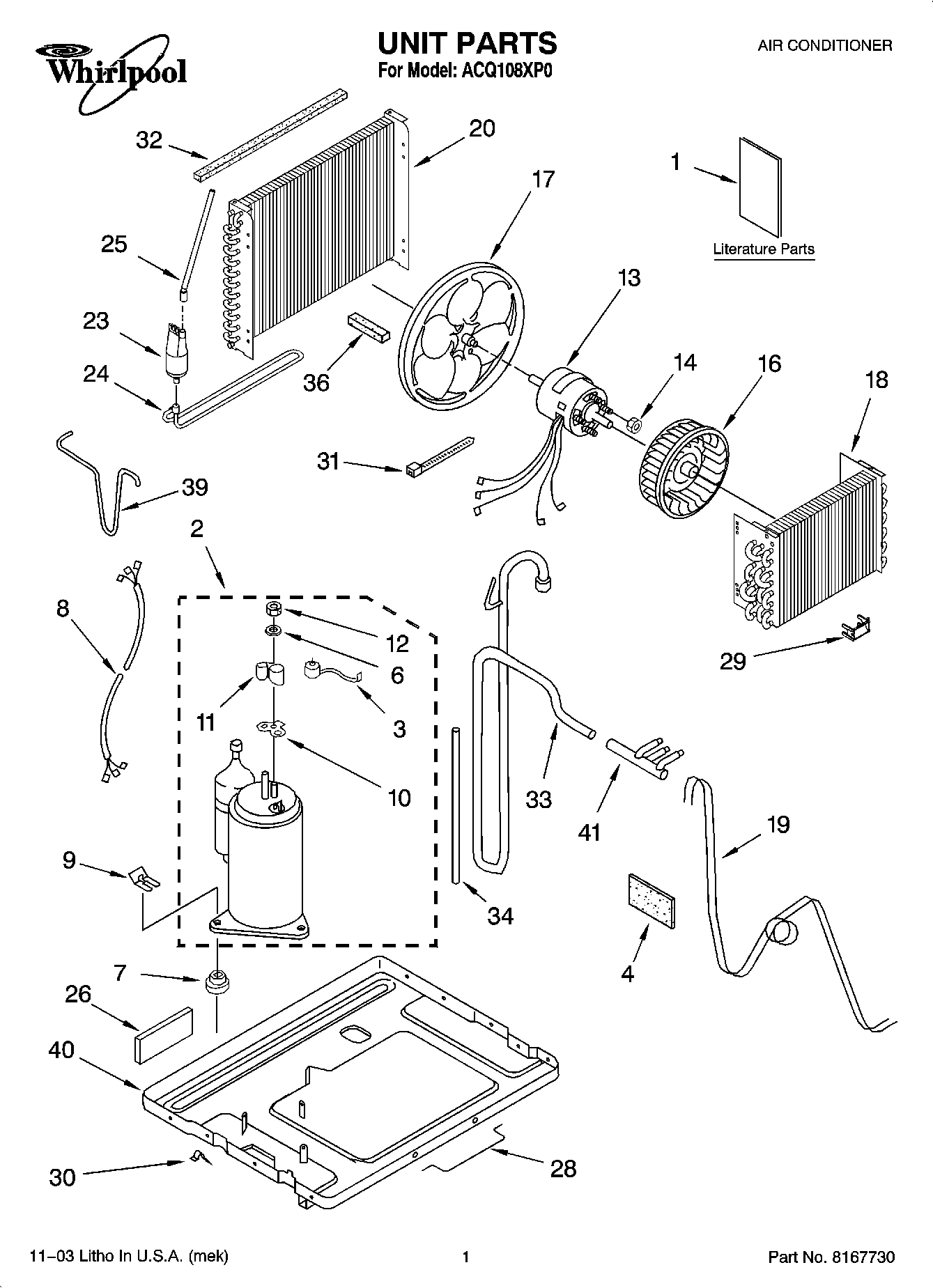

01 - UNIT PARTS

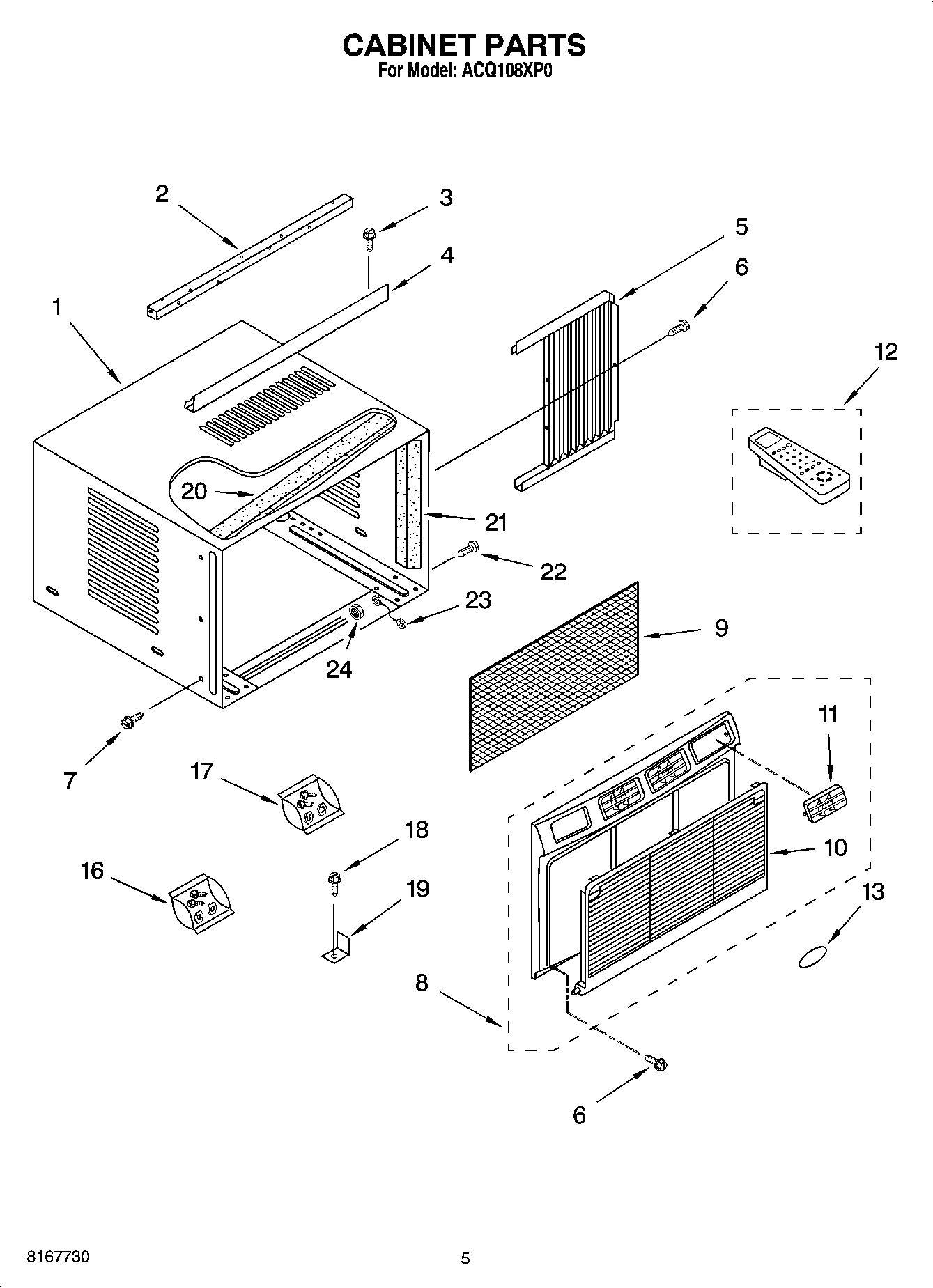

03 - CABINET PARTS
Common parts from model Whirlpool ACQ108XP0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Use & Care Guide WPL LIT1187094 Contact Us For Availability
1
Energy Guide WPL LIT1187306 Contact Us For Availability
1
Cabinet WPL 8031388 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1185614 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1182851 Contact Us For Availability
3
OVERLOAD WPL 1186660 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Seal, Restrictor Tube WPL 1184625 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Gasket, Nut WPL 1182120 Contact Us For Availability
6
Screw 8-18 x .375 WPL 1161561 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1186574 Contact Us For Availability
8
Front WPL 1187333 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
10
Grille, Front WPL 1187325 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1184748 Contact Us For Availability
12
Control, Remote WPL 1186156 Contact Us For Availability
13
Motor, Fan WPL 1186564 Contact Us For Availability
13
Nameplate WPL 1187171 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Wheel, Blower WPL 8031154 Contact Us For Availability
16
Bag, Accessory (Curtains) WPL 1185948 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Bag, Accessory WPL 1157654 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1186164 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Seal, Top Cover WPL 8031322 Contact Us For Availability
21
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
23
Filter, Dryer WPL 1187115 Contact Us For Availability
23
Wire, Ground WPL 1186626 Contact Us For Availability
24
Tube, Wet Loop WPL 1187116 Contact Us For Availability
25
Tube, Charge WPL 1187114 Contact Us For Availability
26
Seal WPL 1187084 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
28
Handle, Base WPL 8031320 Contact Us For Availability
29
Clip, Thermistor WPL 1185337 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal, Condenser Top WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1185668 Contact Us For Availability
34
Seal, Suction Tube Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1185669 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Manifold WPL 8031259 Contact Us For Availability
41
REFRIGERANT CHARGE 22.50 oz. WPL ARI144096A Contact Us For Availability
× ![]()
