Model Whirlpool ACQ102XG0 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT, LITERATURE
04 - OPTIONAL

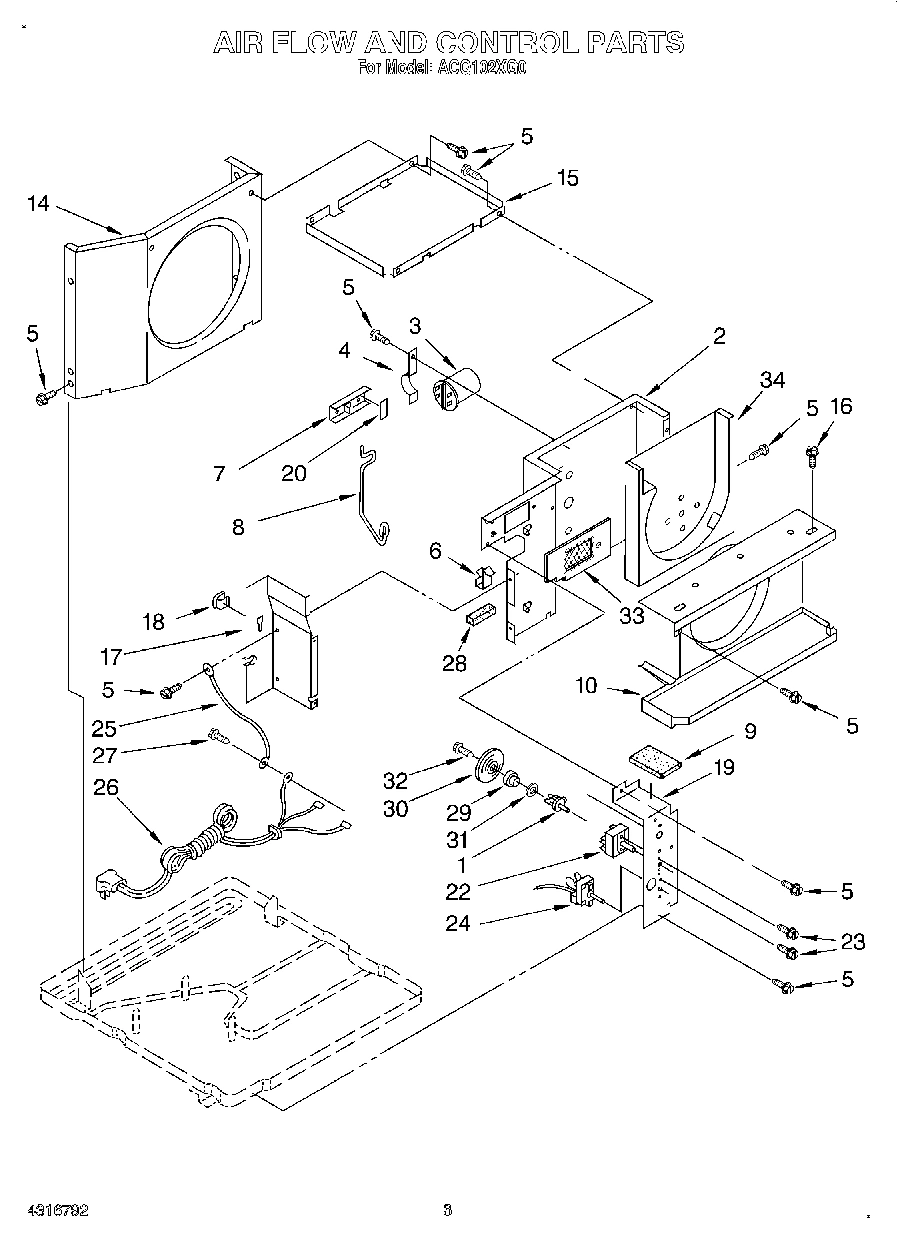

02 - AIR FLOW AND CONTROL

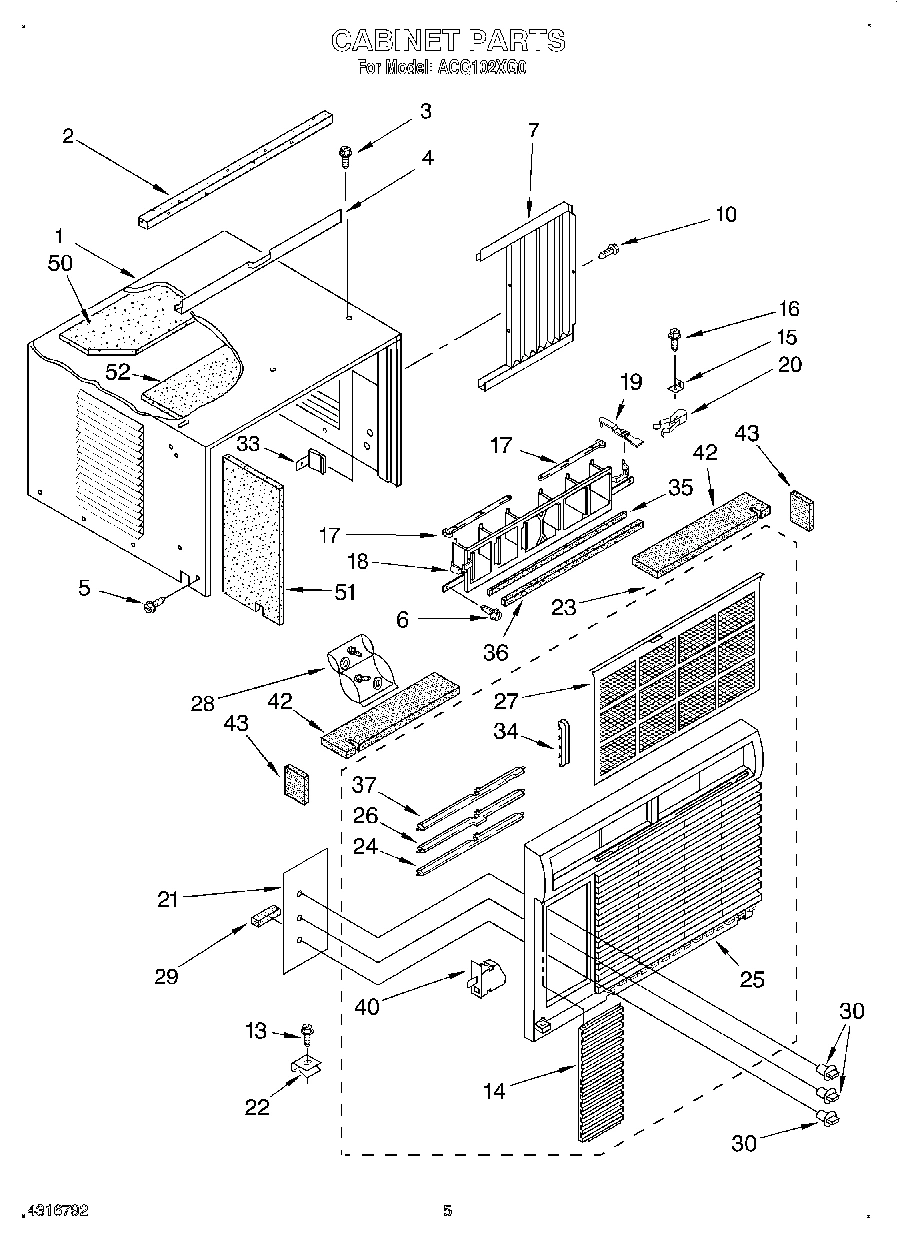

03 - CABINET

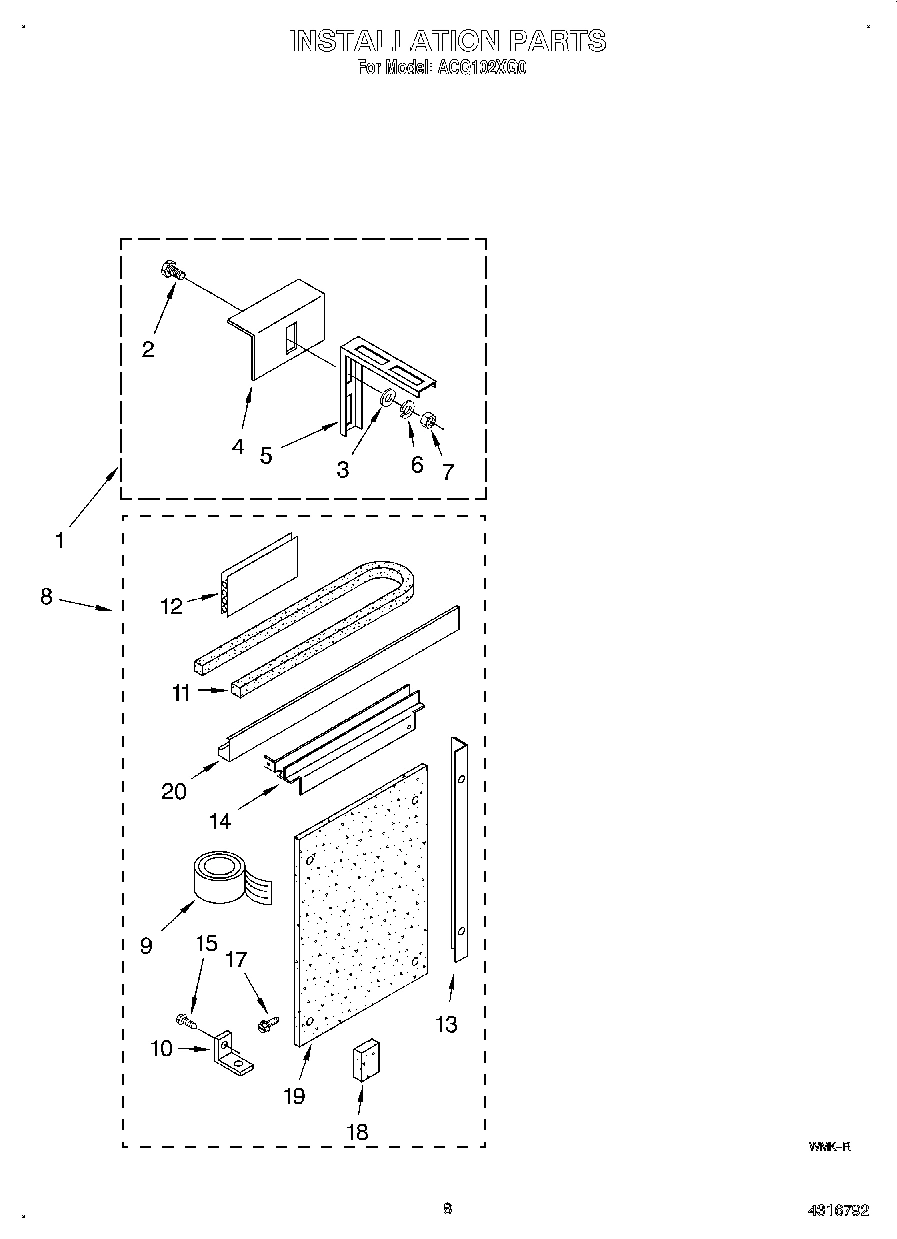

05 - INSTALLATION
Common parts from model Whirlpool ACQ102XG0 AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shaft, Control WPL 859232 Contact Us For Availability
1
Cabinet WPL 1167178 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1167154 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1162592 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Channel, Top WPL 1169001 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Clamp, Cable WPL 852451 Contact Us For Availability
6
Screw WPL 1159222 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
7
Housing, Curtain (Left Side) WPL 1164154 Contact Us For Availability
7
Housing, Curtain (Right Side) WPL 1164155 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Arm, Exhaust Door WPL 859235 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Insulation, Top (Control Panel) WPL 1158576 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
10
Shroud, Evaporator (Includes No.11) WPL 856039 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
13
Screw WPL 1157141 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19 x 12 x 12``) WPL 484067 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Door, Control WPL 1166720 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Reatiner, Card (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit WPL 1156536 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Extension, Dividing Wall WPL 994561 Contact Us For Availability
17
Link, Louver (2) WPL 855158 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Louver, Vertical WPL 1159980 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
19
Panel, Control WPL 996962 Contact Us For Availability
19
Handle, Louver (2) WPL 1161636 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
20
Condenser WPL 1167170 Contact Us For Availability
20
Spacer WPL 1159175 Contact Us For Availability
20
Spring, Detent (2) WPL 644006 Contact Us For Availability
20
Wide Window Kit (Use with 1155851 for windows WPL 485676 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Bend, Return Condenser (16) Evaporator (3) WPL 708531 Contact Us For Availability
21
Plate, Escutcheon WPL 1172368 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (9) WPL 708532 Contact Us For Availability
22
Switch, Rotary WPL 1172176 Contact Us For Availability
22
Clip, Cabinet Front (2) WPL 1157140 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Front, Cabinet WPL 1172313 Contact Us For Availability
24
Tube, Wet Loop (Includes Items 23, 25, & 26) WPL 1182032 Contact Us For Availability
24
Control, Temperature WPL 1166759 Contact Us For Availability
24
Louver, Horizontal (6) WPL 1166723 Contact Us For Availability
25
Tube, Outlet (Includes Item 26) WPL 950825 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Frame, Front WPL 1172373 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 1165241 Contact Us For Availability
26
Louver, Horizontal (Handle) (2) WPL 1166724 Contact Us For Availability
27
Filter, Air WPL 1167300 Contact Us For Availability
28
Anticipator, Temperature WPL 1166782 Contact Us For Availability
28
Seal WPL 1166927 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 642080 Contact Us For Availability
29
Bushing, Cam WPL 859233 Contact Us For Availability
29
Spacer, Escutcheon Plate (2) WPL 1158628 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Cam, Exhaust WPL 859234 Contact Us For Availability
30
Knob (3) WPL 1166715 Contact Us For Availability
31
Washer WPL 647881 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
32
Screw WPL 489092 Contact Us For Availability
33
Tube, Suction WPL 1167173 Contact Us For Availability
33
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
33
Clip, Louver (2) WPL 1158294 Contact Us For Availability
34
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
34
Scroll, Air Housing WPL 1167166 Contact Us For Availability
34
Link, Horizontal Louver (2) WPL 1166722 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
35
Seal (Back, Vertical Louver) WPL 855238 Contact Us For Availability
36
Seal (Front, Vertical Louver) WPL 1157622 Contact Us For Availability
37
Bend, Return (1) WPL 1156329 Contact Us For Availability
37
Louver, Horizontal (Notch Right) WPL 1166725 Contact Us For Availability
37
Louver, Horizontal (Notch Left) WPL 1166726 Contact Us For Availability
38
Manifold, Suction WPL 1167179 Contact Us For Availability
39
Tube, Discharge WPL 1165484 Contact Us For Availability
40
Base WPL 950019 Contact Us For Availability
40
Monitor, Filter WPL 1166134 Contact Us For Availability
42
Seal, (2) (Front Top) WPL 1167159 Contact Us For Availability
43
Seal, (2) (Front Side) WPL 1167158 Contact Us For Availability
50
Cab. Top Insul. WPL 1158501 Contact Us For Availability
51
Cabinet, Insul. (Right Side) WPL 1167176 Contact Us For Availability
51
Cabinet, Insul. (Left Side) WPL 1167177 Contact Us For Availability
52
Insulation, Top WPL 1167175 Contact Us For Availability
× ![]()
