Model Whirlpool ACQ102XA0 AIR CONDITIONER – Common Parts & Diagrams

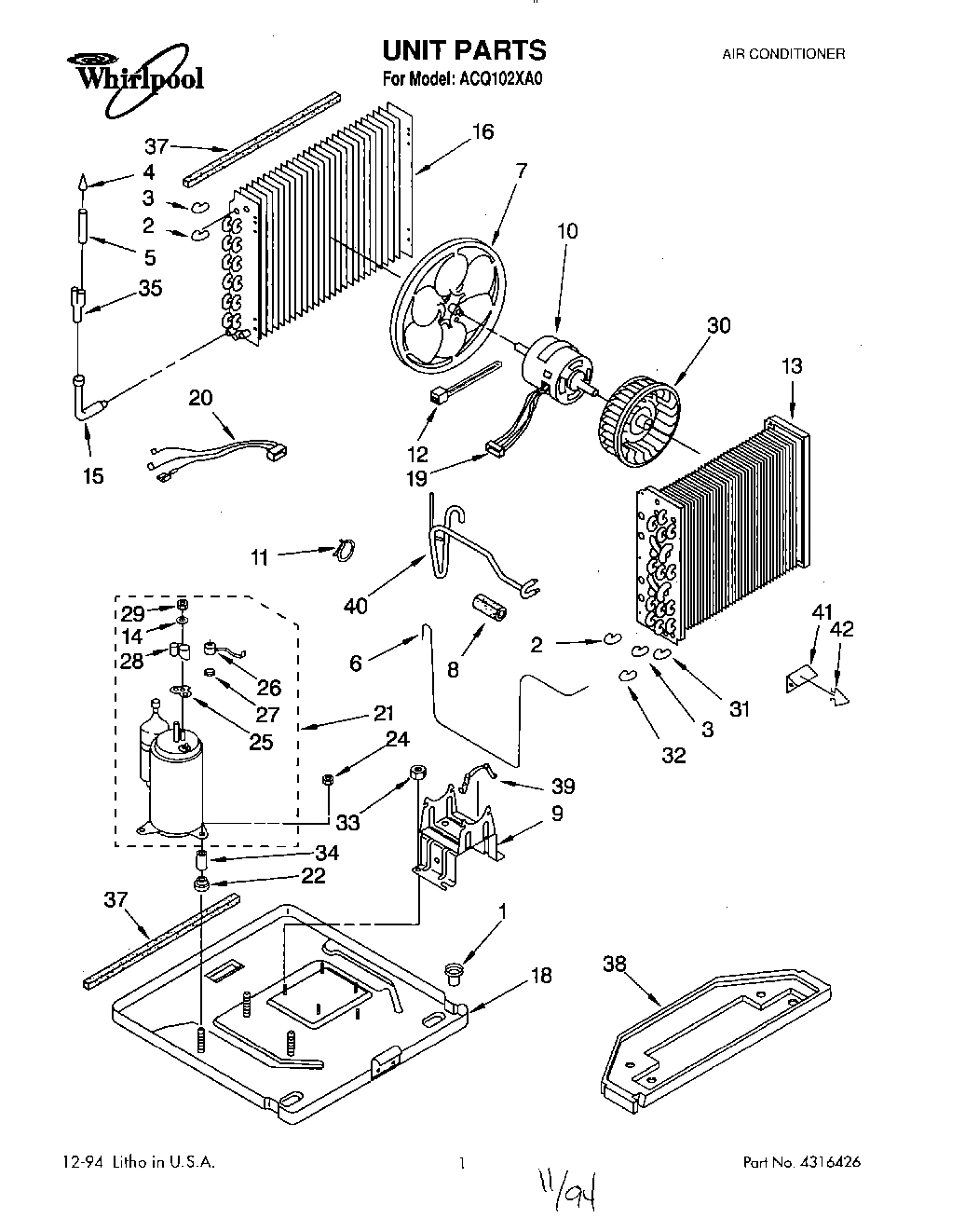

01 - UNIT, LITERATURE

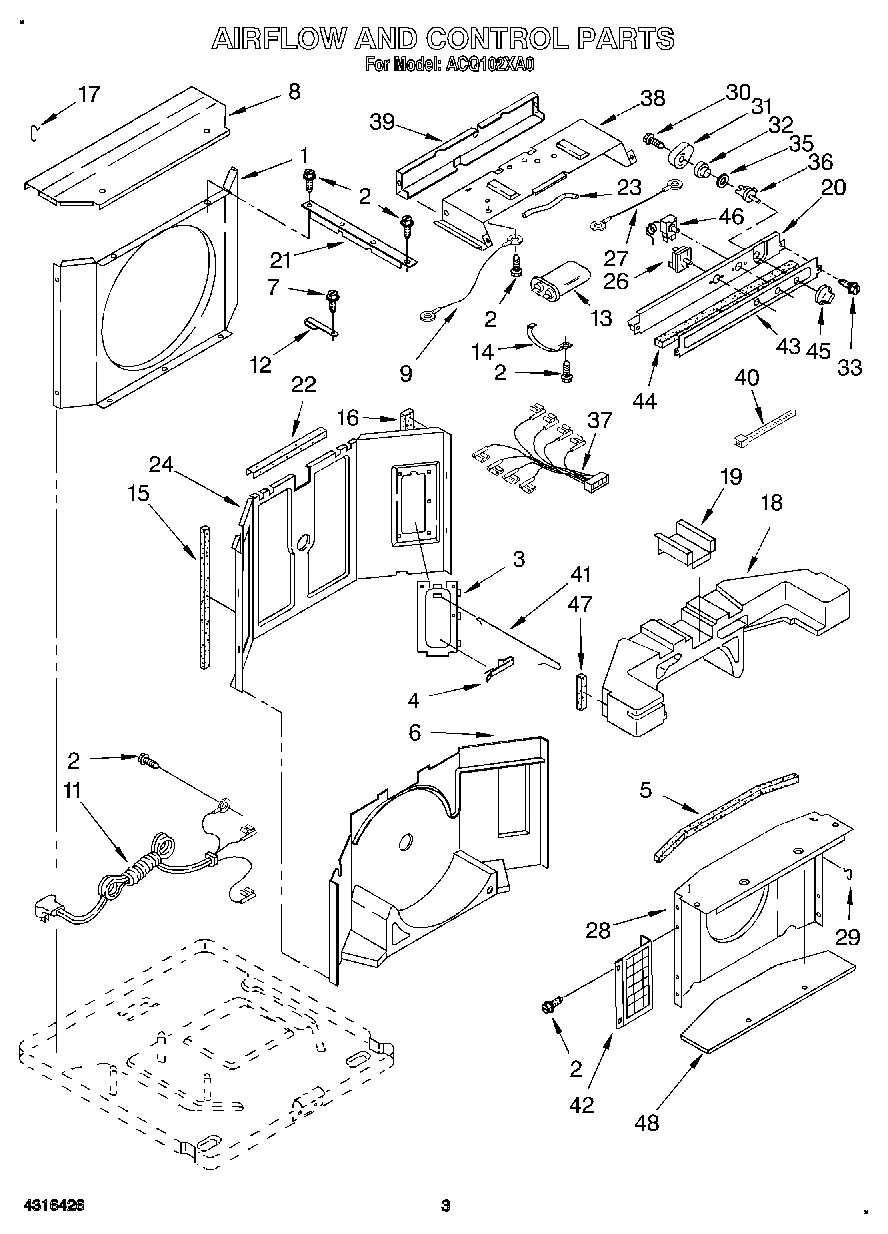

02 - AIRFLOW AND CONTROL

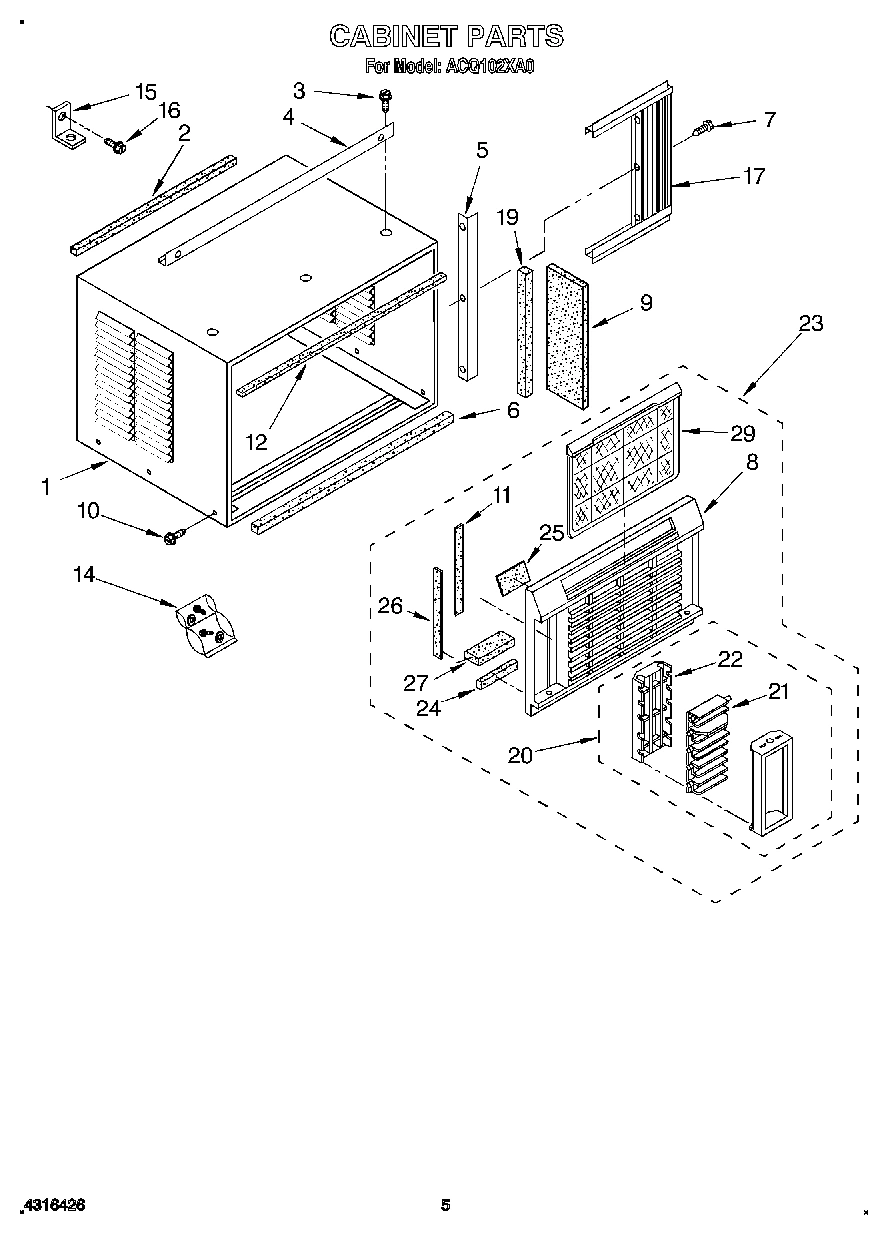

03 - CABINET

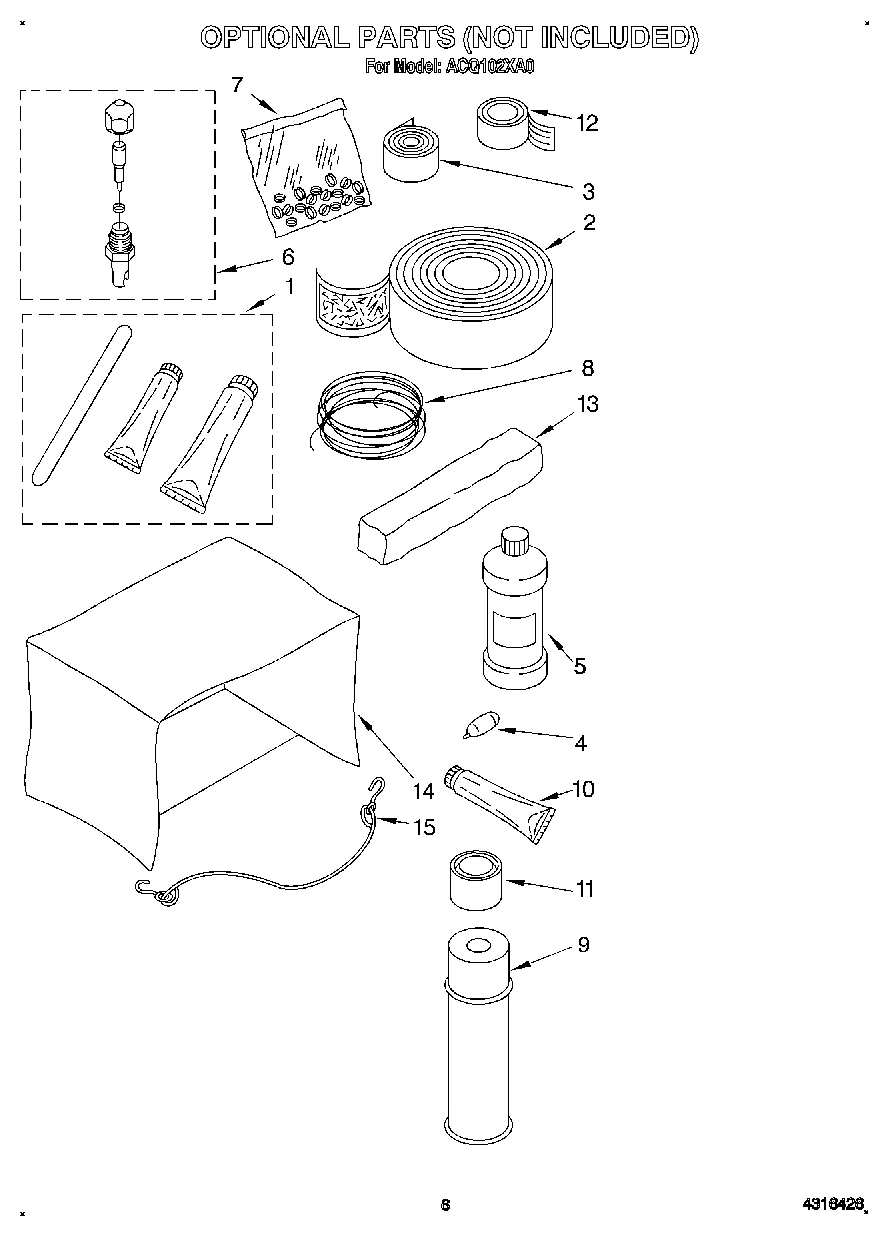

04 - OPTIONAL
Common parts from model Whirlpool ACQ102XA0 AIR CONDITIONER
1
Shroud, Condenser WPL 1156928 Contact Us For Availability
1
Cabinet WPL 1163055 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Chanel, Top WPL 1157196 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Seal WPL 1160947 Contact Us For Availability
5
Retainer, Curtain WPL 644224 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Seal WPL 1159289 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1156979 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Top, Condenser WPL 1156963 Contact Us For Availability
8
Cabinet Front WPL 1156971 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Insulation (2) WPL 1161748 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Screw 3/8 (6) WPL 1161561 Contact Us For Availability
11
Cord, Appliance WPL 1158274 Contact Us For Availability
11
Insul/Cabinet Side WPL 1161747 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
12
Seal, Cabinet Top WPL 1158593 Contact Us For Availability
13
Capacitor, Running WPL 1157632 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Accessory, Bag WPL 1157654 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1158045 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Clip, Shroud (2) WPL 994686 Contact Us For Availability
17
Curtain (Left Side) WPL 1164405 Contact Us For Availability
17
Curtain (Right Side) WPL 1164406 Contact Us For Availability
18
Base WPL 1162621 Contact Us For Availability
18
Scroll, Top WPL 1158772 Contact Us For Availability
19
Terminal Block WPL 4317827 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Seal, Strip (2) WPL 1159254 Contact Us For Availability
20
Harness, Wiring WPL 1157607 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1159334 Contact Us For Availability
21
Horzontal Louver (Right, Side) WPL 1159333 Contact Us For Availability
21
Compressor WPL 1163572 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Horzontal, Louver (Right, Side) WPL 1156974 Contact Us For Availability
22
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
22
Ribs, Vertical WPL 1156975 Contact Us For Availability
23
Insulator, Sleeve WPL 475841 Contact Us For Availability
23
Front, Complete WPL 1161557 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Seal, (2) WPL 1161746 Contact Us For Availability
25
Seal WPL 1159081 Contact Us For Availability
26
Overload WPL 951865 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
26
Seal (2) WPL 1159079 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Wire, Termostat To Switch WPL 1156982 Contact Us For Availability
27
Seal (2) WPL 1161205 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1156929 Contact Us For Availability
29
Clip, Shroud WPL 1158257 Contact Us For Availability
29
Filter WPL 1156976 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163571 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (2) WPL 1156533 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Return Bend (2) WPL 1158407 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube, Suction WPL 1163991 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
43
Escutcheon WPL 1156977 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1157605 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Insulation, Evaporator Shroud WPL 1157173 Contact Us For Availability
× ![]()
