Model Whirlpool ACQ102RZ0 AIR CONDITIONER – Common Parts & Diagrams

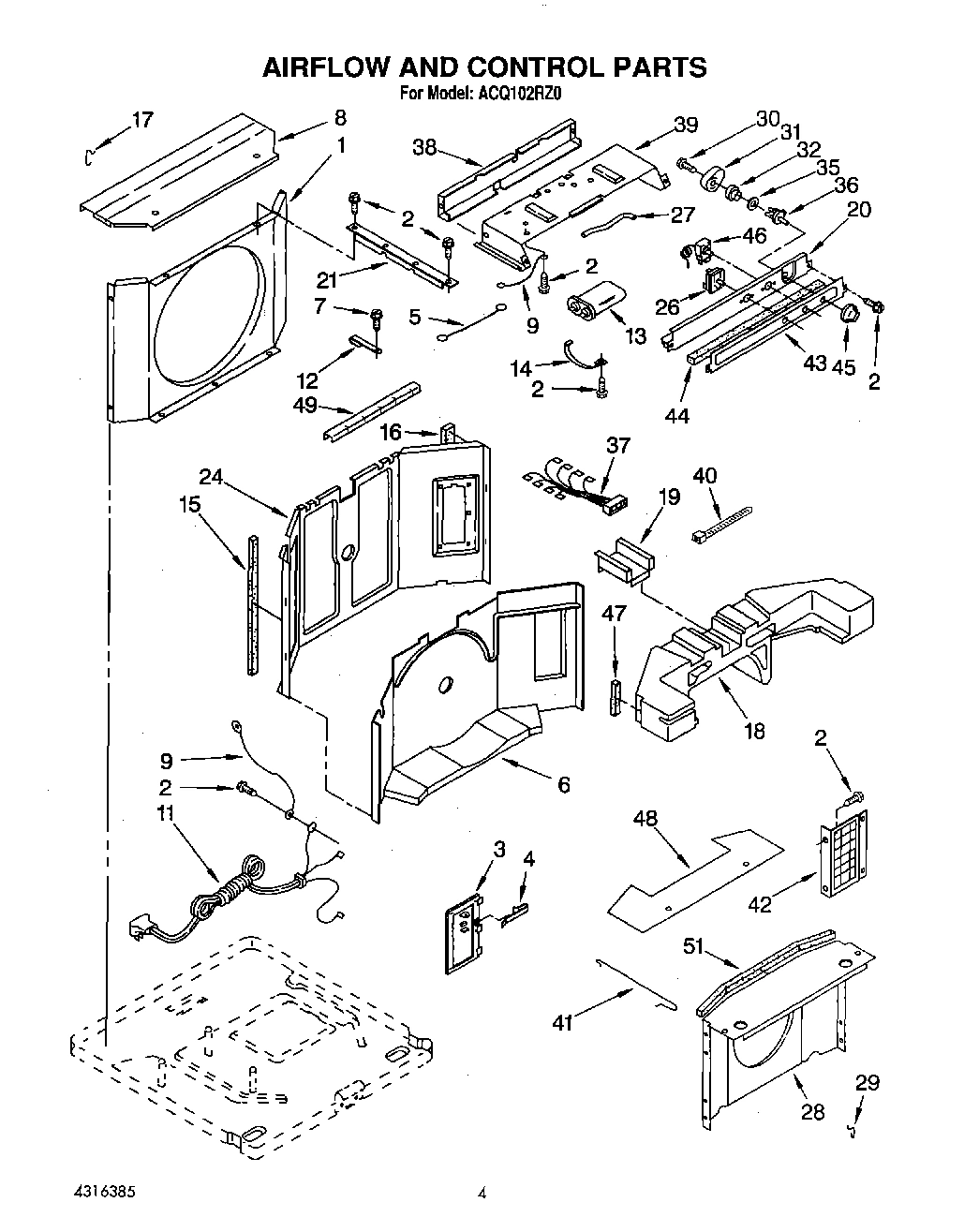

02 - AIR FLOW AND CONTROL

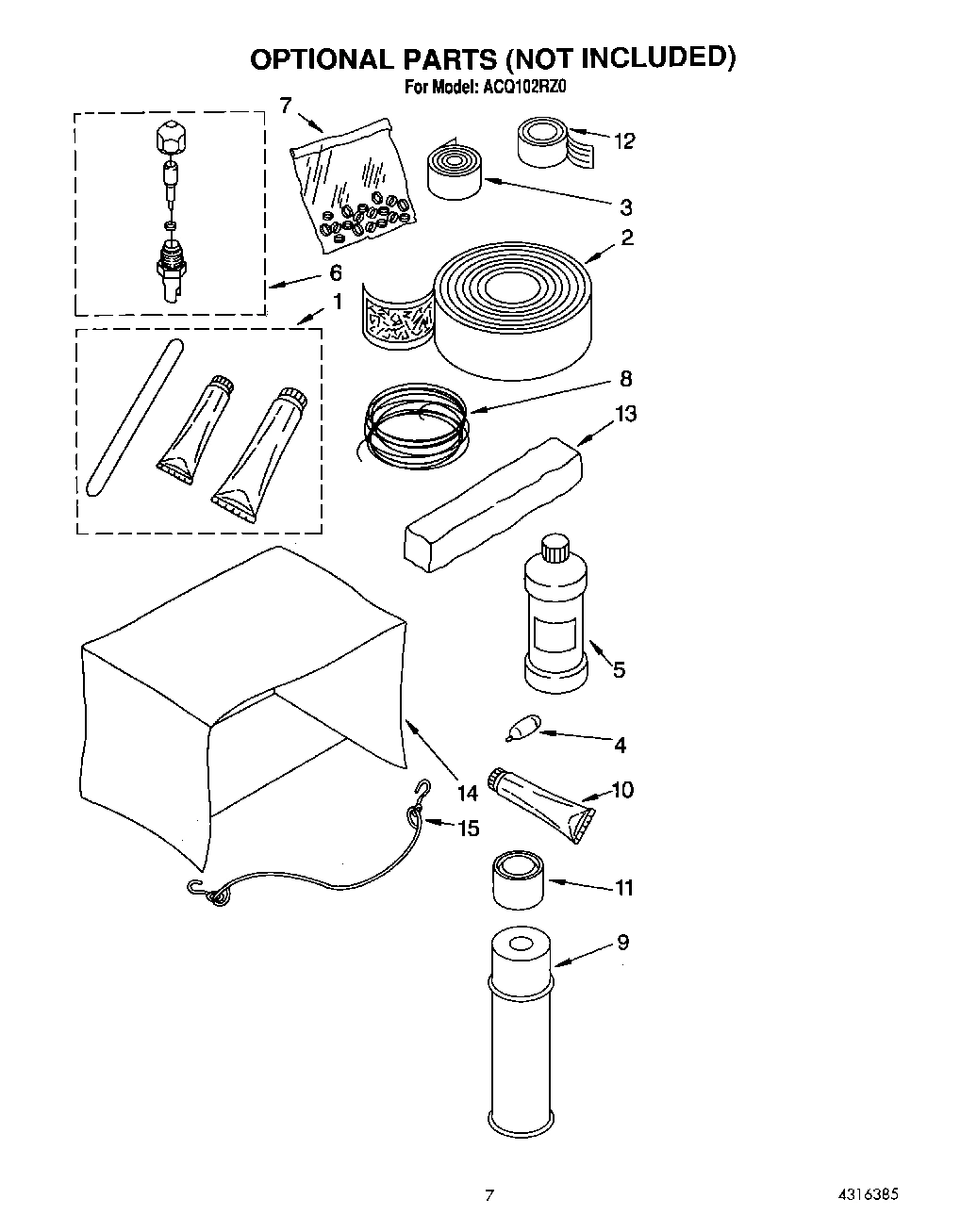

04 - OPTIONAL
01 - UNIT, LIT/OPTIONAL
03 - CABINET
Common parts from model Whirlpool ACQ102RZ0 AIR CONDITIONER
Wiring Diagram WPL LIT1157635 Contact Us For Availability
Tech Sheet WPL LIT1157636 Contact Us For Availability
Use & Care Guide WPL LIT1157669 Contact Us For Availability
Instructions, Installation WPL LIT1163206 Contact Us For Availability
List, Repair Parts WPL LTI4316385 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Clamp, Tube WPL 471088 Contact Us For Availability
1
Cabinet WPL 1163055 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (4) WPL 708532 Contact Us For Availability
2
Seal, Front - Sides (2) WPL 1159079 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (16) WPL 708531 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Seal (2) WPL 1159254 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
5
Accessory, Bag WPL 1157654 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1163574 Contact Us For Availability
6
Seal WPL 1159289 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1156979 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Seal, (2) WPL 1161746 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1159284 Contact Us For Availability
8
Cabinet Front WPL 1156971 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Insulation, Cabinet Side WPL 1161748 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
10
Screw, No.8 x 3/4 WPL 488255 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Bracket, Window WPL 644228 Contact Us For Availability
12
Seal, Cabinet Top WPL 1158593 Contact Us For Availability
13
Evaporator WPL 1162751 Contact Us For Availability
13
Seal, Front WPL 1159081 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Chanel, Top WPL 1157196 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, 90~ Connect WPL 1163715 Contact Us For Availability
15
Curtain (Left Side) WPL 1157665 Contact Us For Availability
15
Curtain (Right Side) WPL 1157666 Contact Us For Availability
16
Condenser WPL 1162753 Contact Us For Availability
17
Return Bend (2) WPL 855644 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
18
Base WPL 1162621 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Return Bend (2) WPL 855457 Contact Us For Availability
19
Seal, Front EPS WPL 1161205 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1159851 Contact Us For Availability
20
Cartridge, Complete WPL 1159334 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Compressor WPL 1160098 Contact Us For Availability
21
Seal, Side (2) WPL 1161747 Contact Us For Availability
23
Horizontal Louver WPL 1159333 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Ribs, Vertical WPL 1156975 Contact Us For Availability
25
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
26
Switch, Fan WPL 1157650 Contact Us For Availability
26
Overload (Service) WPL 1159722 Contact Us For Availability
26
Overload (Production) WPL 951865 Contact Us For Availability
26
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Insulator, Sleeve WPL 475841 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Front, Complete WPL 1161557 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1156929 Contact Us For Availability
29
Clip, Shroud WPL 1158257 Contact Us For Availability
29
Filter WPL 1156976 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163571 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (14) WPL 855199 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Tube, Suction WPL 1163278 Contact Us For Availability
33
Return Bend (2) WPL 854624 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Return Bend 3-Way WPL 1162960 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
43
Escutcheon WPL 1156977 Contact Us For Availability
43
Clamp, Tube WPL 642684 Contact Us For Availability
44
Cup, Condensate Drain WPL 997285 Contact Us For Availability
45
Knob, Controls (4) WPL 1158054 Contact Us For Availability
46
Control, Temperature (Includes anticipator an WPL 1157605 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Insulation, Shroud WPL 1157173 Contact Us For Availability
49
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
51
Seal WPL 1160947 Contact Us For Availability
× ![]()
