Model Whirlpool ACQ082XG0 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT, LITERATURE
04 - OPTIONAL

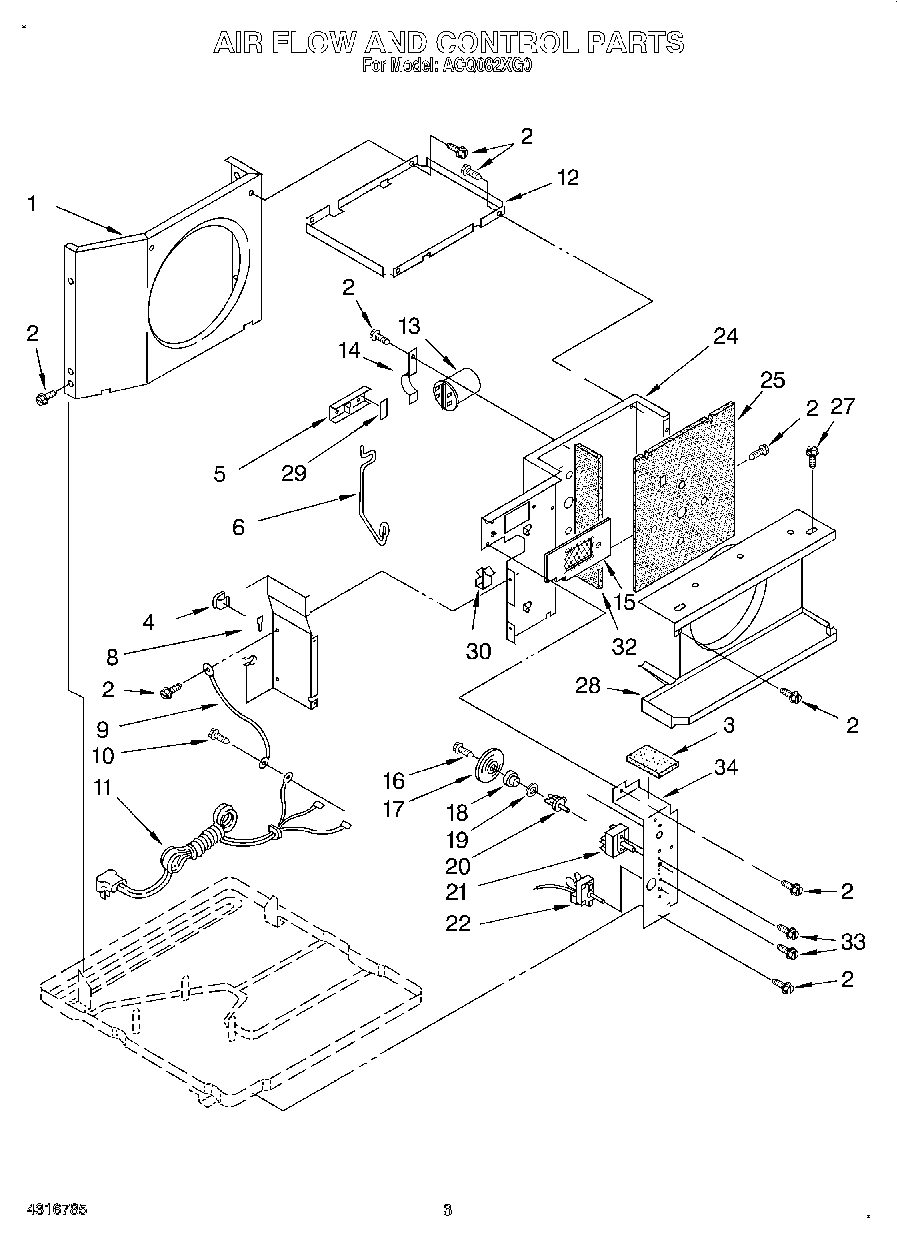

02 - AIRFLOW AND CONTROL

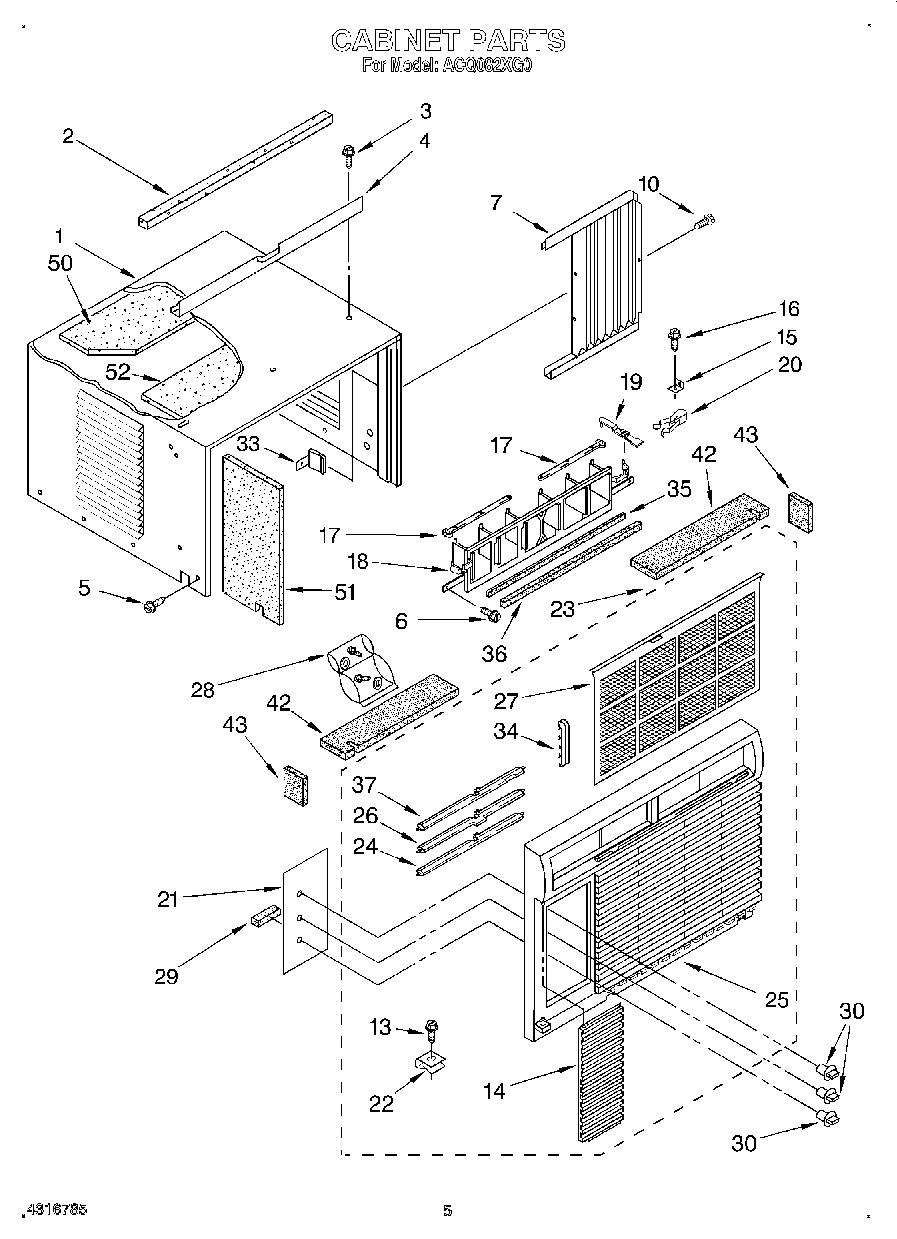

03 - CABINET

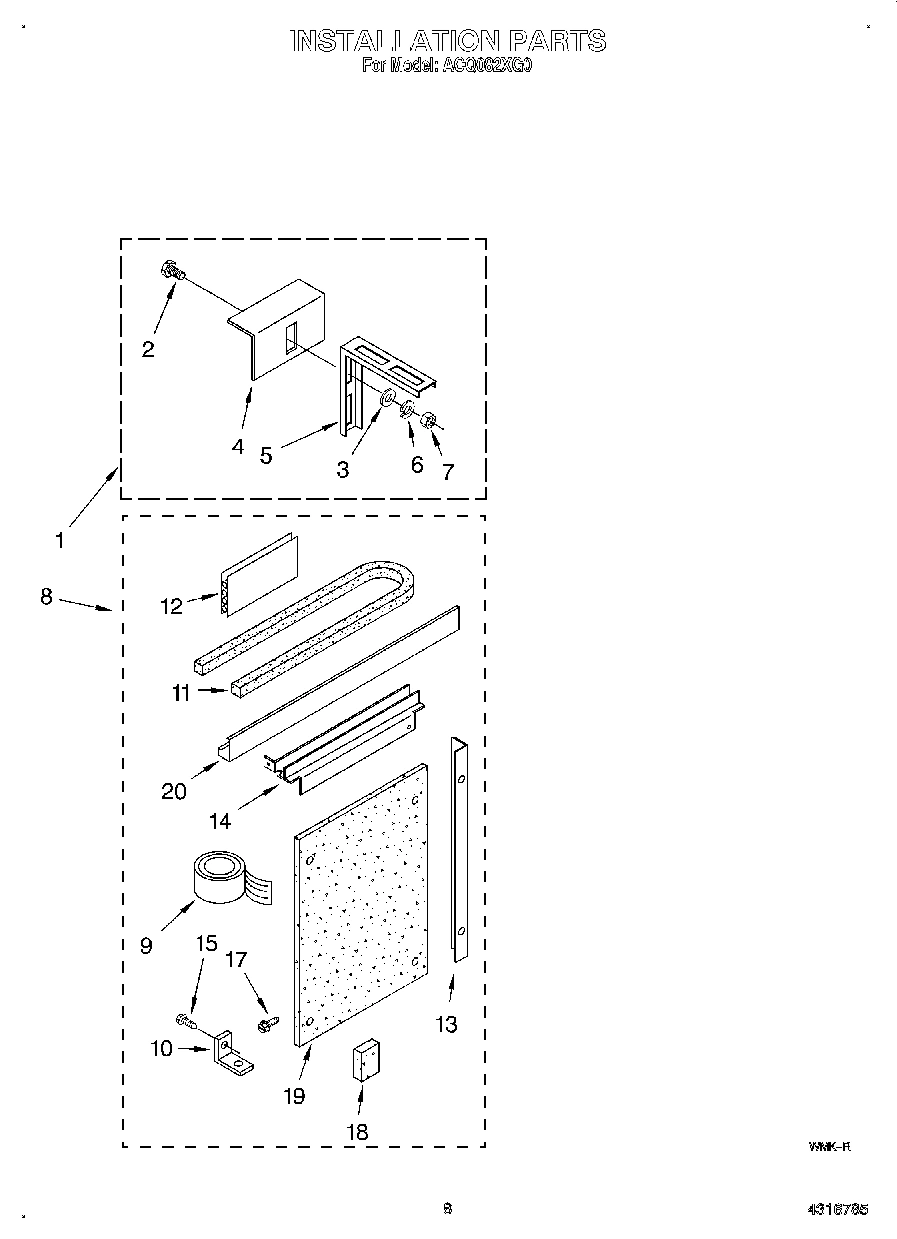

05 - INSTALLATION
Common parts from model Whirlpool ACQ082XG0 AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 856037 Contact Us For Availability
1
Cabinet WPL 1163513 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Screw, Repair WPL 488481 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Insulation, Top (Control Panel) WPL 1158576 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Clip, Retainer WPL 644401 Contact Us For Availability
4
Channel, Top WPL 1169001 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Door, Exhaust WPL 644206 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Arm, Exhaust Door WPL 859235 Contact Us For Availability
6
Screw WPL 1159222 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Housing, Curtain (Left Side) WPL 1164154 Contact Us For Availability
7
Housing, Curtain (Right Side) WPL 1164155 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Extension, Dividing Wall (Includes Item 3) WPL 994561 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cord, Appliance WPL 1165241 Contact Us For Availability
12
Support, Unit WPL 1156536 Contact Us For Availability
13
Capacitor, Running WPL 1162599 Contact Us For Availability
13
Screw WPL 1157141 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Door, Control WPL 1166720 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
16
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Cam, Control WPL 859234 Contact Us For Availability
17
Link, Louver (2) WPL 855158 Contact Us For Availability
18
Base WPL 951570 Contact Us For Availability
18
Bushing, Control WPL 859233 Contact Us For Availability
18
Louver, Vertical WPL 1159980 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Spring, Washer WPL 647881 Contact Us For Availability
19
Handle, Louver (2) WPL 1161636 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Shaft, Control WPL 859232 Contact Us For Availability
20
Spring, Detent (2) WPL 644006 Contact Us For Availability
20
Wide Window Kit (Use with 1155851 for windows WPL 485676 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Switch, Rotary WPL 1172176 Contact Us For Availability
21
Plate, Escutcheon WPL 1172368 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Control, Temperature WPL 1166759 Contact Us For Availability
22
Clip, Cabinet Front (2) WPL 1157140 Contact Us For Availability
23
Front, Cabinet WPL 1172313 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Wall, Dividing WPL 1167154 Contact Us For Availability
24
Louver, Horizontal (6) WPL 1166723 Contact Us For Availability
25
Insulation (Back, Dividing Wall) WPL 1166338 Contact Us For Availability
25
Frame, Front WPL 1172373 Contact Us For Availability
26
Louver, Horizontal (Handle) (2) WPL 1166724 Contact Us For Availability
27
Filter, Air WPL 1167300 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 856039 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
29
Spacer WPL 1159175 Contact Us For Availability
29
Spacer, Escutcheon Plate (2) WPL 1158628 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
30
Clamp, Cable WPL 852451 Contact Us For Availability
30
Knob (3) WPL 1166715 Contact Us For Availability
31
Tube, Discharge WPL 1156452 Contact Us For Availability
32
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
33
Tube, Maniflod WPL 1156642 Contact Us For Availability
33
Screw, 6-32 x .175 (4) WPL 488734 Contact Us For Availability
33
Clip, Louver (2) WPL 1158294 Contact Us For Availability
34
Panel, Control WPL 996962 Contact Us For Availability
34
Link, Horizontal Louver (2) WPL 1166722 Contact Us For Availability
35
Seal (Back, Vertical Louver) WPL 855238 Contact Us For Availability
36
Seal (Front, Vertical Louver) WPL 1157622 Contact Us For Availability
37
Seal, Condenser Top WPL 948090 Contact Us For Availability
37
Louver, Horizontal (Notch Right) WPL 1166725 Contact Us For Availability
37
Louver, Horizontal (Notch Left) WPL 1166726 Contact Us For Availability
38
Condenser WPL 1168429 Contact Us For Availability
39
Clip, Mtg. (2) WPL 1166089 Contact Us For Availability
41
Bend, Return (1) WPL 1158407 Contact Us For Availability
42
Bend, Return Three-Way WPL 1156107 Contact Us For Availability
42
Seal, (2) (Front Top) WPL 1167159 Contact Us For Availability
43
Seal, (2) (Front Side) WPL 1167158 Contact Us For Availability
50
Insul., Cab. Top WPL 1158501 Contact Us For Availability
51
Insulation, Cab. (Right, Side) WPL 1163430 Contact Us For Availability
51
Insulation, Cab. (Left, Side) WPL 1163431 Contact Us For Availability
52
Insulation, Top WPL 1163429 Contact Us For Availability
× ![]()
