Model Whirlpool ACQ082PS3 AIR CONDITIONER – Common Parts & Diagrams

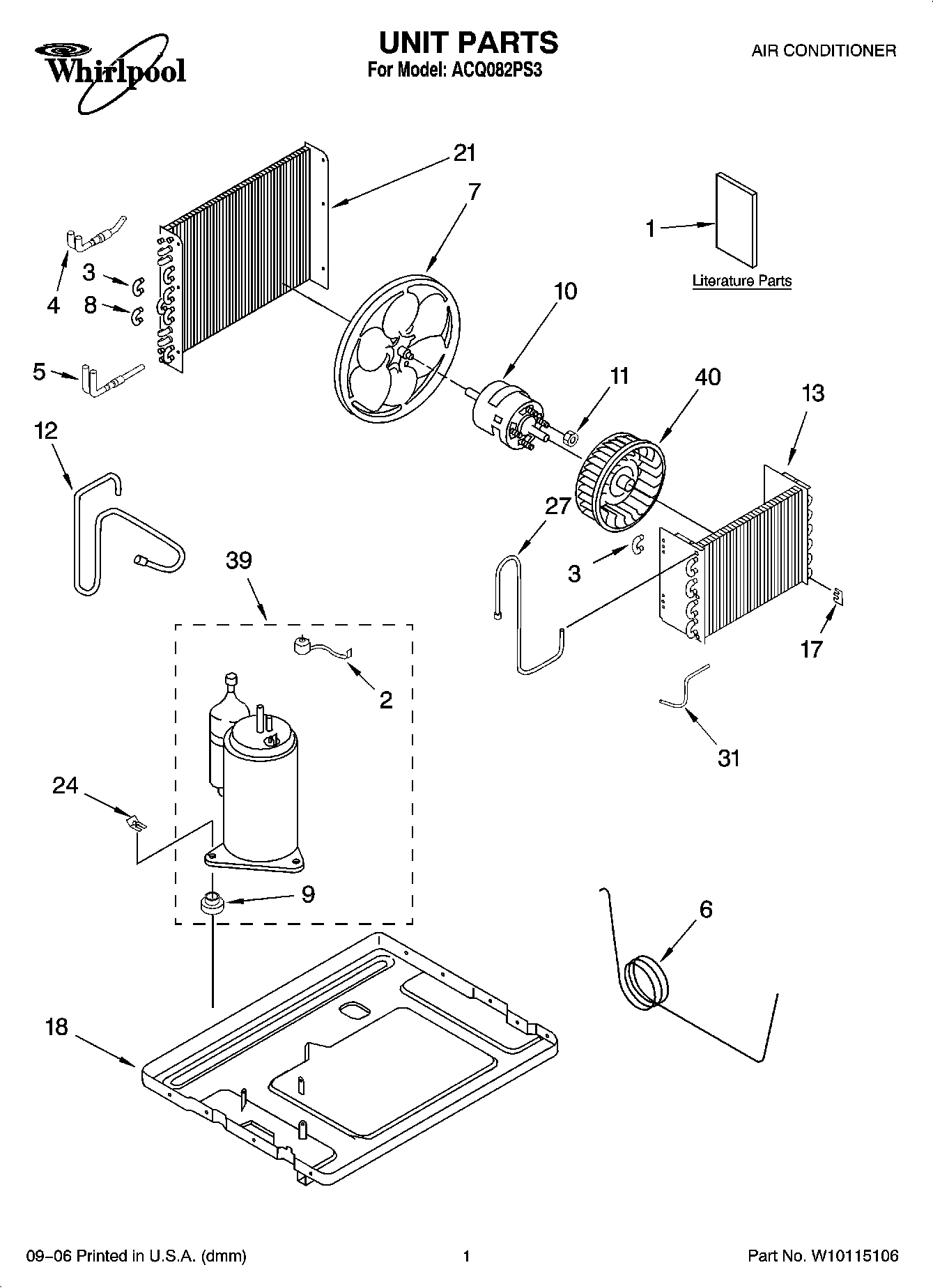

01 - UNIT PARTS

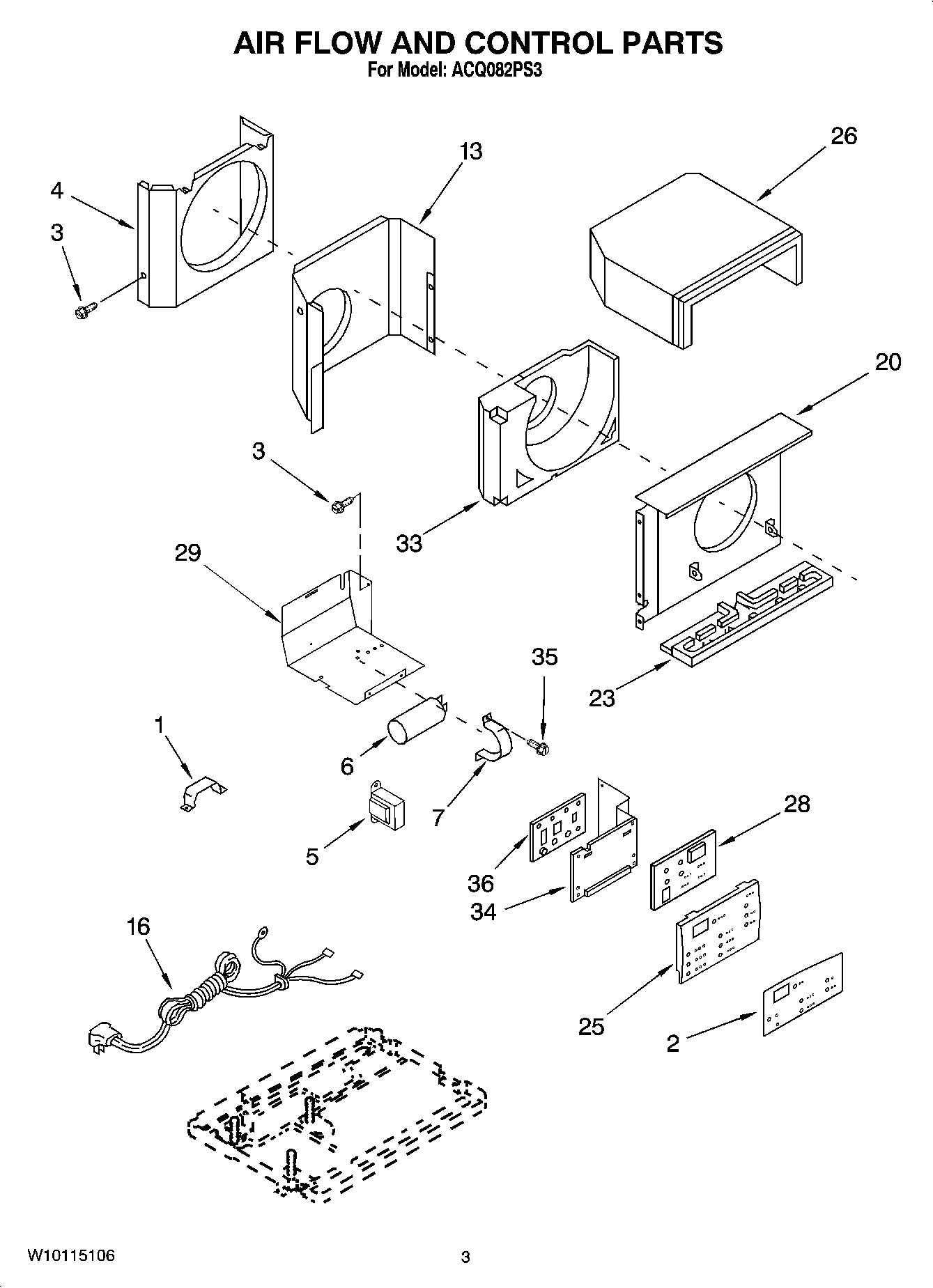

02 - AIR FLOW AND CONTROL PARTS
03 - CABINET PARTS
Common parts from model Whirlpool ACQ082PS3 AIR CONDITIONER
1
Energy Guide WPL 8209796 Contact Us For Availability
1
Use & care Guide WPL 8209797 Contact Us For Availability
1
Clamp, Cable WPL 8209875 Contact Us For Availability
1
Cabinet WPL 8209862 Contact Us For Availability
2
Overload WPL 8209882 Contact Us For Availability
2
Overlay WPL 8209794 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
3
Channel, Top WPL 8209897 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Shroud, Condenser WPL 8209863 Contact Us For Availability
4
Curtain Assy (Includes 3) WPL 8209896 Contact Us For Availability
5
Tube, Outlet WPL 8209731 Contact Us For Availability
5
Transformer WPL 8209723 Contact Us For Availability
5
Screw (8) WPL 8209777 Contact Us For Availability
6
Tube, Restrictor WPL 8209872 Contact Us For Availability
6
Capacitor, Running WPL 8209883 Contact Us For Availability
6
Front, Cabinet WPL 8209728 Contact Us For Availability
7
Blade, Fan WPL 8209866 Contact Us For Availability
7
Bracket, Capacitor WPL 8209891 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Support, Louver WPL 8209770 Contact Us For Availability
9
Grommet (3) WPL 8209880 Contact Us For Availability
9
Control, Remote WPL 8209730 Contact Us For Availability
10
Motor, Fan WPL 8209867 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Filter WPL 8209704 Contact Us For Availability
12
Tube, Discharge WPL 8209865 Contact Us For Availability
13
Evaporator WPL 8209854 Contact Us For Availability
13
Wall, Dividing WPL 8209678 Contact Us For Availability
16
Cord, Appliance WPL 8209879 Contact Us For Availability
17
Louver, Assembly WPL 8209706 Contact Us For Availability
17
Support, Tube Sensor WPL 8209853 Contact Us For Availability
18
Base WPL 8209855 Contact Us For Availability
20
Shroud, Evaporator WPL 8209871 Contact Us For Availability
21
Condenser WPL 8209864 Contact Us For Availability
23
Pan, Evaporator WPL 8209858 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Housing, Control Panel WPL 8209793 Contact Us For Availability
26
Hood, Air Housing WPL 8209868 Contact Us For Availability
27
Tube, Suction WPL 8209873 Contact Us For Availability
28
Interface Board, (Low Voltage) WPL 8209792 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209885 Contact Us For Availability
30
Louver, Vertical WPL 8209709 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
33
Housing, Air WPL 8209869 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209791 Contact Us For Availability
36
Main Board (High Voltage) WPL 8209790 Contact Us For Availability
39
Compressor Assembly WPL 8209881 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 27.51 oz. WPL ARI20066A2 Contact Us For Availability
× ![]()
