Model Whirlpool ACQ068PS6 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
01 - UNIT PARTS

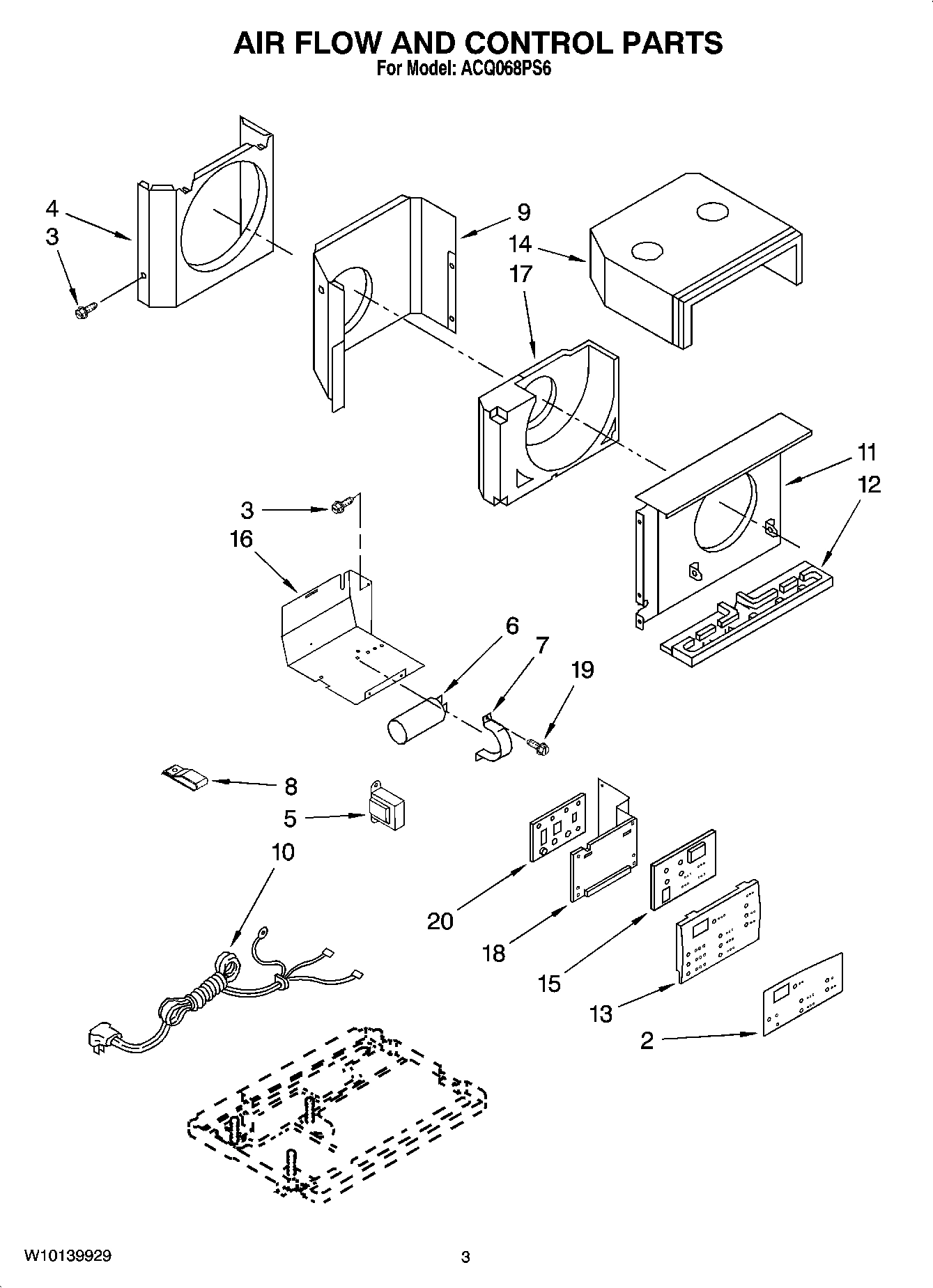

02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACQ068PS6 AIR CONDITIONER
1
Wiring Diagram WPL 8209795 Contact Us For Availability
1
Use & care Guide WPL 8209797 Contact Us For Availability
1
Energy Guide WPL 8209856 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
2
Overload WPL 8209823 Contact Us For Availability
2
Overlay WPL 8209794 Contact Us For Availability
3
Channel, Top WPL 8209897 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
4
Curtain Assy (Includes 3) WPL 8209896 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Shroud, Condenser WPL 8209779 Contact Us For Availability
5
Screw (8) WPL 8209777 Contact Us For Availability
5
Tube, Outlet WPL 8209731 Contact Us For Availability
5
Transformer WPL 8209723 Contact Us For Availability
6
Front, Cabinet WPL 8209728 Contact Us For Availability
6
Tube, Restrictor WPL 8209712 Contact Us For Availability
6
Capacitor, Running WPL 8209719 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
7
Blade, Fan WPL 8209657 Contact Us For Availability
7
Bracket, Capacitor WPL 8209720 Contact Us For Availability
8
Support, Louver WPL 8209770 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Clamp, Cord WPL 8209818 Contact Us For Availability
9
Control, Remote WPL 8209730 Contact Us For Availability
9
Grommet (3) WPL 8209829 Contact Us For Availability
9
Wall, Dividing WPL 8209678 Contact Us For Availability
10
Filter WPL 8209704 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
10
Cord, Appliance WPL 8209826 Contact Us For Availability
11
Louver, Assembly WPL 8209706 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Shroud, Evaporator WPL 8209784 Contact Us For Availability
12
Louver, Vertical WPL 8209709 Contact Us For Availability
12
Tube, Discharge WPL 8209713 Contact Us For Availability
12
Pan, Evaporator WPL 8209721 Contact Us For Availability
13
Evaporator WPL 8209808 Contact Us For Availability
13
Housing, Control Panel WPL 8209793 Contact Us For Availability
14
Support, Tube Sensor WPL 8209771 Contact Us For Availability
14
Hood, Air Housing WPL 8209682 Contact Us For Availability
15
Base WPL 8209820 Contact Us For Availability
15
Interface Board, (Low Voltage) WPL 8209792 Contact Us For Availability
16
Condenser WPL 8209812 Contact Us For Availability
16
Panel, Rear- Control Box WPL 8209722 Contact Us For Availability
17
Nut, Hex WPL 8209668 Contact Us For Availability
17
Housing, Air WPL 8209686 Contact Us For Availability
18
Tube, Suction WPL 8209825 Contact Us For Availability
18
Panel, Front- Control Box WPL 8209791 Contact Us For Availability
19
Tube, Inlet WPL 8209671 Contact Us For Availability
20
Compressor Assembly WPL W10152921 Contact Us For Availability
20
Main Board (High Voltage) WPL 8209790 Contact Us For Availability
21
Wheel, Blower WPL 8209673 Contact Us For Availability
21
REFRIGERANT CHARGE 14.1 oz. WPL ARI20057A1 Contact Us For Availability
× ![]()
