Model Whirlpool ACQ068MP0 AIR CONDITIONER – Common Parts & Diagrams

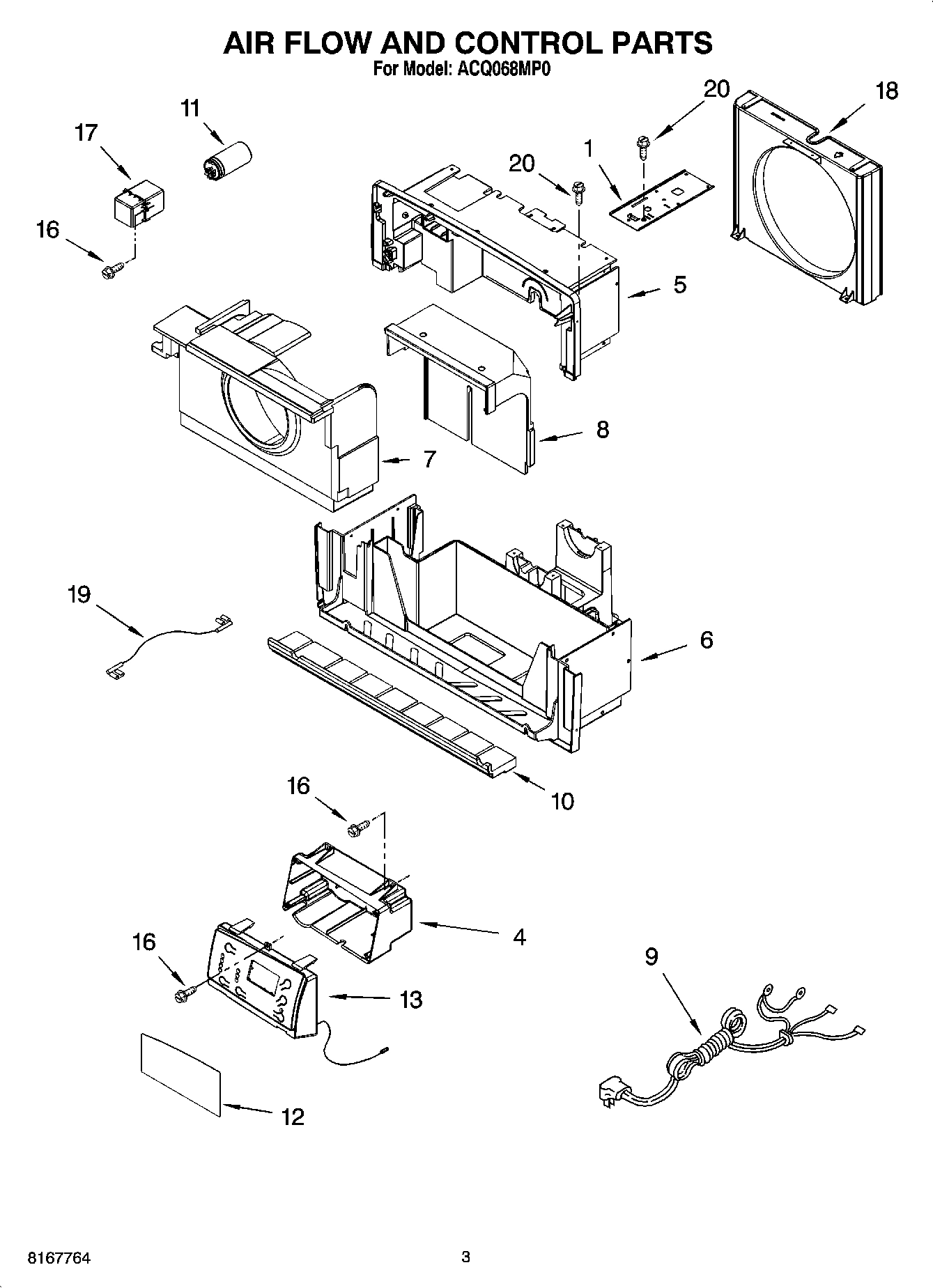

02 - AIR FLOW AND CONTROL PARTS

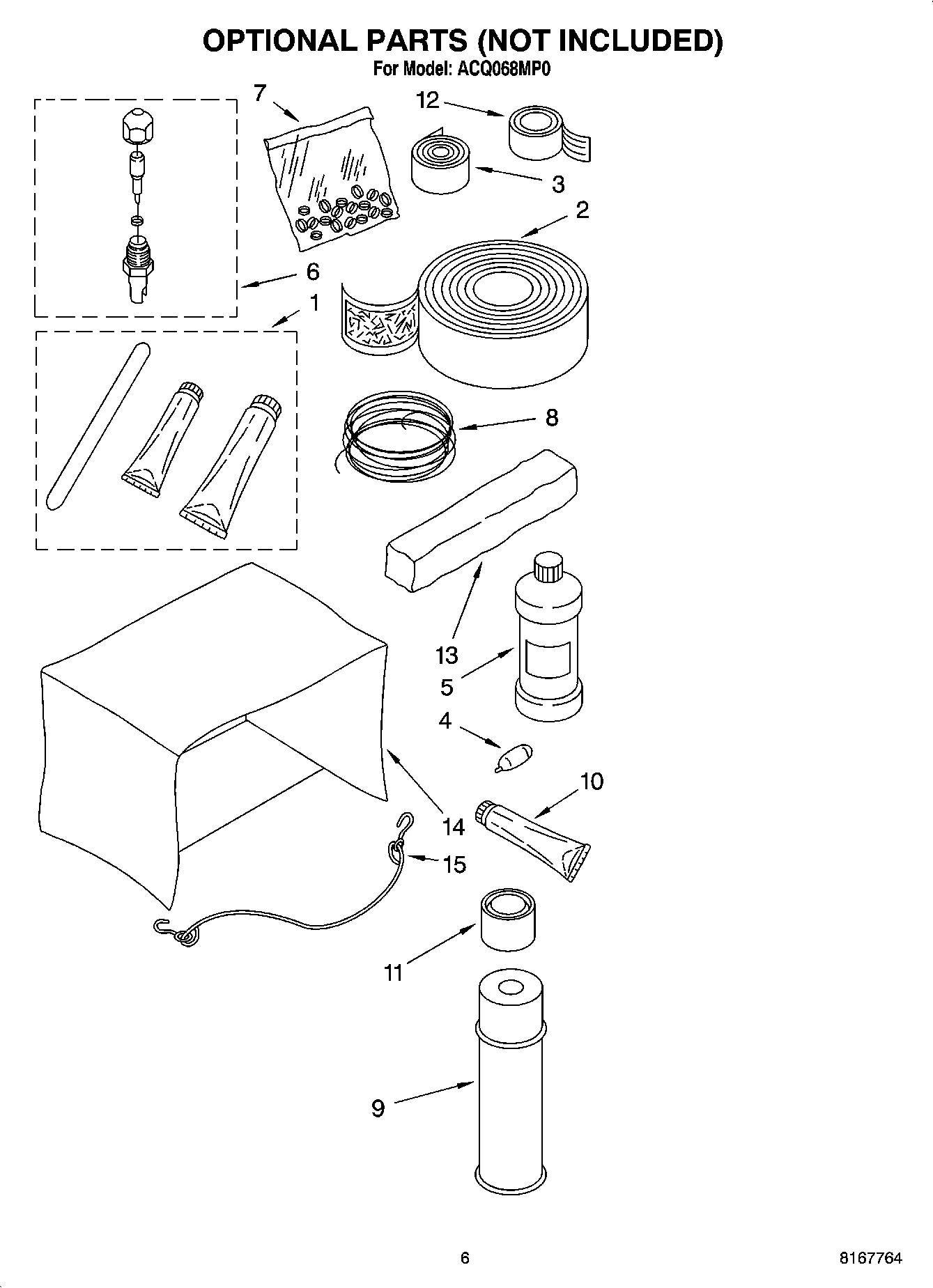

04 - OPTIONAL PARTS (NOT INCLUDED)

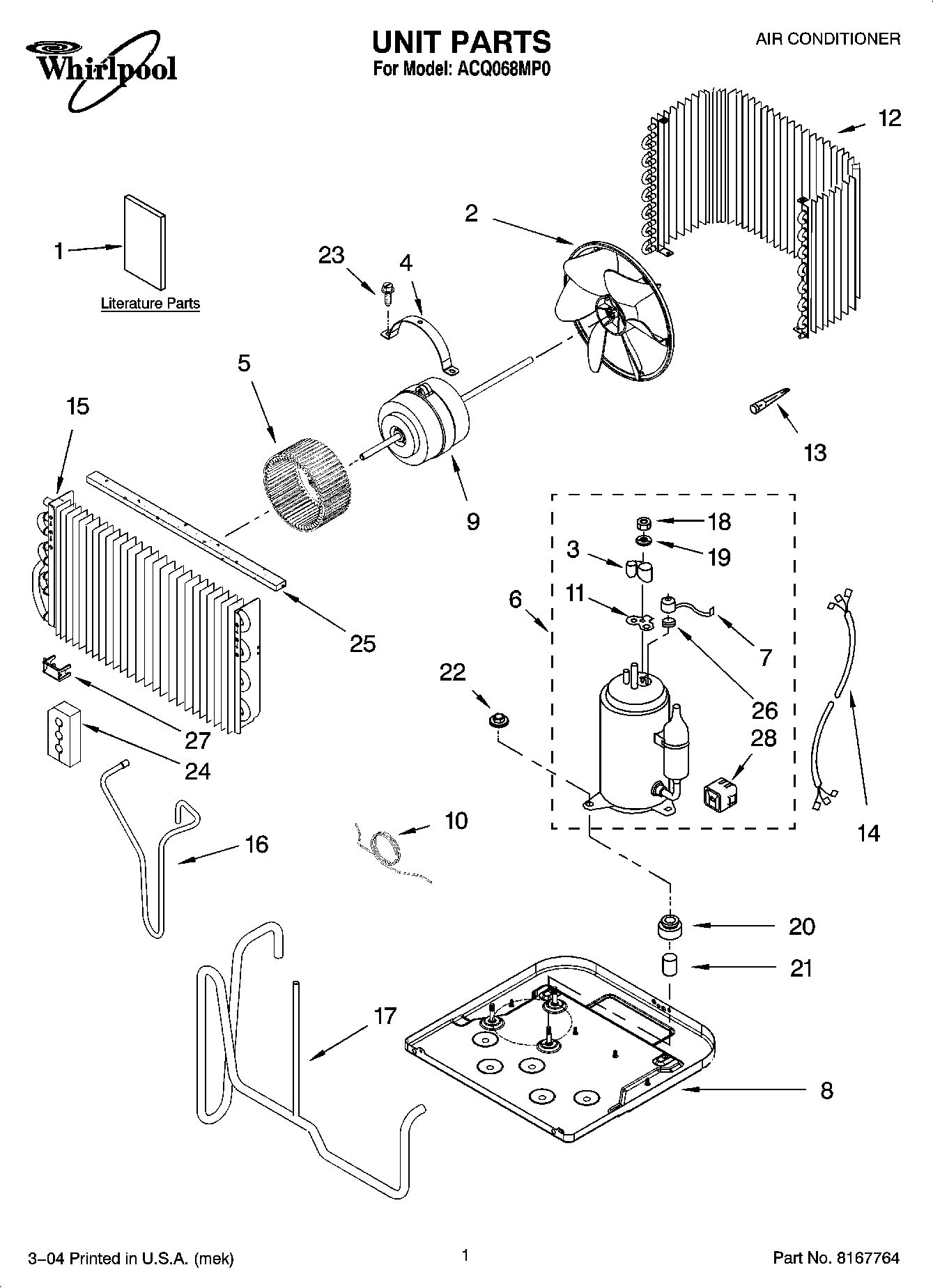

01 - UNIT PARTS

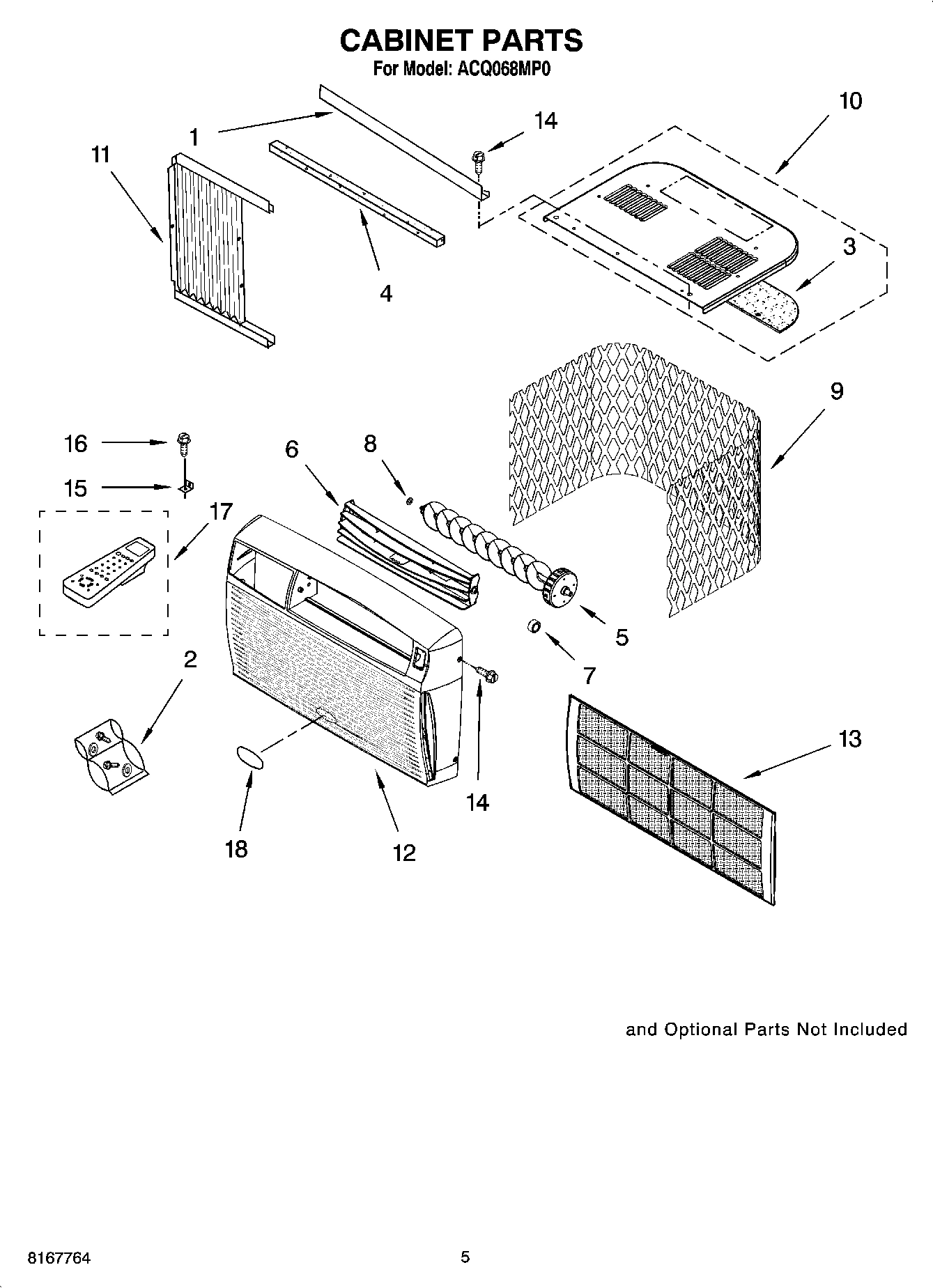

03 - CABINET PARTS
Common parts from model Whirlpool ACQ068MP0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT8209184 Contact Us For Availability
1
LITERATURE PARTS (Guide, Energy) WPL LIT8209186 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram Label) WPL LIT8209187 Contact Us For Availability
1
Top Channel WPL 8040095 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Fan, Condenser WPL 326026600 Contact Us For Availability
2
Bag, Accessory WPL 8040339 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Cover, Terminal WPL 1185792 Contact Us For Availability
3
Insulation, Top WPL 8040216 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Clip, Fan Motor WPL 4312602 Contact Us For Availability
4
Gasket, Meeting Rail WPL 8040336 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Wheel, Blower WPL 4312606 Contact Us For Availability
5
Louver Assembly, Vertical WPL 4312597 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Compressor WPL 326034037 Contact Us For Availability
6
Louver, Horizontal WPL 4312598 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Overload WPL 326033876 Contact Us For Availability
7
Bushing, Horizontal Louver WPL 326019585 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Base WPL 4312618 Contact Us For Availability
8
WASHER WPL 4312601 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Motor, Fan WPL 326032377 Contact Us For Availability
9
Grille, Rear WPL 326033103 Contact Us For Availability
10
Tube, Capillary WPL 326032352 Contact Us For Availability
10
Cover, Top WPL 4312661 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
11
Curtain Assembly (Right Side) WPL 4312627 Contact Us For Availability
11
Curtain Assembly (Left Side) WPL 4312628 Contact Us For Availability
12
Condenser WPL 326037055 Contact Us For Availability
12
Front, Cabinet WPL 326032385 Contact Us For Availability
13
Filter, Woven WPL 4312648 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw WPL 8040200 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Harness, Wiring WPL 4312649 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
EVAPORATOR WPL 4312596 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Tube, Discharge WPL 326032349 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
17
Tube, Suction WPL 326034040 Contact Us For Availability
17
Control, Remote WPL 4312641 Contact Us For Availability
18
Shroud, Condenser WPL 326032337 Contact Us For Availability
18
NAMEPLATE WPL 326031759 Contact Us For Availability
18
Condensate, Drain Kit WPL 8171429 Contact Us For Availability
18
Following Parts Not Illustrated and Optional WPL ARI144085A Contact Us For Availability
18
ACCESSORY PARTS WPL ARI144086A Contact Us For Availability
19
Wire, Jumper WPL 4312647 Contact Us For Availability
19
Washer WPL 1185794 Contact Us For Availability
20
Grommet WPL 8209181 Contact Us For Availability
21
Sleeve, Compressor Grommet WPL 326014584 Contact Us For Availability
22
Locknut WPL 8040096 Contact Us For Availability
23
Screw WPL 8040199 Contact Us For Availability
24
Insulator, Tube WPL 4312660 Contact Us For Availability
26
Spring, Overload WPL 1185795 Contact Us For Availability
27
Clip, Anticipator WPL 4312600 Contact Us For Availability
28
Start Device WPL 8209183 Contact Us For Availability
28
REFRIGERANT CHARGE 15.0 oz. WPL ARI144084A Contact Us For Availability
× ![]()
