Model Whirlpool ACQ062XW0 AIR CONDITIONER – Common Parts & Diagrams

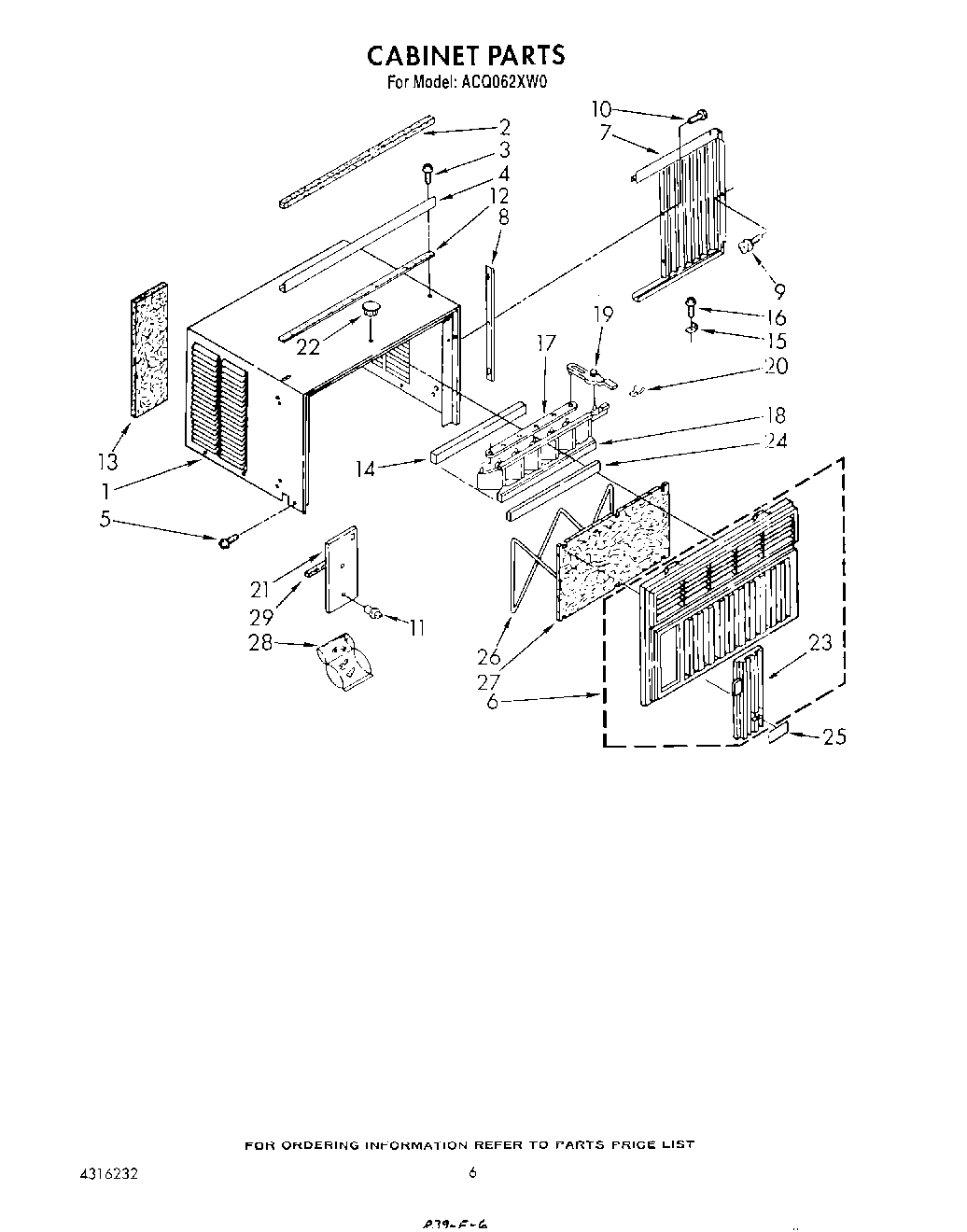

04 - CABINET

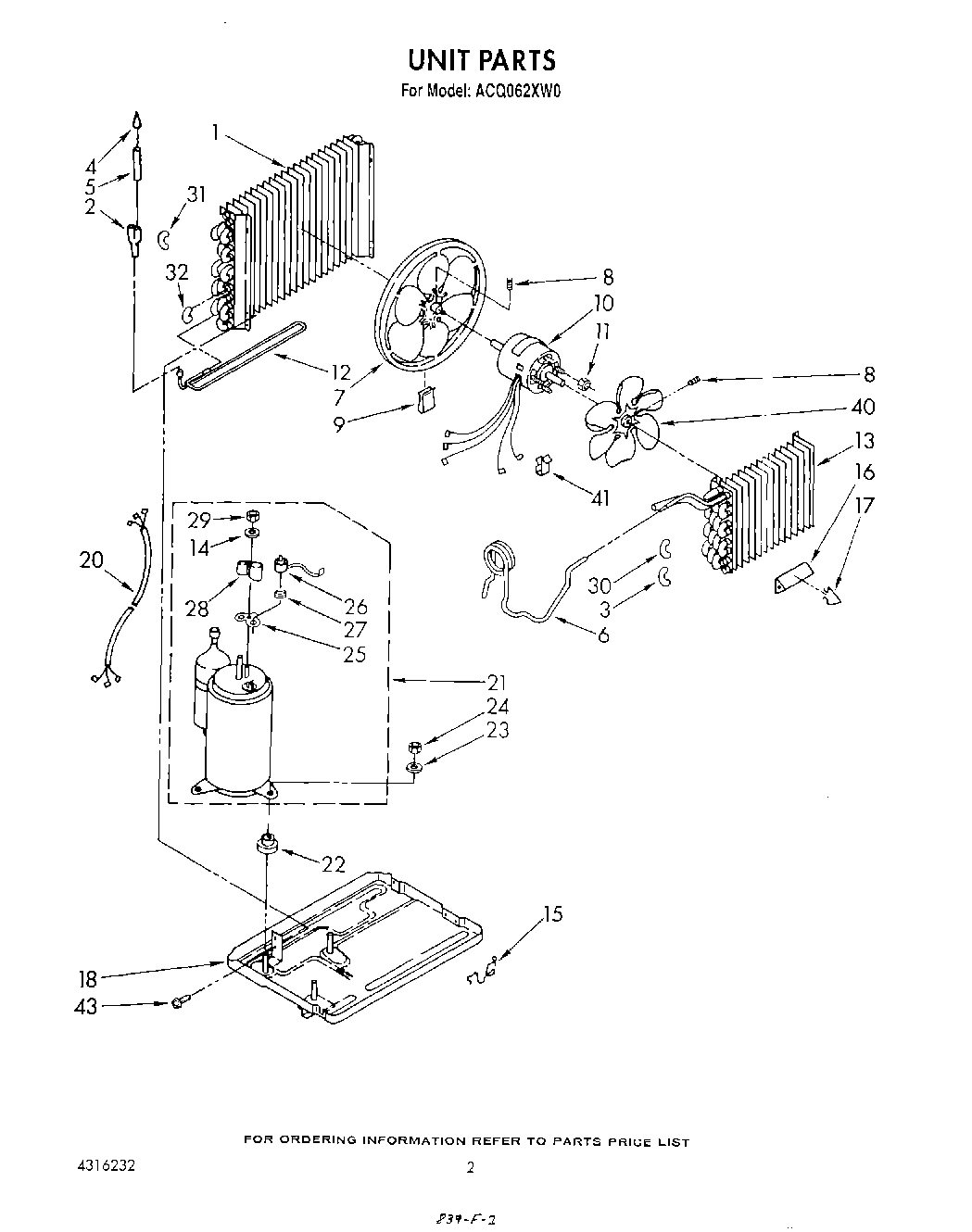

02 - UNIT

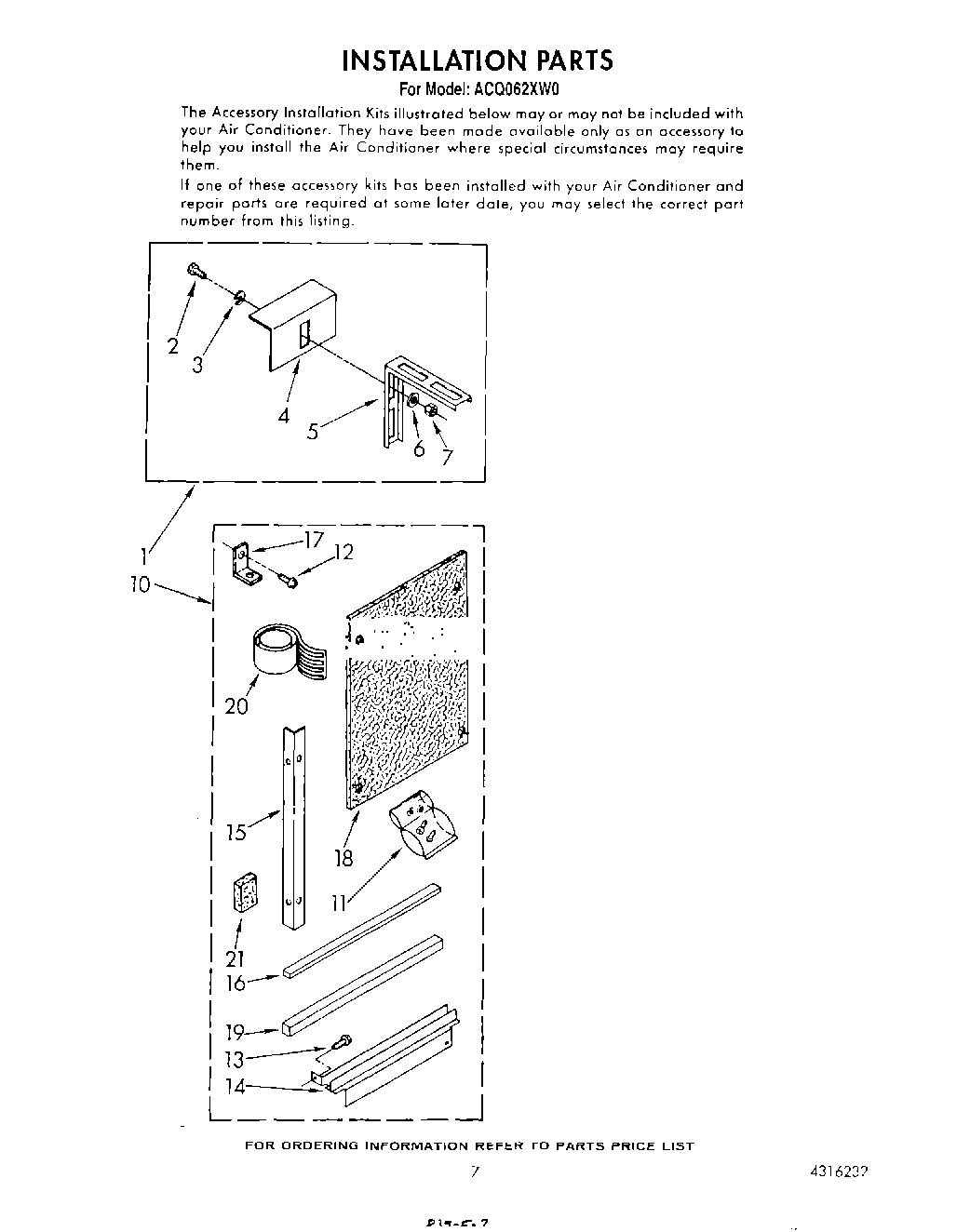

05 - INSTALLATION

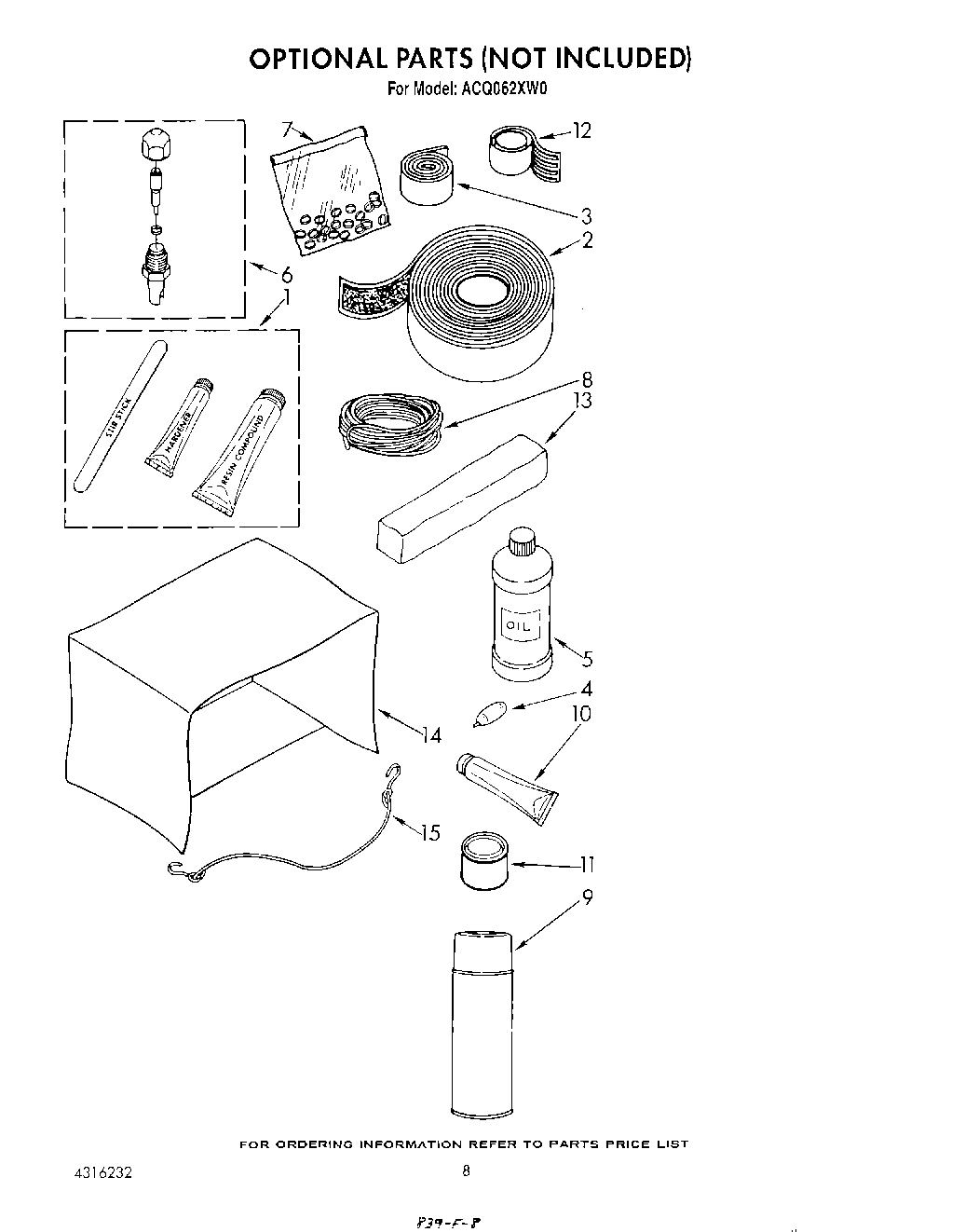

06 - LIT/OPTIONAL

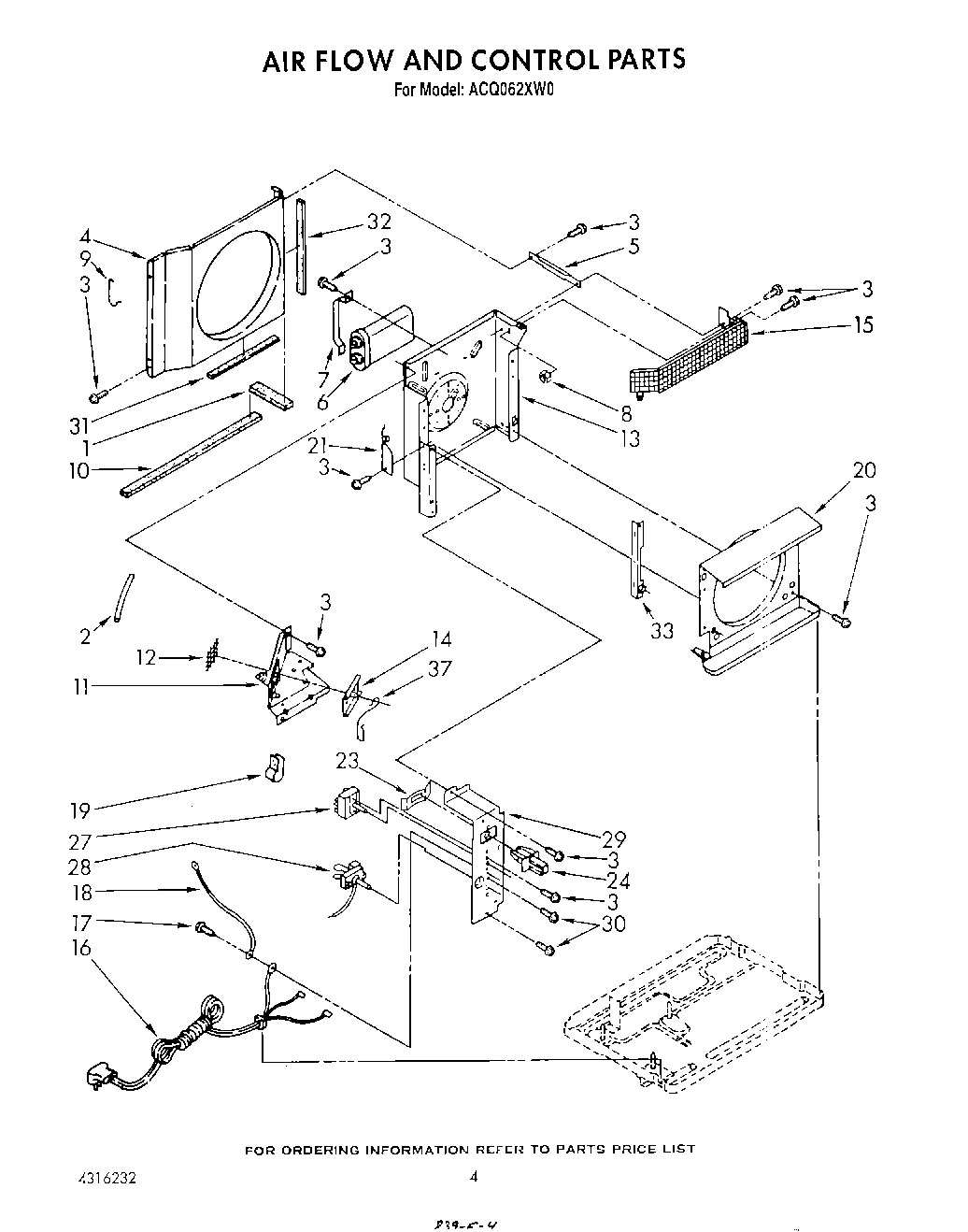

03 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ACQ062XW0 AIR CONDITIONER
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Use And Care WPL LIT1158930 Contact Us For Availability
List, Repair Parts WPL LIT4316232 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Condenser WPL 1155940 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Tube, Flow Divider WPL 947364 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (13) WPL 855199 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Tube, Restrictor (Length 46.0``) WPL 1156490 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158524 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
9
Clip, Balancing WPL 1158502 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Shroud WPL 994686 Contact Us For Availability
10
Motor, Fan WPL 1156828 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Extension, Dividing Wall WPL 646130 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Condenser Extension WPL 1155622 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Evaporator WPL 1156820 Contact Us For Availability
13
Wall, Dividing Assembly WPL 859822 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
15
Clip, Front (2) WPL 949634 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
18
Louver, Vertical WPL 1157284 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
21
Plate, Escutcheon WPL 1155401 Contact Us For Availability
21
Compressor WPL 1156603 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Door, Control WPL 1155406 Contact Us For Availability
23
Spring, Retainer WPL 858765 Contact Us For Availability
24
Seal, Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
25
Plate, Name WPL 951916 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
Bend, Return Evaporator (3) WPL 854624 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Bend, Return (13) WPL 708531 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
32
Bend, Return (4) WPL 708532 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
33
Bracket, Evaporator Mounting WPL 855502 Contact Us For Availability
37
Arm, Door WPL 950255 Contact Us For Availability
40
Fan, Blade Evaporator WPL 1156594 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
