Model Whirlpool ACQ058PR1 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL PARTS
01 - UNIT PARTS

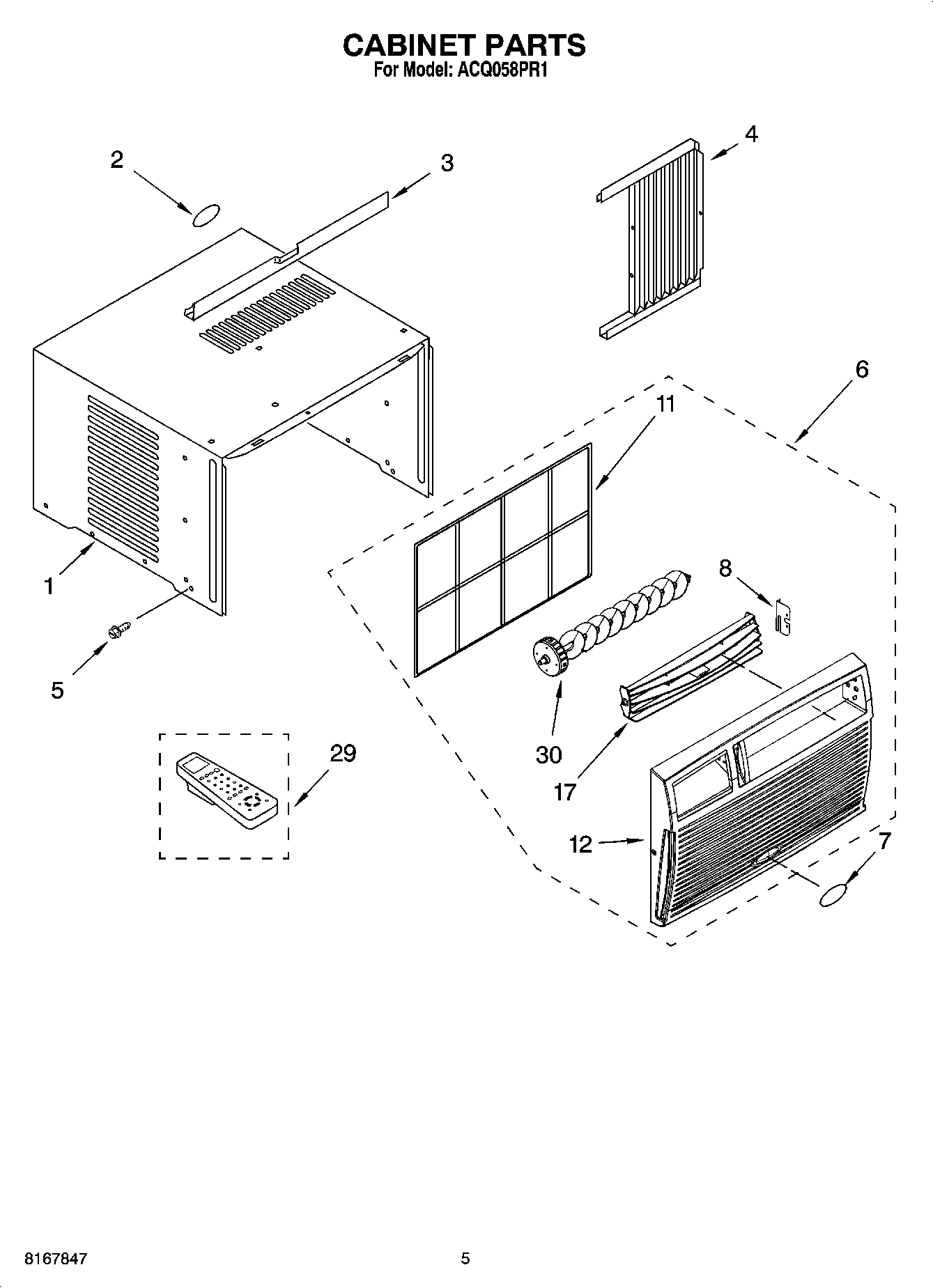

03 - CABINET PARTS
Common parts from model Whirlpool ACQ058PR1 AIR CONDITIONER
1
Wiring Diagram WPL 8209795 Contact Us For Availability
1
Use & care Guide WPL 8209797 Contact Us For Availability
1
Energy Guide WPL 8209819 Contact Us For Availability
1
Cabinet WPL 8209811 Contact Us For Availability
2
Overload WPL 8209810 Contact Us For Availability
2
Logo, Rear WPL 8209738 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Channel, Top WPL 8209734 Contact Us For Availability
4
Shroud, Condenser WPL 8209779 Contact Us For Availability
4
Tube, Inlet Condenser WPL 8209710 Contact Us For Availability
4
Curtain (Right Side) WPL 8209735 Contact Us For Availability
4
Curtain (Left Side) WPL 8209736 Contact Us For Availability
5
Tube, Outlet Condenser WPL 8209711 Contact Us For Availability
5
Screw WPL 8209777 Contact Us For Availability
6
Capacitor, Running WPL 8209719 Contact Us For Availability
6
Tube, Restrictor WPL 8209814 Contact Us For Availability
6
Front, Assembly WPL 8209690 Contact Us For Availability
7
Bracket, Capacitor WPL 8209789 Contact Us For Availability
7
Blade, Fan WPL 8209782 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Clamp, Cord WPL 8209827 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Support, Louver WPL 8209770 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Filter WPL 8209704 Contact Us For Availability
12
Tube, Discharge WPL 8209813 Contact Us For Availability
12
Grille, Front WPL 8209728 Contact Us For Availability
13
Wall, Dividing WPL 8209783 Contact Us For Availability
13
Evaporator WPL 8209808 Contact Us For Availability
16
Cord, Appliance WPL 8209826 Contact Us For Availability
16
Grommet (3) WPL 8209774 Contact Us For Availability
17
Louver WPL 8209706 Contact Us For Availability
17
Support, Tube Sensor WPL 8209771 Contact Us For Availability
18
Base WPL 8209809 Contact Us For Availability
20
Shroud, Evaporator WPL 8209784 Contact Us For Availability
21
Condenser WPL 8209812 Contact Us For Availability
23
Pan, Evaporator WPL 8209721 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Housing, Control Panel WPL 8209793 Contact Us For Availability
26
Hood, Air Housing WPL 8209682 Contact Us For Availability
27
Interface Board, (Low Voltage) WPL 8209792 Contact Us For Availability
27
Tube, Suction WPL 8209815 Contact Us For Availability
28
Hardware Board, (High Voltage) WPL 8209790 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209816 Contact Us For Availability
29
Control, Remote WPL 8209730 Contact Us For Availability
30
Transformer WPL 8209723 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8209716 Contact Us For Availability
30
Louver, Vertical WPL 8209709 Contact Us For Availability
31
Tube, Feeder (Restrictor) WPL 8209717 Contact Us For Availability
32
Manifold, Assembly WPL 8209718 Contact Us For Availability
33
Housing, Air WPL 8209686 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209791 Contact Us For Availability
39
Compressor Assembly WPL 8209775 Contact Us For Availability
40
Screw WPL 8209726 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 19.75 oz. WPL ARI20024A7 Contact Us For Availability
× ![]()
