Model Whirlpool ACQ052XY0 AIR CONDITIONER – Common Parts & Diagrams

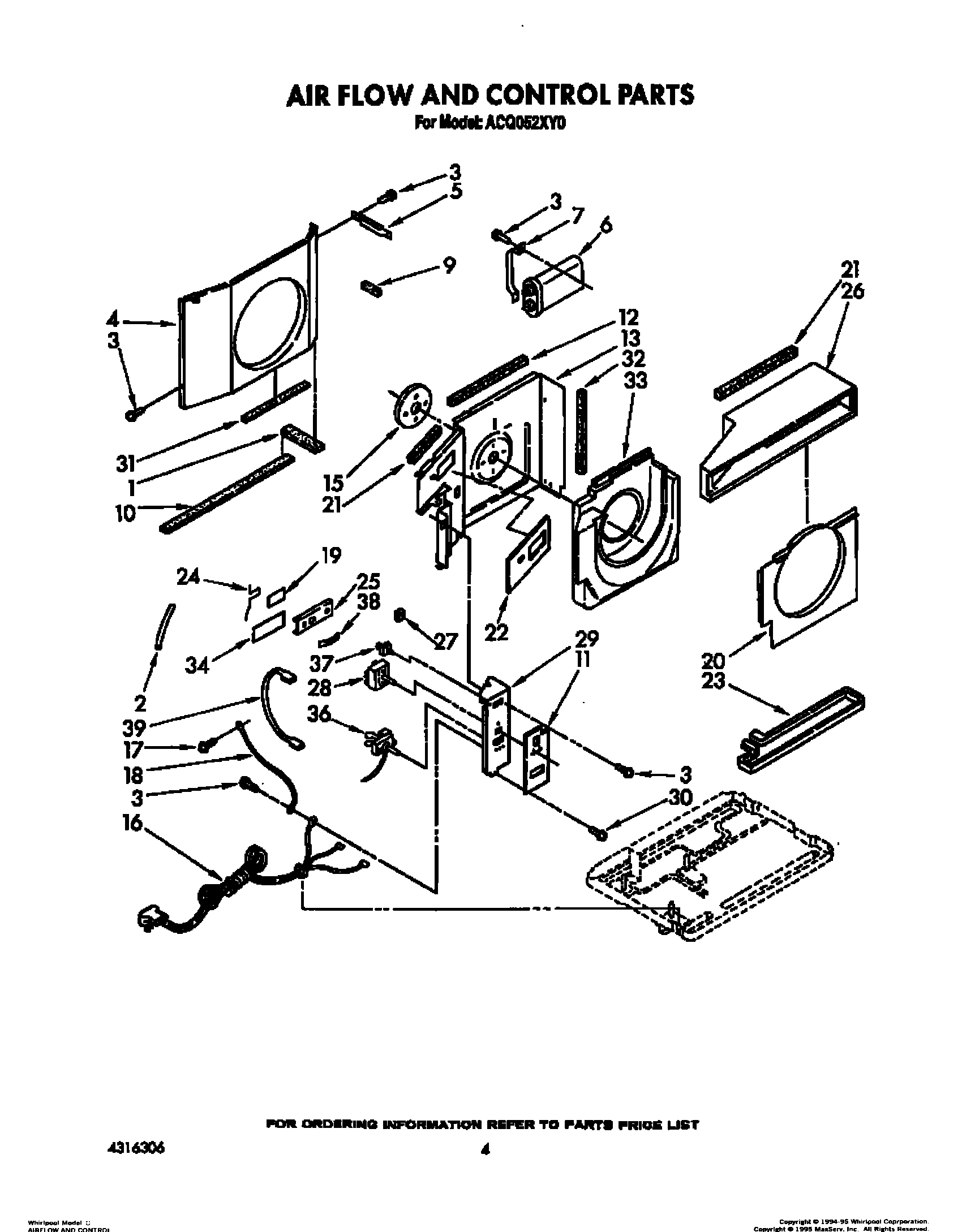

03 - AIRFLOW AND CONTROL

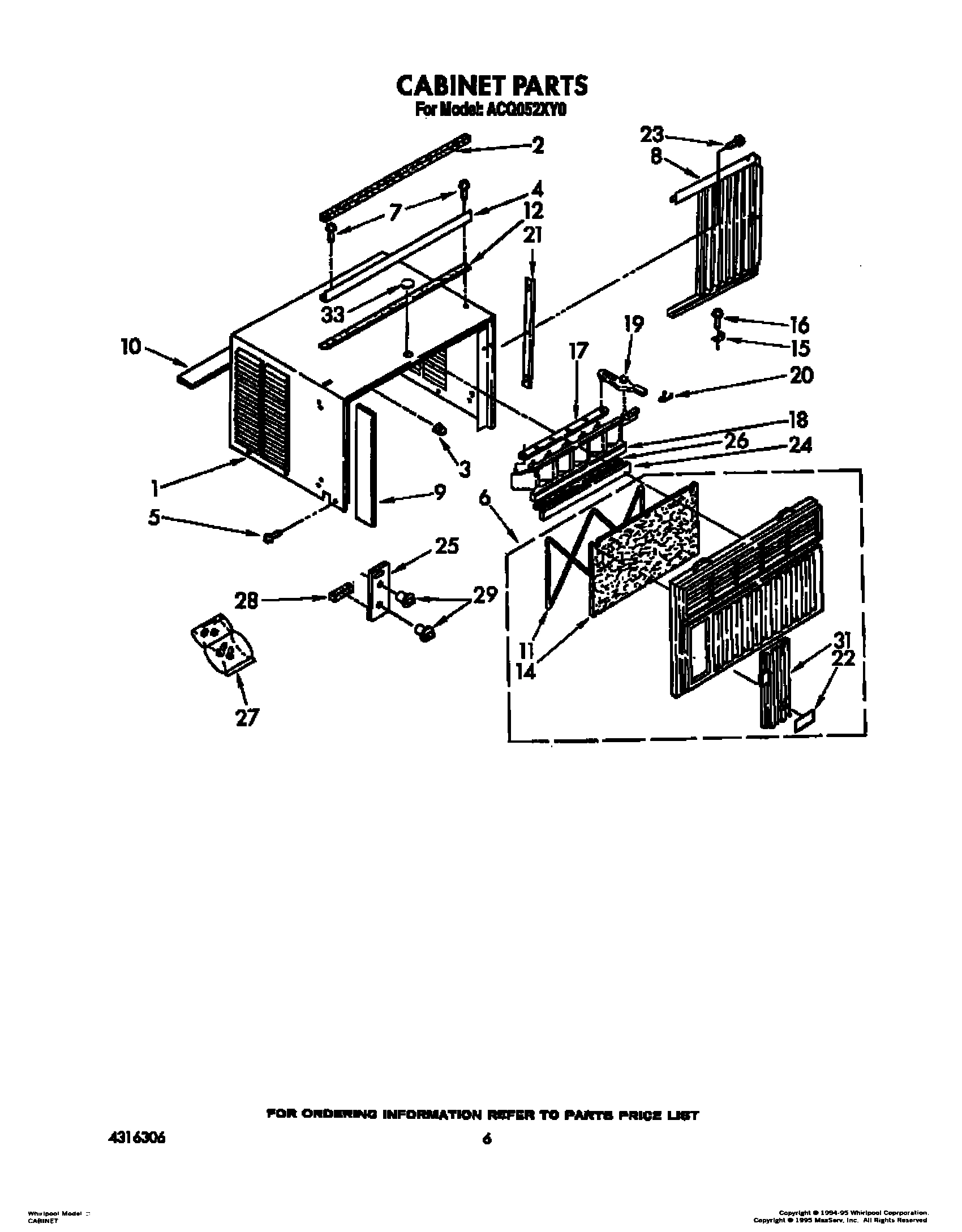

04 - CABINET

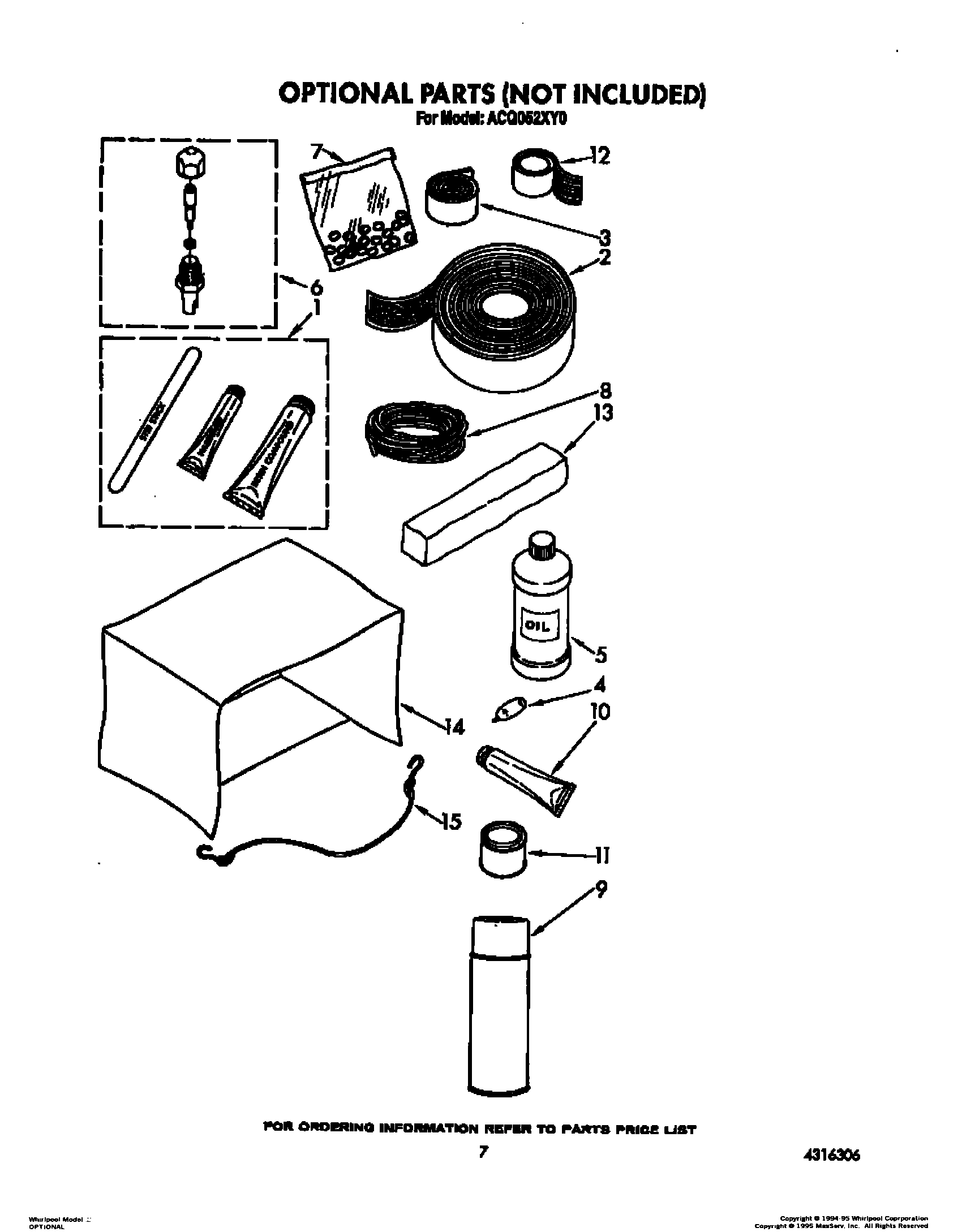

05 - OPTIONAL

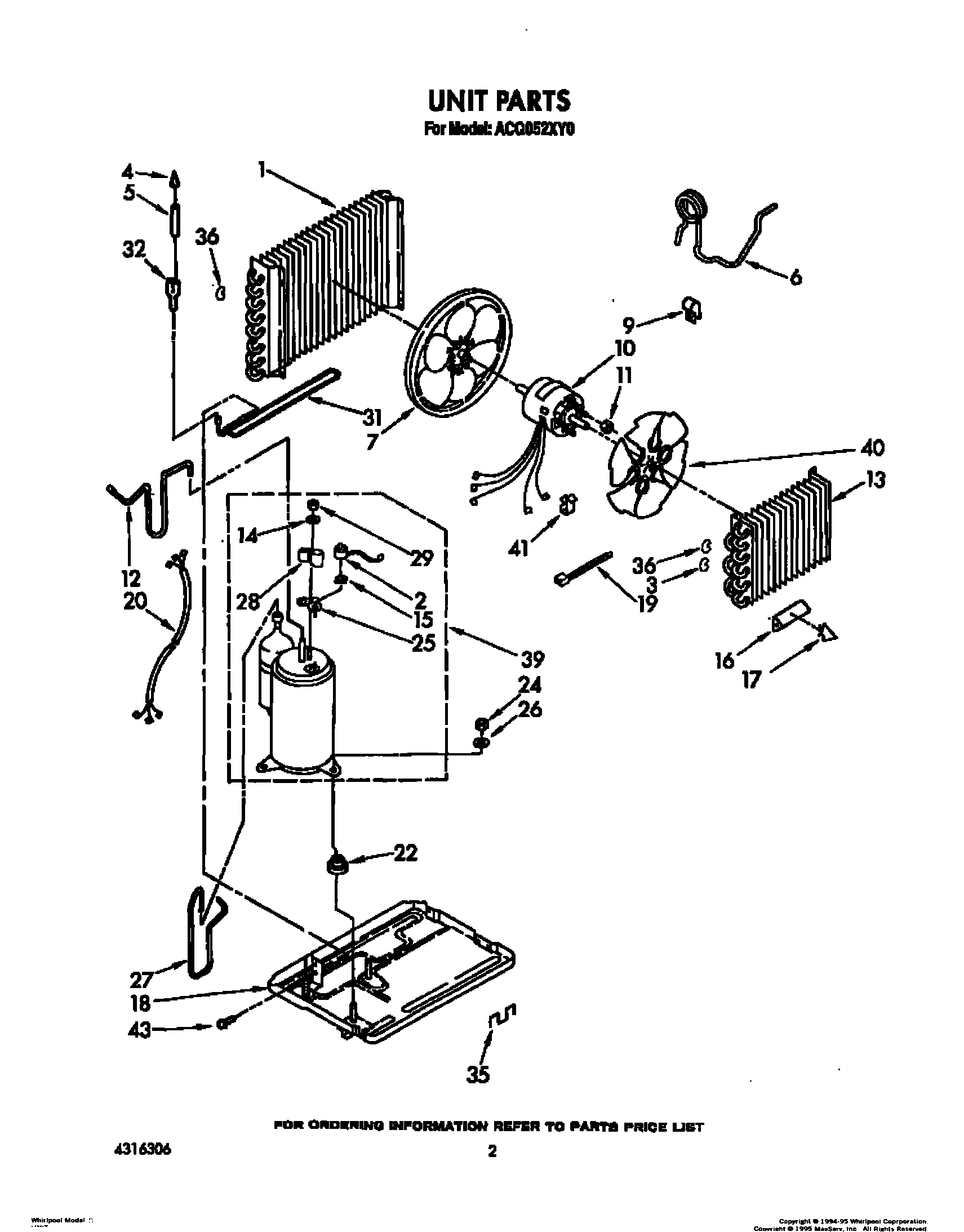

02 - UNIT, LIT/OPTIONAL

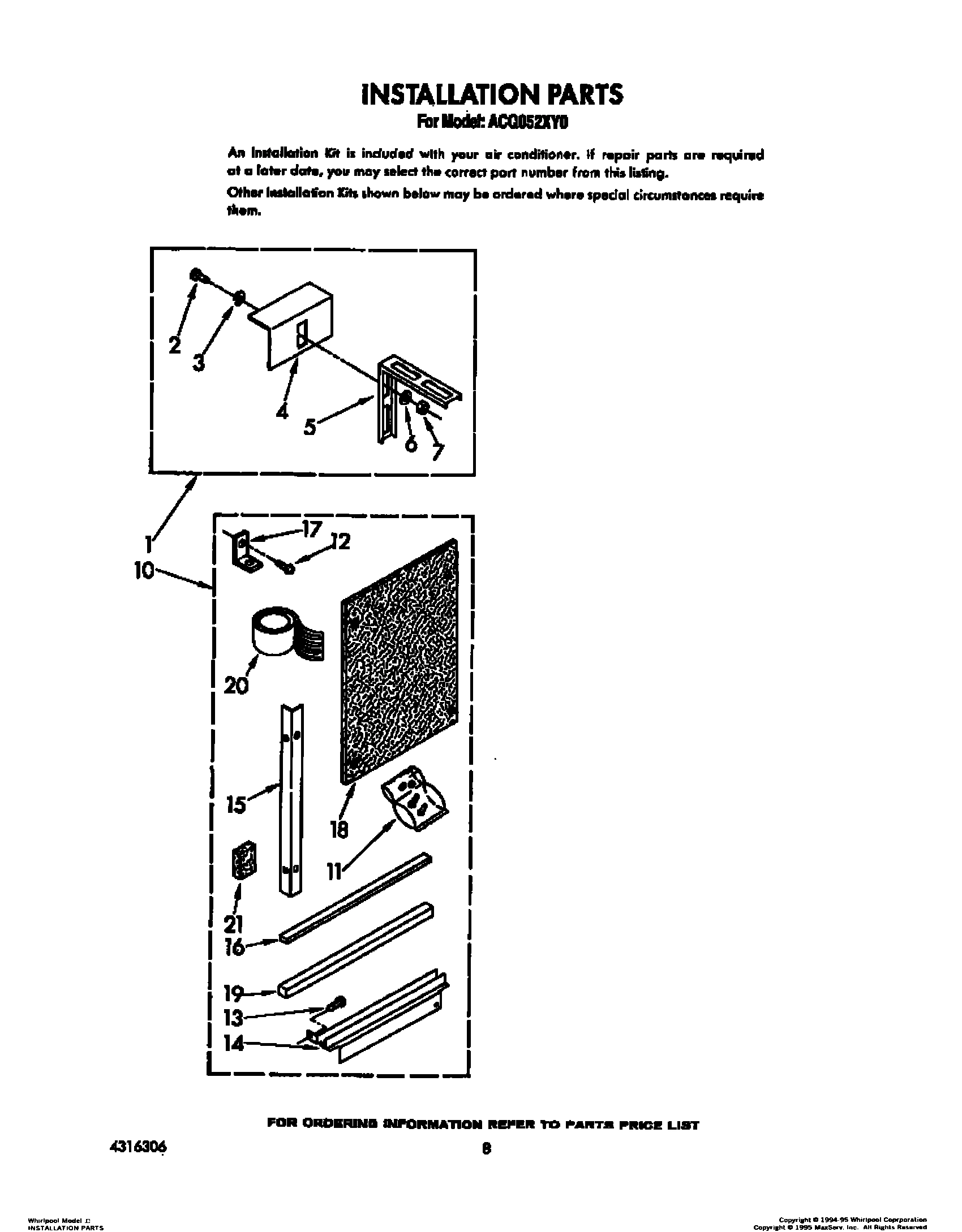

06 - INSTALLATION PARTS
Common parts from model Whirlpool ACQ052XY0 AIR CONDITIONER
Tech Sheet WPL LIT1158310 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Use & Care Guide WPL LIT1158930 Contact Us For Availability
Buy Guide WPL LIT1160972 Contact Us For Availability
List, Repair Parts WPL LIT4316306 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Condenser WPL 1157934 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload WPL 1160970 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Clip WPL 1158294 Contact Us For Availability
3
Bend, Return (13) WPL 708531 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1155403 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1159203 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Curtain (R.S.) WPL 646154 Contact Us For Availability
8
Curtain (L.S.) WPL 646158 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Motor, Fan WPL 1160123 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Retainer, Filter WPL 646963 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
13
Seal WPL 1159283 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Seal, Cabinet WPL 852344 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
19
Barrier Protective WPL 1158323 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 1159348 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Insulation, Door WPL 1158283 Contact Us For Availability
22
Plate, Name WPL 951916 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Pan, Evaporator WPL 1159428 Contact Us For Availability
23
Screw (6) WPL 488730 Contact Us For Availability
24
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
25
Door, Exhaust WPL 1158280 Contact Us For Availability
25
Escutcheon WPL 1158286 Contact Us For Availability
26
Hood, Air Housing WPL 1159349 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
27
Tube, Suction WPL 1160738 Contact Us For Availability
28
Switch, Rotary WPL 950519 Contact Us For Availability
29
Knob, Control (2) WPL 1158639 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Door, Control WPL 1155406 Contact Us For Availability
31
Tube, Condenser Extension WPL 1160799 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
33
Cover, Hole WPL 1157126 Contact Us For Availability
34
Spacer, Exhaust Door (2) WPL 1159175 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Control, Temp. WPL 950403 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
37
Actuator, Door WPL 953066 Contact Us For Availability
38
Spring, Detent WPL 858765 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
39
Compressor Assembly WPL 4210324 Contact Us For Availability
40
Blade, Fan WPL 1160094 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
