Model Whirlpool ACQ052XW0 AIR CONDITIONER – Common Parts & Diagrams

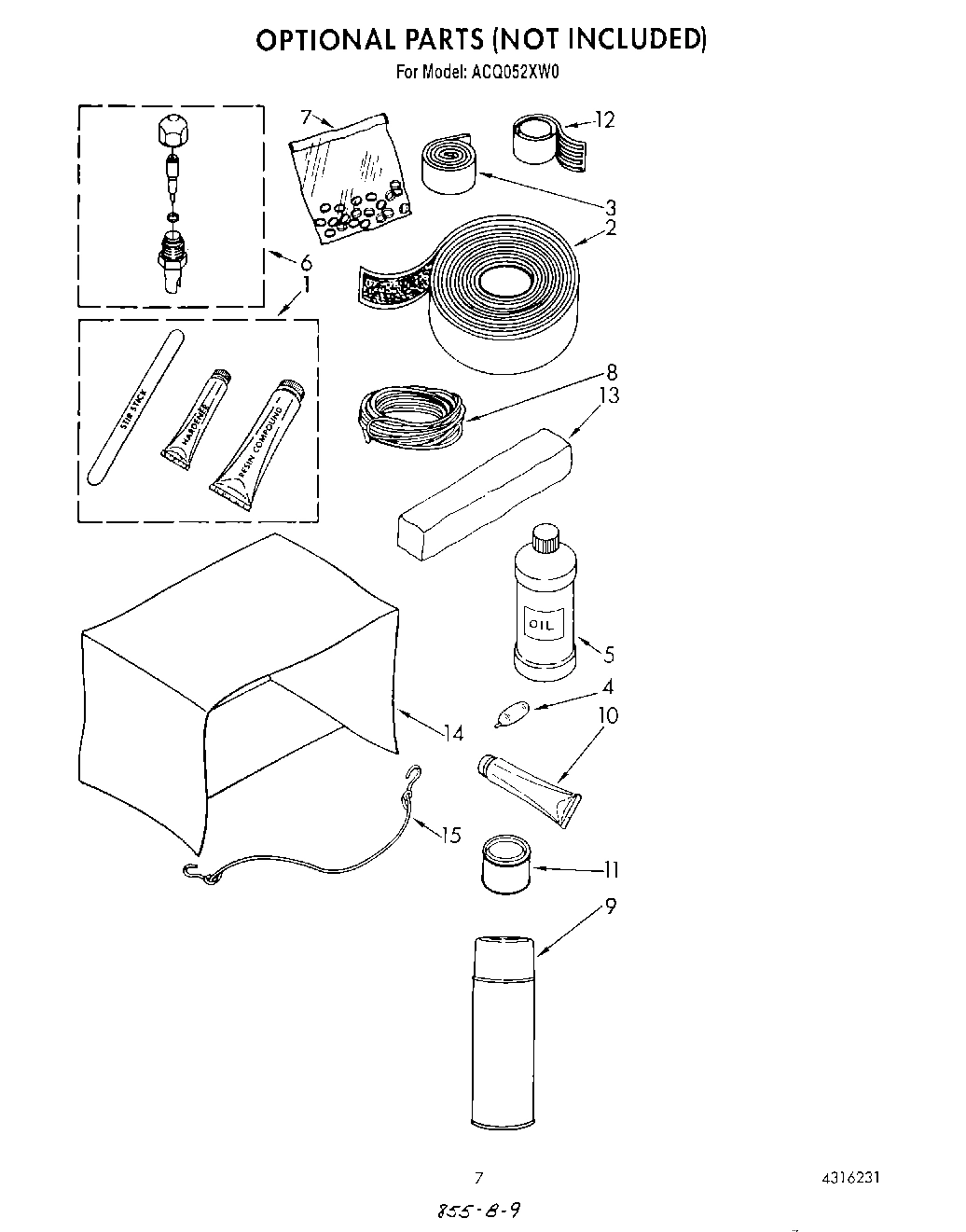

05 - LIT/OPTIONAL

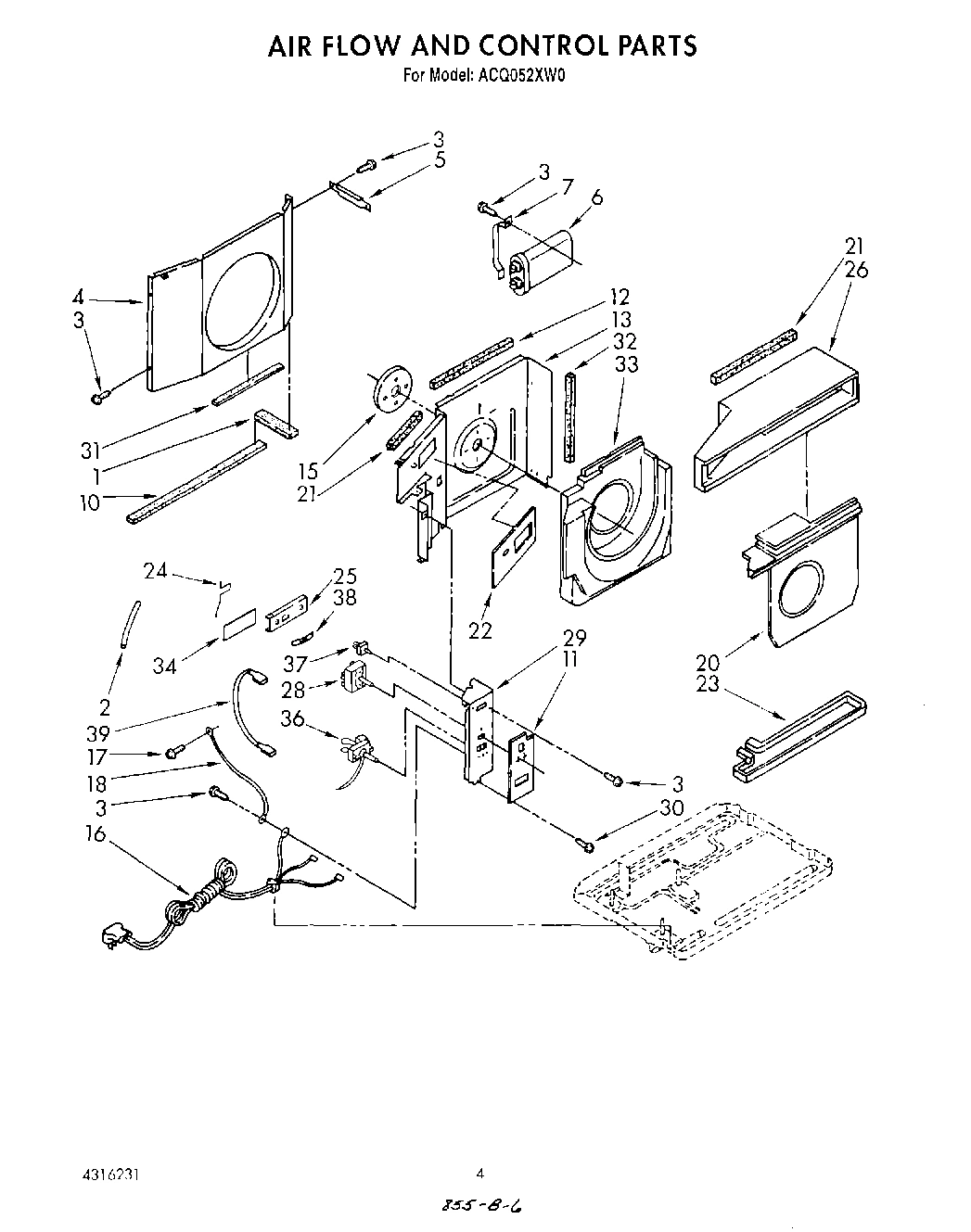

03 - AIR FLOW AND CONTROL
06 - INSTALLATION
02 - UNIT
04 - CABINET
Common parts from model Whirlpool ACQ052XW0 AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Tech Sheet WPL LIT1158310 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Operation WPL LIT1158930 Contact Us For Availability
List, Repair Parts WPL LIT4316231 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Condenser WPL 1157934 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Overload WPL 1156601 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (13) WPL 708531 Contact Us For Availability
3
Clip WPL 1158294 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
6
Tube, Restrictor WPL 1158305 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1155403 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
8
Curtain (R.S.) WPL 646154 Contact Us For Availability
8
Curtain (L.S.) WPL 646158 Contact Us For Availability
9
Clip, Tube WPL 1156028 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Seal, Strip WPL 1158295 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1158299 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Insulation, Control Panel WPL 1157945 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Retainer, Filter WPL 646963 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Seal, Cabinet WPL 852344 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
20
Orifice, Air Housing WPL 1157950 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
22
Insulation, Door WPL 1158283 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Plate, Name WPL 951916 Contact Us For Availability
23
Pan, Evaporator WPL 1157948 Contact Us For Availability
23
Screw (6) WPL 488730 Contact Us For Availability
24
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Door, Exhaust WPL 1158280 Contact Us For Availability
25
Escutcheon WPL 1158286 Contact Us For Availability
26
Hood, Air Housing WPL 1158276 Contact Us For Availability
27
Tube, Suction WPL 1158304 Contact Us For Availability
28
Switch, Rotary WPL 950519 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
29
Nut Hex 5 - 8 mm. WPL 950037 Contact Us For Availability
29
Knob, Control WPL 1158645 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Knob, Switch WPL 1157270 Contact Us For Availability
31
Tube, Condenser Extension WPL 1158322 Contact Us For Availability
31
Door, Control WPL 1155406 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1157949 Contact Us For Availability
33
Cover, Hole WPL 1157126 Contact Us For Availability
34
Spacer, Exhaust Door (2) WPL 1159175 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Control, Temp. WPL 950403 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
37
Actuator, Door WPL 953066 Contact Us For Availability
38
Spring, Detent WPL 858765 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
39
Compressor Assembly WPL 4210324 Contact Us For Availability
40
Wheel, Blower WPL 1157930 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
