Model Whirlpool ACQ052XG1 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL
03 - CABINET

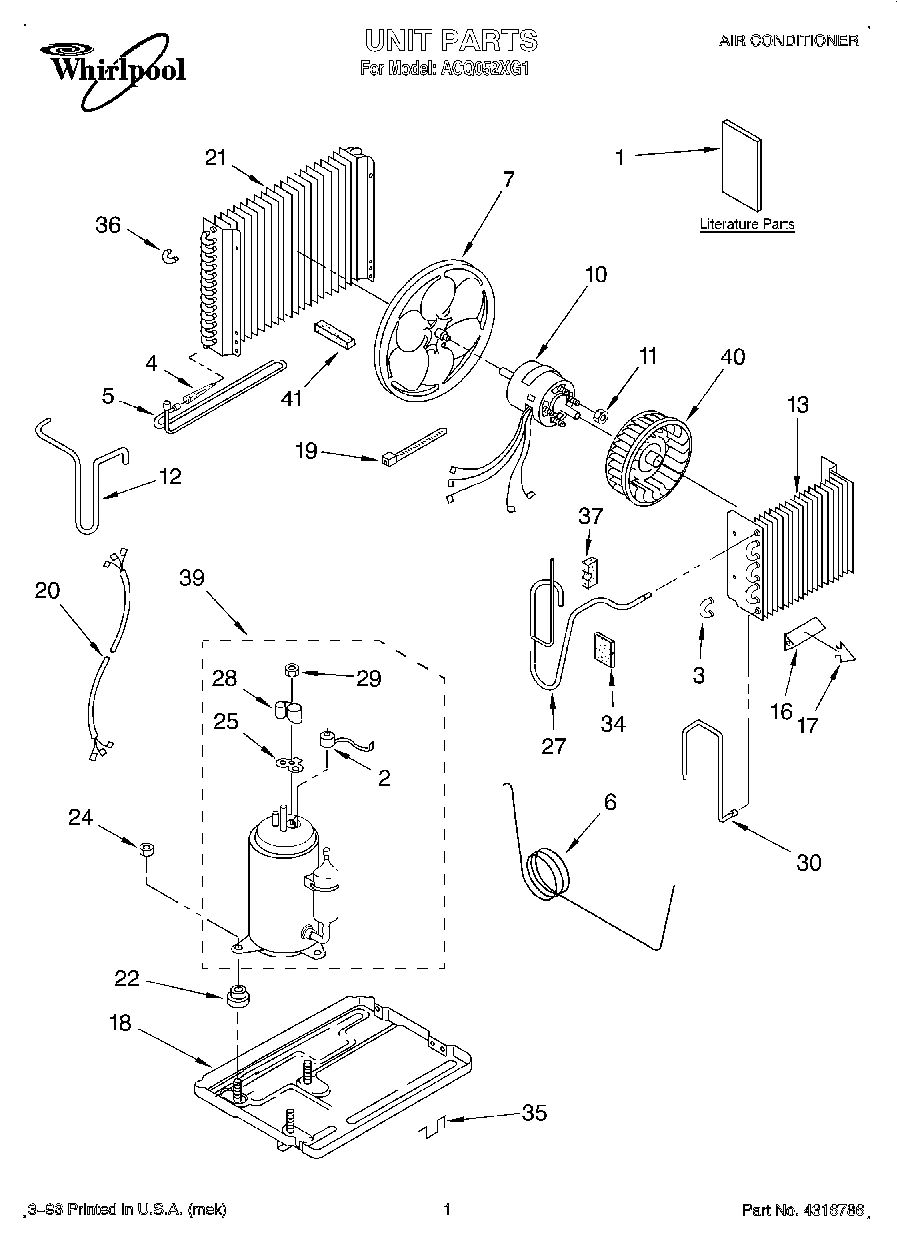

01 - UNIT, LITERATURE

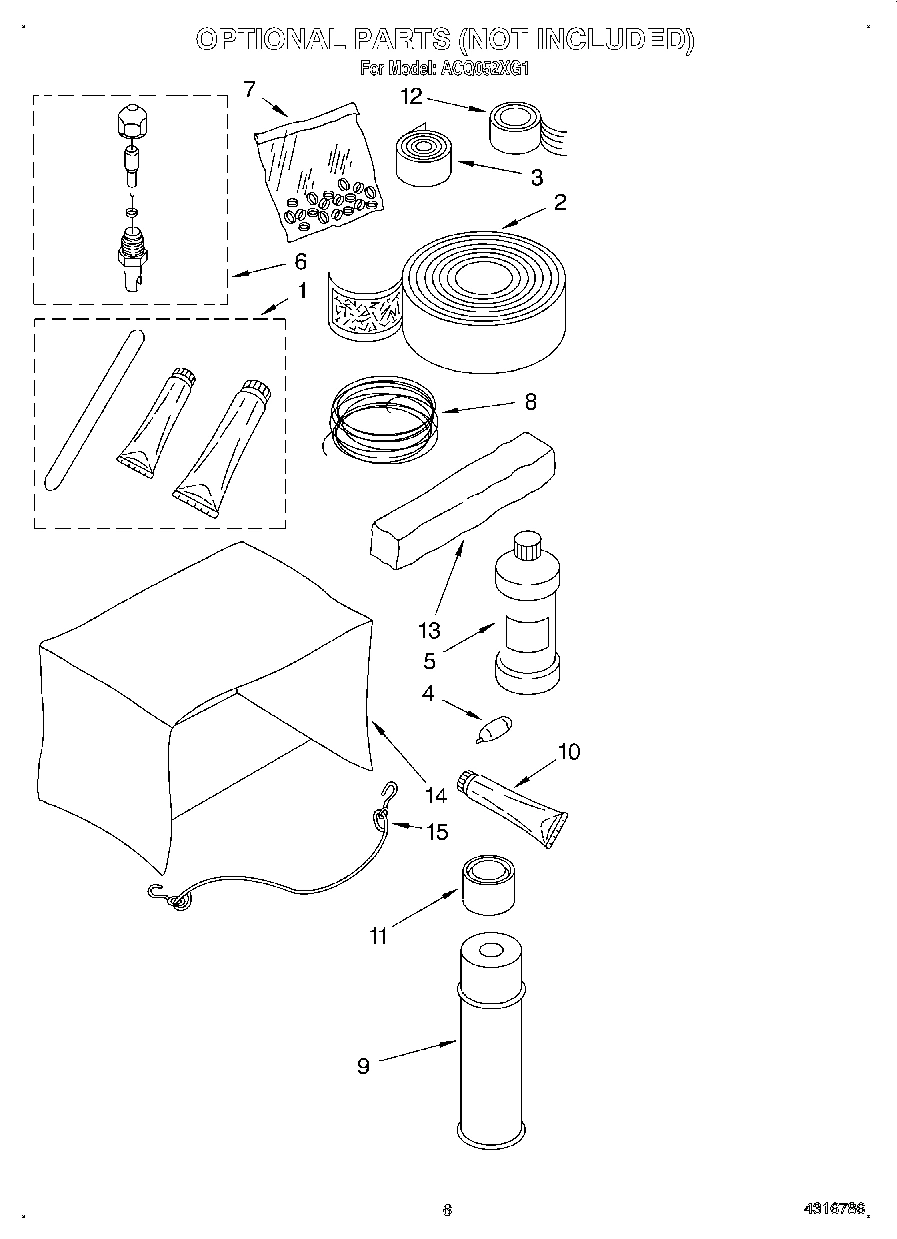

04 - OPTIONAL

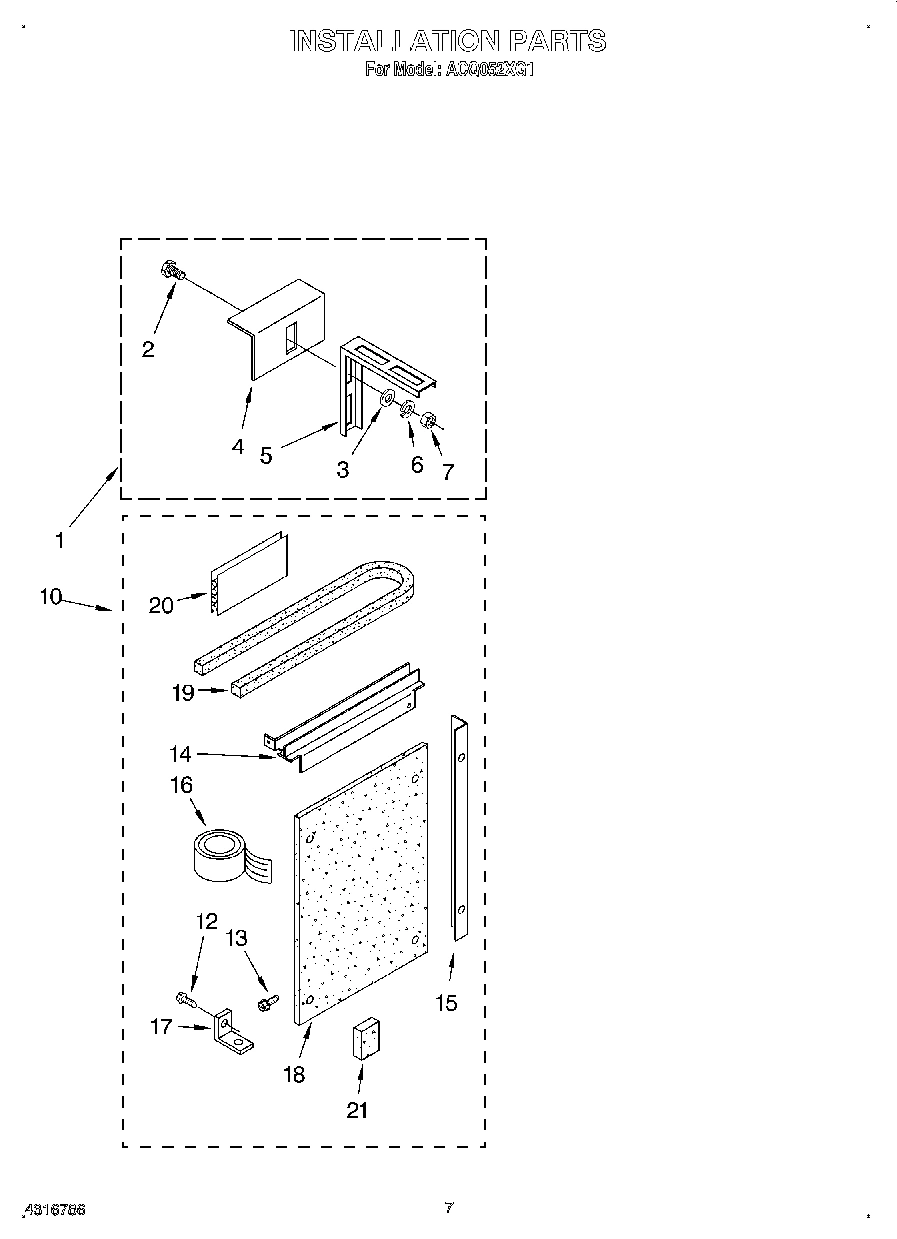

05 - INSTALLATION
Common parts from model Whirlpool ACQ052XG1 AIR CONDITIONER
Wiring Diagram WPL LIT1172258 Contact Us For Availability
Tech Sheet WPL LIT1172389 Contact Us For Availability
Owners Manual WPL LIT1172396 Contact Us For Availability
Instructions, Installation (Standard Mounting WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 1181774 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload WPL 1168453 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Clip WPL 1158294 Contact Us For Availability
3
Bend, Return (3) WPL 708531 Contact Us For Availability
4
Channel, Top WPL 1168393 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Tube, Wet Loop WPL 1182034 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Front, Cabinet WPL 1172372 Contact Us For Availability
6
Tube, Restrictor WPL 1181779 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Curtain (R.S.) WPL 1162961 Contact Us For Availability
8
Curtain (L.S.) WPL 1162963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Insulation, Top WPL 1181844 Contact Us For Availability
10
Motor, Fan WPL 1181773 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Filter WPL 1167313 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Rear Grille WPL 1169470 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Discharge WPL 1181778 Contact Us For Availability
13
Seal WPL 1181735 Contact Us For Availability
13
Evaporator WPL 1169520 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
16
Anticipator WPL 1166782 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 642080 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Base WPL 1181851 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Clip, Front WPL 1157140 Contact Us For Availability
21
Condenser WPL 1169528 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Screw WPL 1165160 Contact Us For Availability
22
Grommet (3) WPL 1181845 Contact Us For Availability
23
Screw (4) WPL 1161561 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 1181804 Contact Us For Availability
25
Door, Exhaust WPL 1158280 Contact Us For Availability
25
Escutcheon WPL 1172366 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1168449 Contact Us For Availability
26
Hood, Air Housing WPL 1169523 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
27
Tube, Suction WPL 1181763 Contact Us For Availability
28
Switch, Rotary WPL 1172175 Contact Us For Availability
28
Spacer, (2) WPL 470036 Contact Us For Availability
28
Cover, Terminal WPL 1168454 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
29
Knob (2) WPL 1166715 Contact Us For Availability
29
Nut Hex 5 - 8 mm. WPL 1168451 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Monitor, Filter WPL 1166134 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1181838 Contact Us For Availability
31
Door, Control WPL 1166131 Contact Us For Availability
32
Screw, Front WPL 1159222 Contact Us For Availability
33
Housing, Air WPL 1169519 Contact Us For Availability
34
Spacer, Exhaust Door (2) WPL 1159175 Contact Us For Availability
34
Seal, Foam WPL 1159443 Contact Us For Availability
35
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Control, Temp. WPL 1166123 Contact Us For Availability
36
Bend, Return (11) WPL 708532 Contact Us For Availability
37
Actuator, Door WPL 1167162 Contact Us For Availability
37
Sealer, Tube WPL 1164551 Contact Us For Availability
38
Spring, Detent WPL 858765 Contact Us For Availability
39
Wire, Jumper WPL 1166916 Contact Us For Availability
39
Compressor Assembly WPL 1181780 Contact Us For Availability
40
Wheel, Blower WPL 1169514 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
