Model Whirlpool ACQ052XF0 AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL
02 - AIRFLOW & CONTROL

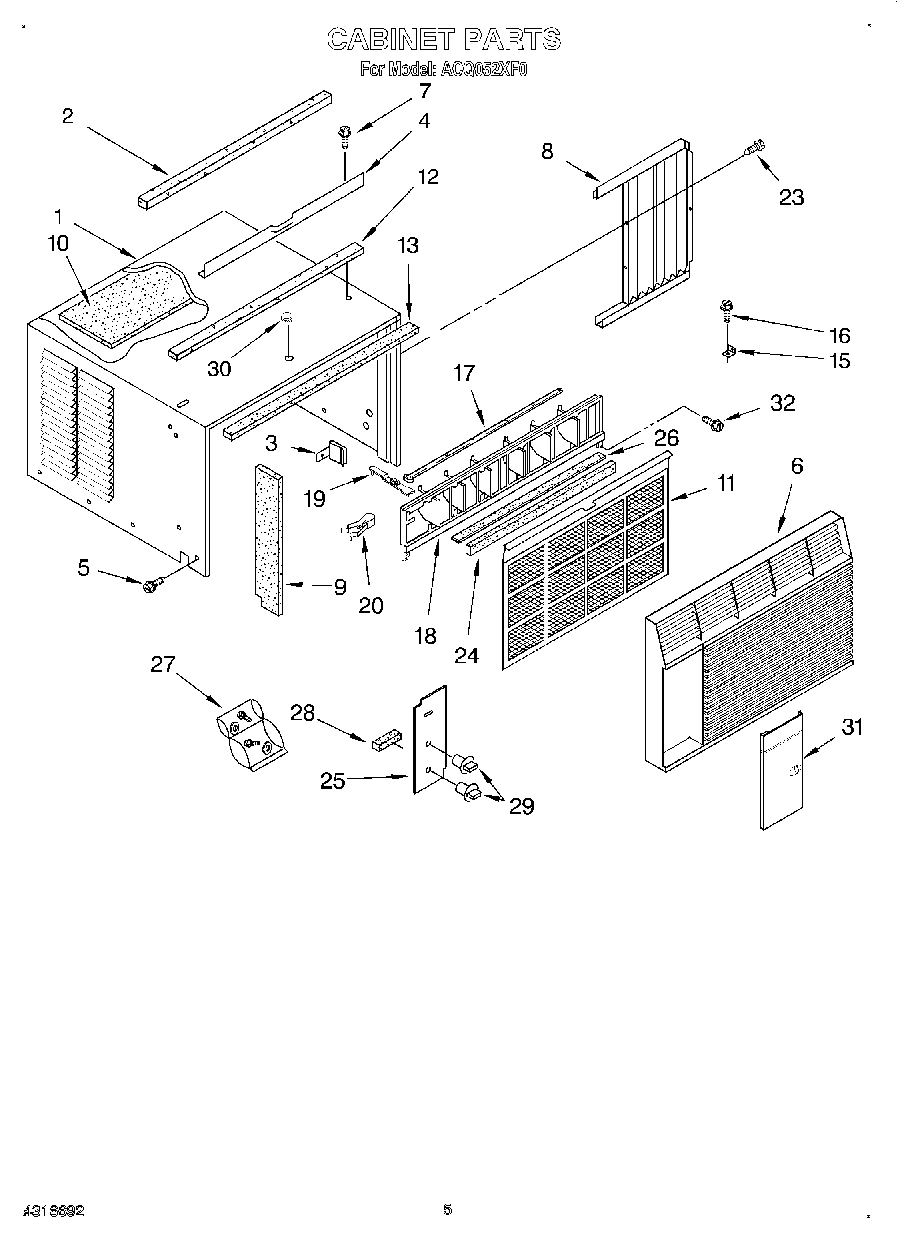

03 - CABINET

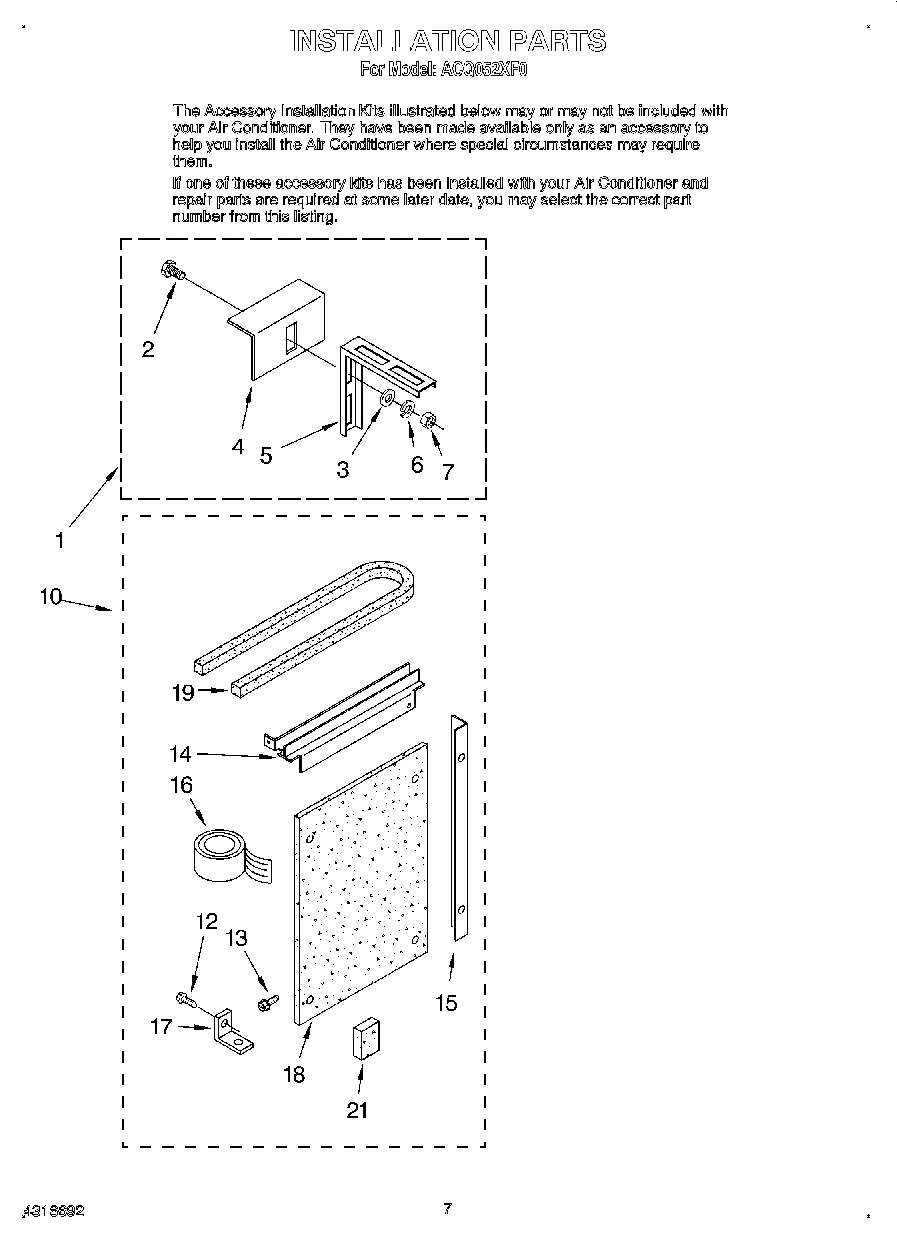

05 - INSTALLATION

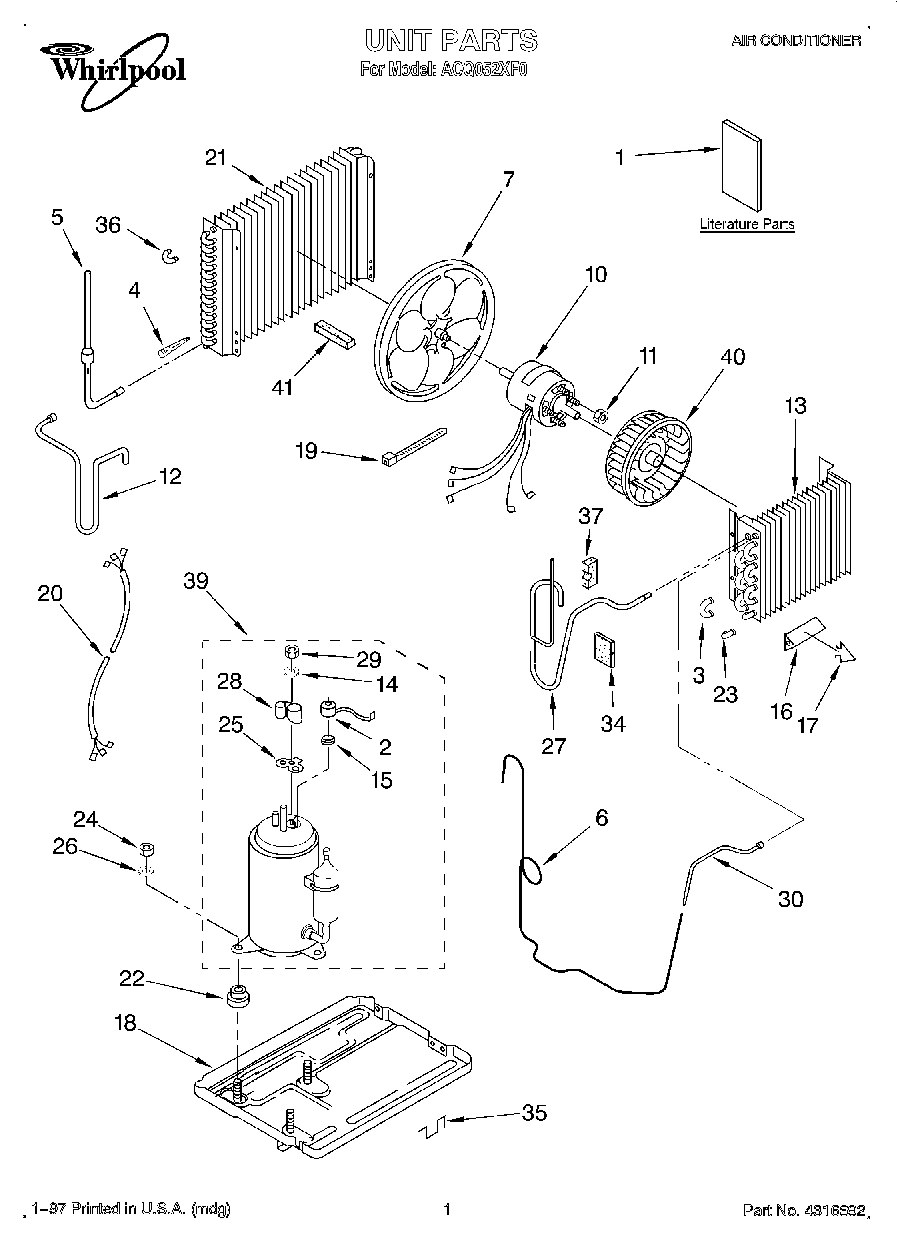

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACQ052XF0 AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Wiring Diagram WPL LIT1166146 Contact Us For Availability
1
Use and Care Guide WPL LIT1168978 Contact Us For Availability
1
Tech Sheet WPL LIT1169473 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Overload WPL 1160970 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Clip WPL 1158294 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Channel, Top WPL 1168393 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube, Connecting WPL 1168637 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
6
Front, Cabinet WPL 1162156 Contact Us For Availability
6
Tube, Restrictor WPL 1168623 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
8
Curtain (R.S.) WPL 1162961 Contact Us For Availability
8
Curtain (L.S.) WPL 1162963 Contact Us For Availability
9
Insulation, Side WPL 1168285 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1166119 Contact Us For Availability
11
Filter WPL 1166152 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
13
Seal WPL 1159283 Contact Us For Availability
13
Evaporator WPL 1164540 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Clamp, Wiring WPL 852451 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1168622 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
16
Cord, Appliance WPL 1164674 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Anticipator WPL 1166782 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 642080 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
19
Barrier Protective WPL 1158323 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
20
Shroud, Evaporator WPL 1164655 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Condenser WPL 1169018 Contact Us For Availability
22
Screen/Insul. Assembly WPL 1162876 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
23
Screw (4) WPL 1161561 Contact Us For Availability
24
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
25
Door, Exhaust WPL 1158280 Contact Us For Availability
25
Escutcheon WPL 1166151 Contact Us For Availability
26
Hood, Air Housing WPL 1164649 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
27
Tube, Suction WPL 1166117 Contact Us For Availability
28
Switch, Rotary WPL 1158669 Contact Us For Availability
28
Spacer, (2) WPL 470036 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
29
Knob (2) WPL 1167617 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Cover, Hole WPL 1157126 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
31
Door, Control WPL 1166891 Contact Us For Availability
32
Screw, Front WPL 1159222 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
34
Spacer, Exhaust Door (2) WPL 1159175 Contact Us For Availability
34
Seal, Foam WPL 1159443 Contact Us For Availability
35
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Control, Temp. WPL 1166123 Contact Us For Availability
36
Bend, Return (11) WPL 708532 Contact Us For Availability
37
Actuator, Door WPL 1167162 Contact Us For Availability
37
Sealer, Tube WPL 1164551 Contact Us For Availability
38
Spring, Detent WPL 858765 Contact Us For Availability
39
Compressor Assembly WPL 1160969 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
