Model Whirlpool ACQ052PP0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
02 - AIR FLOW AND CONTROL PARTS

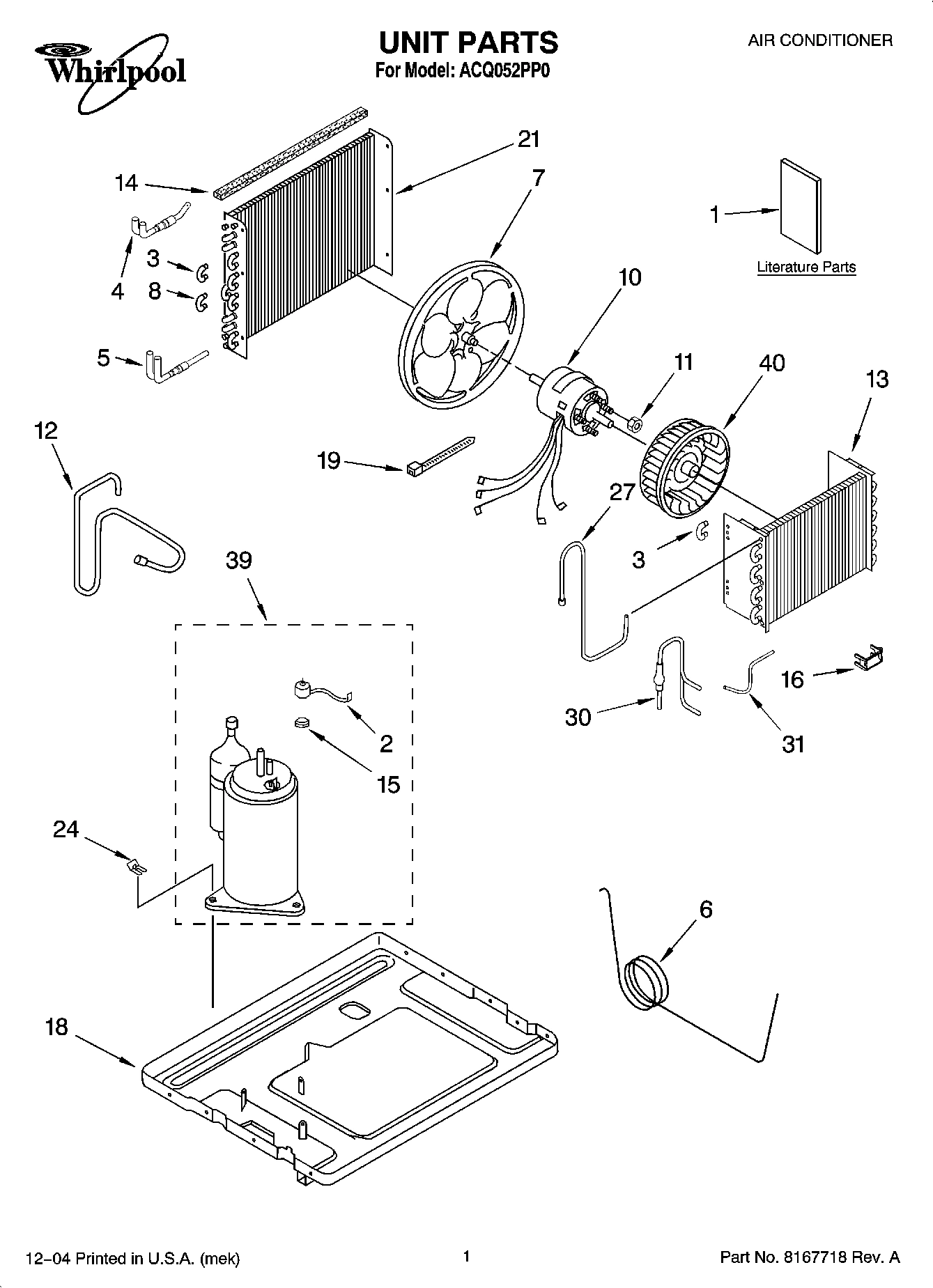

01 - UNIT PARTS
Common parts from model Whirlpool ACQ052PP0 AIR CONDITIONER
1
Transformer WPL 8209806 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8209651 Contact Us For Availability
1
LITERATURE PARTS (Use & care Guide) WPL LIT8209652 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
2
Overlay WPL 8209692 Contact Us For Availability
2
Overload WPL 8209732 Contact Us For Availability
3
Channel, Top WPL 8209734 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
4
Curtain (Right Side) WPL 8209735 Contact Us For Availability
4
Curtain (Left Side) WPL 8209736 Contact Us For Availability
4
Shroud, Condenser WPL 8209675 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
5
Tube, Outlet WPL 8209731 Contact Us For Availability
6
Front, Cabinet Assembly WPL 8209690 Contact Us For Availability
6
Capacitor, Running WPL 8209676 Contact Us For Availability
6
Tube, Restrictor WPL 8209755 Contact Us For Availability
7
Nameplate WPL 8209737 Contact Us For Availability
7
Bracket, Capacitor WPL 8209720 Contact Us For Availability
7
Blade, Fan WPL 8209657 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
11
Filter WPL 8209704 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
12
Tube, Discharge WPL 8209661 Contact Us For Availability
13
Wall, Dividing WPL 8209678 Contact Us For Availability
13
Evaporator WPL 8209740 Contact Us For Availability
14
Seal, Condenser WPL 8209663 Contact Us For Availability
15
Spring, Overload WPL 8209664 Contact Us For Availability
16
Cord, Appliance WPL 8209679 Contact Us For Availability
16
Clip, Thermostat WPL 8209739 Contact Us For Availability
17
Louver, Assembly WPL 8209706 Contact Us For Availability
18
Base WPL 8209665 Contact Us For Availability
19
Cable, Tie WPL 8209666 Contact Us For Availability
20
Shroud, Evaporator WPL 8209680 Contact Us For Availability
21
Condenser WPL 8209742 Contact Us For Availability
23
Pan, Evaporator WPL 8209681 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Housing, Control Panel WPL 8209729 Contact Us For Availability
26
Hood, Air Housing WPL 8209682 Contact Us For Availability
27
Tube, Suction WPL 8209669 Contact Us For Availability
28
Interface Board, (Low Voltage) WPL 8209757 Contact Us For Availability
29
Control, Remote WPL 8209730 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209759 Contact Us For Availability
30
Louver, Vertical WPL 8209709 Contact Us For Availability
30
Manifold WPL 8209670 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
32
Seal, Side WPL 8209724 Contact Us For Availability
33
Housing, Air WPL 8209686 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209725 Contact Us For Availability
36
Hardware Board, (High Voltage) WPL 8209756 Contact Us For Availability
39
Compressor Assembly WPL 8209672 Contact Us For Availability
40
Screw WPL 8209726 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 14.11 oz. WPL ARI20011A8 Contact Us For Availability
× ![]()
