Model Whirlpool ACP802XP0 AIR CONDITIONER – Common Parts & Diagrams
04 - CABINET
02 - UNIT
03 - AIRFLOW AND CONTROL
01 - COVER

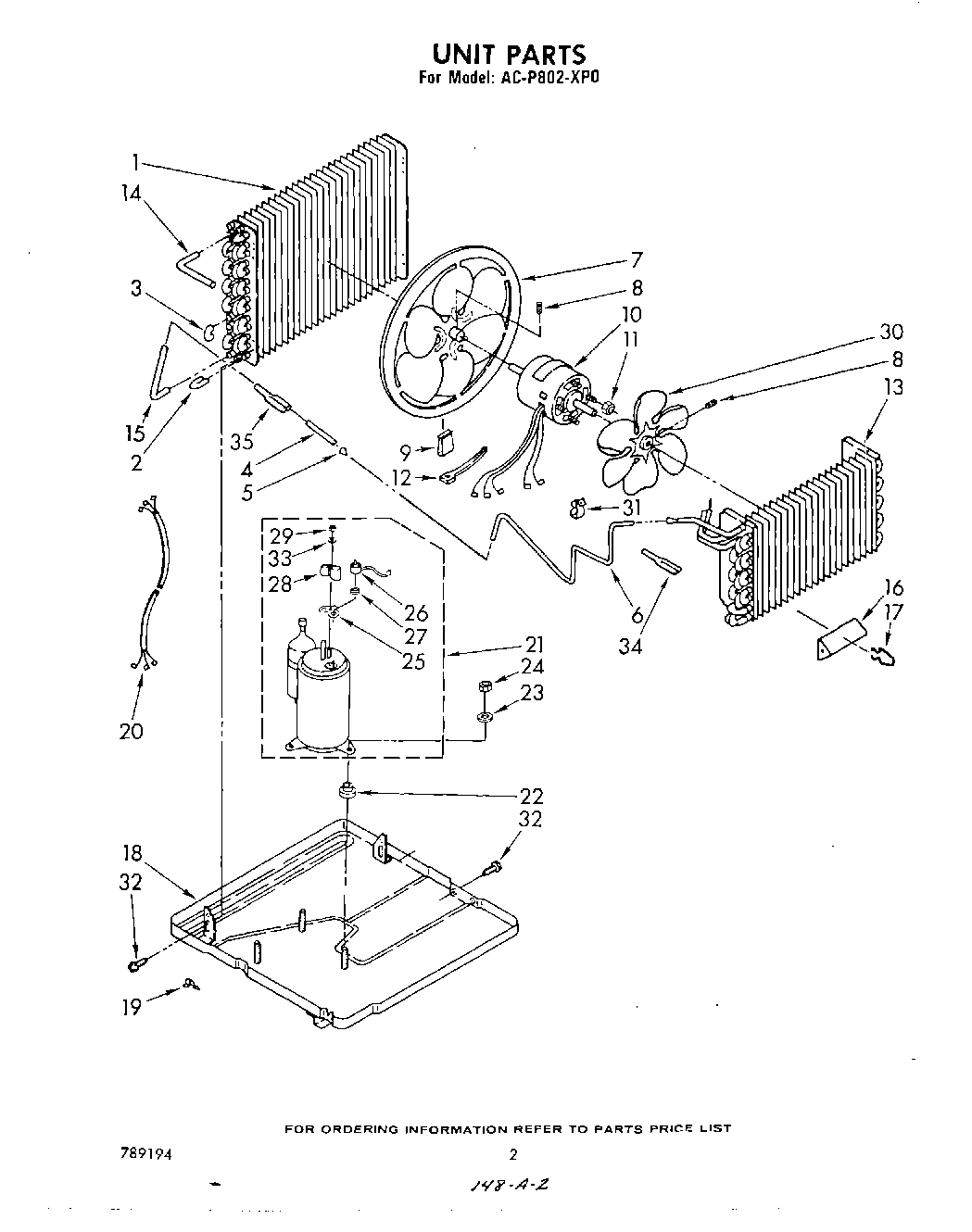

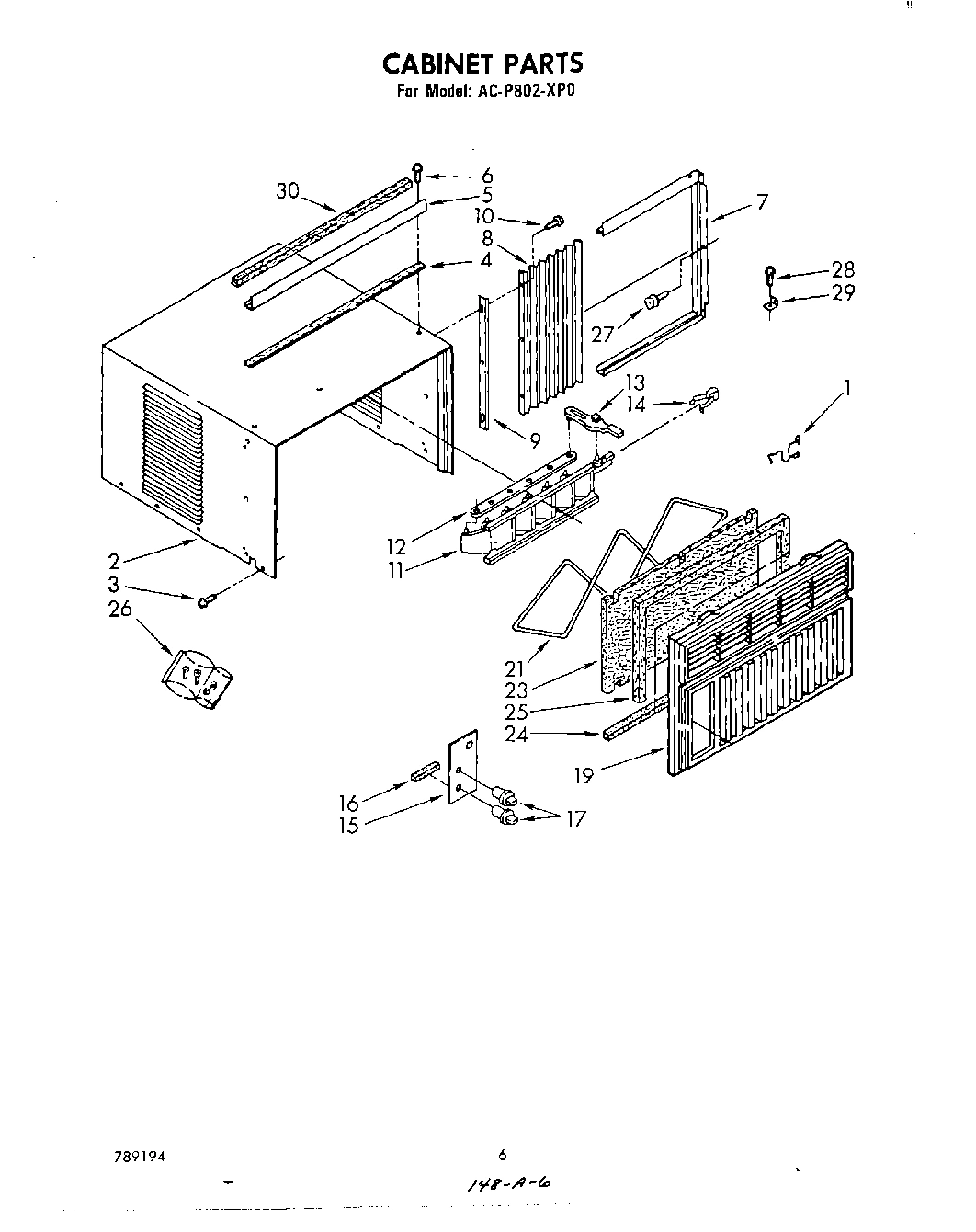

Common parts from model Whirlpool ACP802XP0 AIR CONDITIONER
1
Condenser WPL 950933 Contact Us For Availability
2
Bend, Return (7) WPL 854624 Contact Us For Availability
2
wall, dividing (requires insulation part no. WPL 950586 Contact Us For Availability
3
Bend, Return (16) WPL 855199 Contact Us For Availability
3
Capacitor, Running WPL 951588 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Tube, Restrictor (Length 31.50``) WPL 951587 Contact Us For Availability
6
Screen, Exhaust Door WPL 856929 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Shroud, Evaporator (Includes Illus. 11) WPL 948219 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 951575 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
13
Evaporator WPL 951586 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
14
Spring, Dent WPL 641484 Contact Us For Availability
14
Tube, 90~ Connect WPL 858187 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
15
plate, escutcheon WPL 950530 Contact Us For Availability
15
Tube, 90~ Connect WPL 950814 Contact Us For Availability
15
support, unit (2) WPL 858663 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Knob, Control (2) WPL 947264 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
18
Base WPL 951570 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
19
Front, Cabinet (Includes Illus. 20) WPL 950534 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Retainer, Dent Spring WPL 858765 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Cable, Appliance WPL 647216 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
29
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
29
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
29
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
29
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
29
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
29
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
29
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
29
List, Repair Parts WPL 789194 Contact Us For Availability
29
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
29
guide, use & care WPL 950318 Contact Us For Availability
29
Guide, Energy WPL 951582 Contact Us For Availability
29
Sheet, Tech WPL 951619 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 947533 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
32
Screw, Repair WPL 488481 Contact Us For Availability
33
Gasket, Nut WPL 950037 Contact Us For Availability
34
Tube, Flow Divider WPL 951585 Contact Us For Availability
35
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
35
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
35
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
35
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
