Model Whirlpool ACP802XM0 AIR CONDITIONER – Common Parts & Diagrams

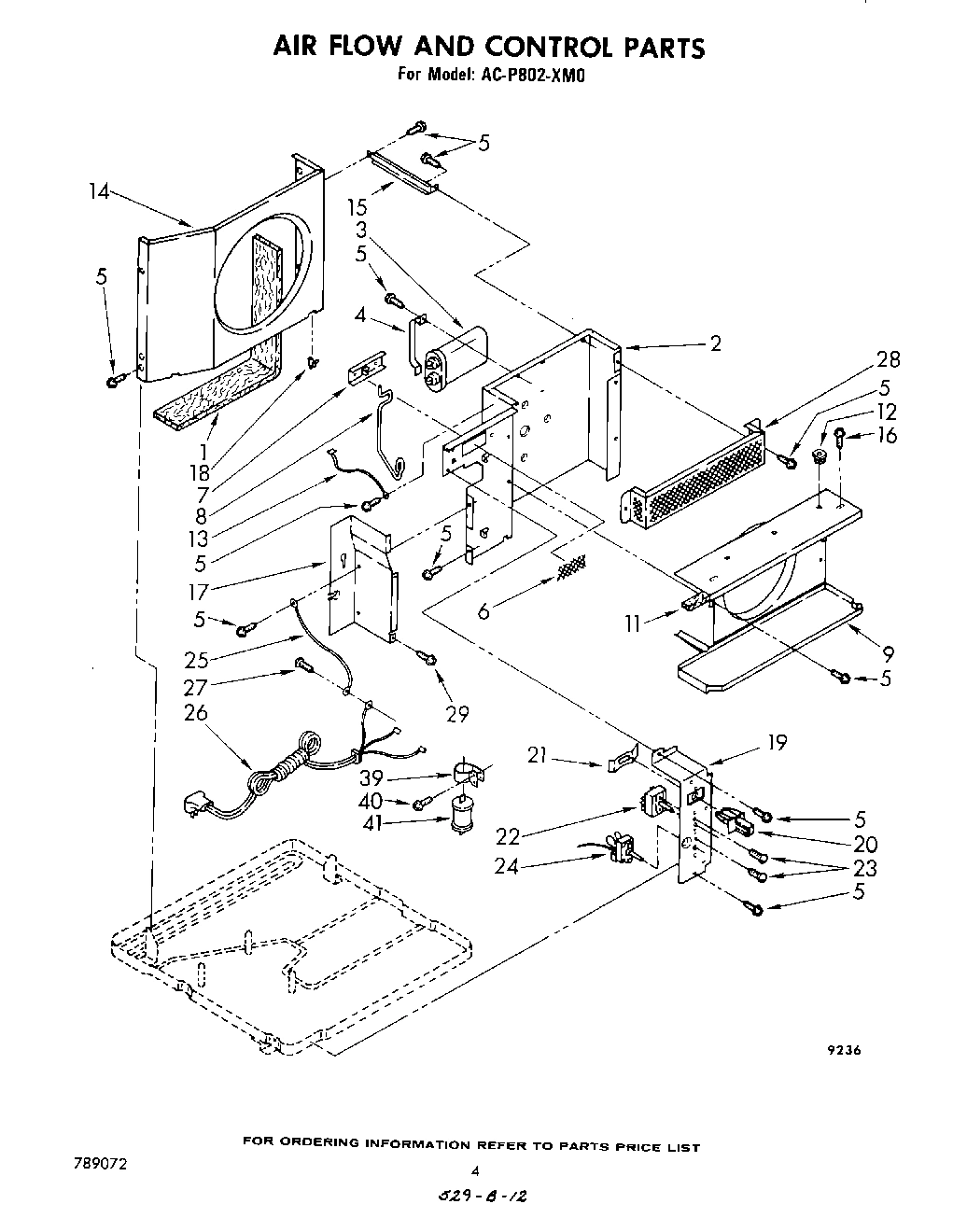

03 - AIRFLOW AND CONTROL

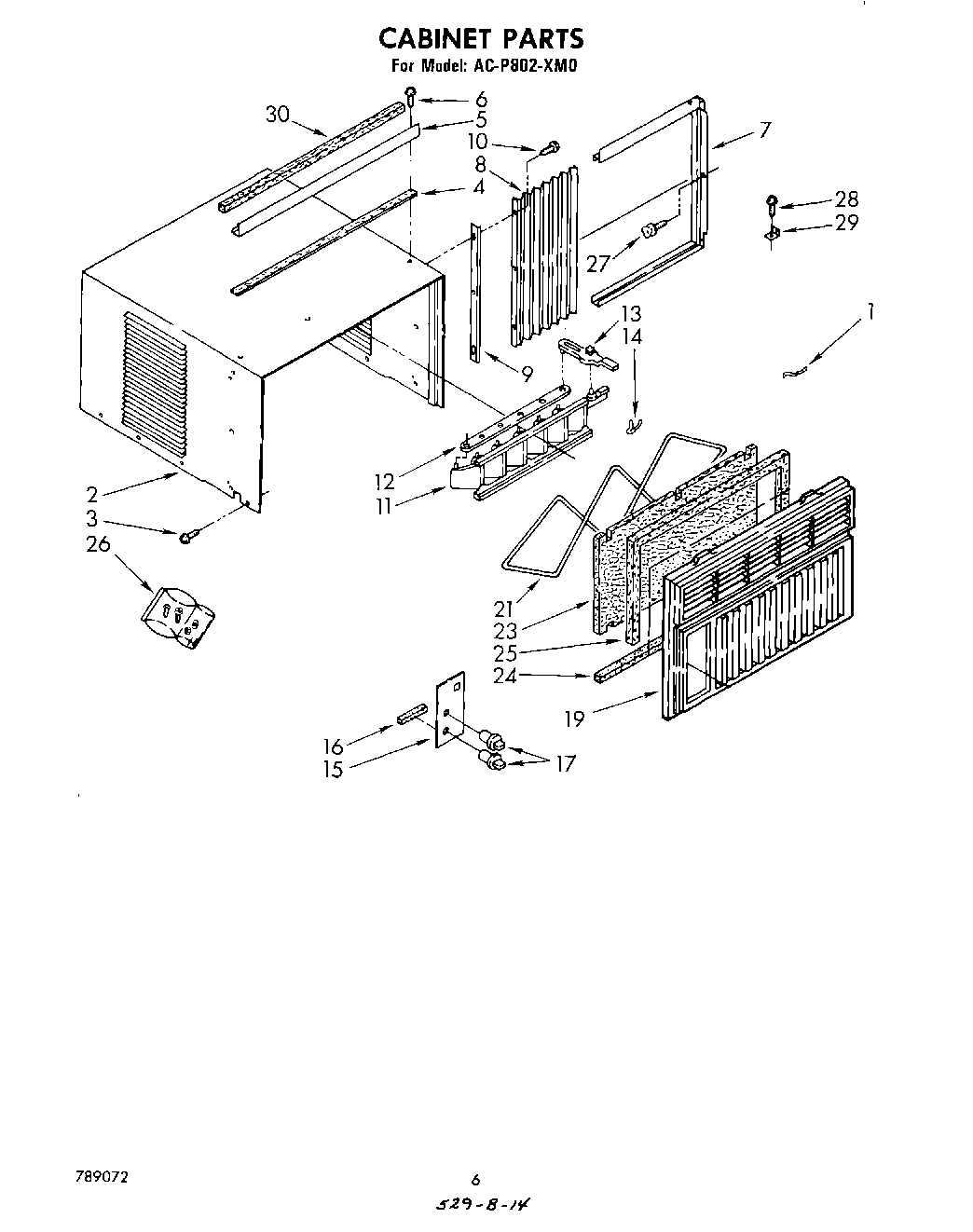

04 - CABINET

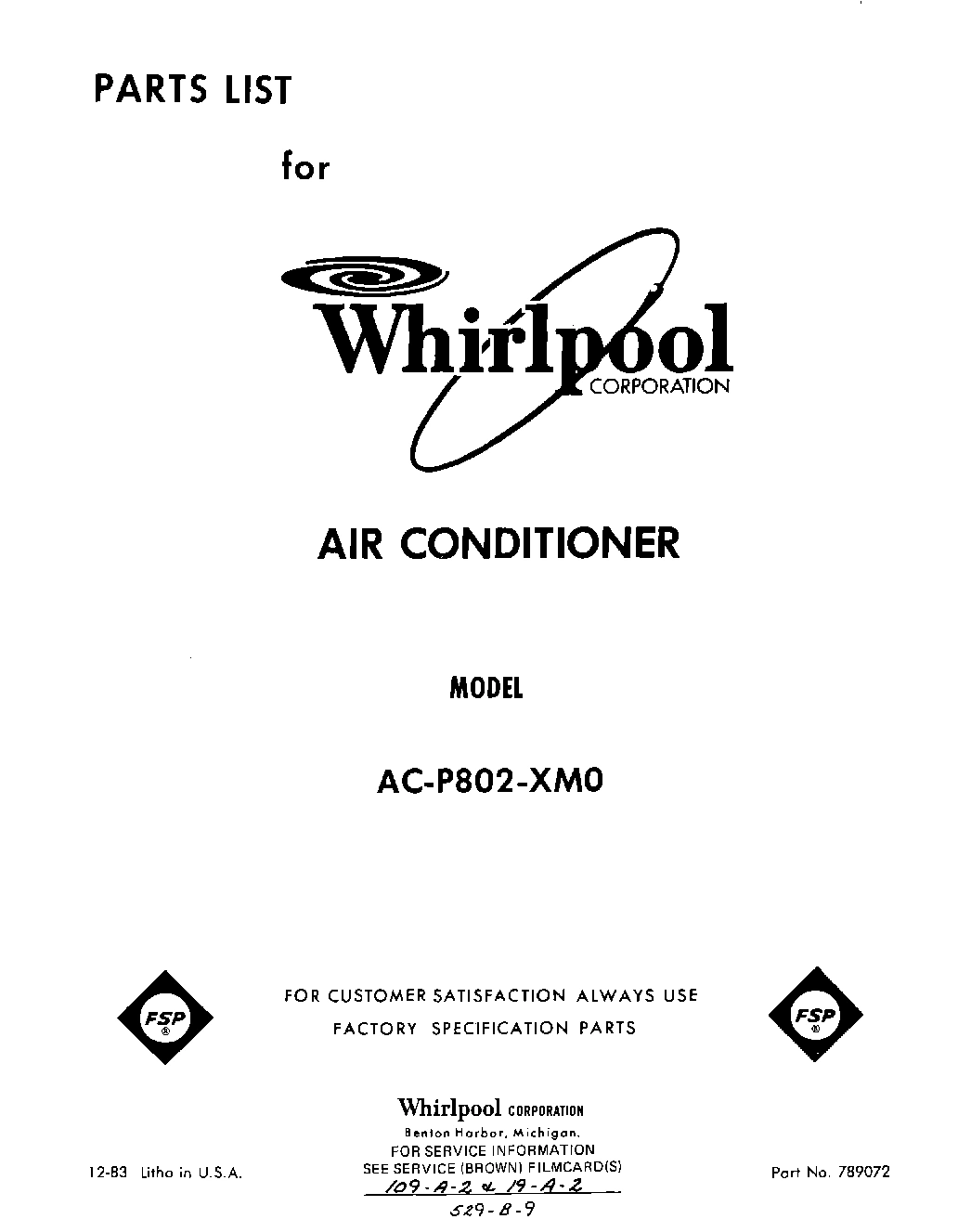

01 - COVER

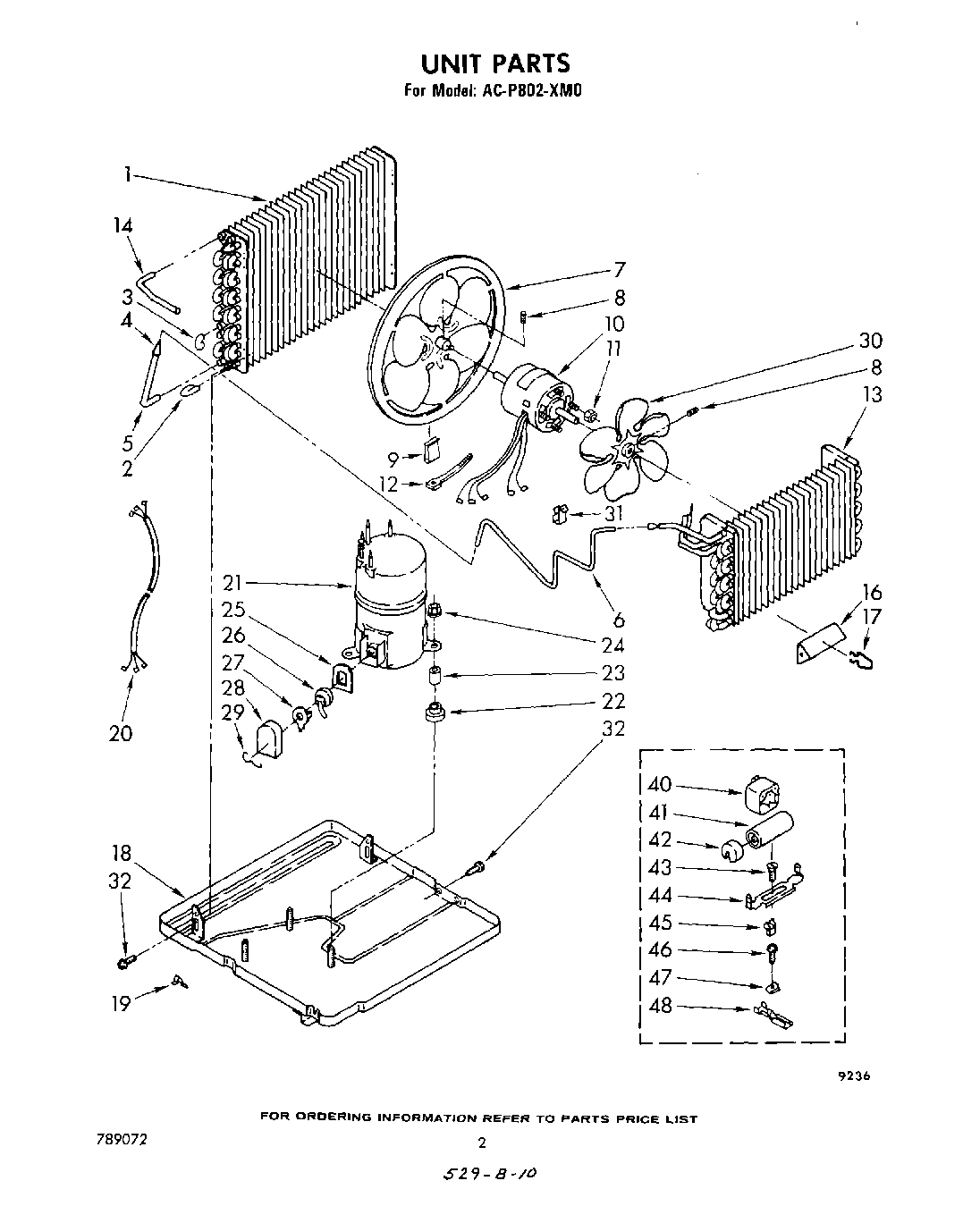

02 - UNIT
Common parts from model Whirlpool ACP802XM0 AIR CONDITIONER
1
Clip, Cabinet Front Mounting (2) WPL 649966 Contact Us For Availability
1
Condenser WPL 949461 Contact Us For Availability
2
Cabinet WPL 856686 Contact Us For Availability
2
Bend, Return (11) WPL 854624 Contact Us For Availability
3
bend, return (14) WPL 855199 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Tube, Restrictor (Length 31.50``) WPL 996603 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 998093 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 948835 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
13
Evaporator WPL 949439 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Dent WPL 641484 Contact Us For Availability
14
Tube, 90~ Connect WPL 994541 Contact Us For Availability
15
support, unit (2) WPL 858663 Contact Us For Availability
15
plate, escutcheon WPL 950530 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Knob, Control (2) WPL 947264 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Base WPL 859405 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Front, Cabinet (Includes Illus. 20) WPL 950534 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
20
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Retainer, Dent Spring WPL 858765 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Compressor WPL 484285 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Grommet (3) WPL 469581 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
23
Sleeve (3) WPL 858148 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Cable, Appliance WPL 647216 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Overload WPL 646781 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
27
Spring, Overload WPL 644362 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
29
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
29
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 998090 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
32
Screw, Repair WPL 488481 Contact Us For Availability
39
Clamp, Mounting WPL 949176 Contact Us For Availability
40
Relay WPL 484177 Contact Us For Availability
41
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
41
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
41
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
41
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
41
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
41
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
41
List, Repair Parts WPL 789072 Contact Us For Availability
41
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
41
Thermistor WPL 949177 Contact Us For Availability
41
guide, use & care WPL 950318 Contact Us For Availability
41
Sheet, T WPL 950659 Contact Us For Availability
41
WPL 950661 WPL 950661 Contact Us For Availability
41
WPL 950662 WPL 950662 Contact Us For Availability
41
Capacitor WPL 48616 Contact Us For Availability
42
xCap, Capacitor WPL 465280 Contact Us For Availability
43
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
44
xBracket, capacitor WPL 35564 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
48
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
48
xClip, terminal WPL 45571 Contact Us For Availability
48
Start Assist Kit WPL 484220 Contact Us For Availability
48
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
48
Start Kit WPL 485608 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
