Model Whirlpool ACP602XS0 AIR CONDITIONER – Common Parts & Diagrams

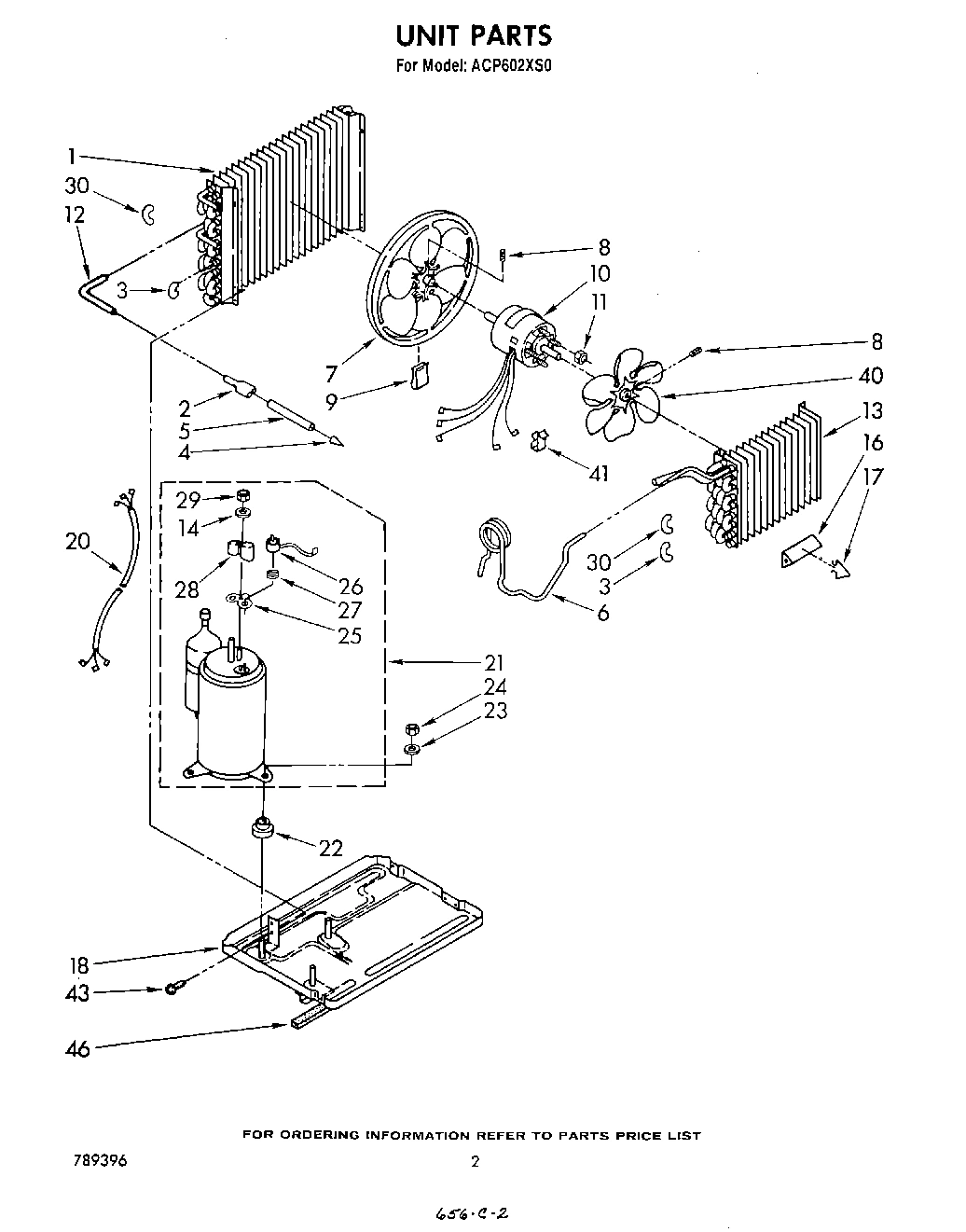

02 - UNIT

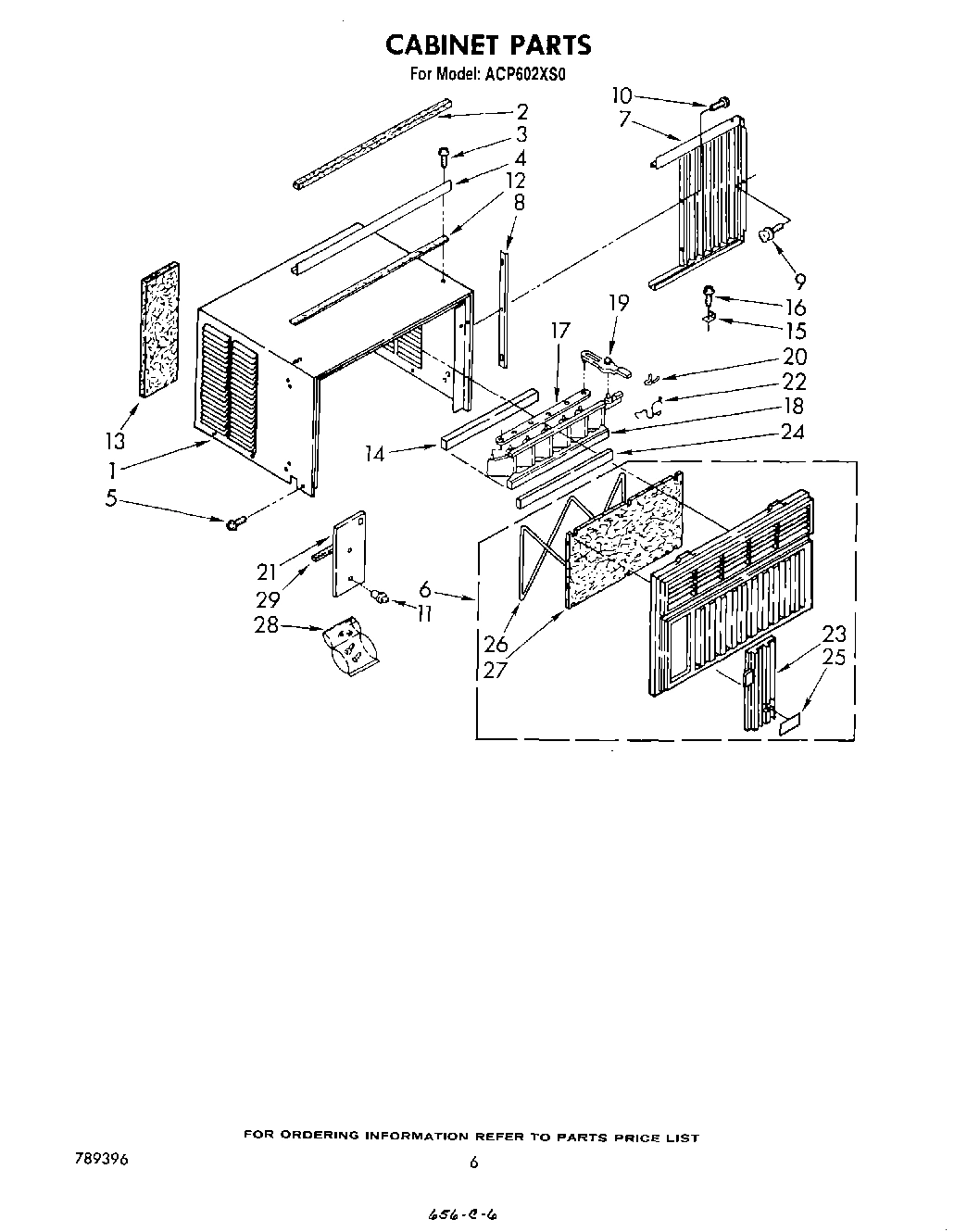

04 - CABINET
06 - LIT/OPTIONAL
03 - AIR FLOW AND CONTROL
05 - ACCESSORY KIT
Common parts from model Whirlpool ACP602XS0 AIR CONDITIONER
Guide, Use and Care WPL LIT1155970 Contact Us For Availability
Instructions, Installation WPL LIT1155974 Contact Us For Availability
Guide, Energy WPL LIT1155988 Contact Us For Availability
List, Repair Parts WPL LIT789396 Contact Us For Availability
Sheet, Tech And Wiring Daigram WPL LIT951801 Contact Us For Availability
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1155403 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Capacitor, Running WPL 996525 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Kit, Economy Window Installation WPL 994818 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
11
Knob, Control (2) WPL 947264 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Extension, Dividing Wall WPL 646130 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
13
Wall, Dividing Assembly WPL 859822 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
19
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Compressor WPL 876808 Contact Us For Availability
21
Plate, Escutcheon WPL 1155402 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
Door, Control WPL 1155406 Contact Us For Availability
23
Spring, Retainer WPL 853565 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical WPL 855238 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
25
Plate, Name Louver WPL 951916 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
Bend, Return Condenser (2) Evaporator (3) WPL 854624 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
33
Bracket, Evaporator Mounting WPL 855502 Contact Us For Availability
37
Arm, Door WPL 950255 Contact Us For Availability
40
Fan, Blade Evaporator WPL 997889 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
46
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
× ![]()
