Model Whirlpool ACP602XP0 AIR CONDITIONER – Common Parts & Diagrams
02 - UNIT
01 - CABINET

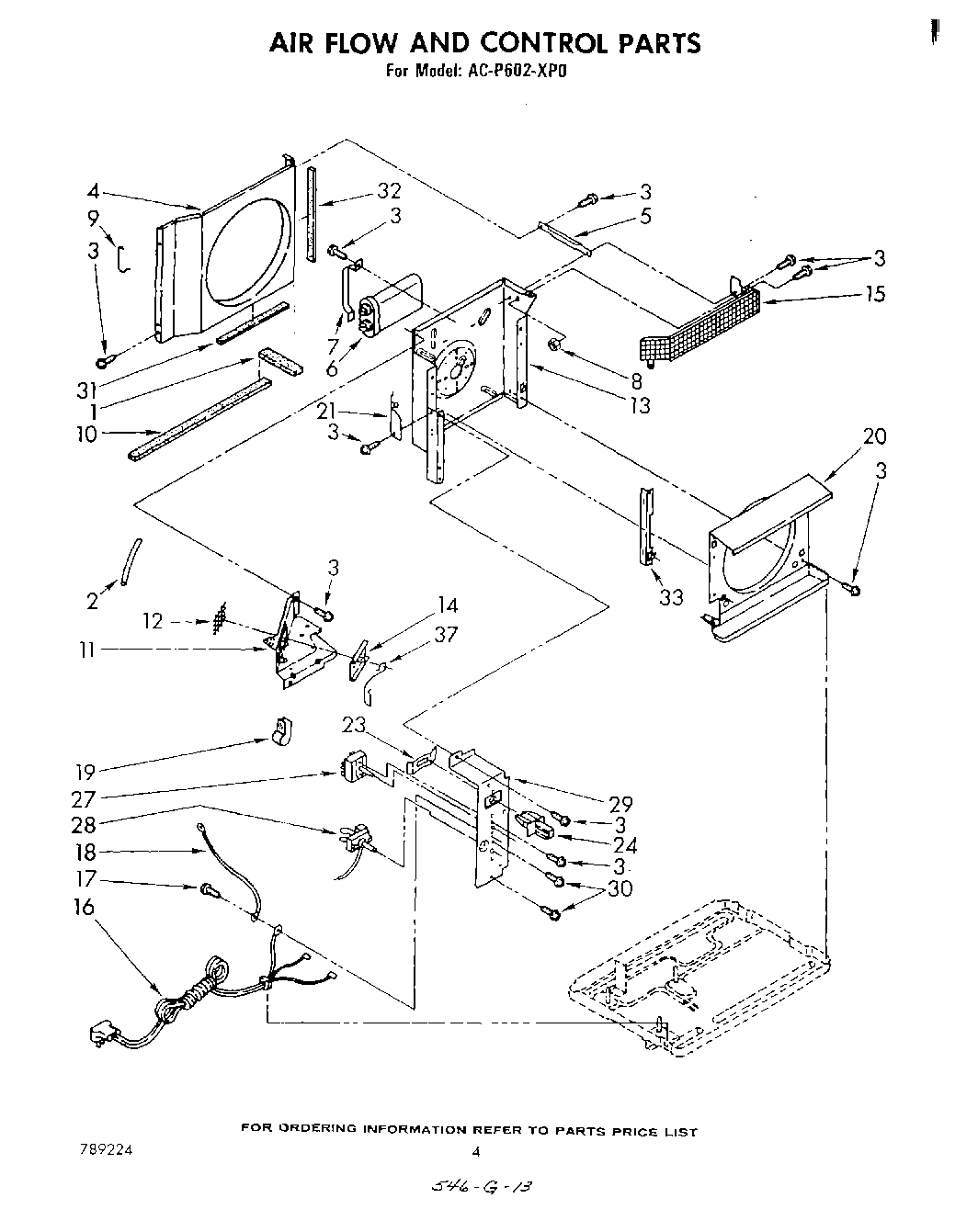

03 - AIRFLOW AND CONTROL
Common parts from model Whirlpool ACP602XP0 AIR CONDITIONER
1
Cabinet WPL 857903 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Front, Cabinet Assembly WPL 950281 Contact Us For Availability
6
Capacitor, Running WPL 996525 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
10
Motor, Fan WPL 951781 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Seal, Strip WPL 855493 Contact Us For Availability
11
Knob, Control (2) WPL 947264 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646130 Contact Us For Availability
12
Tube, 90~ Connect (1) WPL 950814 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Evaporator WPL 951782 Contact Us For Availability
13
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
15
Dampener, Split WPL 950253 Contact Us For Availability
15
Bracket, Window Lock WPL 644228 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
19
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
21
Compressor WPL 876808 Contact Us For Availability
21
Plate, Escutcheon WPL 950279 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
Spring, Retainer WPL 853565 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
Bend, Return Condenser (2) Evaporator (3) WPL 854624 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
33
Bracket, Evaporator Mounting WPL 855502 Contact Us For Availability
37
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
37
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
37
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
37
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
37
Cover, Winter WPL 484067 Contact Us For Availability
37
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
37
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
37
List, Repair Parts WPL 789224 Contact Us For Availability
37
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
37
Arm, Door WPL 950255 Contact Us For Availability
37
guide, use & care WPL 950318 Contact Us For Availability
37
Guide, Energy WPL 951789 Contact Us For Availability
37
Sheet, Service Tec WPL 951801 Contact Us For Availability
40
Fan, Blade Evaporator WPL 997889 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Tape, No Drip (Sweating Tube) WPL 505168 Contact Us For Availability
46
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
46
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
× ![]()
