Model Whirlpool ACP552XT1 AIR CONDITIONER – Common Parts & Diagrams

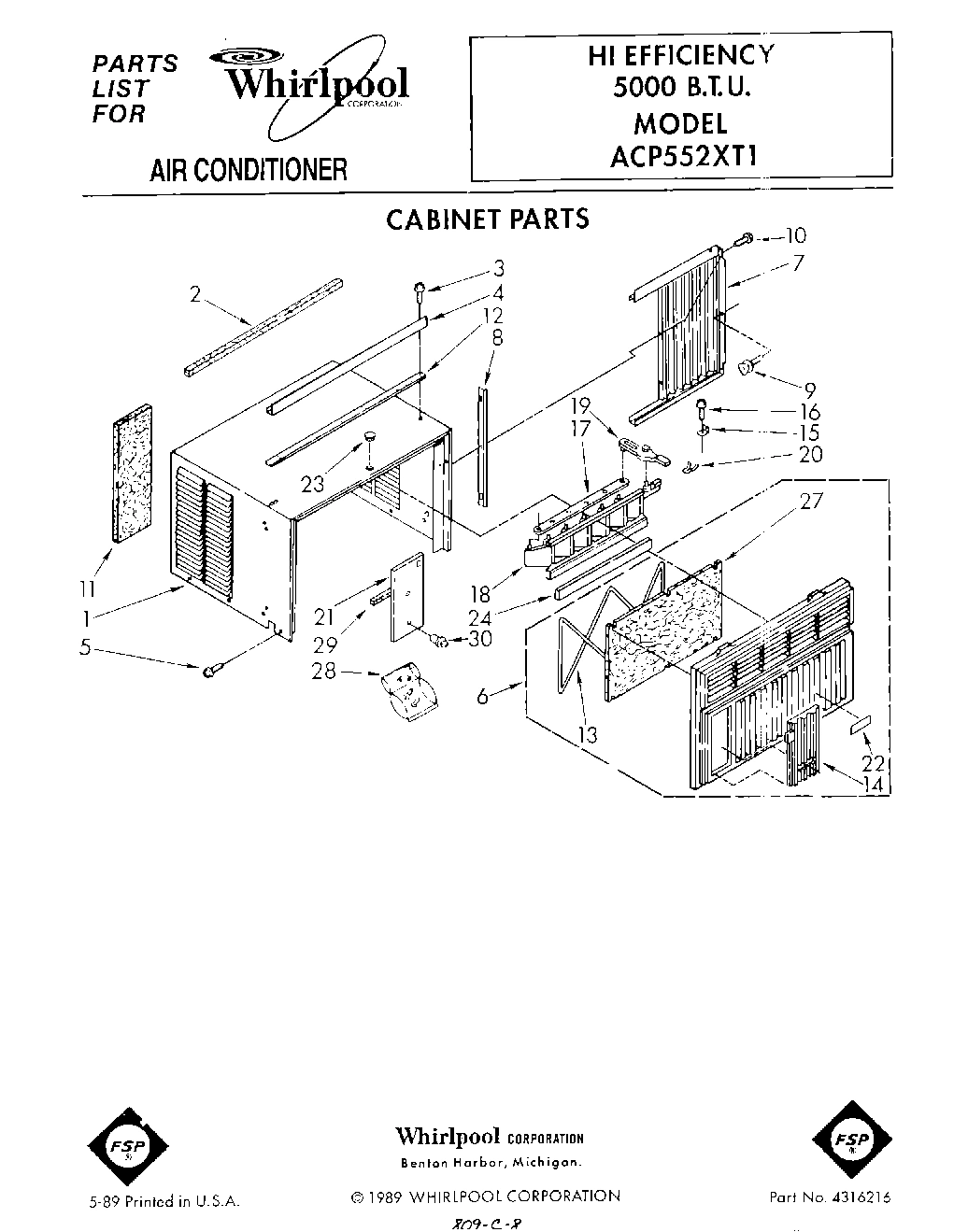

01 - CABINET

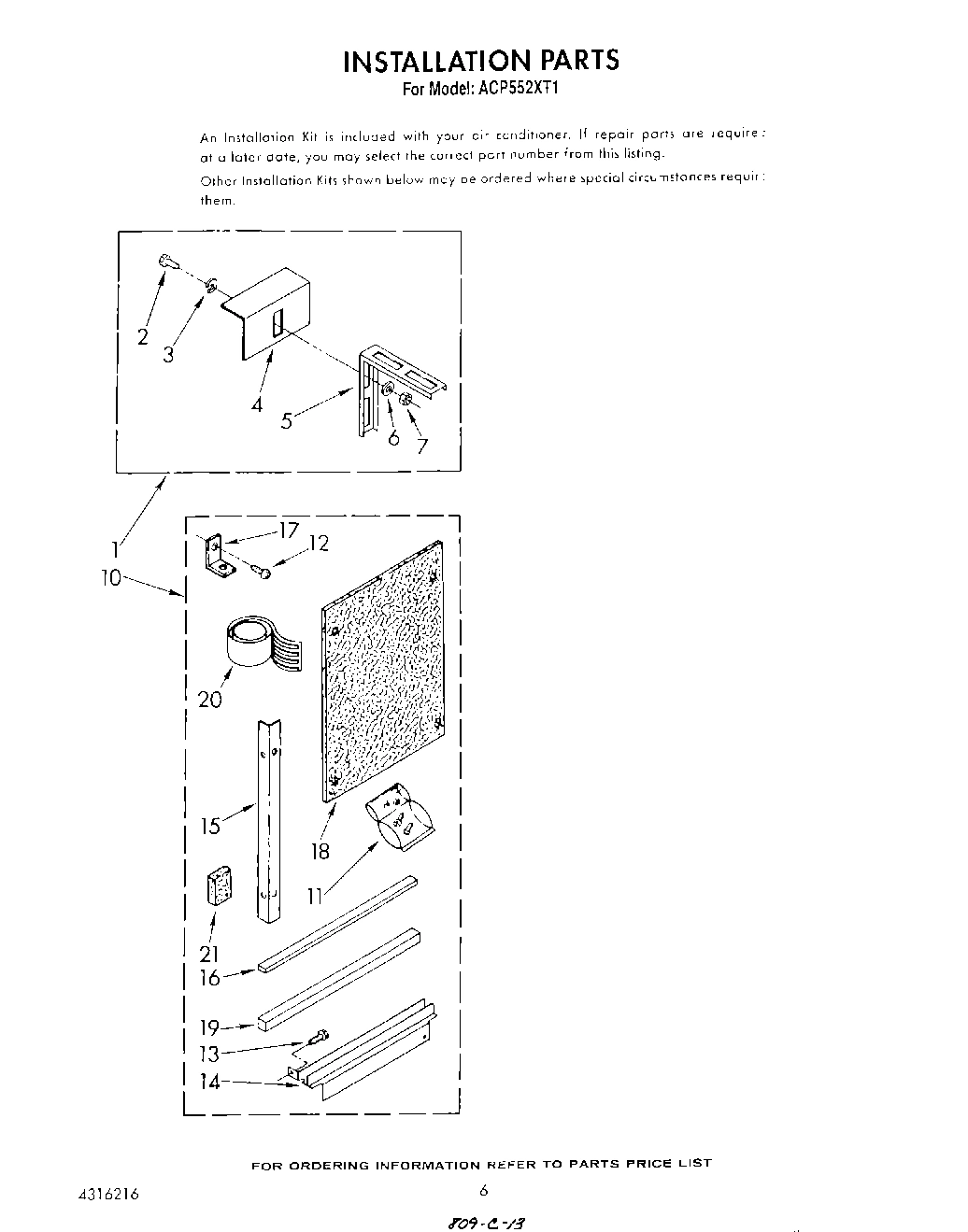

04 - INSTALLATION
02 - UNIT
03 - AIR FLOW AND CONTROL
05 - LIT/OPTIONAL
Common parts from model Whirlpool ACP552XT1 AIR CONDITIONER
Guide, Use and Care WPL LIT1155970 Contact Us For Availability
Installation, Instructions WPL LIT1155974 Contact Us For Availability
Guide, Energy WPL LIT1156446 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT1157886 Contact Us For Availability
List, Repair Parts WPL LIT4316216 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Condenser WPL 1155940 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend Return WPL 1156533 Contact Us For Availability
3
Screw, Sm No.10 x 3/8 (Repair) WPL 488481 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Tube, Restrictor WPL 1157813 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1155859 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Clip, Speed WPL 1156028 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Clip, Shroud WPL 994686 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1156828 Contact Us For Availability
10
Seal, Strip WPL 859931 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Extension, Dividing Wall WPL 646130 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, 90~ Connect WPL 1155519 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Evaporator WPL 1157726 Contact Us For Availability
13
Wall, Dividing WPL 996770 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Door, Control Air Filter WPL 1155406 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Tube, Flow Divider WPL 947364 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Louver, Vertical WPL 1157284 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Bend, Return Evaporator (3) Condenser (13) WPL 708531 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
21
Plate, Escutcheon WPL 1155401 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Compressor WPL 4210324 Contact Us For Availability
21
Plate, Dividing WPL 859890 Contact Us For Availability
22
Plate, Name WPL 951916 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Cover, Hole WPL 1157126 Contact Us For Availability
23
Retainer, Exhaust Door WPL 858765 Contact Us For Availability
24
Seal, Strip (Vertical Louver) WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
26
Overload WPL 1156601 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
Knob, Control (2) WPL 947264 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Bend, Return Evaporator (7) Condenser (4) WPL 708532 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
33
Bracket, Evaporator Mtg WPL 855502 Contact Us For Availability
34
Arm, Exhaust Door WPL 950255 Contact Us For Availability
40
Fan, Blade Evaporator WPL 1156923 Contact Us For Availability
41
Clamp, Wiring WPL 947072 Contact Us For Availability
× ![]()
