Model Whirlpool ACP552XT0 AIR CONDITIONER – Common Parts & Diagrams
05 - LIT/OPTIONAL
01 - CABINET AND FRONT

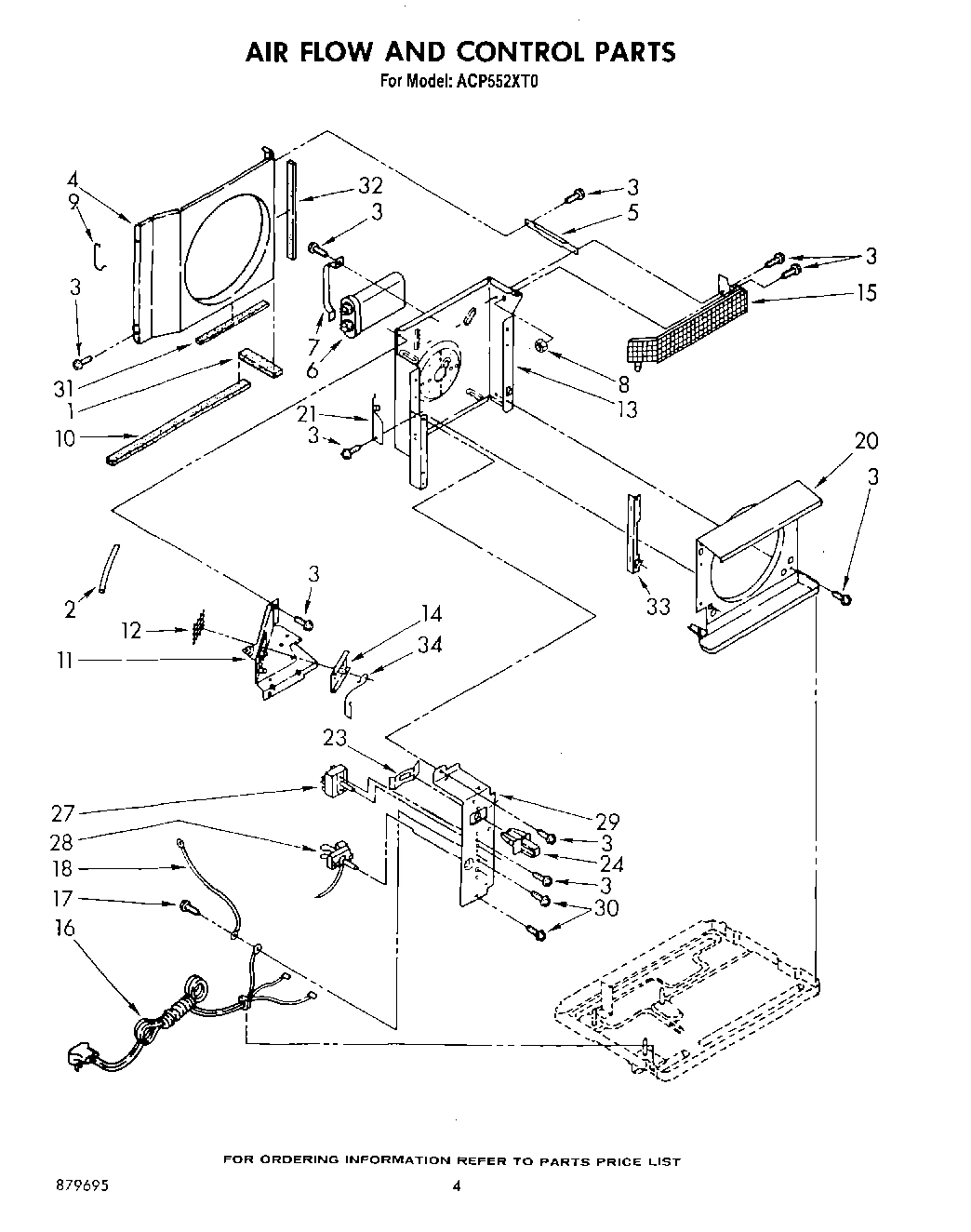

03 - AIRFLOW AND CONTROL

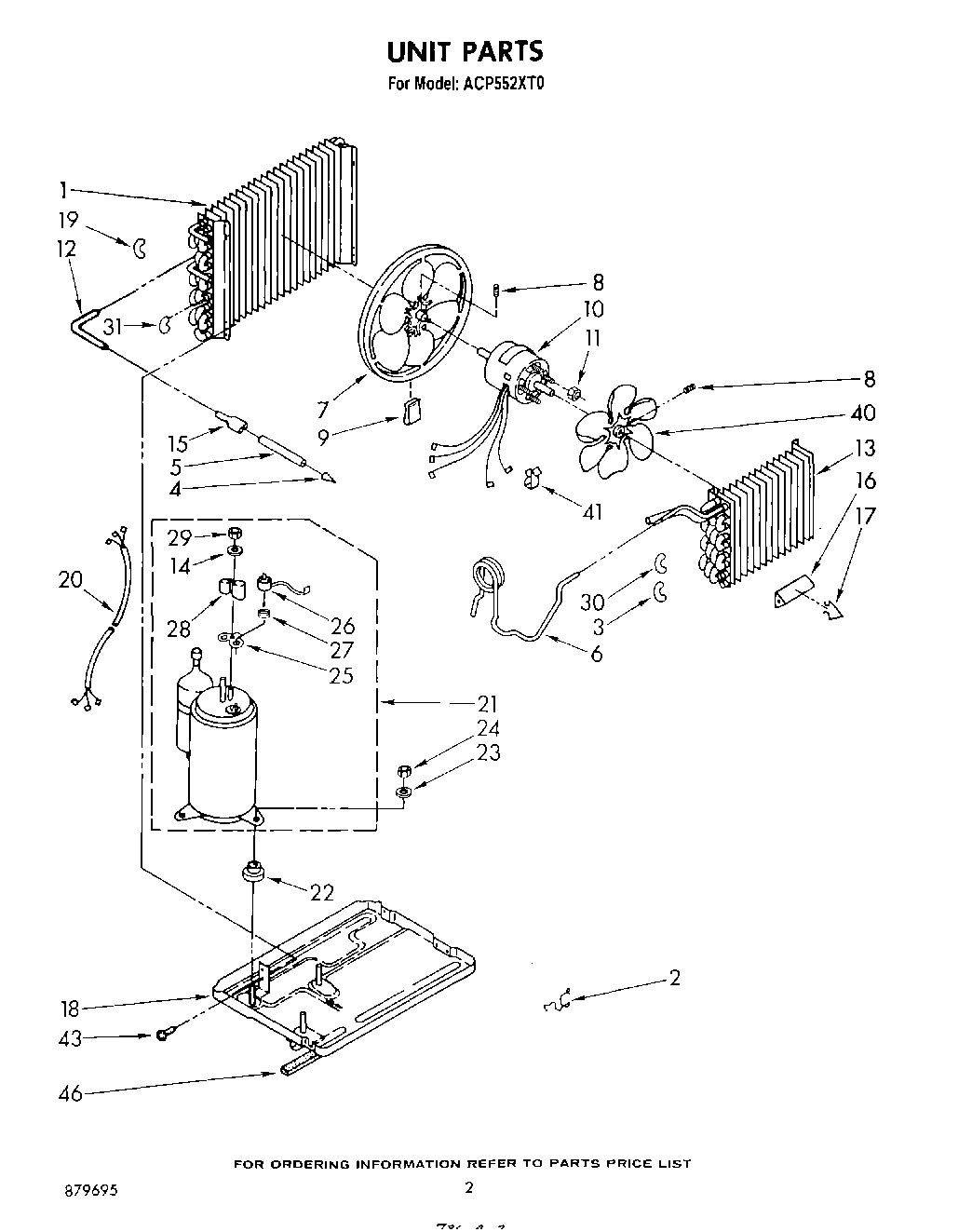

02 - UNIT
04 - ACCESSORY
Common parts from model Whirlpool ACP552XT0 AIR CONDITIONER
Sheet, Tech And Wiring Diagram WPL LIT1156495 Contact Us For Availability
Guide, Energy WPL LIT156446 Contact Us For Availability
List, Repair Parts WPL LIT879695 Contact Us For Availability
Guide, Use and Care WPL LIT950318 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Condenser WPL 1155727 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Clip, Mfg. (2) (Base To Front) WPL 949634 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (13) WPL 855199 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet WPL 950281 Contact Us For Availability
6
Capacitor, Running WPL 999754 Contact Us For Availability
6
Tube, Restrictor (Length 50.0``) WPL 1156490 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1155859 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Seal, Strip WPL 859931 Contact Us For Availability
10
Motor, Fan WPL 1156099 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Seal, Rear Flange WPL 857777 Contact Us For Availability
11
Extension, Dividing Wall WPL 646130 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
tube, 90o connect WPL 950814 Contact Us For Availability
13
Reatiner, Air Filter WPL 646963 Contact Us For Availability
13
Wall, Dividing WPL 996770 Contact Us For Availability
13
Evaporator WPL 951782 Contact Us For Availability
14
Cover, Winter WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Tube, Flow Divider WPL 947364 Contact Us For Availability
15
Angle, Side (2) WPL 649988 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
19
Bend, Return (13) WPL 708531 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Escutcheon WPL 1155401 Contact Us For Availability
21
Plate, Dividing WPL 859890 Contact Us For Availability
21
Compressor WPL 4210324 Contact Us For Availability
21
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Retainer, Exhaust Door WPL 853565 Contact Us For Availability
24
Seal, Strip (Vertical Louver) WPL 855238 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
26
Overload WPL 1156601 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
30
Knob, Control (2) WPL 947264 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Bend, Return WPL 854624 Contact Us For Availability
31
Bend, Return (4) WPL 708553 Contact Us For Availability
33
Bracket, Evaporating Mtg WPL 855502 Contact Us For Availability
34
Arm, Exhaust Door WPL 950255 Contact Us For Availability
40
Fan, Blade Evaporator WPL 997889 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
43
Screw, S.M. No.10 x 3/8 WPL 488481 Contact Us For Availability
46
Seal, Base (R.S.) WPL 857923 Contact Us For Availability
× ![]()
