Model Whirlpool ACP492XT0 AIR CONDITIONER – Common Parts & Diagrams

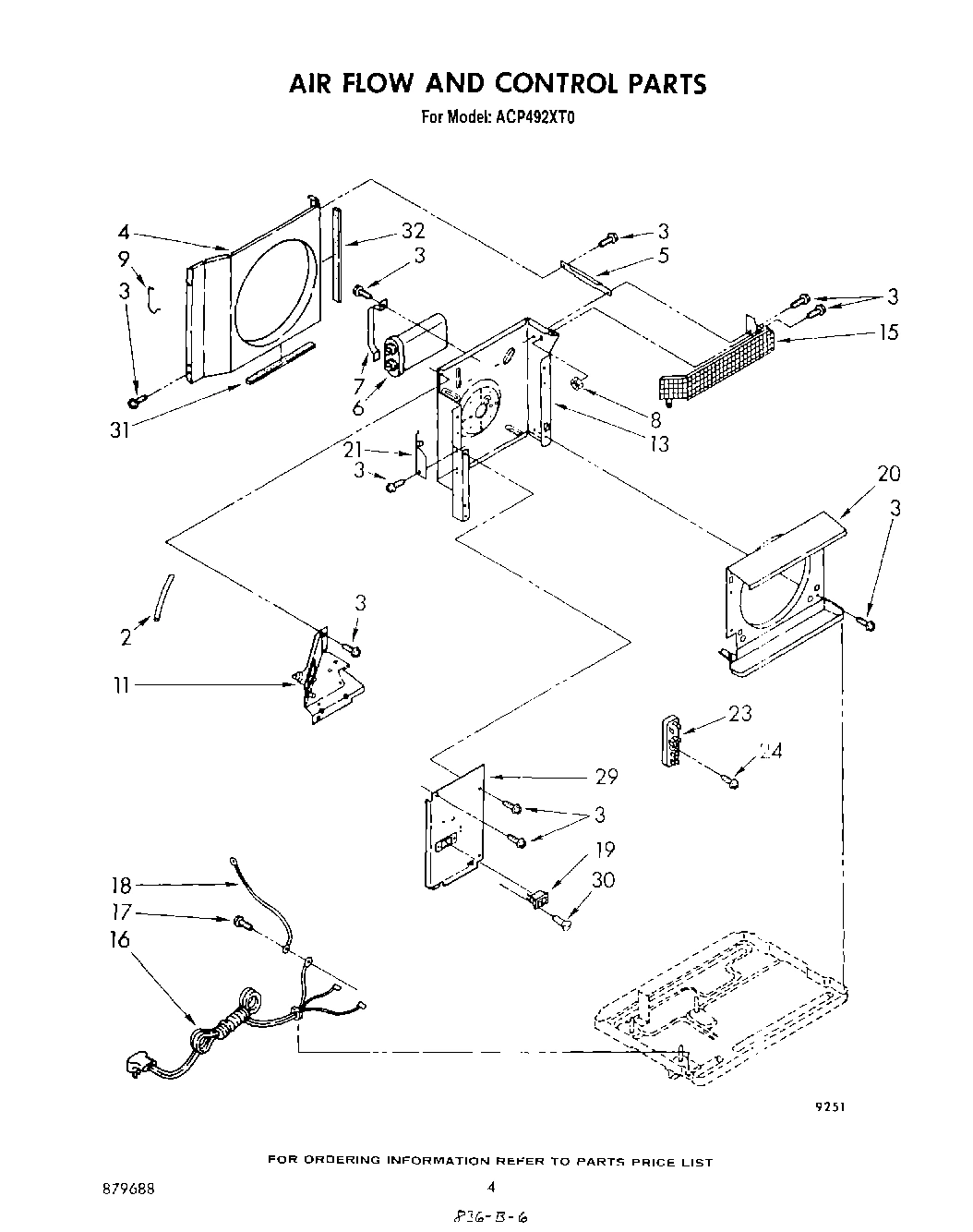

03 - AIR FLOW AND CONTROL
01 - CABINET

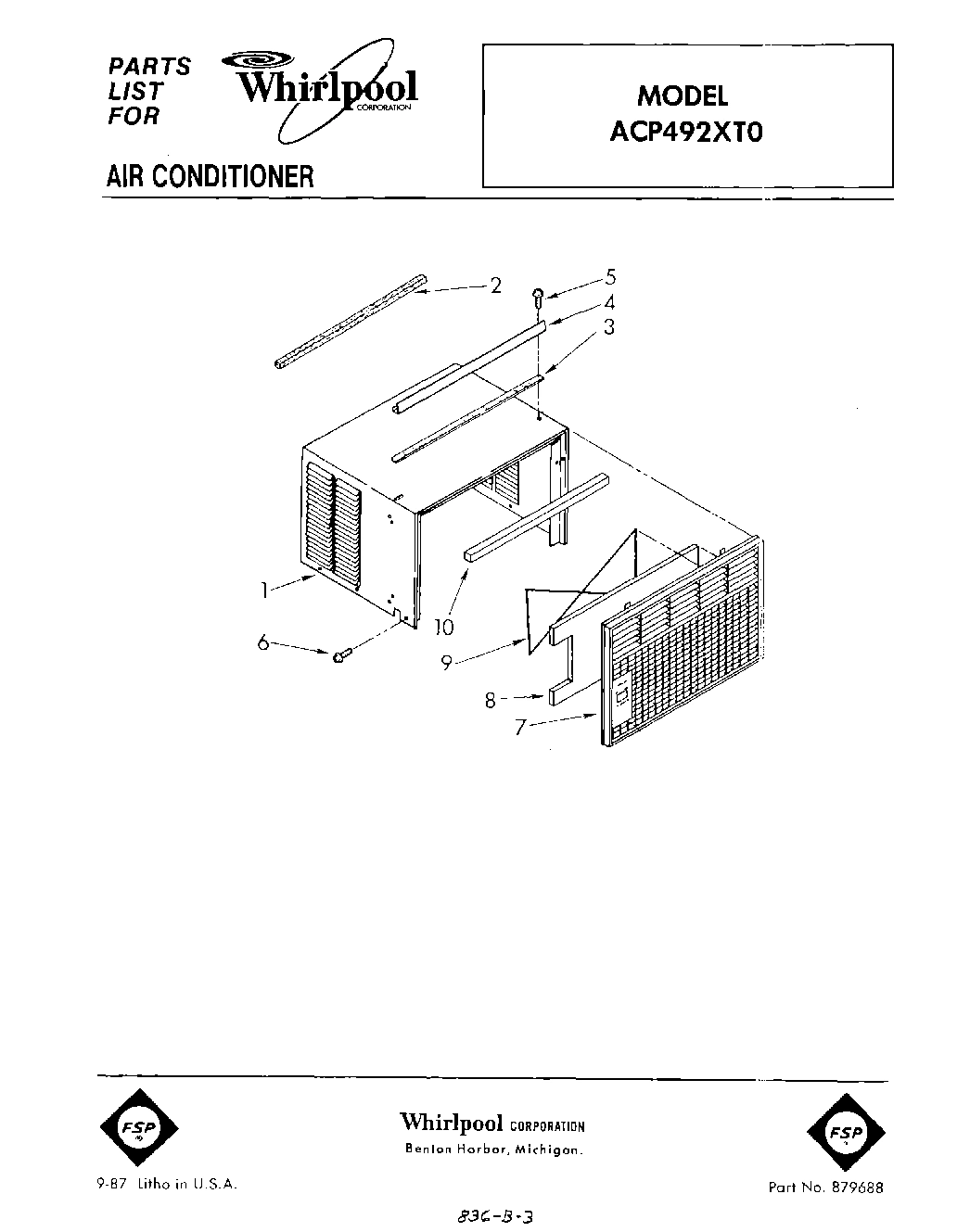

02 - UNIT , LITERATURE
05 - ACCESSORY KIT
04 - OPTIONAL
Common parts from model Whirlpool ACP492XT0 AIR CONDITIONER
Guide, Energy WPL LIT1156486 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT1950501 Contact Us For Availability
List, Repair Parts WPL LIT879688 Contact Us For Availability
Guide, Use And Care WPL LIT950354 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
1
Condenser WPL 1155727 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
2
Overload WPL 798479 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Top Mtg. Channel WPL 856990 Contact Us For Availability
3
Bend, Return (4) WPL 708532 Contact Us For Availability
4
Channel, Top Mtg. WPL 646985 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Screw, SM No.10 x 3/4 (2) WPL 488506 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Tube, Restrictor (Length 40.0``) WPL 950961 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Front, Cabinet WPL 950306 Contact Us For Availability
7
Blade, Fan WPL 1155859 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Filter, Air WPL 854925 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Retainer, Filter WPL 646963 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1156161 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
13
Evaporator WPL 950243 Contact Us For Availability
14
Cover, Terminal WPL 643297 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Cover, Winter WPL 484067 Contact Us For Availability
15
Spring, Overload WPL 643298 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Clip, Cabinet Front Mtg. (8) WPL 949634 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Bend, Return (13) WPL 708531 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
19
Switch, Rocker WPL 649384 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
23
Board, Terminal WPL 855634 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Screw, S.M.No.6 x 3/8 WPL 488966 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Overload WPL 949996 Contact Us For Availability
27
Spring, Overload WPL 949997 Contact Us For Availability
28
Cover, Terminal WPL 949999 Contact Us For Availability
29
Panel, Control WPL 648969 Contact Us For Availability
29
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Retainer, Cover WPL 643299 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
31
Tube, 90~ Connect WPL 1155519 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Seal, Condensate (Condenser Bottom) WPL 646870 Contact Us For Availability
34
Seal, Strip (Base Rear Flange) WPL 854841 Contact Us For Availability
39
Compressor Assembly WPL 819075 Contact Us For Availability
40
Fan, Blade Evaporator WPL 1155558 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Plate, Mounting Compressor WPL 949975 Contact Us For Availability
43
Screw, Repair WPL 488481 Contact Us For Availability
44
Spring, Mounting WPL 643179 Contact Us For Availability
× ![]()
