Model Whirlpool ACP492XM1 AIR CONDITIONER – Common Parts & Diagrams

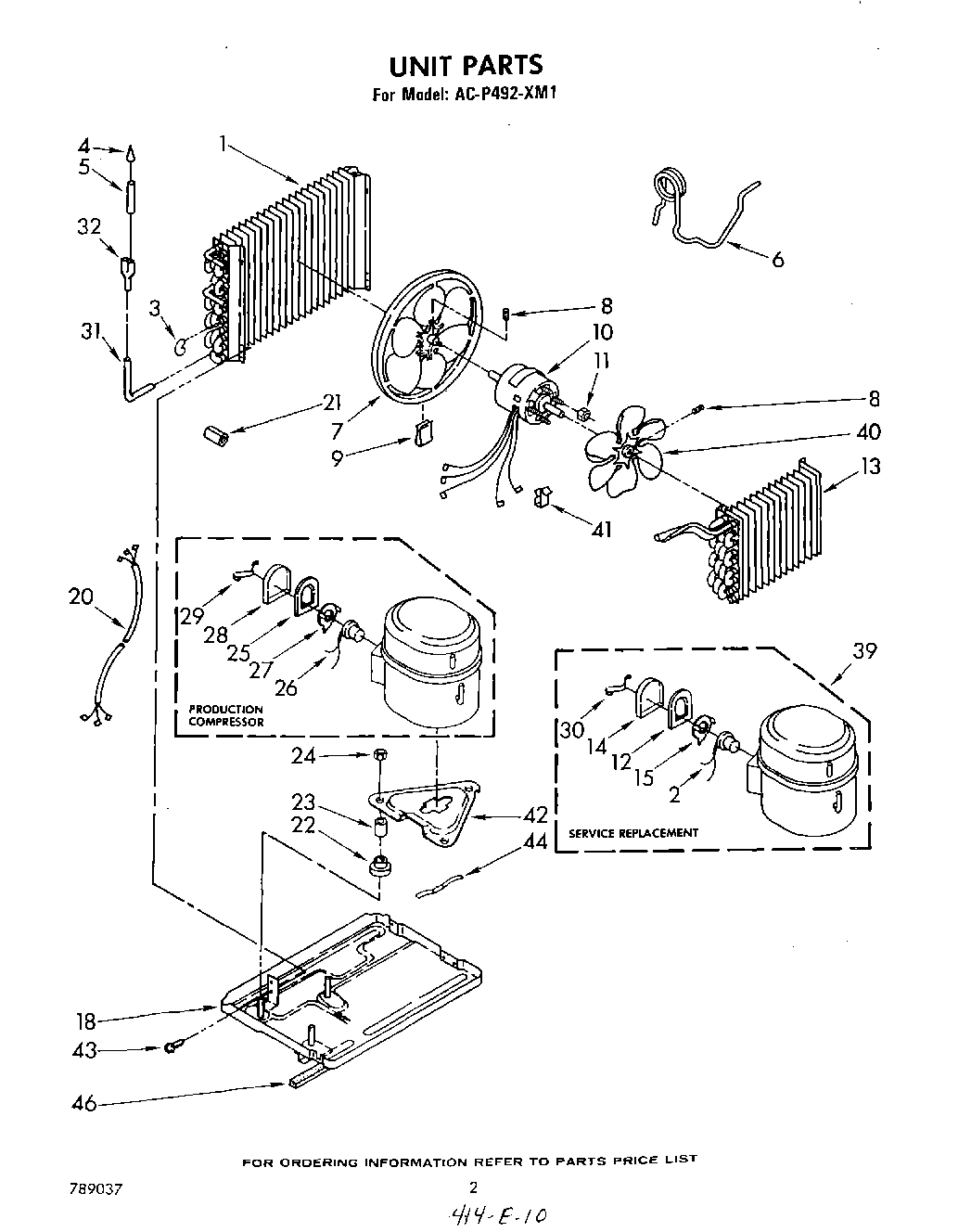

02 - UNIT PARTS

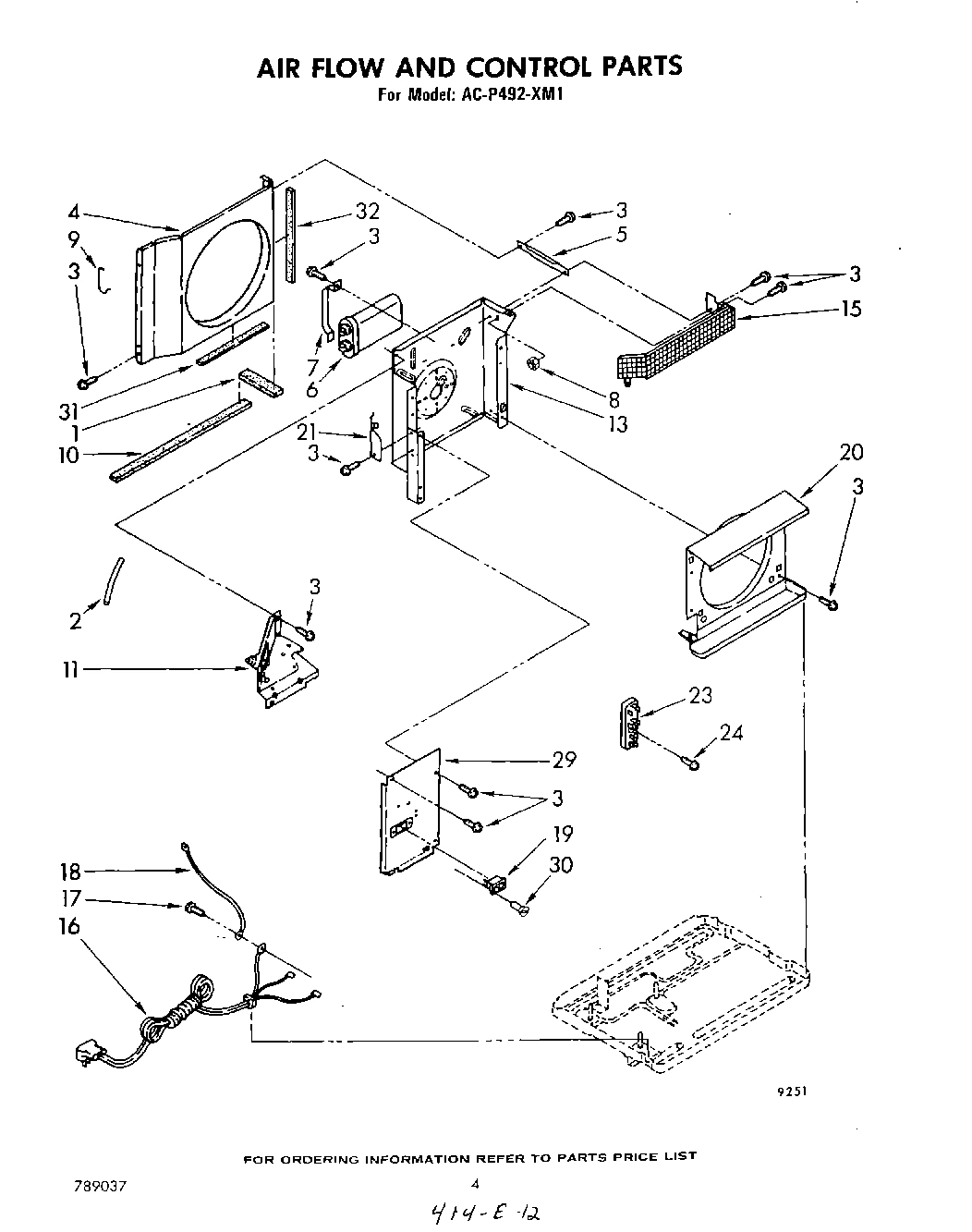

03 - AIRFLOW AND CONTROL PARTS
04 - CABINET PARTS
01 - COVER
Common parts from model Whirlpool ACP492XM1 AIR CONDITIONER
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Cabinet WPL 857903 Contact Us For Availability
2
Seal, Rear Cabinet Flange WPL 857777 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
3
Seal, Top Mtg. Channel WPL 856990 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Channel, Top Mtg. WPL 646985 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Screw, SM No.10 x 3/4 (2) WPL 488506 Contact Us For Availability
6
Capacitor, Running WPL 950198 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Front, Cabinet WPL 950306 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Filter, Air WPL 854925 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Retainer, Filter WPL 646963 Contact Us For Availability
10
Motor, Fan WPL 949496 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646774 Contact Us For Availability
11
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
13
Evaporator WPL 950243 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
14
Cover, Terminal WPL 643297 Contact Us For Availability
15
Spring, Overload WPL 643298 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
xKit, Window Mounting WPL 994818 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Bag, Accessory WPL 858358 Contact Us For Availability
17
Screw Wood No.8x3/4 WPL 488255 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Switch, Rocker WPL 649384 Contact Us For Availability
19
Bracket, Side Mtg. (Right) WPL 645562 Contact Us For Availability
19
Bracket, Side Mtg. (Left) WPL 645563 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Angle, Side Mtg. WPL 646988 Contact Us For Availability
21
Dampener, Split WPL 950253 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
21
Strip, Seal WPL 856979 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
22
Bracket, Window Lock WPL 644228 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
23
Board, Terminal WPL 855634 Contact Us For Availability
23
Board, Filler (2) WPL 648854 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Screw, S.M.No.6 x 3/8 WPL 488966 Contact Us For Availability
24
Seal, Meeting Rail WPL 469877 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Overload WPL 949996 Contact Us For Availability
26
Block, Spacer (2) WPL 995274 Contact Us For Availability
27
Spring, Overload WPL 949997 Contact Us For Availability
28
Cover, Terminal WPL 949999 Contact Us For Availability
29
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
29
Panel, Control WPL 648969 Contact Us For Availability
30
Retainer, Cover WPL 643299 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Tube, 90~ Connect WPL 950814 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
32
no drip tape (sweating tubes) WPL 505168 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
32
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
32
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
32
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
32
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
32
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
32
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
32
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
32
List, Repair Parts WPL 789037 Contact Us For Availability
32
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Guide, Energy WPL 950307 Contact Us For Availability
32
Guide, Consumer Buy WPL 950308 Contact Us For Availability
32
Guide, Use & Care WPL 950354 Contact Us For Availability
32
Sheet, Service Tech (Service Information) WPL 950501 Contact Us For Availability
39
Compressor Assembly WPL 485320 Contact Us For Availability
40
Fan, Blade Evaporator WPL 646122 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Plate, Mounting Compressor WPL 949975 Contact Us For Availability
44
Spring, Mounting WPL 643179 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Cover, Winter WPL 484067 Contact Us For Availability
46
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
× ![]()
