Model Whirlpool ACP092PR0 PORTABLE AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
02 - AIR FLOW AND CONTROL PARTS

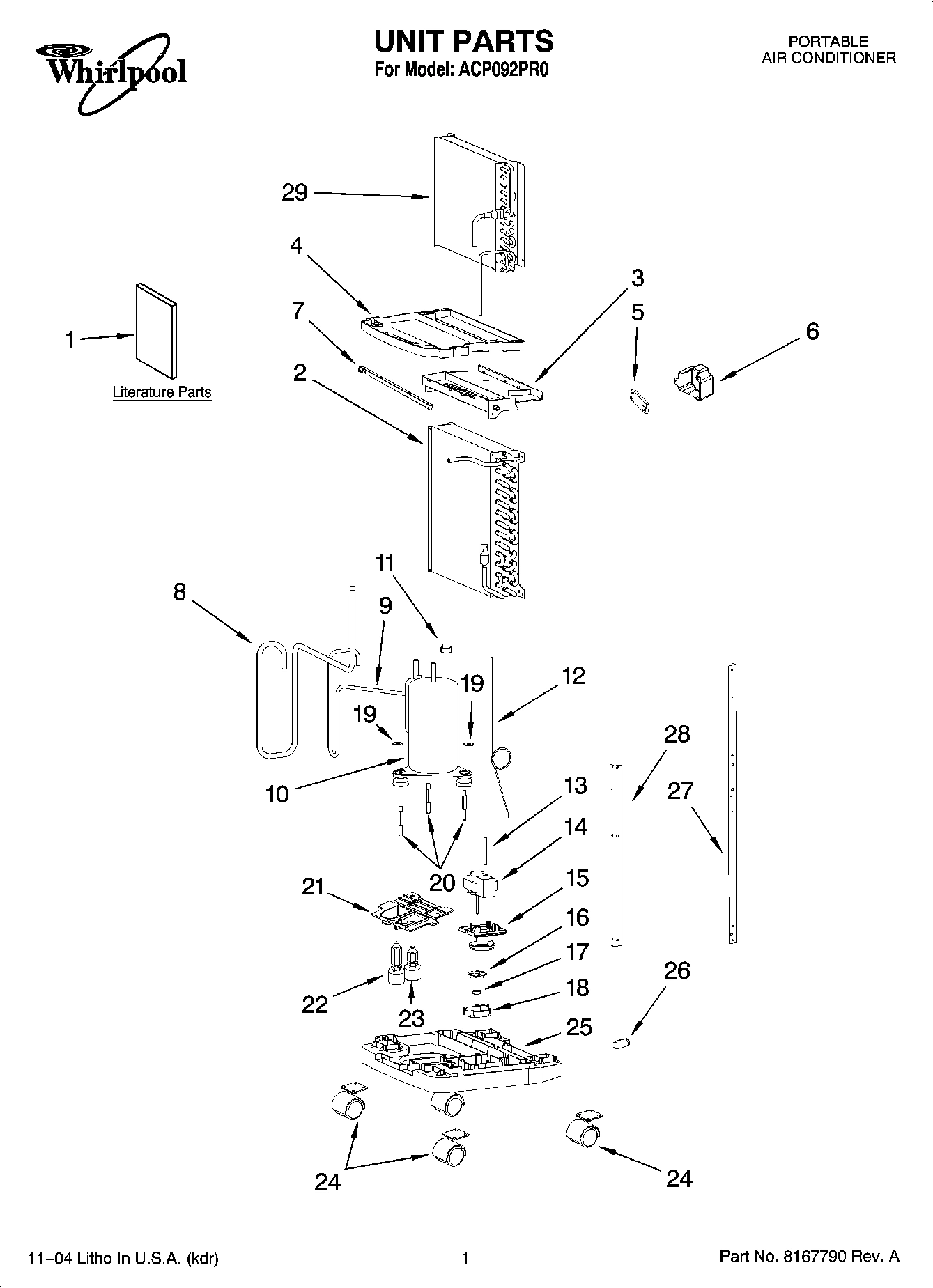

01 - UNIT PARTS
Common parts from model Whirlpool ACP092PR0 PORTABLE AIR CONDITIONER
1
Control, Remote WPL 8199694 Contact Us For Availability
1
PC-Board, Control WPL 8199700 Contact Us For Availability
1
Guide, Use & Care WPL 8199805 Contact Us For Availability
1
Guide, Energy WPL 8199806 Contact Us For Availability
1
Diagram, Wiring WPL 8199807 Contact Us For Availability
2
Panel, Control WPL 8199702 Contact Us For Availability
2
Condenser WPL 8199739 Contact Us For Availability
3
Panel, Front WPL 8199698 Contact Us For Availability
3
Overlay WPL 8199703 Contact Us For Availability
3
Sprinkler, Water WPL 8199741 Contact Us For Availability
4
Panel, Rear WPL 8199758 Contact Us For Availability
4
Motor, Upper WPL 8199706 Contact Us For Availability
4
Base, Middle- Section WPL 8199742 Contact Us For Availability
5
Cover, Connector WPL 8199759 Contact Us For Availability
5
Plate, Motor WPL 8199707 Contact Us For Availability
5
Terminal WPL 8199754 Contact Us For Availability
6
Connector, Round WPL 8199761 Contact Us For Availability
6
Wheel Blower, Upper WPL 8199709 Contact Us For Availability
6
Cover, Terminal WPL 8199756 Contact Us For Availability
7
Tube, Ventilation WPL 8199764 Contact Us For Availability
7
Dividing Wall WPL 8199711 Contact Us For Availability
7
Support, Horizontal WPL 8199773 Contact Us For Availability
8
Connector, Square WPL 8199765 Contact Us For Availability
8
Housing, Air WPL 8199713 Contact Us For Availability
8
Tube, Suction WPL 8199775 Contact Us For Availability
9
Support, Window Slider WPL 8199767 Contact Us For Availability
9
Louver Assembly WPL 8199717 Contact Us For Availability
9
Tube, Discharge WPL 8199776 Contact Us For Availability
10
Support, Ventilation Tube Fixed WPL 8199769 Contact Us For Availability
10
Base, Louver WPL 8199719 Contact Us For Availability
10
Compressor WPL 8199778 Contact Us For Availability
11
Support, Inner Ventilation Tube WPL 8199770 Contact Us For Availability
11
Motor, Louver WPL 8199721 Contact Us For Availability
11
Overload WPL 8199779 Contact Us For Availability
12
Support, Ventilation Tube WPL 8199771 Contact Us For Availability
12
Clip WPL 8199723 Contact Us For Availability
12
Tube, Restrictor WPL 8199781 Contact Us For Availability
13
Filter WPL 8199772 Contact Us For Availability
13
Cover, Control Box WPL 8199725 Contact Us For Availability
13
Tubing, Pump WPL 8199782 Contact Us For Availability
14
PC-Board, Power WPL 8199728 Contact Us For Availability
14
Motor, Pump WPL 8199783 Contact Us For Availability
15
Base, Pump Motor WPL 8199784 Contact Us For Availability
16
Capacitor, Compressor WPL 8199732 Contact Us For Availability
16
Impeller WPL 8199785 Contact Us For Availability
17
Transformer WPL 8199735 Contact Us For Availability
17
Nut WPL 8199786 Contact Us For Availability
18
Box, Control WPL 8199737 Contact Us For Availability
18
Cover, Impeller WPL 8199787 Contact Us For Availability
19
Shroud, Condenser Front WPL 8199744 Contact Us For Availability
19
Gasket, Nut WPL 8199788 Contact Us For Availability
20
Grate, Condenser Shroud WPL 8199746 Contact Us For Availability
20
Bolt, Compressor WPL 8199789 Contact Us For Availability
21
Wheel Blower, Lower WPL 8199748 Contact Us For Availability
21
Base, Water Level Switch WPL 8199790 Contact Us For Availability
22
Motor, Lower WPL 8199750 Contact Us For Availability
22
Switch, Pumping WPL 8199792 Contact Us For Availability
23
Shroud, Condenser Back WPL 8199752 Contact Us For Availability
23
Switch, Warning WPL 8199794 Contact Us For Availability
24
Roller WPL 8199796 Contact Us For Availability
25
Base WPL 8199797 Contact Us For Availability
26
Plug, Water WPL 8199798 Contact Us For Availability
27
Support, Back WPL 8199799 Contact Us For Availability
28
Support, Front WPL 8199800 Contact Us For Availability
29
Evaporator WPL 8199716 Contact Us For Availability
29
REFRIGERANT CHARGE 17.75 oz. WPL ARI19998A7 Contact Us For Availability
× ![]()
