Model Whirlpool ACP052XM0 AIR CONDITIONER – Common Parts & Diagrams
03 - AIRFLOW AND CONTROL PARTS
04 - CABINET PARTS

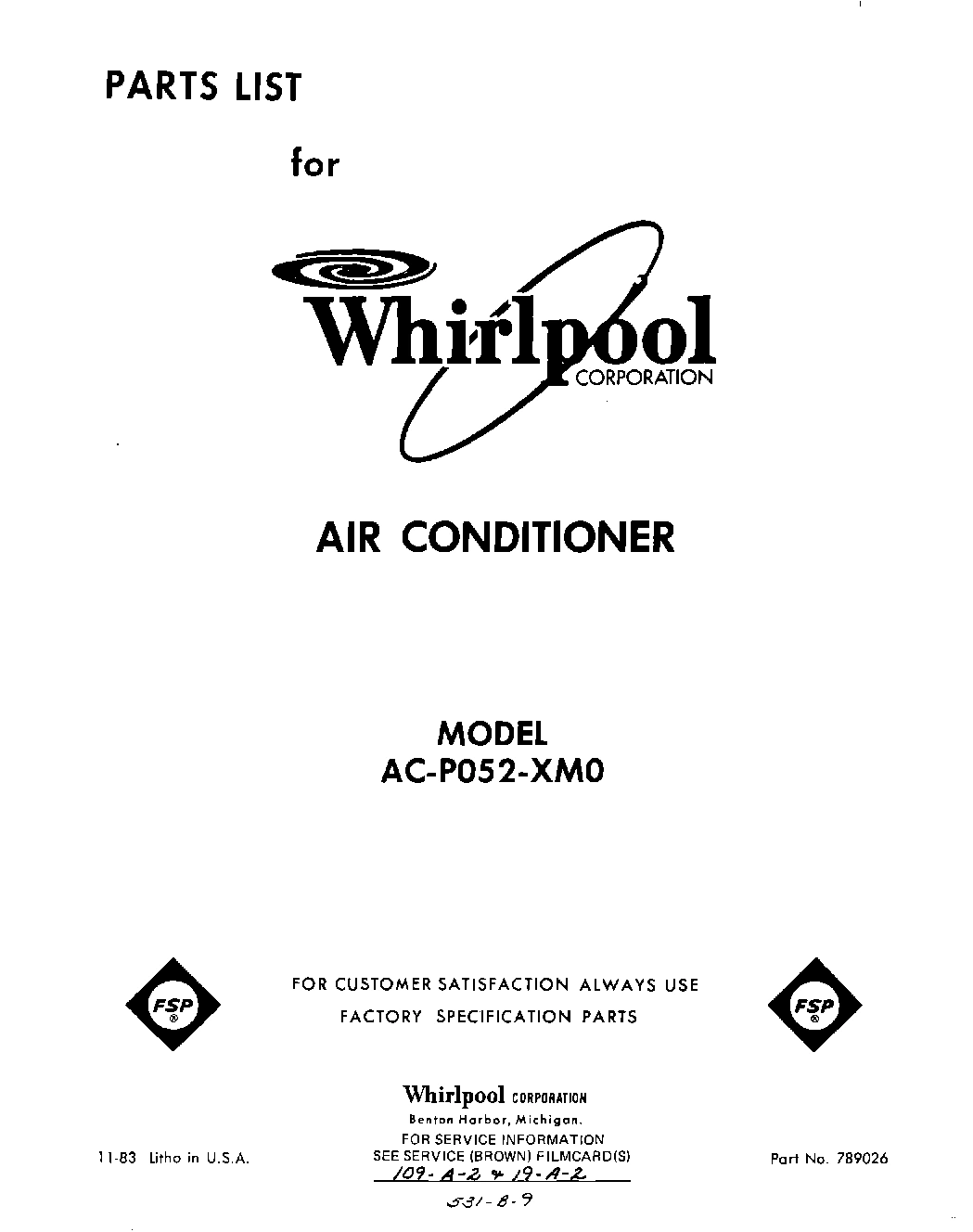

01 - COVER

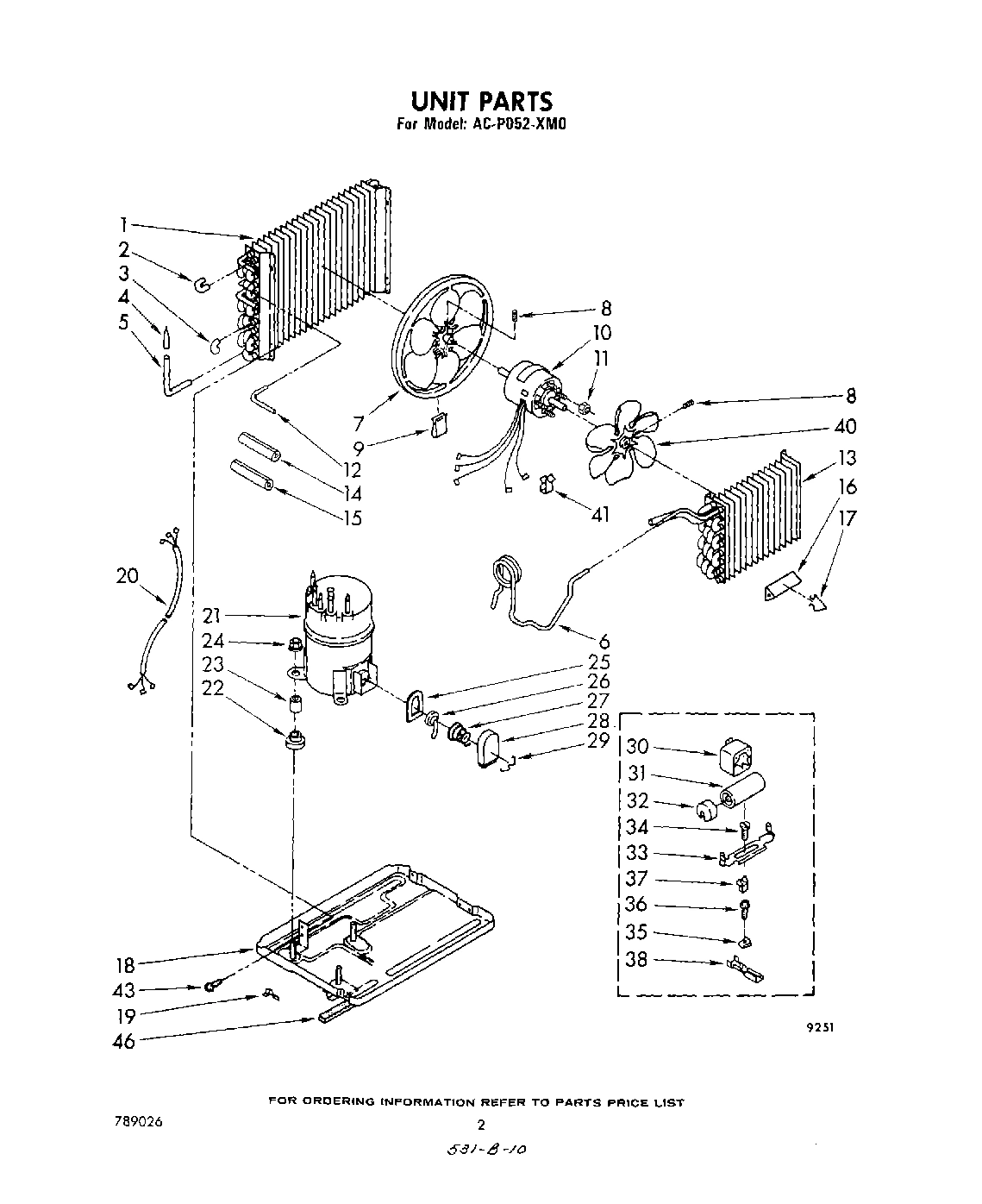

02 - UNIT PARTS
Common parts from model Whirlpool ACP052XM0 AIR CONDITIONER
1
Cabinet WPL 857903 Contact Us For Availability
1
Condenser WPL 998262 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return (1) WPL 856665 Contact Us For Availability
3
Bend, Return (9) WPL 855199 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Front, Cabinet WPL 950281 Contact Us For Availability
6
Tube, Restrictor (Length 33.0``) WPL 859817 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Blade, Fan WPL 997884 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
10
Seal, Strip WPL 855493 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 949498 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 646130 Contact Us For Availability
11
Knob, Control (2) WPL 947319 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Tube, 90~ Connect (1) WPL 467894 Contact Us For Availability
13
Wall, Dividing Assembly (Requires Insulation WPL 859822 Contact Us For Availability
13
Evaporator WPL 859805 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Damper, Split WPL 947513 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Damper, Split WPL 947514 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 645605 Contact Us For Availability
18
Base WPL 859295 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
21
Plate, Escutcheon WPL 950279 Contact Us For Availability
21
Compressor WPL 484216 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
23
Retainer, Detent Spring WPL 853565 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Overload WPL 646781 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
27
Filter WPL 854925 Contact Us For Availability
27
Spring, Overload WPL 644362 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
29
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
xRelay, Starting WPL 484177 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
31
xCapacitor WPL 48616 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
xCap, Capacitor WPL 465280 Contact Us For Availability
33
Bracket, Evaporator Mounting WPL 855502 Contact Us For Availability
33
xBracket, capacitor WPL 35564 Contact Us For Availability
34
xScrew, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
37
Arm, Exhaust Door WPL 646165 Contact Us For Availability
37
Multiplier, Terminal WPL 90654 Contact Us For Availability
38
xClip, Terminal (8) WPL 45571 Contact Us For Availability
39
Clamp, Mounting WPL 949176 Contact Us For Availability
40
Fan, Blade Evaporator WPL 646122 Contact Us For Availability
41
no drip tape (sweating tubes) WPL 505168 Contact Us For Availability
41
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
41
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
41
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
41
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
41
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
41
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
41
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
41
List, Repair Parts WPL 789026 Contact Us For Availability
41
Blen WPL 799351 Contact Us For Availability
41
WPL 949177 WPL 949177 Contact Us For Availability
41
WPL 950313 WPL 950313 Contact Us For Availability
41
WPL 950316 WPL 950316 Contact Us For Availability
41
WPL 950317 WPL 950317 Contact Us For Availability
41
WPL 950318 WPL 950318 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
43
Screw, Repair WPL 488481 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Cover, Winter WPL 484067 Contact Us For Availability
46
Kit, Start Assist WPL 484220 Contact Us For Availability
46
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
46
Compressor Start Kit WPL 485608 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Seal, Base (R.S.) WPL 993191 Contact Us For Availability
× ![]()
