Model Whirlpool ACO27DE ELECTRIC WALL OVEN – Common Parts & Diagrams

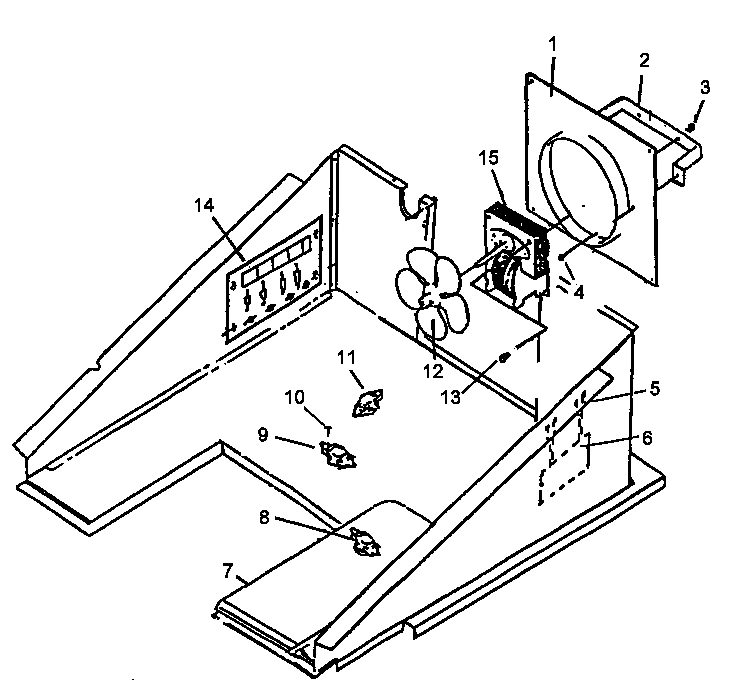

03 - CONTROL COMPARTMENT

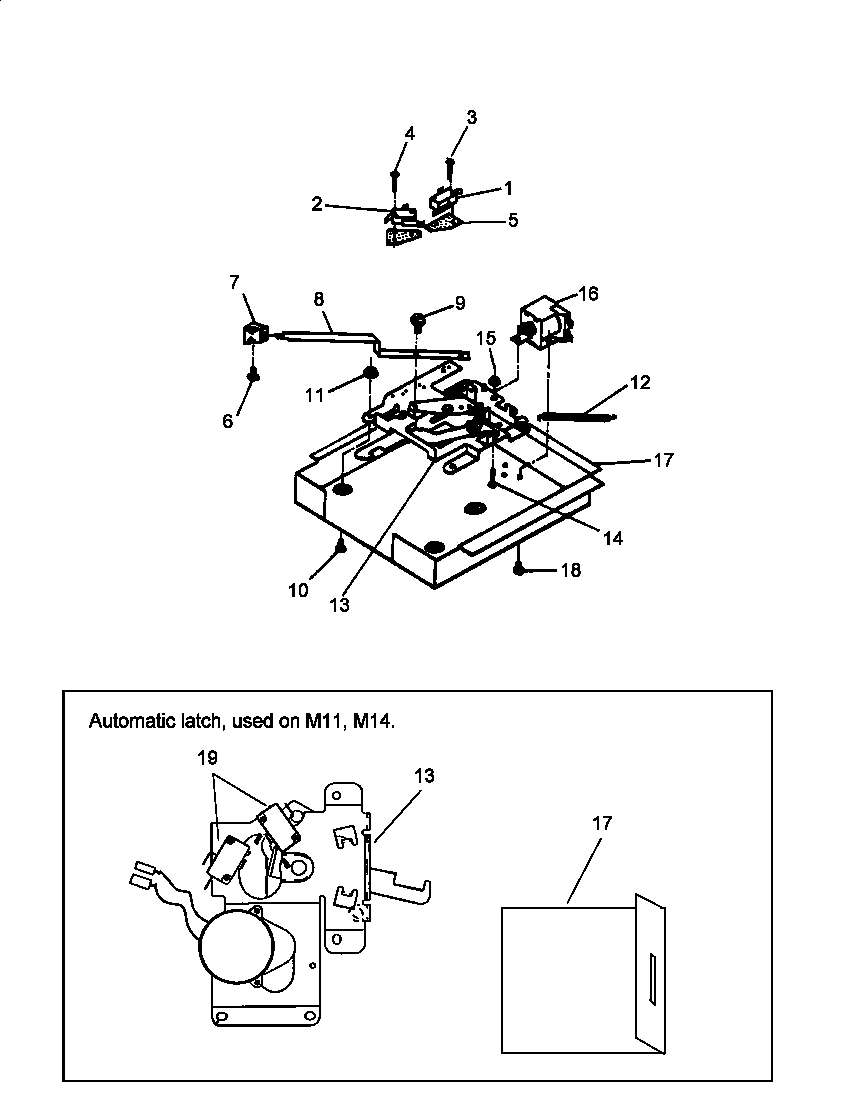

06 - DOOR LATCH

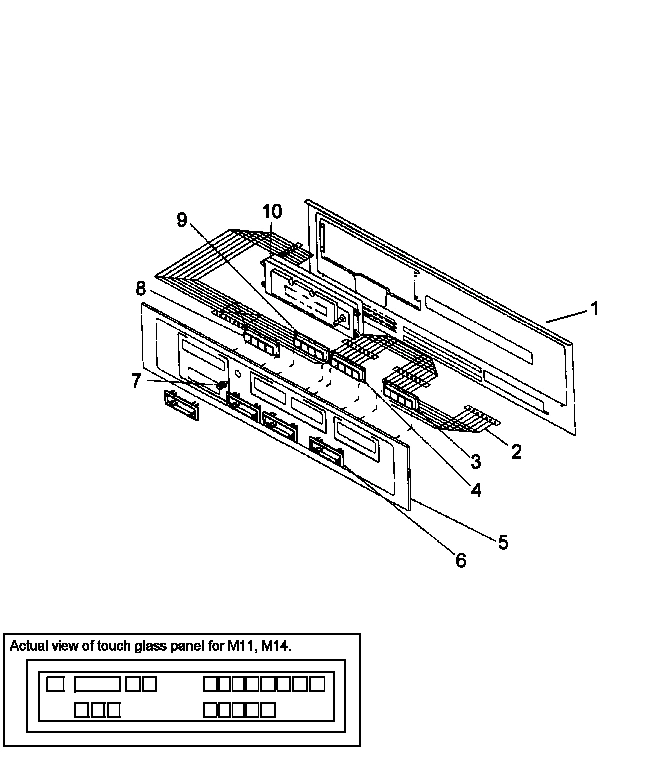

04 - CONTROL PANEL

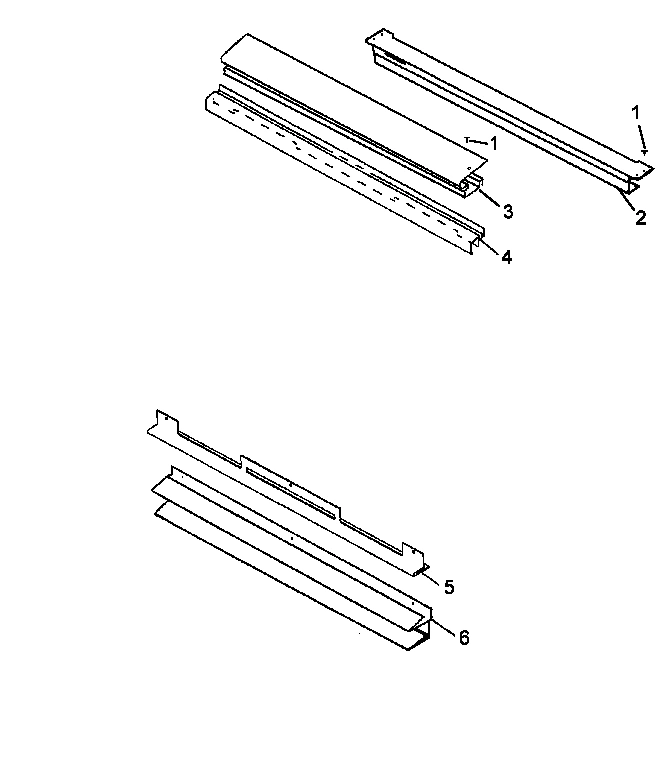

05 - CONTROL PANEL TRIM
02 - CABINET TRIM

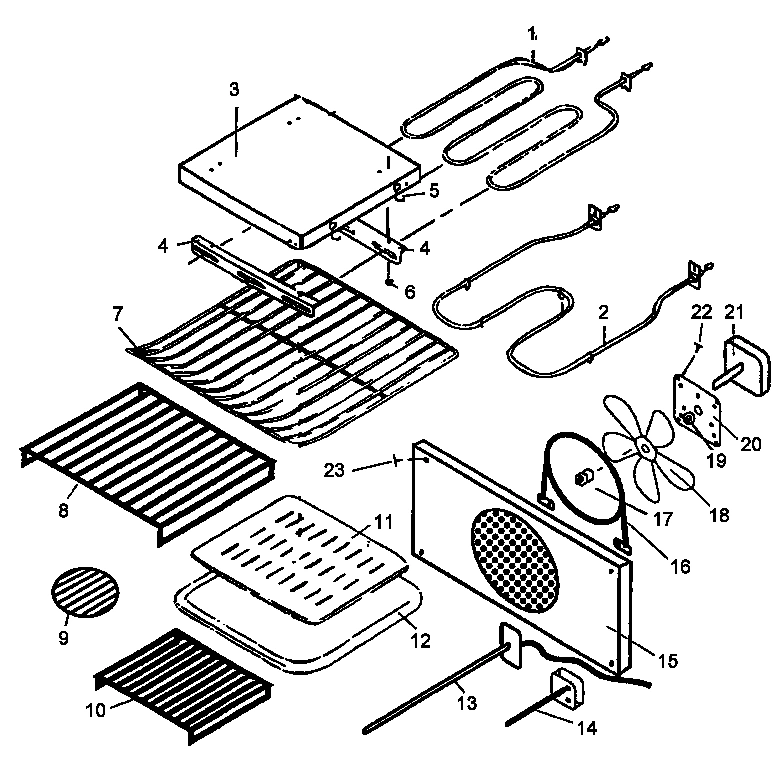

07 - OVEN ACCESSORIES

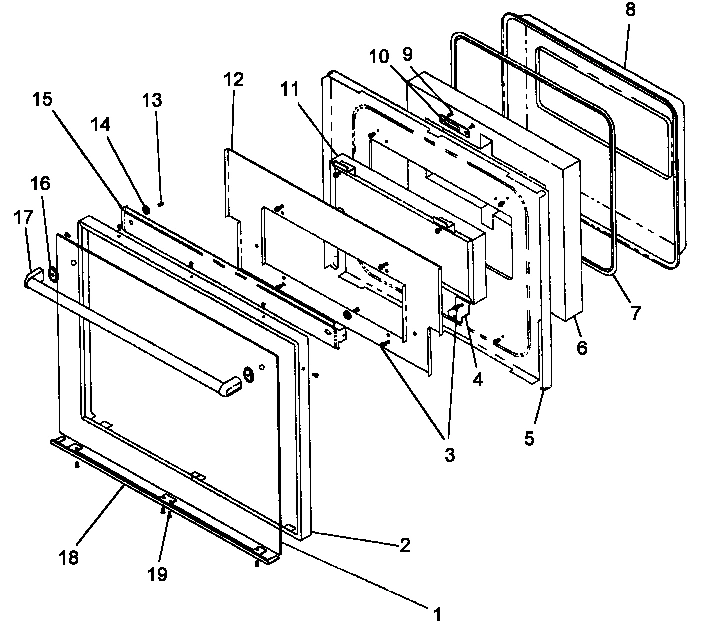

09 - OVEN DOOR, FRAMELESS
01 - CABINET

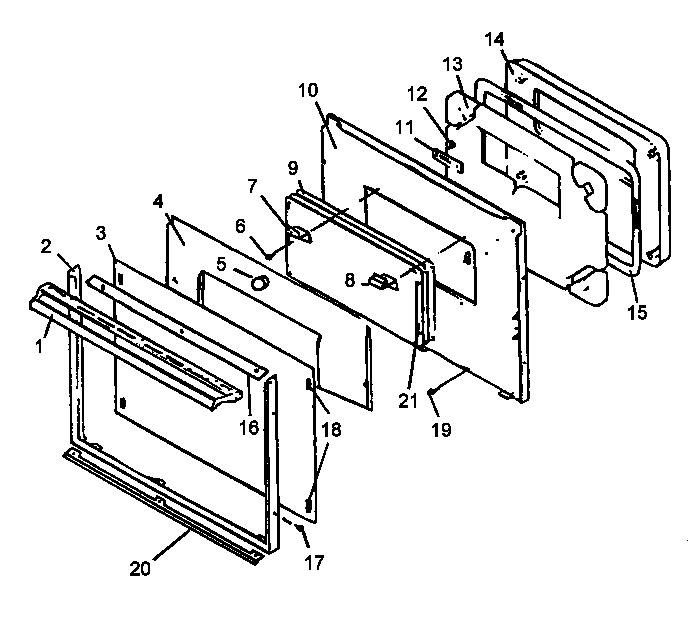

08 - OVEN DOOR
Common parts from model Whirlpool ACO27DE ELECTRIC WALL OVEN
1
BACK, CONT COMP WPL Y0040905 Contact Us For Availability
1
SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability
1
BRACKET, CONT. MTG. WPL 305633G Contact Us For Availability
1
SCREW, No.8-18X1/2 SQ TRSHD(BLK) WPL Y0050063 Contact Us For Availability
1
TRIM, CONT. PNL. BOTTOM WPL 0305646 Contact Us For Availability
1
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
1
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
1
OVEN DOOR HANDLE WPL 0302124 Contact Us For Availability
2
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
2
MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability
2
HARNESS, RIBBON WPL 0305452 Contact Us For Availability
2
CONTROL PANEL TOP TRIM WPL 0304943 Contact Us For Availability
2
SCREW, No.6-32X3/8-BLK WPL Y0309204 Contact Us For Availability
2
FRAME, OVEN DOOR WPL Y058832B Contact Us For Availability
3
SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability
3
ASSY, RUBBER BUTTON (BLACK) WPL Y0305693 Contact Us For Availability
3
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
3
BACK, UPPER CABINET WPL Y0305628 Contact Us For Availability
3
DOOR GLASS D DOORS PK411 WPL 0042784 Contact Us For Availability
4
GROMMET-FAN WPL Y0305243 Contact Us For Availability
4
SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability
4
ASSY, RUBBER BUTTON (BLACK) WPL Y0305692 Contact Us For Availability
4
SIDE TRIM RIGHT SIDE WPL Y0304948 Contact Us For Availability
4
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
4
CONT. COMP. BACK PYRO W/O WPL Y0040745 Contact Us For Availability
4
BAFFLE, INNER WPL 306093G Contact Us For Availability
5
RESISTOR WPL Y0042064 Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
5
GLASS, CONTROL PANEL WPL 0306969 Contact Us For Availability
5
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
5
COMPARTMENT, CONTROL RT WPL Y0314834 Contact Us For Availability
6
RELAY MODULE No.2 WPL Y0305699 Contact Us For Availability
6
BEZEL, 4 BUTTON (BLACK) WPL 0305484 Contact Us For Availability
6
BEZEL, 5 BUTTON (BLACK) WPL Y0305486 Contact Us For Availability
6
BOTTOM TRIM (BLACK) WPL 0042576 Contact Us For Availability
7
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
7
KNOB,LATCH HANDLE (BL) WPL 306535B Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL Y0305317 Contact Us For Availability
7
TRIM, CENTER WPL 0305648 Contact Us For Availability
7
RACK, OVEN 19 3/16X 14 3/4`` WPL 305619J Contact Us For Availability
7
RACK, OVEN WPL Y042711J Contact Us For Availability
7
TOP, LOWER OVEN WPL 0046325 Contact Us For Availability
7
UPPER OVEN TOP WPL Y0052848 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
8
LIMIT SWITCH-OPEN 90 WPL Y0042066 Contact Us For Availability
8
LATCH ARM WPL 301064B Contact Us For Availability
8
PCB - T2 WPL 0305690 Contact Us For Availability
8
SIDE TRIM LEFT SIDE WPL Y0304949 Contact Us For Availability
8
RACK, OVEN WIRE WPL 305618J Contact Us For Availability
8
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
8
CORK BUMPER WPL 0042014 Contact Us For Availability
9
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
9
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
9
PCB - T3 WPL 0305691 Contact Us For Availability
9
SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability
9
LOWER OVEN FLUE BOX W/A PYRO WPL Y0040581 Contact Us For Availability
9
WINDOW ASSY WPL 0304831 Contact Us For Availability
10
ERC 5800, DBL OVEN WPL Y0305159 Contact Us For Availability
10
RACK, BROILER WPL Y0306531 Contact Us For Availability
10
TUBE, LOWER OVEN VENT-PYRO W/O WPL Y0042406 Contact Us For Availability
10
W/A DOOR LINER WPL Y0303067 Contact Us For Availability
11
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
11
GRID, BROILER (CG) WPL Y0304451 Contact Us For Availability
11
LATCH PLATE WPL Y052039F Contact Us For Availability
12
BLADE, FAN WPL Y0042754 Contact Us For Availability
12
SPRING WPL 0044513 Contact Us For Availability
12
HI LIMIT, LOWER OVEN WPL Y0302959 Contact Us For Availability
13
DOOR LATCH ASSY WO WPL Y0041909 Contact Us For Availability
13
SWITCH PLATE QDO-240 WPL Y0040783 Contact Us For Availability
13
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
14
SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability
14
TRANS. RELAY MODULE No.1 WPL Y0305698 Contact Us For Availability
14
SENSOR, ERC WPL Y0300769 Contact Us For Availability
14
SUPPORT, REAR OVEN-PYRO W/O WPL 0041021 Contact Us For Availability
14
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
15
FAN MOTOR WPL Y0042226 Contact Us For Availability
15
FAN COVER WPL 305623CG Contact Us For Availability
15
RETAINER, SIDE INSUL WPL Y0060774 Contact Us For Availability
15
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
16
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
16
BACK CABINET WPL Y0059743 Contact Us For Availability
16
DOOR TOP TRIM PK411 WPL 0042542 Contact Us For Availability
17
LATCH MTG. BRKT PYRO W/O WPL Y0040903 Contact Us For Availability
17
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
17
AIR CHANNEL, LOWER OVEN-PYRO WPL 0040755 Contact Us For Availability
17
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
18
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
18
BLADE, FAN WPL Y0307036 Contact Us For Availability
18
TAPE, FOAM WPL 0043184 Contact Us For Availability
19
WASHER (ZN) WPL 0307038 Contact Us For Availability
19
RETAINER, SPRING WPL Y0060759 Contact Us For Availability
19
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
20
BRACKET, FAN MTG. WPL 0305627 Contact Us For Availability
20
BOTTOM, LWR OVEN WPL Y0040752 Contact Us For Availability
21
FAN ASSY, CONVECTION (W/BLADE) WPL Y0307035 Contact Us For Availability
21
RUNNER, BASE-PYRO W/O WPL Y0041019 Contact Us For Availability
21
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
22
SCREW, No.10-32X1/2 (PH TAPTITE) WPL Y0091599 Contact Us For Availability
22
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
23
SCREW No.8X11/4 PH F H WPL Y0041804 Contact Us For Availability
23
SHIELD, REFLECTOR (CG) WPL 40850CG Contact Us For Availability
24
UPPER OVEN BOTTOM PYRO W/O WPL Y0040741 Contact Us For Availability
25
OVEN SHELL (WALL OVEN) WPL 305620CG Contact Us For Availability
25
OVEN SHELLWALL OVEN WPL 305621CG Contact Us For Availability
28
BULB, LIGHT WPL Y0042175 Contact Us For Availability
31
SUPPORT, FRONT OVEN-PYRO W/O WPL 0041020 Contact Us For Availability
32
HINGE ASSY WPL Y0052095 Contact Us For Availability
33
SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability
34
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
35
LATCH HANDLE GUIDE PYRO WPL Y0042015 Contact Us For Availability
35
LATCH HANDLE GUIDE PYRO W.O. WPL Y0042018 Contact Us For Availability
36
PANEL, SIDE WPL Y0052856 Contact Us For Availability
37
CONTROL COMPARTMENT. L.H. WPL Y0305630 Contact Us For Availability
38
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
NI
CHIP COVER PYRO WO WPL 0040405 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
× ![]()
