Model Maytag ACO1520AW MICROWAVE – Common Parts & Diagrams

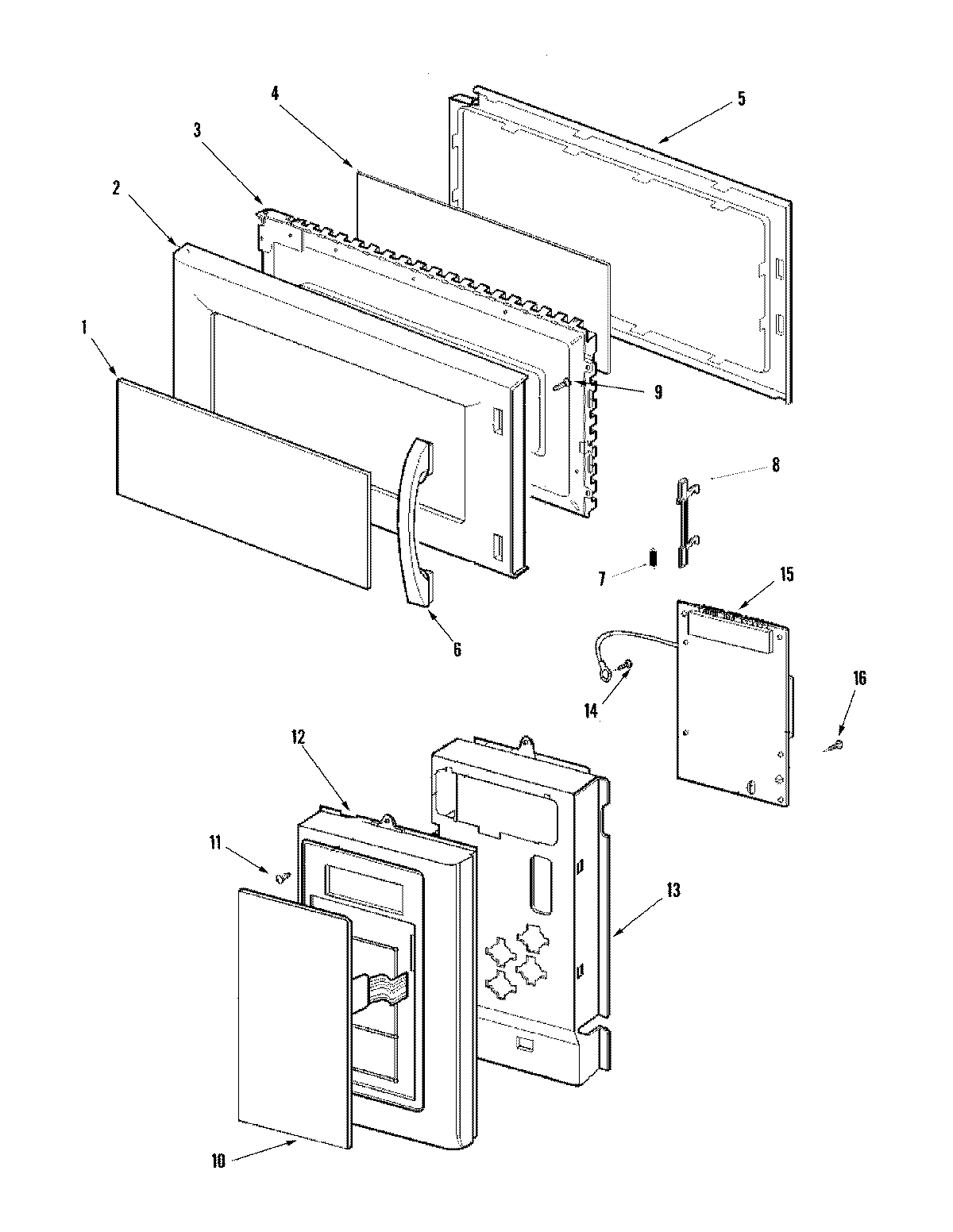

01 - DOOR & CONTROL PANEL

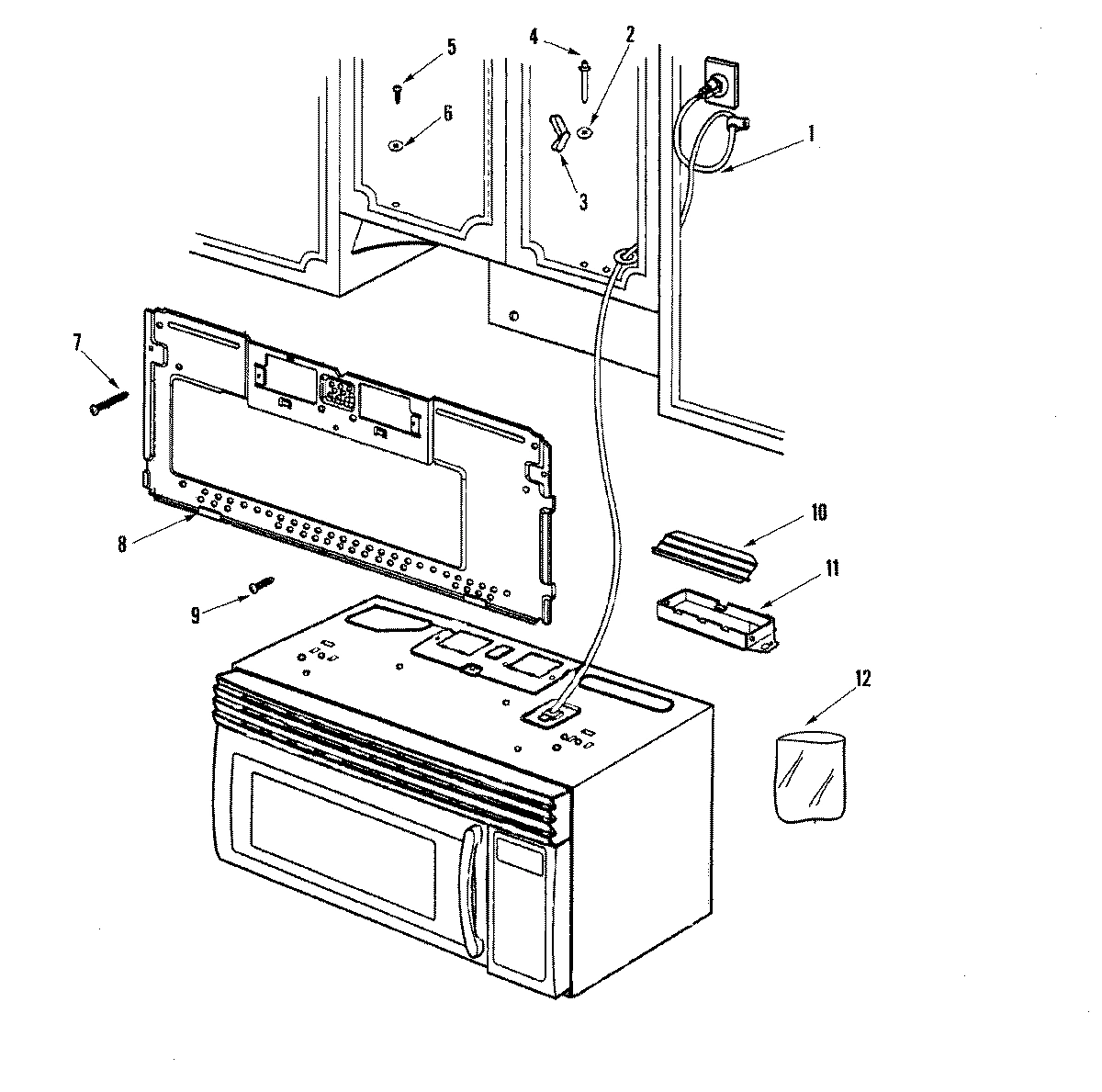

02 - INSTALLATION

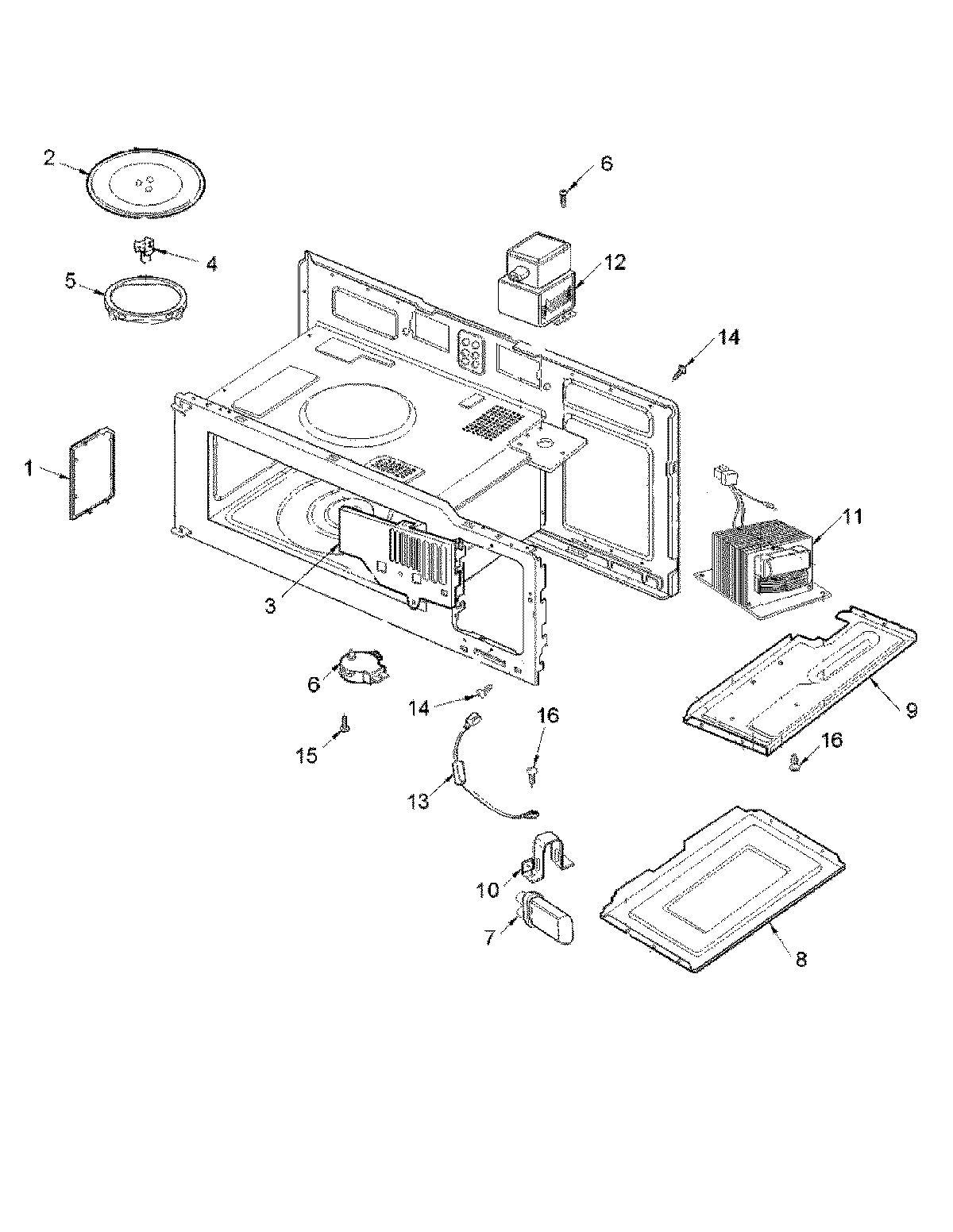

03 - INTERIOR

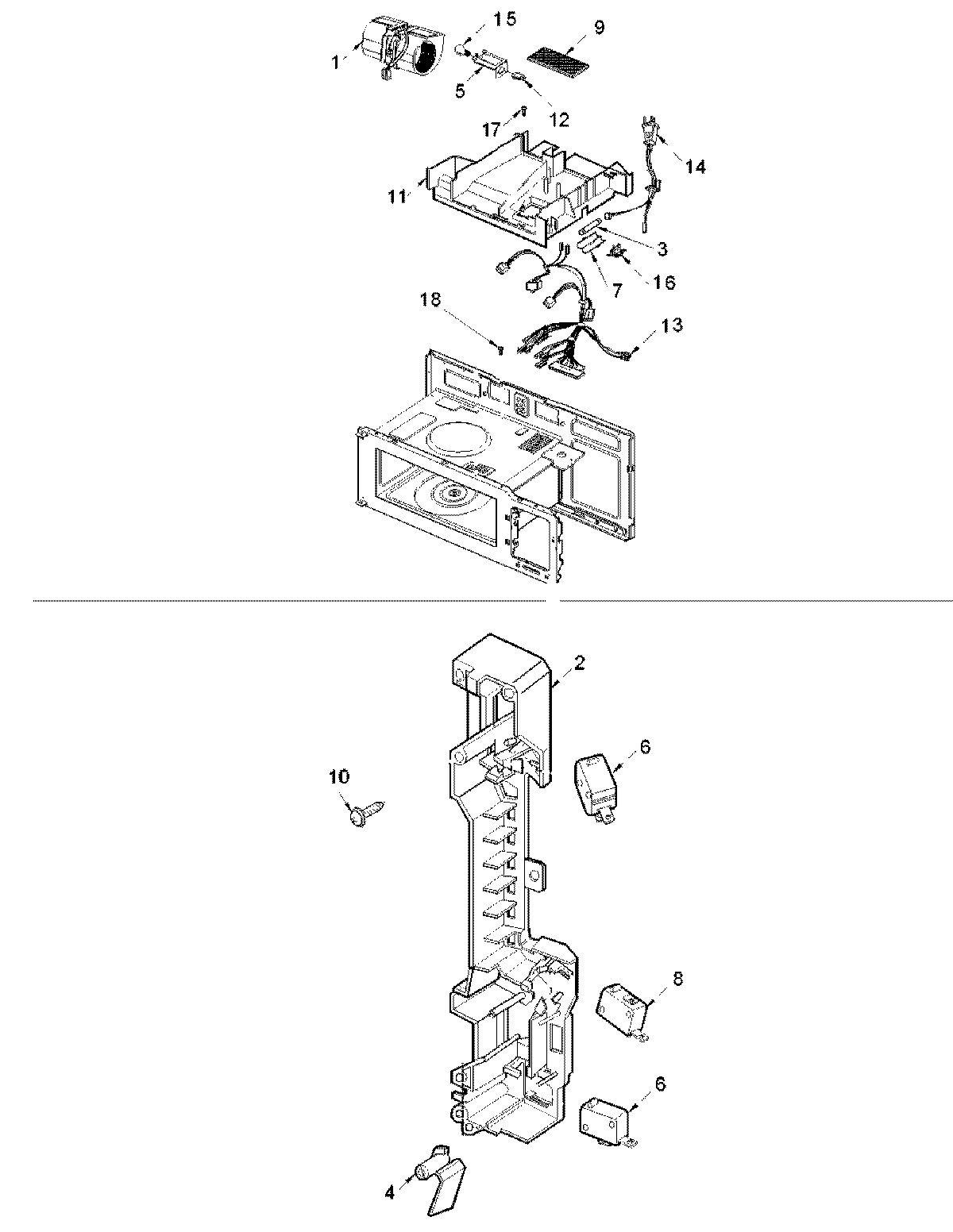

04 - INTERIOR & LATCH BOARD

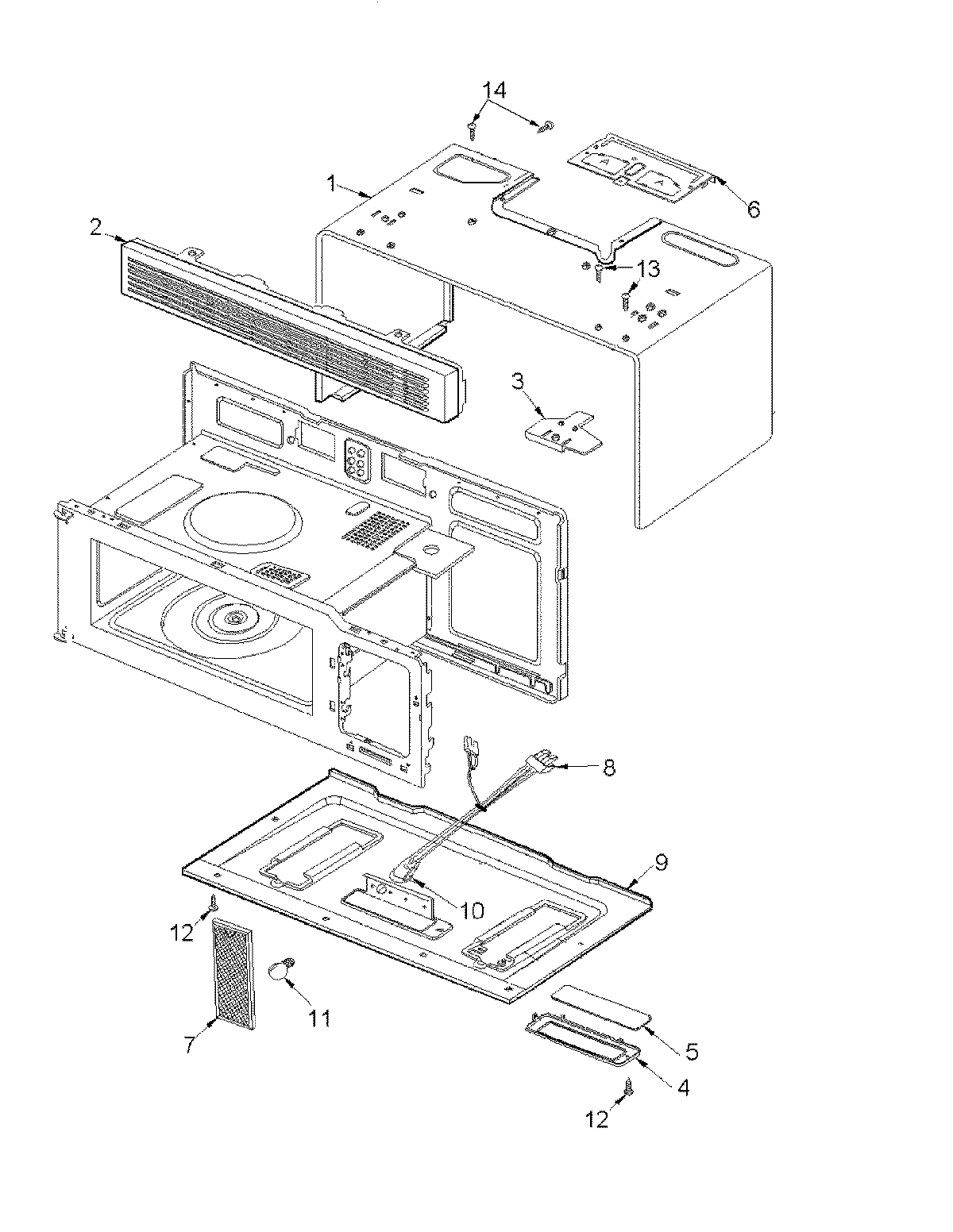

05 - OVEN CAVITY
06 - SUPPLEMENTAL INFORMATION

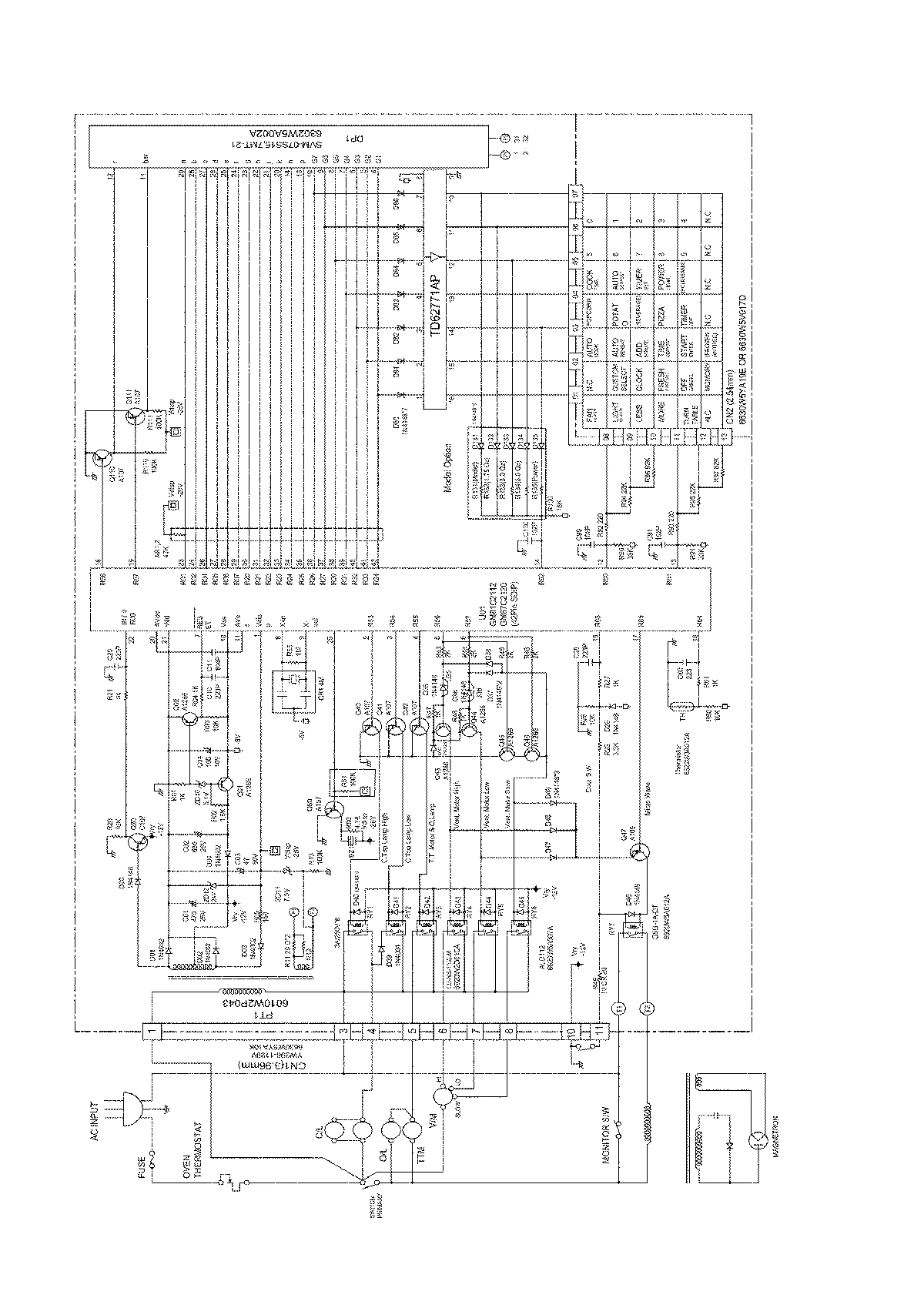

07 - WIRING INFORMATION
Common parts from model Maytag ACO1520AW MICROWAVE
1
MAY R9800501 MAY R9800501 Contact Us For Availability
1
MAY R0131492 MAY R0131492 Contact Us For Availability
1
MAY R0131502 MAY R0131502 Contact Us For Availability
1
MAY R0131485 MAY R0131485 Contact Us For Availability
1
MAY 16000132 MAY 16000132 Contact Us For Availability
2
MAY R0131488 MAY R0131488 Contact Us For Availability
2
MAY R9900309 MAY R9900309 Contact Us For Availability
2
MAY 74007464 MAY 74007464 Contact Us For Availability
3
MAY R9900240 MAY R9900240 Contact Us For Availability
3
MAY R9800479 MAY R9800479 Contact Us For Availability
3
MAY R0131494 MAY R0131494 Contact Us For Availability
3
MAY R9800364 MAY R9800364 Contact Us For Availability
3
MAY R0130656 MAY R0130656 Contact Us For Availability
4
MAY R0130605 MAY R0130605 Contact Us For Availability
4
MAY R9900242 MAY R9900242 Contact Us For Availability
4
MAY R9800497 MAY R9800497 Contact Us For Availability
4
MAY R9800416 MAY R9800416 Contact Us For Availability
4
MAY R9800392 MAY R9800392 Contact Us For Availability
4
MAY 59001148 MAY 59001148 Contact Us For Availability
5
MAY R9900246 MAY R9900246 Contact Us For Availability
5
MAY R9800487 MAY R9800487 Contact Us For Availability
5
MAY R9800453 MAY R9800453 Contact Us For Availability
5
MAY R9800462 MAY R9800462 Contact Us For Availability
5
MAY R9800395 MAY R9800395 Contact Us For Availability
6
MAY R9900252 MAY R9900252 Contact Us For Availability
6
MAY R9800489 MAY R9800489 Contact Us For Availability
6
MAY R0131496 MAY R0131496 Contact Us For Availability
6
MAY R9900311 MAY R9900311 Contact Us For Availability
6
MAY R0130606 MAY R0130606 Contact Us For Availability
7
MAY R0131481 MAY R0131481 Contact Us For Availability
7
MAY R9800480 MAY R9800480 Contact Us For Availability
7
MAY R0131114 MAY R0131114 Contact Us For Availability
7
MAY R9800408 MAY R9800408 Contact Us For Availability
8
MAY R9900260 MAY R9900260 Contact Us For Availability
8
MAY 59001113 MAY 59001113 Contact Us For Availability
8
MAY R0131498 MAY R0131498 Contact Us For Availability
8
MAY R0131489 MAY R0131489 Contact Us For Availability
9
MAY R9800483 MAY R9800483 Contact Us For Availability
9
MAY R0131499 MAY R0131499 Contact Us For Availability
9
MAY R0131490 MAY R0131490 Contact Us For Availability
10
MAY R0131483 MAY R0131483 Contact Us For Availability
10
MAY R9800478 MAY R9800478 Contact Us For Availability
10
MAY R9800436 MAY R9800436 Contact Us For Availability
10
MAY R0654111 MAY R0654111 Contact Us For Availability
10
MAY R9800407 MAY R9800407 Contact Us For Availability
11
MAY R9800473 MAY R9800473 Contact Us For Availability
11
MAY R0131500 MAY R0131500 Contact Us For Availability
11
MAY R0131503 MAY R0131503 Contact Us For Availability
11
MAY R9900310 MAY R9900310 Contact Us For Availability
12
MAY R9900248 MAY R9900248 Contact Us For Availability
12
MAY R9800681 MAY R9800681 Contact Us For Availability
12
MAY R9900549 MAY R9900549 Contact Us For Availability
13
MAY R9800359 MAY R9800359 Contact Us For Availability
13
MAY R9900262 MAY R9900262 Contact Us For Availability
13
MAY R9800486 MAY R9800486 Contact Us For Availability
13
MAY R0131505 MAY R0131505 Contact Us For Availability
14
MAY R0654183 MAY R0654183 Contact Us For Availability
14
MAY R0131504 MAY R0131504 Contact Us For Availability
15
MAY R0131484 MAY R0131484 Contact Us For Availability
15
MAY R0654180 MAY R0654180 Contact Us For Availability
16
MAY R0131506 MAY R0131506 Contact Us For Availability
18
MAY R0131029 MAY R0131029 Contact Us For Availability
NI
MAY 15002990 MAY 15002990 Contact Us For Availability
× ![]()
