Model Whirlpool ACM492XX0 AIR CONDITIONER – Common Parts & Diagrams

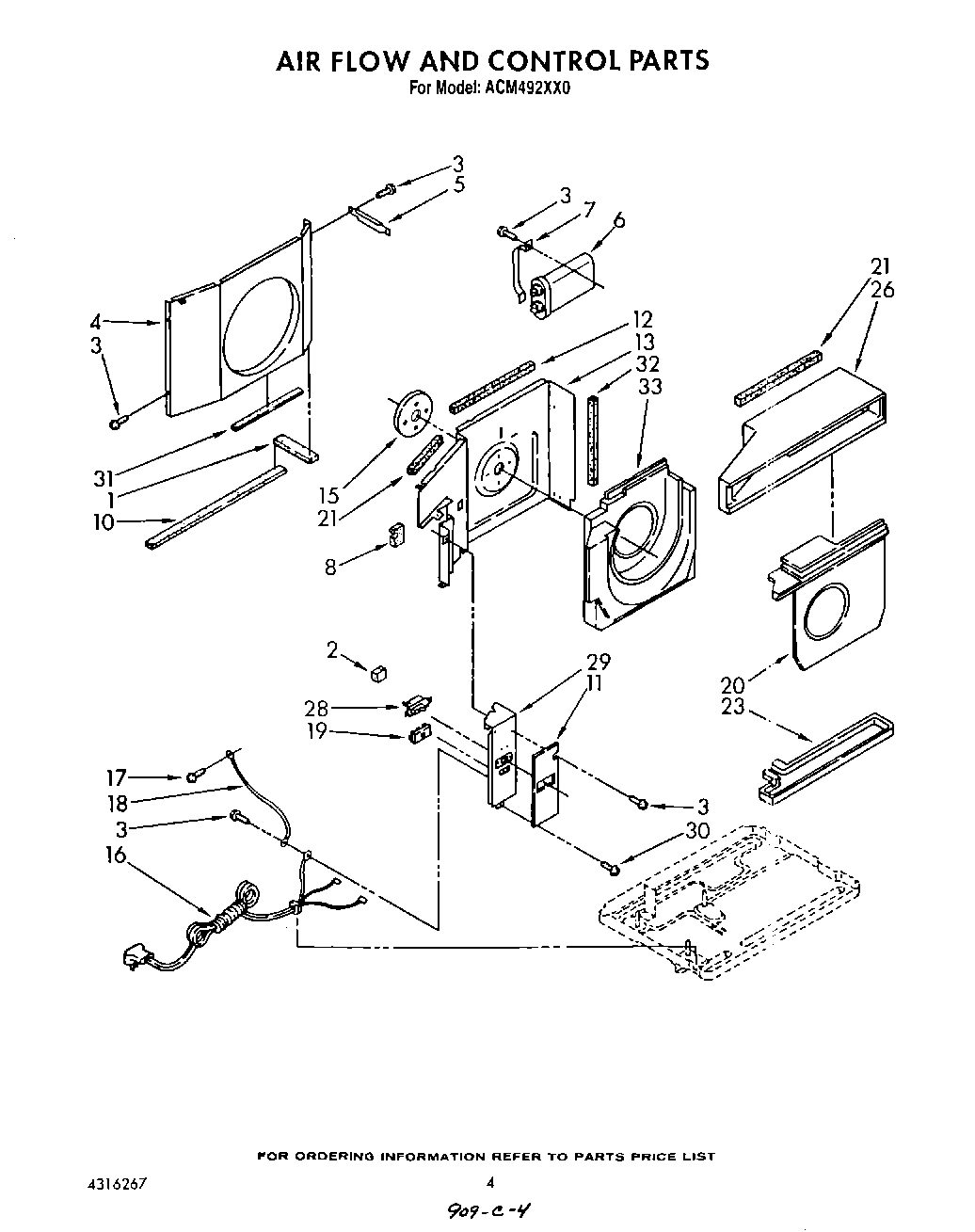

03 - AIR FLOW AND CONTROL

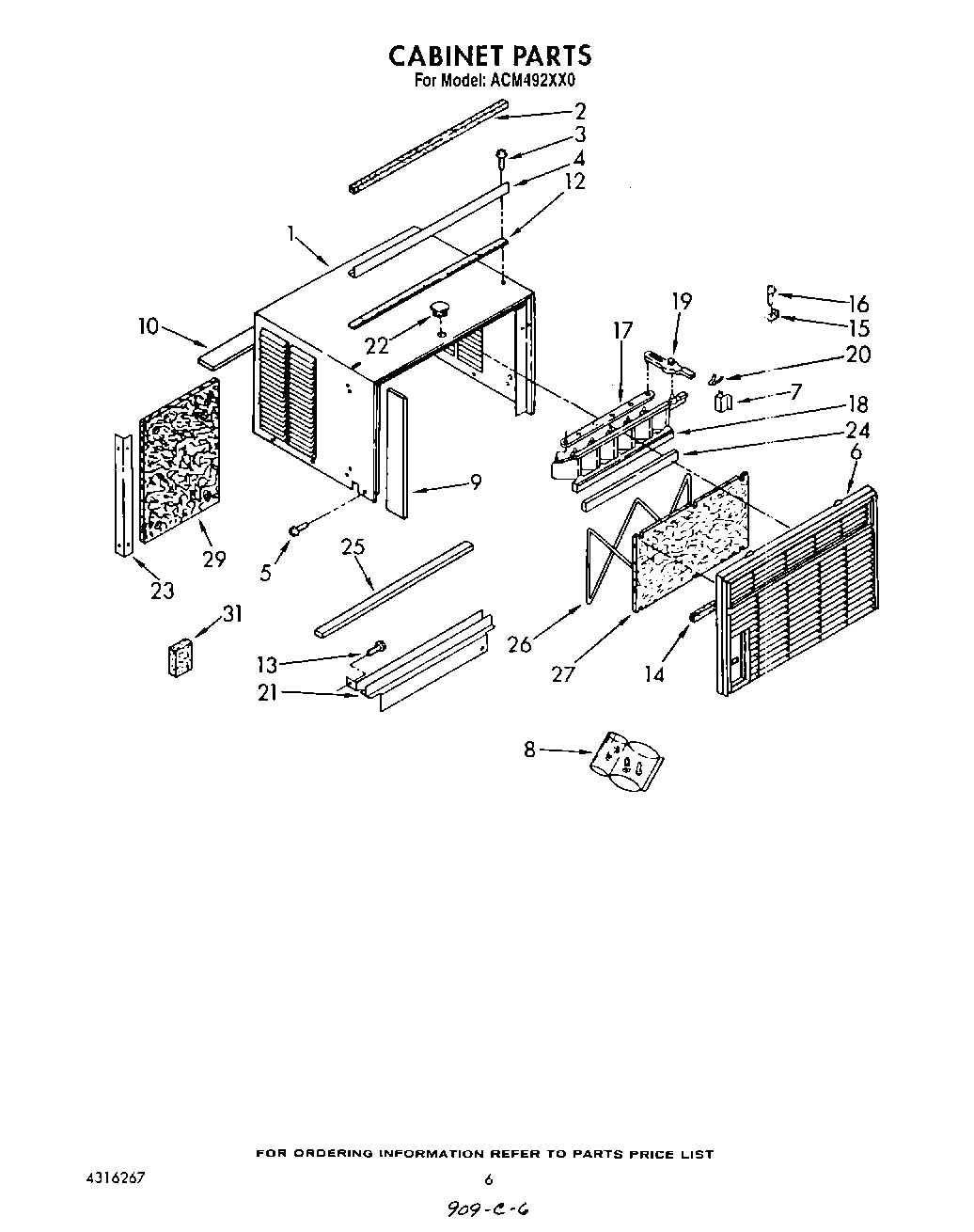

04 - CABINET

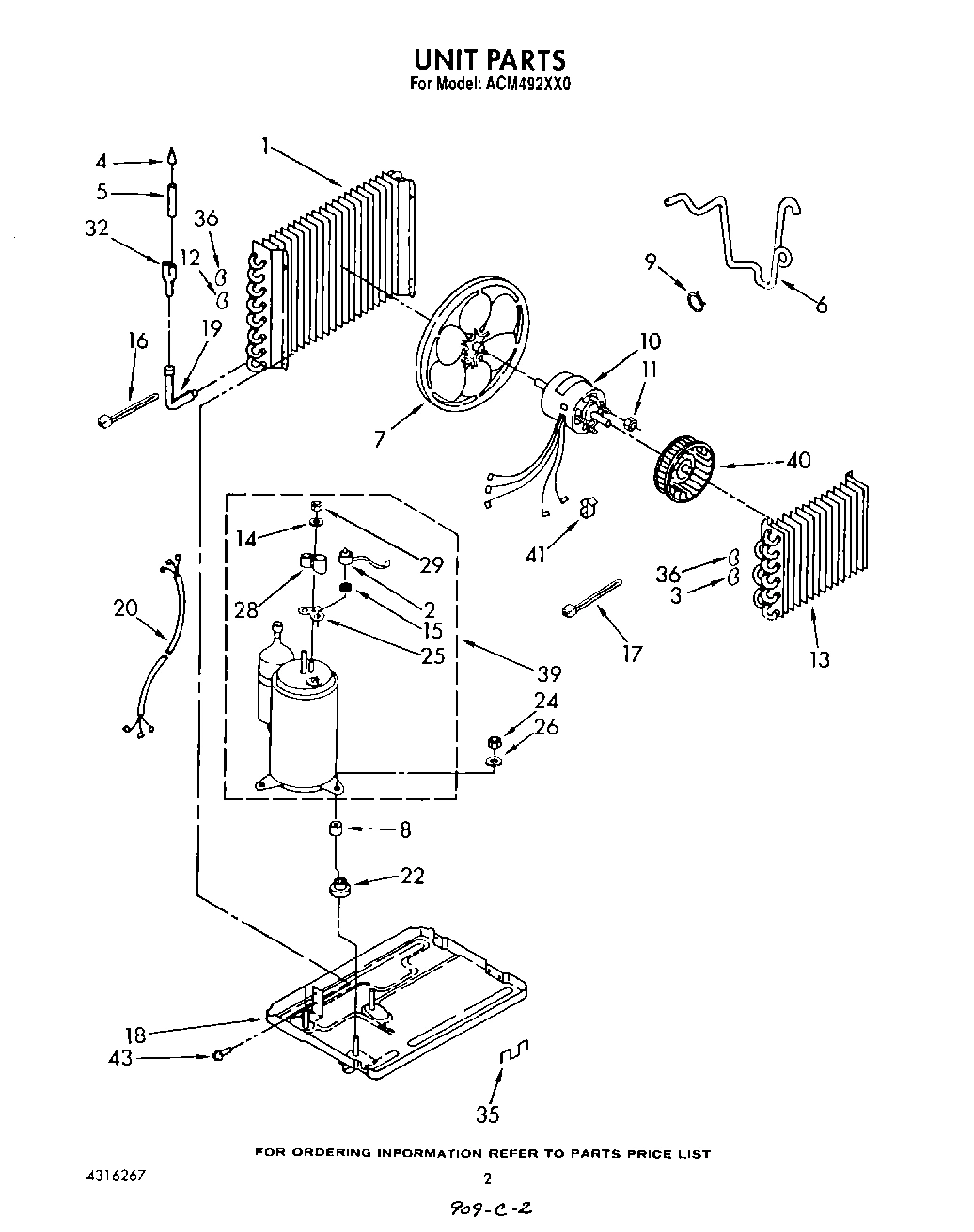

02 - UNIT

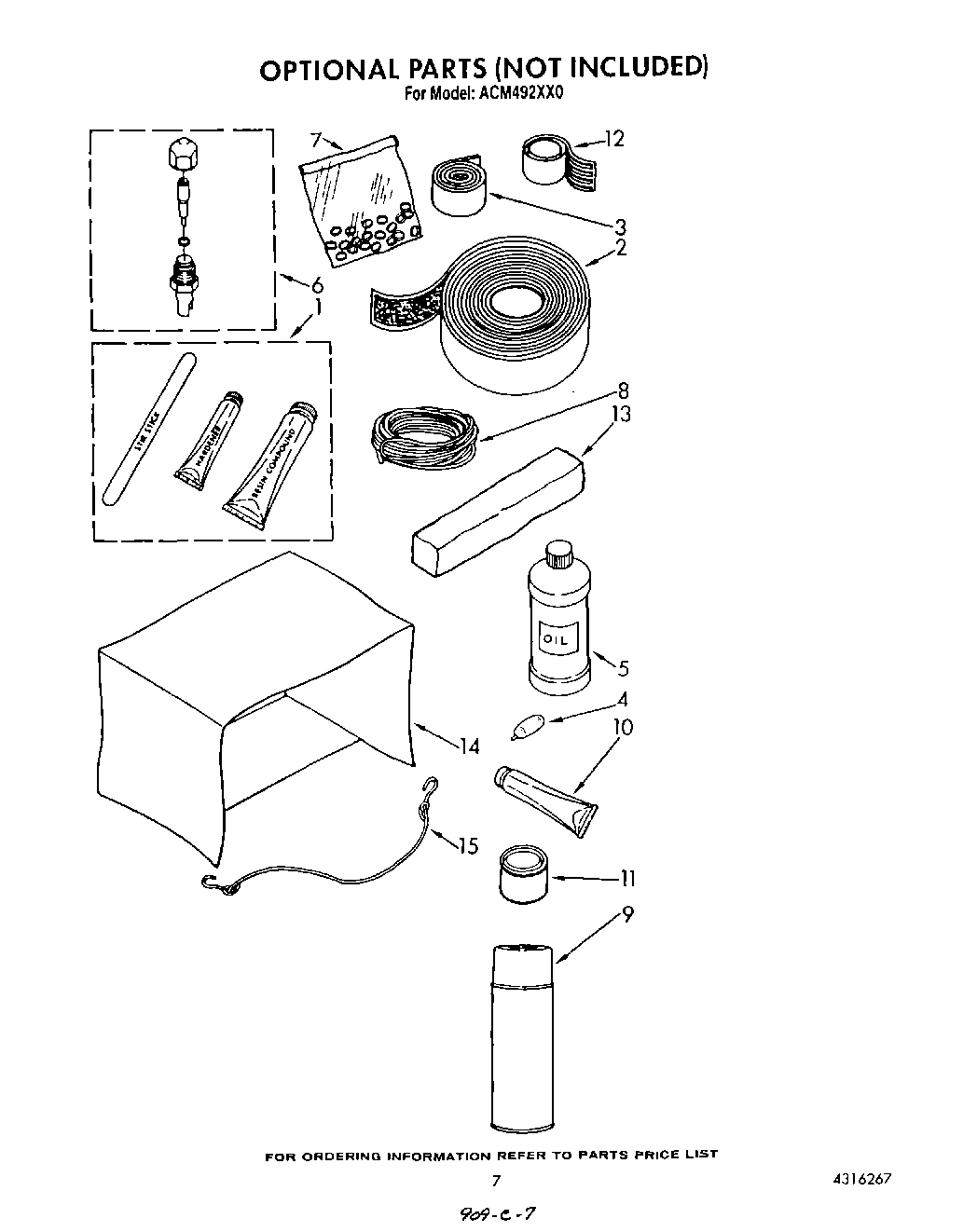

05 - LIT/OPTIONAL

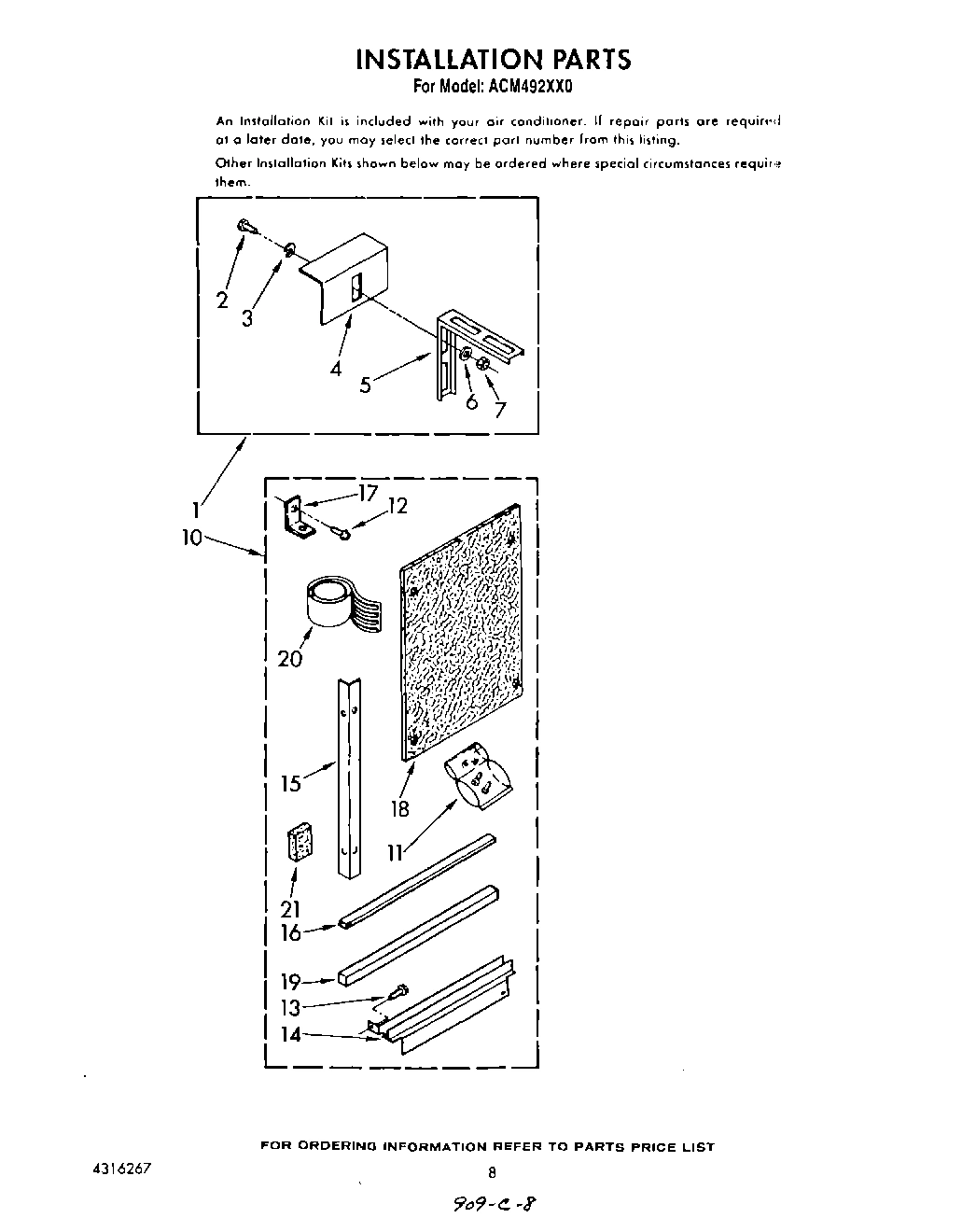

06 - INSTALLATION
Common parts from model Whirlpool ACM492XX0 AIR CONDITIONER
Tech Sheet WPL LIT1159477 Contact Us For Availability
Buy Guide Label WPL LIT1159562 Contact Us For Availability
Guide, Use And Care WPL LIT1159564 Contact Us For Availability
Instructions, Installation WPL LIT1159565 Contact Us For Availability
List, Repair Parts WPL LIT4316267 Contact Us For Availability
Wiring Diagram WPL LIT952770 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
1
Condenser WPL 1157934 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw, 10 x 1/2 (3) WPL 488506 Contact Us For Availability
3
Bend, Return (13) WPL 708531 Contact Us For Availability
4
Channel, Top WPL 646985 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet Assembly WPL 950306 Contact Us For Availability
6
Tube, Restrictor WPL 1159203 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Sleeve, Mounting (3) WPL 858148 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Motor, Fan WPL 1159558 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Riser (12) WPL 1157936 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Spring, Overload WPL 1155568 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
19
Board, Terminal WPL 855634 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Tube, Connecting WPL 1158703 Contact Us For Availability
20
Orifice, Air Housing WPL 1157950 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Grommet (3) WPL 475041 Contact Us For Availability
23
Pan, Evaporator WPL 1157948 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 1156715 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1155570 Contact Us For Availability
26
Hood, Air Housing WPL 1158464 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Filter WPL 854925 Contact Us For Availability
28
Switch, Rocker WPL 649384 Contact Us For Availability
28
Cover, Terminal WPL 1155569 Contact Us For Availability
29
Panel, Control WPL 1158453 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1157949 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
39
Compressor Assembly WPL 4210582 Contact Us For Availability
40
Wheel, Blower WPL 1158986 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
