Model Whirlpool ACM492XA0 AIR CONDITIONER – Common Parts & Diagrams

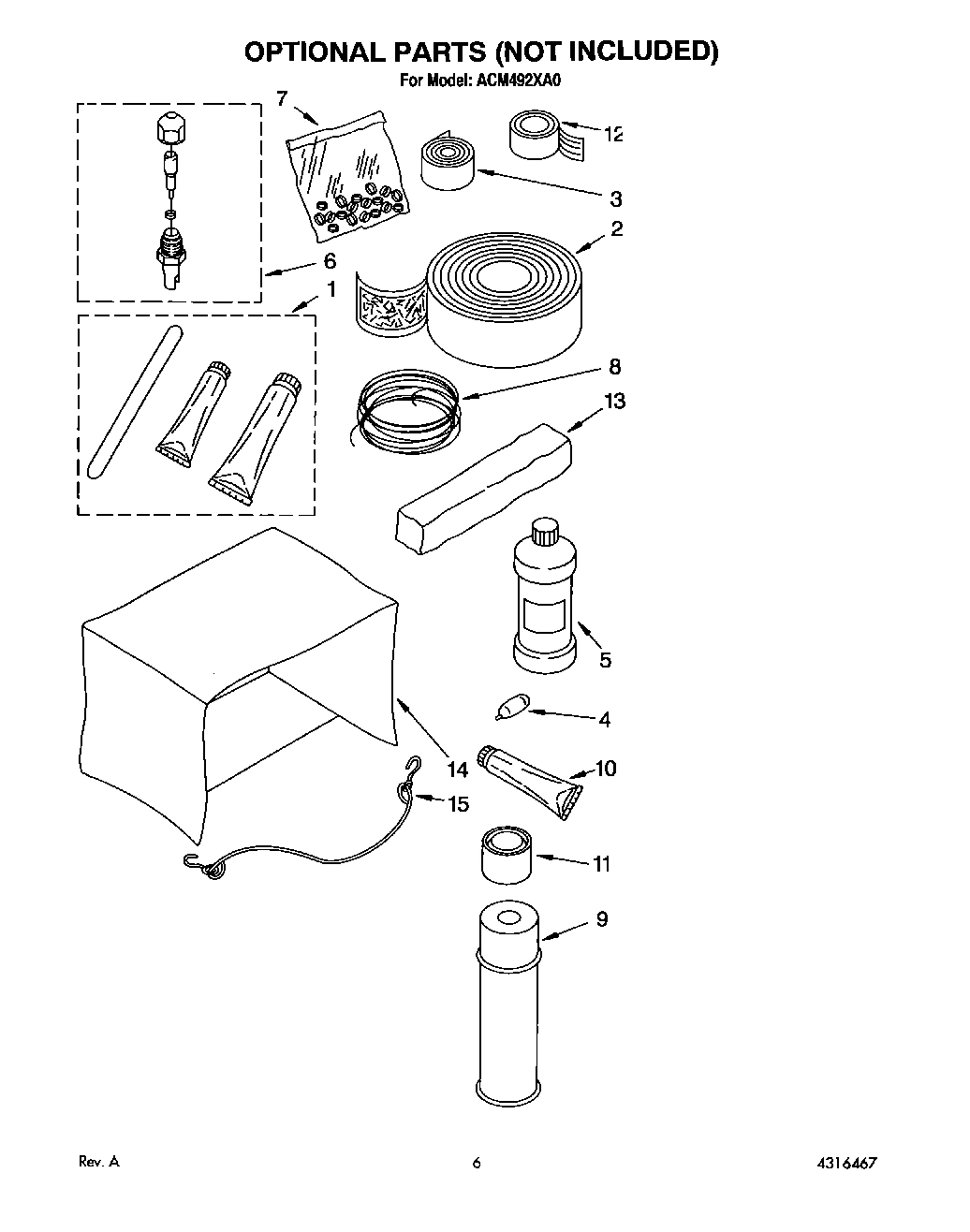

04 - OPTIONAL

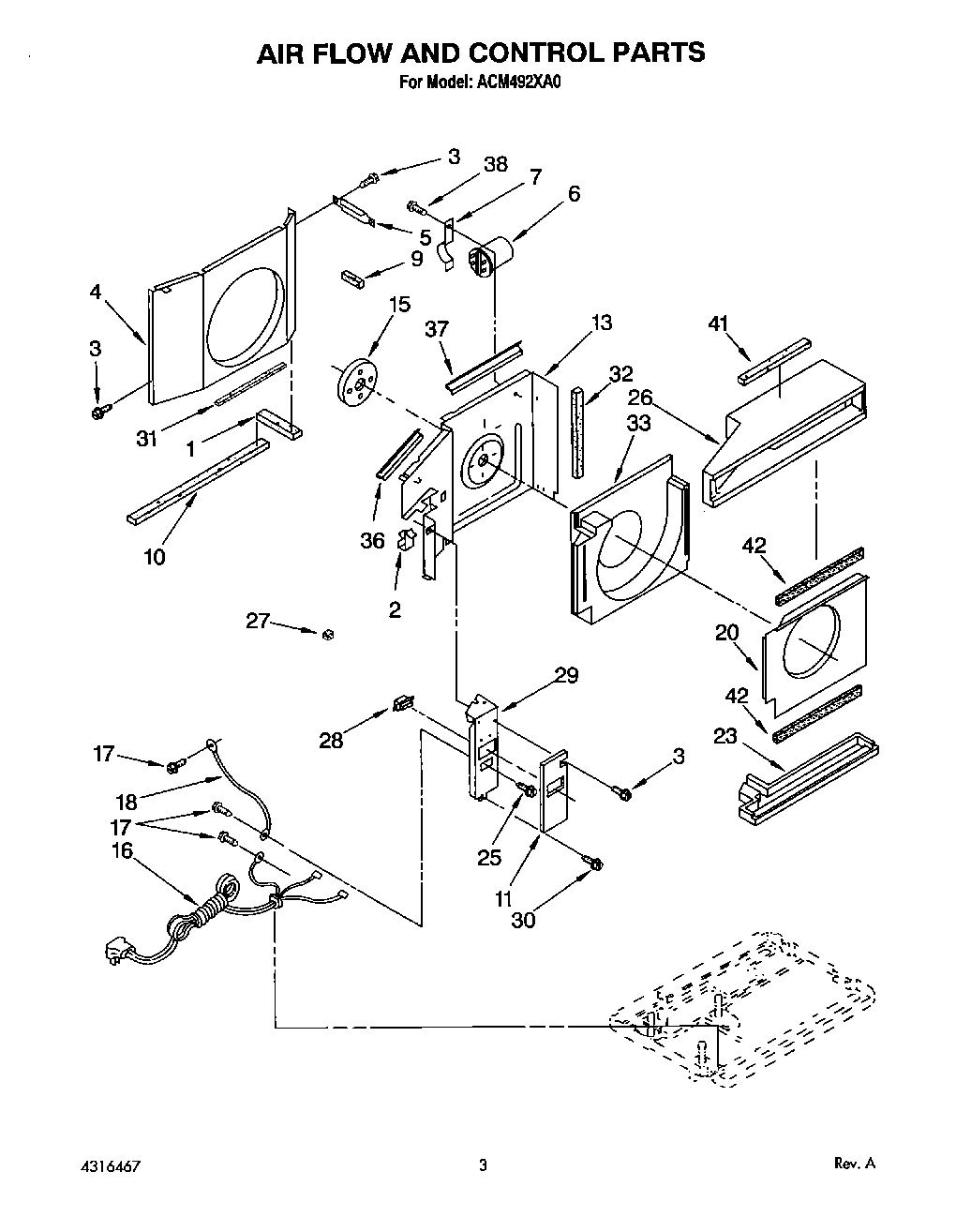

02 - AIR FLOW AND CONTROL

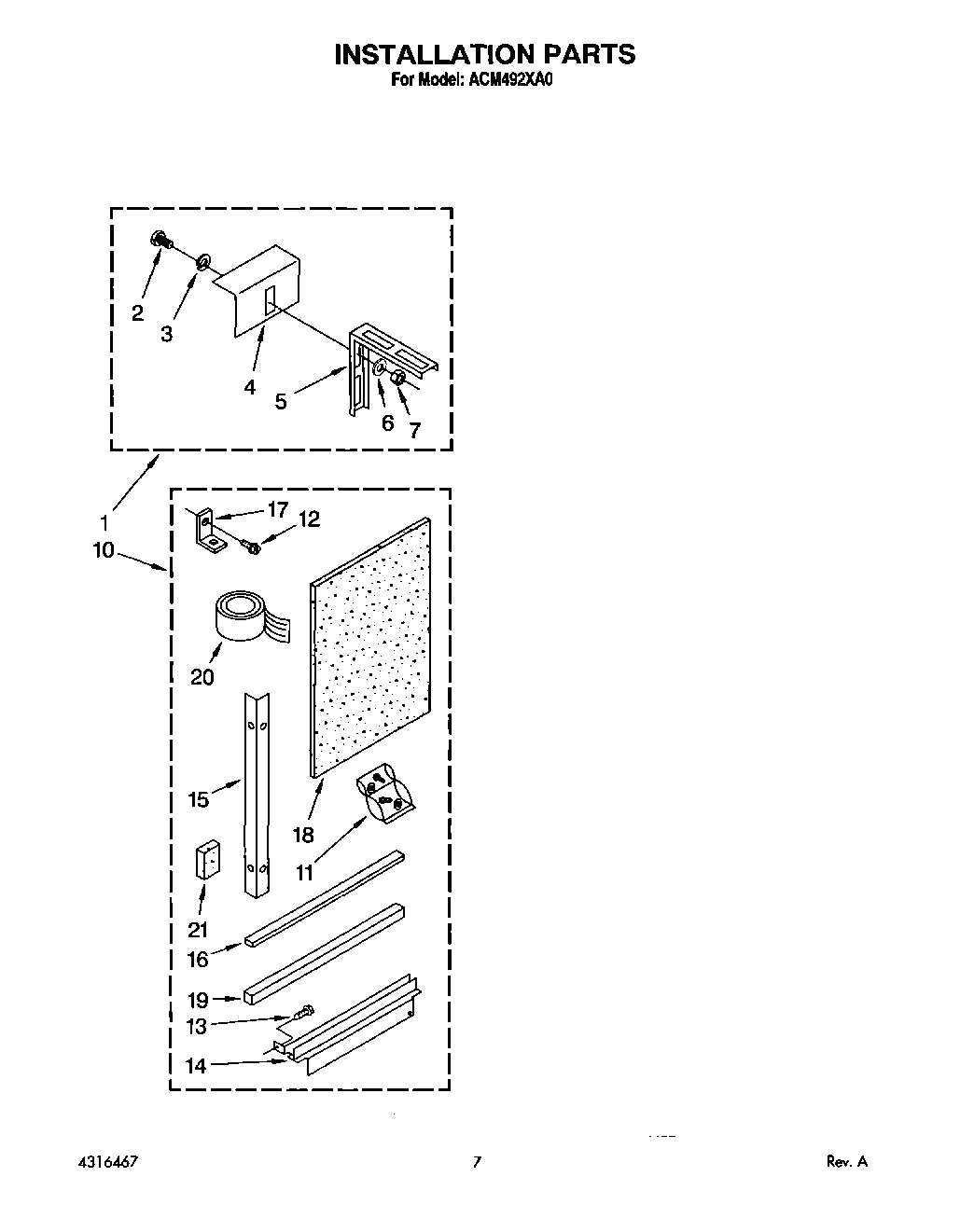

05 - INSTALLATION

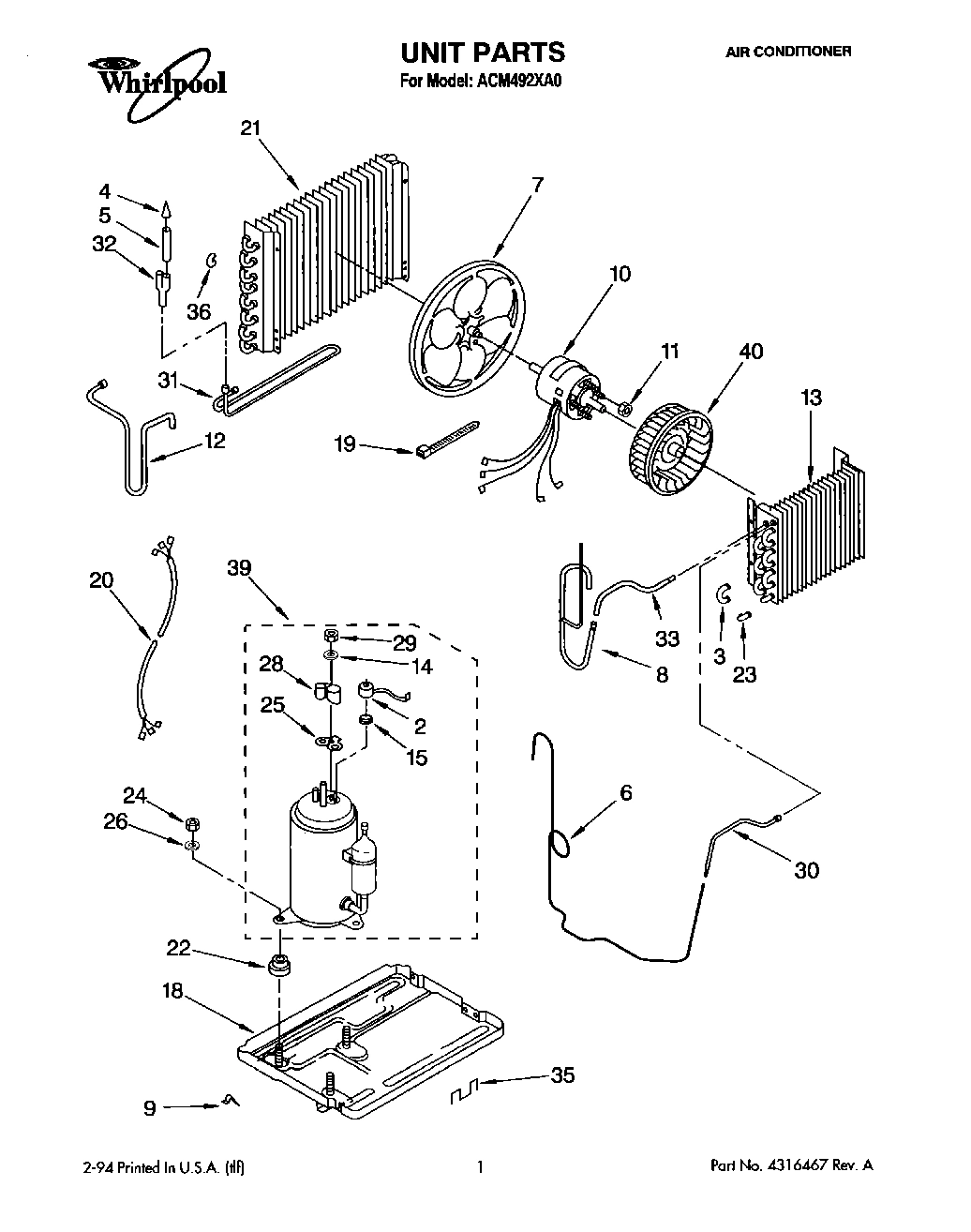

01 - UNIT, LITERATURE

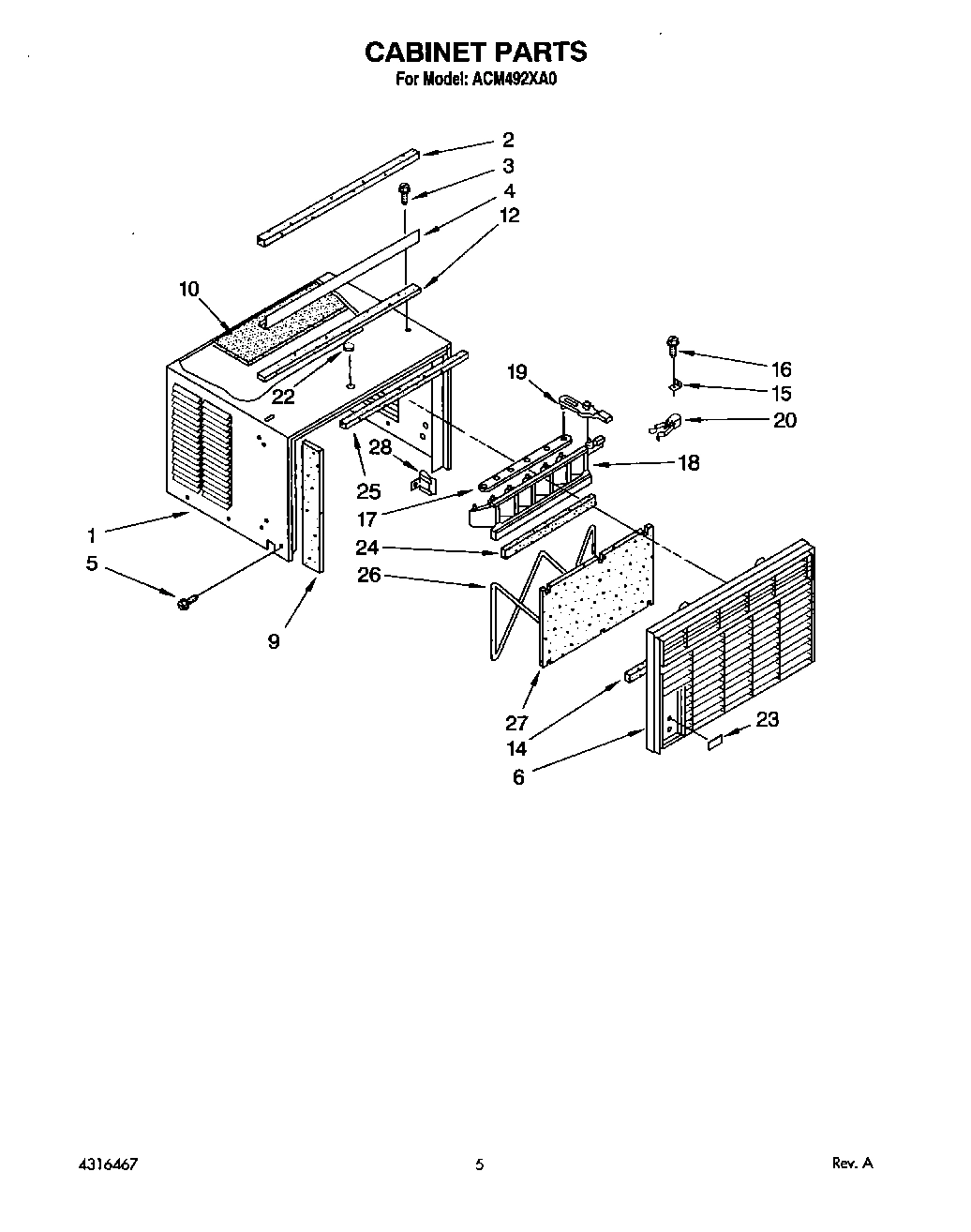

03 - CABINET
Common parts from model Whirlpool ACM492XA0 AIR CONDITIONER
Guide, Use And Care WPL LIT1159564 Contact Us For Availability
Instructions, Installation WPL LIT1159565 Contact Us For Availability
Wiring Diagram WPL LIT1165223 Contact Us For Availability
Tech Sheet WPL LIT1165225 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 1156355 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Clamp, Wiring WPL 852451 Contact Us For Availability
2
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Overload WPL 1160970 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
3
Screw, 10 x 3/4 WPL 488506 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 646985 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
6
Tube, Restrictor WPL 1165064 Contact Us For Availability
6
Front, Cabinet WPL 950306 Contact Us For Availability
7
Bracket, Capacitor WPL 1162954 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
8
Tube, Suction WPL 1164658 Contact Us For Availability
9
Seal, Shroud R.S. WPL 857923 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1164647 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Insulation, Control Panel WPL 1158461 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
12
Tube, Discharge WPL 1162781 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Wall, Dividing WPL 1158451 Contact Us For Availability
13
Evaporator WPL 1164540 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
16
Cord, Appliance WPL 1164674 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 1164655 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Condenser WPL 1162776 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
23
Nameplate WPL 1159297 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Hood, Air Housing WPL 1164670 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
27
Filter WPL 854925 Contact Us For Availability
28
Switch, Rocker WPL 649384 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
29
Panel, Control WPL 1158453 Contact Us For Availability
30
Screw, 3/8 WPL 1159222 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
31
Tube, Condenser Extension WPL 1163963 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
33
Tube, Feeder WPL 1164547 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Guard, Edge Seal WPL 1161208 Contact Us For Availability
36
Bend, Return (5) WPL 708531 Contact Us For Availability
37
Guard, Edge Seal WPL 1161209 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Compressor Assembly WPL 1160969 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
41
Seal WPL 1158295 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
