Model Whirlpool ACM254XF0 AIR CONDITIONER – Common Parts & Diagrams

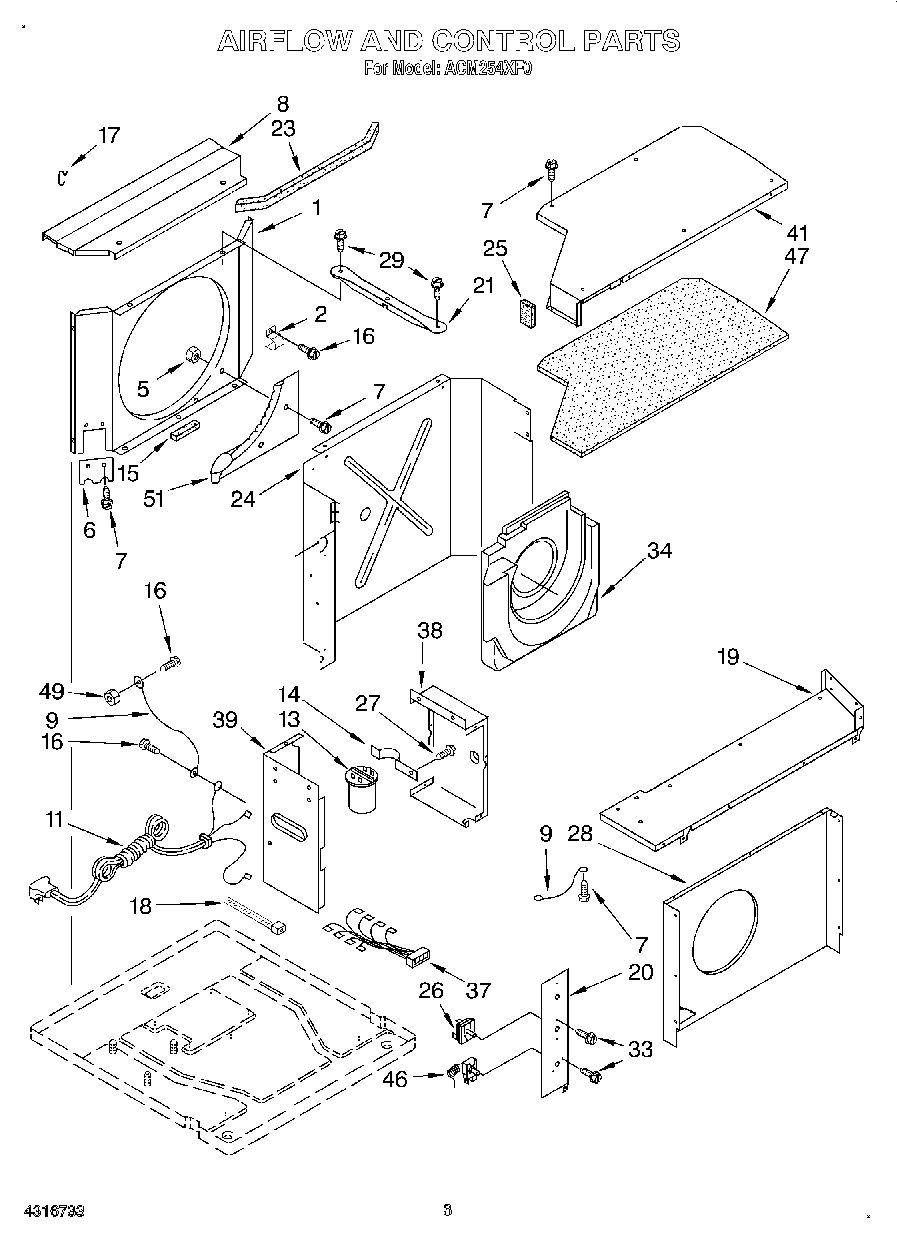

02 - AIRFLOW AND CONTROL

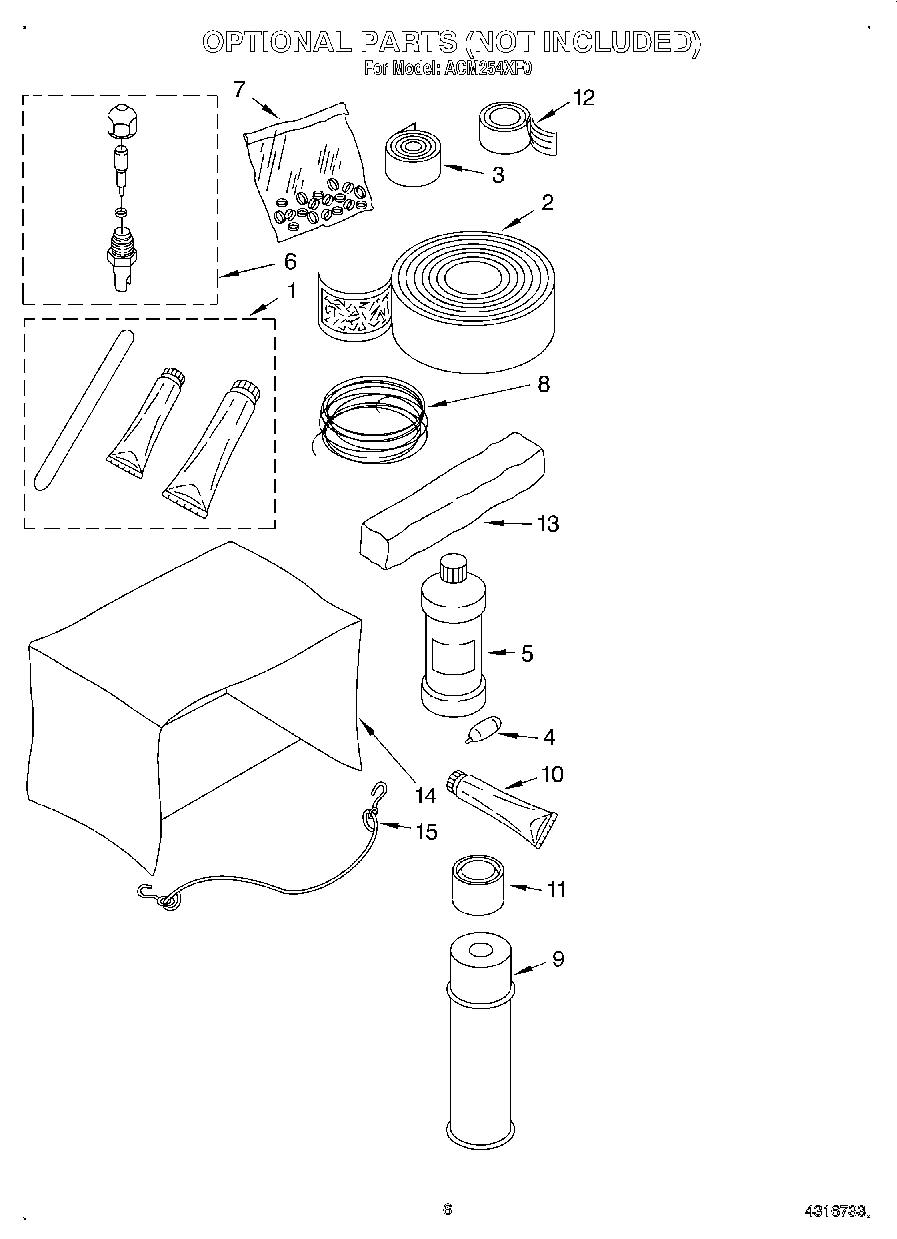

04 - OPTIONAL
01 - UNIT, LITERATURE
03 - CABINET
05 - INSTALLATION
Common parts from model Whirlpool ACM254XF0 AIR CONDITIONER
Instructions, Installation (Wide Window Kit) WPL LIT1155965 Contact Us For Availability
Instructions, Installation (Standard Mounting WPL LIT1166072 Contact Us For Availability
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1165607 Contact Us For Availability
1
Tech Sheet WPL LIT1167358 Contact Us For Availability
1
Owners Manual WPL LIT1168933 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1161335 Contact Us For Availability
1
Kit, Standard Installation WPL 1162147 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (30) WPL 708532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (2) WPL 708531 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Insulation, Cabinet (Top) WPL 1167203 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (5) WPL 1165955 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Front, Cabinet WPL 1165585 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1162099 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1166221 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cup, Condensate Drain WPL 997285 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
12
Seal, Top Mounting Angle WPL 1163784 Contact Us For Availability
12
Board, Filler WPL 1166266 Contact Us For Availability
13
Evaporator WPL 1169765 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wet, Loop WPL 1161247 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
17
Bend, Return Evaporator (10) WPL 854624 Contact Us For Availability
17
Louver, Verticle WPL 1167096 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
18
Base WPL 1162105 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend Condenser (1) WPL 1156329 Contact Us For Availability
19
Link, Vertical Louver (2) WPL 1162077 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Harness, Wiring WPL 1166219 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1164167 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Compressor WPL 1168625 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1165587 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Louver, Horizontal W/Handle (2) WPL 1165586 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1165060 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
24
Locknut WPL 1160798 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1165588 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1165589 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
26
Distributor WPL 1163760 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Tube, Wet Loop Connect WPL 1161277 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
28
Actuator, Louver WPL 1162078 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
29
Filter WPL 1165591 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
31
Return Bend Evaporator (7) WPL 855199 Contact Us For Availability
32
Manifold, Suction WPL 1164563 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1166631 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1167268 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1167524 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Control Box (R.S.) WPL 1161704 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Knob (2) WPL 1167617 Contact Us For Availability
39
Control Box (L.S.) WPL 1167615 Contact Us For Availability
40
Clamp, Wiring WPL 1163775 Contact Us For Availability
41
Cover, Top Exhaust WPL 1160710 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
44
Bend, Return Evaporator (10) WPL 855644 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1168919 Contact Us For Availability
46
Tube, Discharge WPL 1166093 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
47
Retainer, Terminal Cover WPL 1161083 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Spacer, Grommet WPL 1160654 Contact Us For Availability
50
Ext. Shoulder WPL 1160655 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
51
Tube, Feeder WPL 1161217 Contact Us For Availability
52
Tube, Feeder WPL 1161216 Contact Us For Availability
53
Tube, Discharge Assembly (Includes 51 and 52) WPL 1167294 Contact Us For Availability
× ![]()
