Model Whirlpool ACM244XL1 AIR CONDITIONER – Common Parts & Diagrams

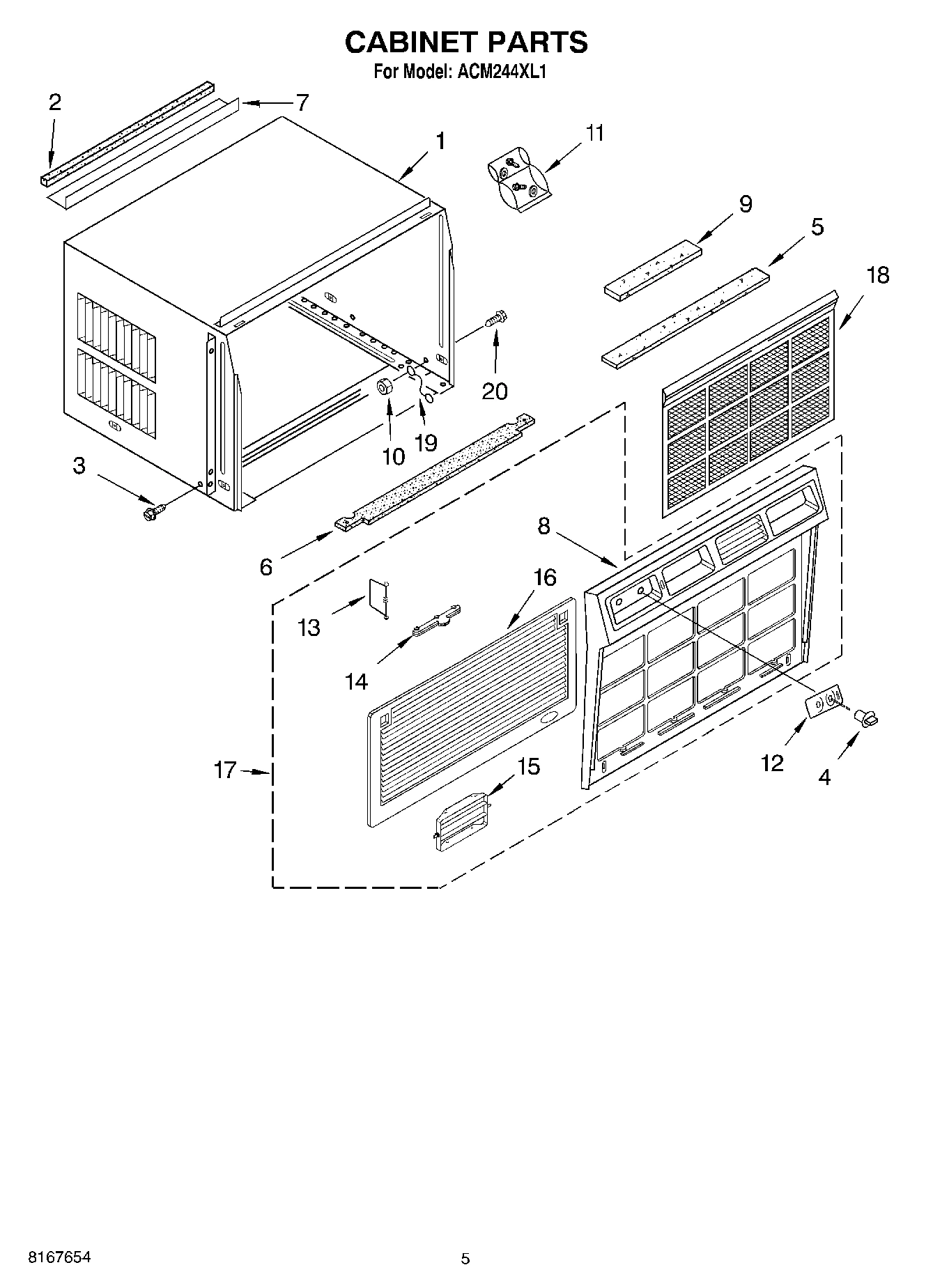

03 - CABINET PARTS

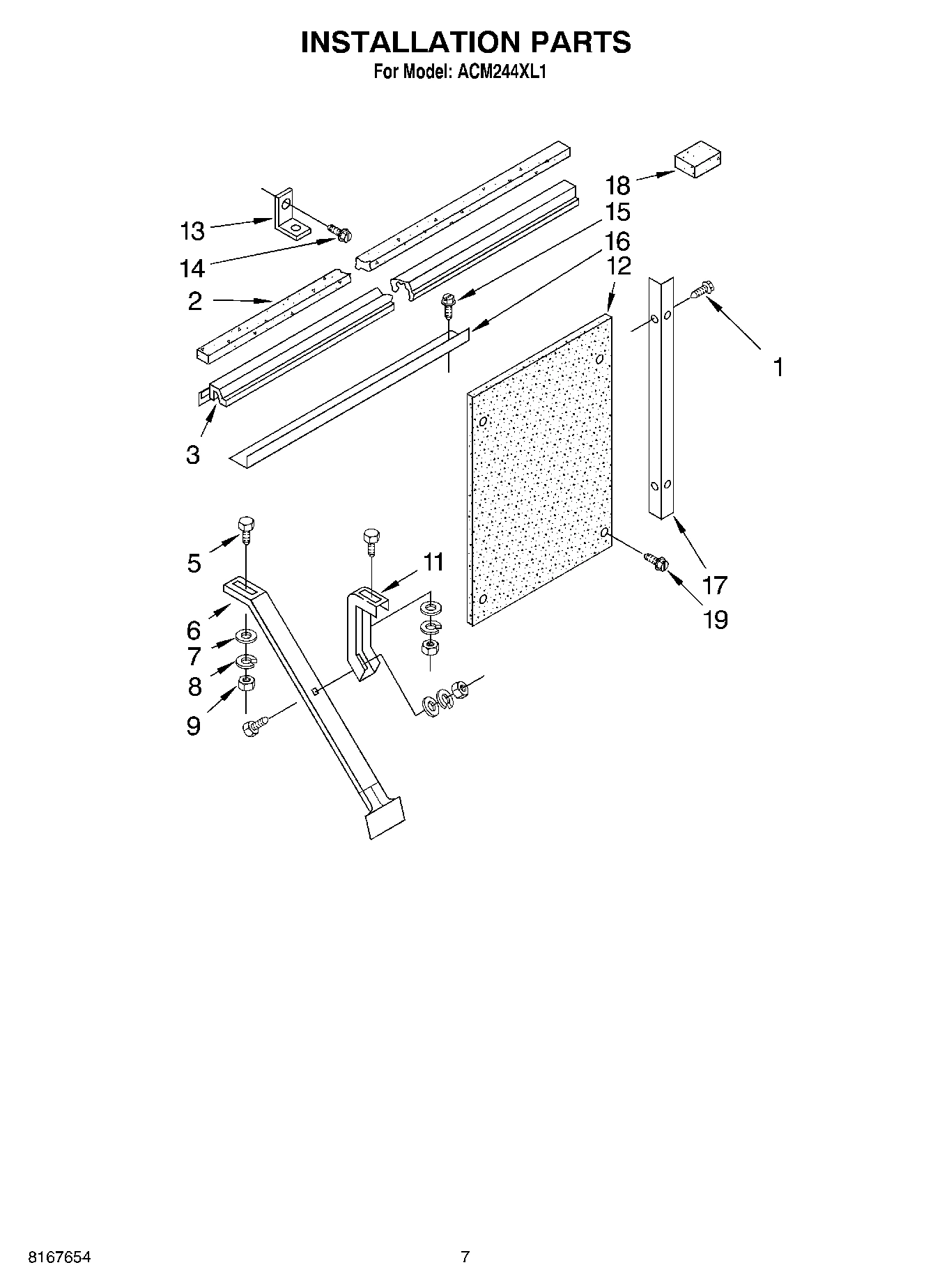

05 - INSTALLATION PARTS

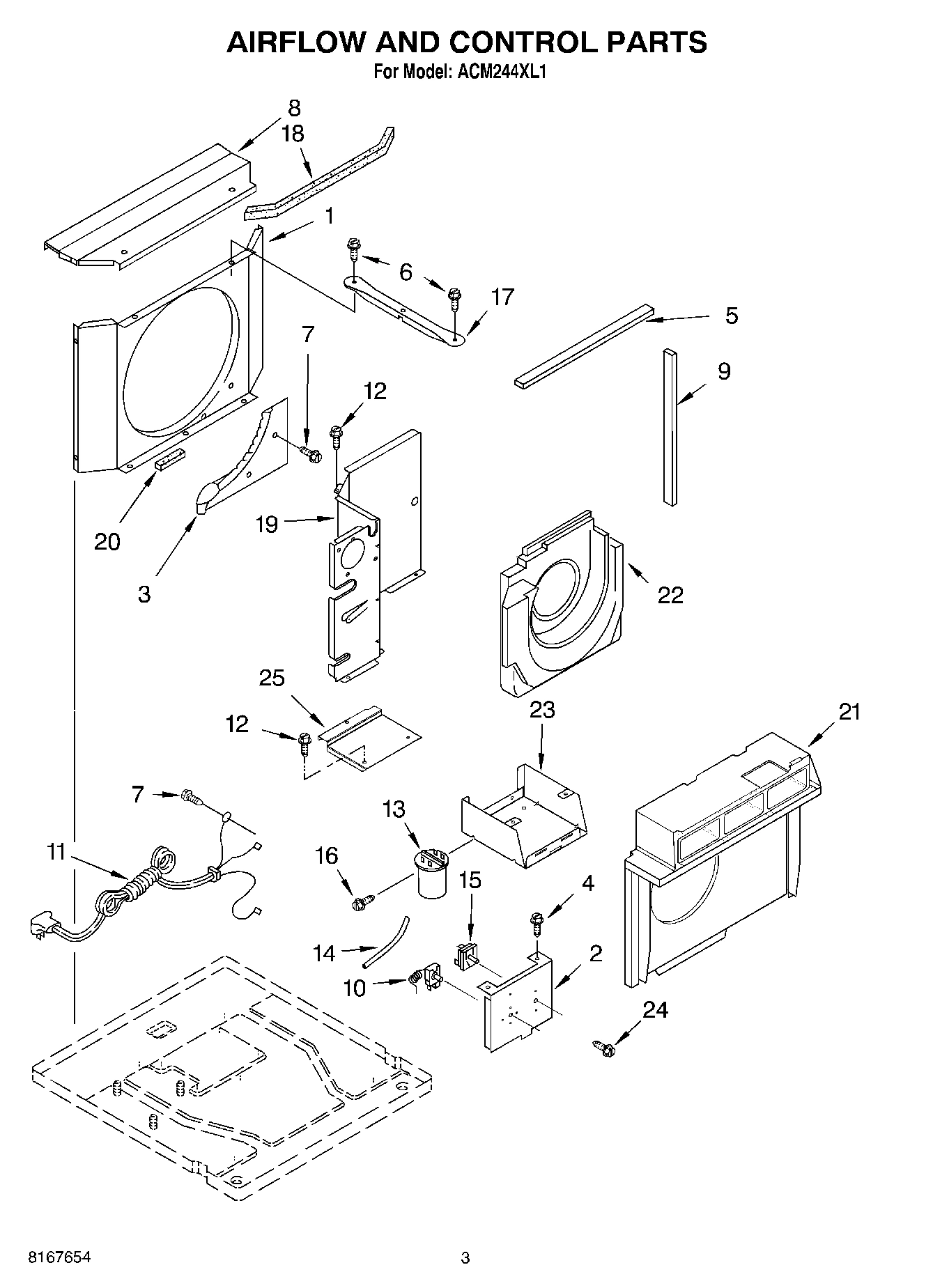

02 - AIRFLOW AND CONTROL PARTS

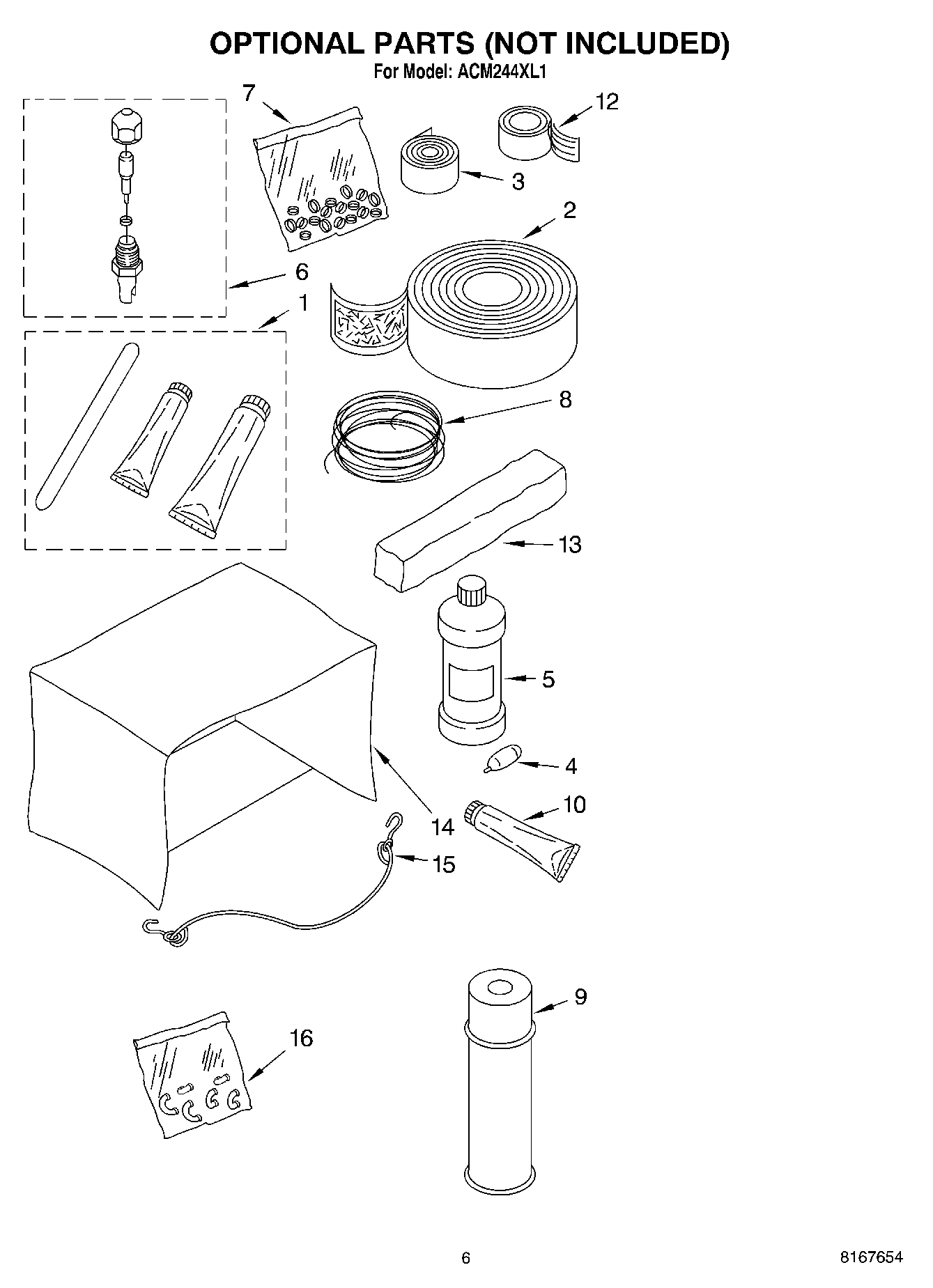

04 - OPTIONAL PARTS (NOT INCLUDED)

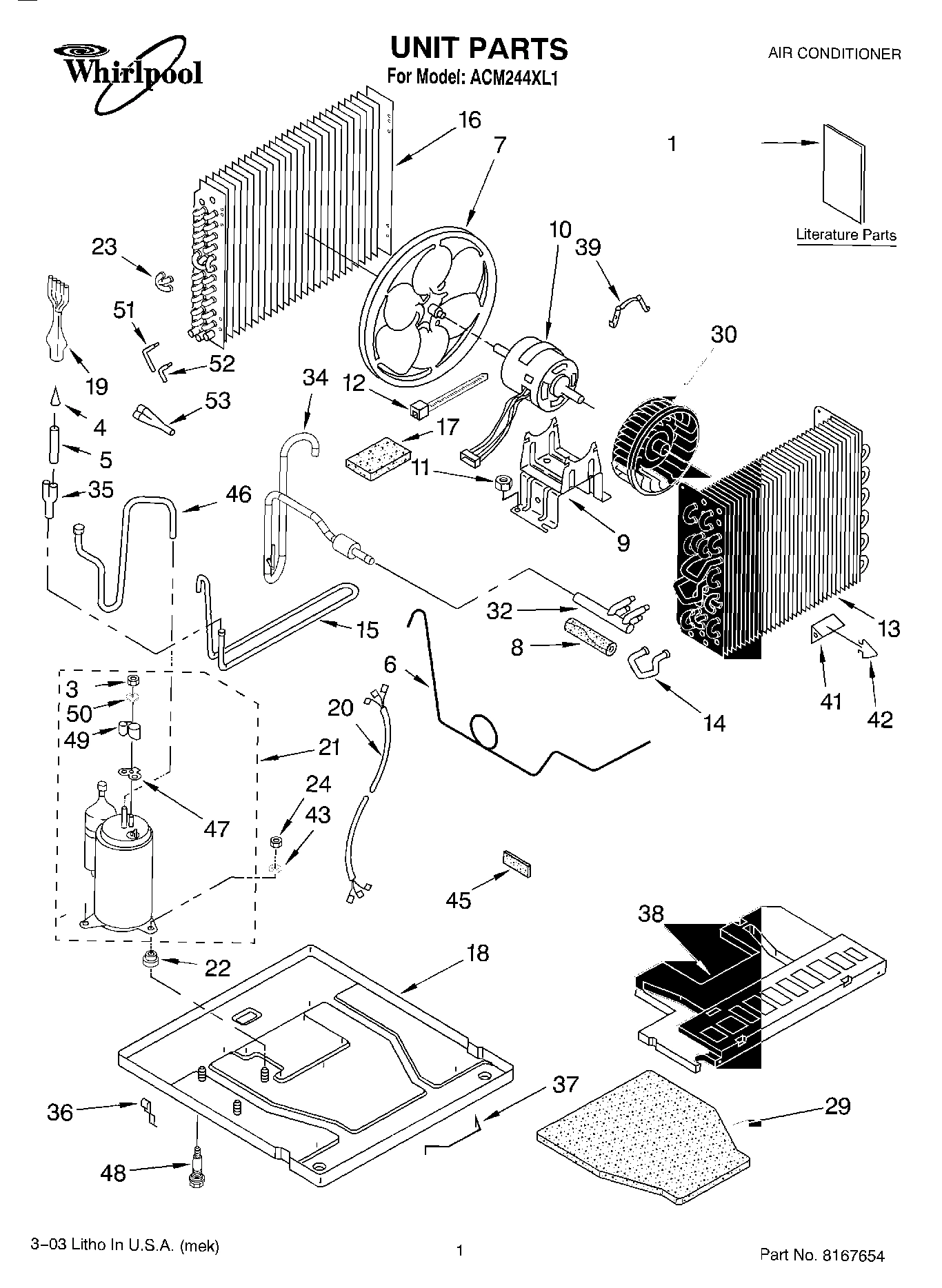

01 - UNIT PARTS
Common parts from model Whirlpool ACM244XL1 AIR CONDITIONER
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1182902 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1185536 Contact Us For Availability
1
Energy Guide WPL LIT1185830 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Panel, Control WPL 1185532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Cup, Condensate WPL 1160684 Contact Us For Availability
4
Screw (2) WPL 1159222 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186540 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Thermostat WPL 1185752 Contact Us For Availability
10
Motor, Fan WPL 1186579 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1186593 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1186639 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Sleeve, Insulator WPL 1185784 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Return Bend, Crossover WPL 1185265 Contact Us For Availability
15
Switch, Rotary WPL 8031150 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Condenser WPL 1185737 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Distributor WPL 1184612 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1187118 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1185547 Contact Us For Availability
21
Compressor WPL 1186521 Contact Us For Availability
22
Housing, Air WPL 1185953 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
24
Locknut (3) Connect WPL 858121 Contact Us For Availability
25
Cover, Control Box WPL 1186663 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction (Includes Item 8) WPL 1186641 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
47
Gasket WPL 1182356 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Cover, Terminal WPL 1182355 Contact Us For Availability
50
Gasket, Nut WPL 1182120 Contact Us For Availability
51
Tube, Feeder WPL 1186003 Contact Us For Availability
52
Tube, Feeder WPL 1186002 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 42.0 OZ. WPL ARI144071A Contact Us For Availability
× ![]()
