LG ACM2160AC MWO-J Parts List

*01

LGE 3828W5A3858 LGE 3828W5A3858 Contact Us For Availability

View on Model

*02

MANUAL,SERVICE LGE 3828W5S3501 Contact Us For Availability

View on Model

*05

Label,Cooking Guide Backorder LGE 3850W1D011A $6.11

View on Model

*10

LGE 3890W3Y766A LGE 3890W3Y766A Contact Us For Availability

View on Model

1002

3536W1A009A LG Sealing Tape Backorder LGE 3536W1A009A $9.72

View on Model

1006

4026W2A016A LG Microwave Door Latch In Stock LGE 4026W2A016A $6.11

View on Model

1007

4970WRA001B LG Spring Backorder LGE 4970WRA001B $6.11

View on Model

2003

4510W3L003A LG Microwave Lever Release Backorder LGE 4510W3L003A $6.11

View on Model

2005

4B72023B LG Microwave Oven Door Button Spring Backorder LGE 4B72023B $4.74

View on Model

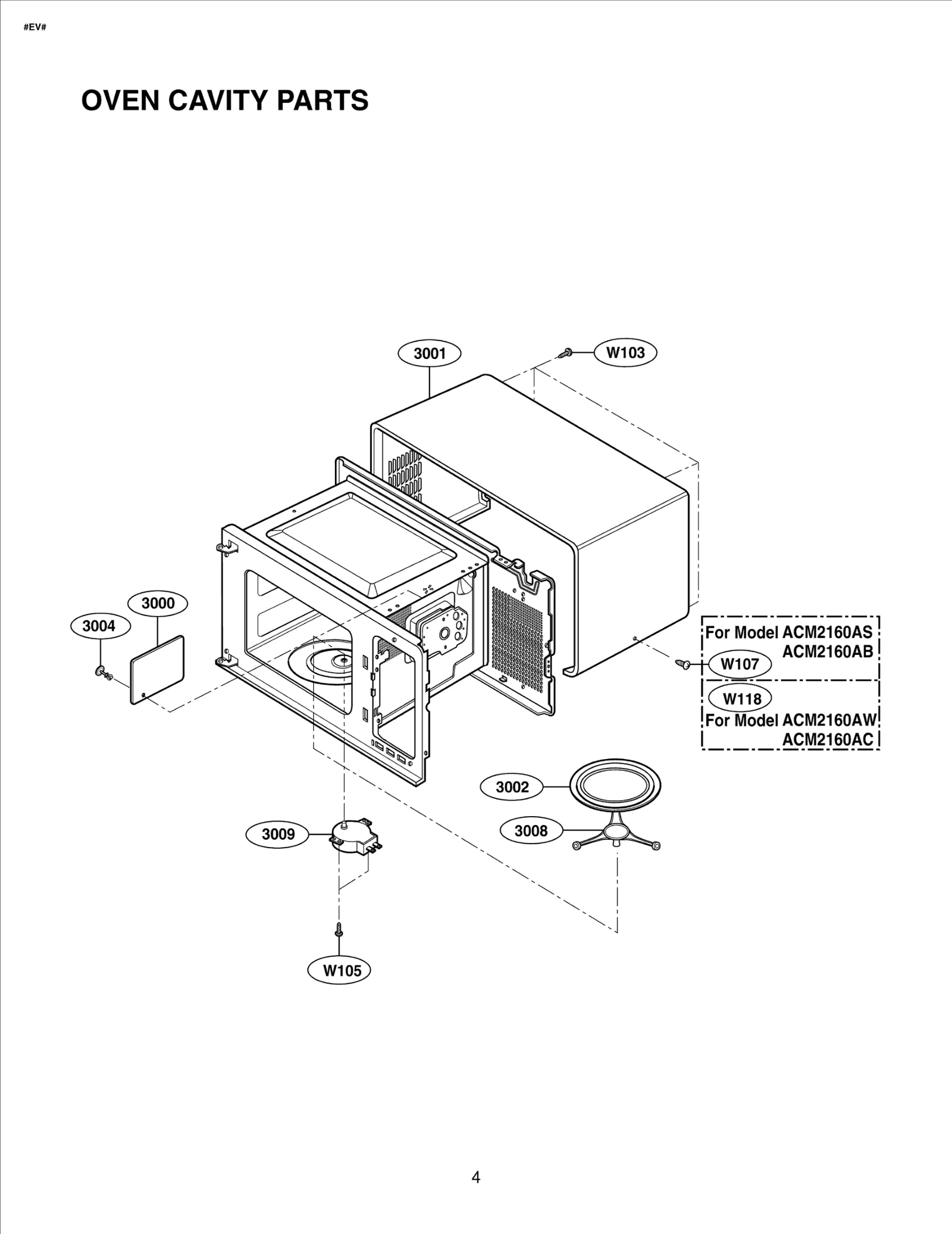

3002

TRAY,GLASS LGE 3390W1G009D Contact Us For Availability

View on Model

3004

4051W3A001A LG Connector Assembly Backorder LGE 4051W3A001A $2.03

View on Model

3006

4B72944B LG Wire Holder Backorder LGE 4B72944B $6.11

View on Model

3007

5012W3A020C LG Insulator Backorder LGE 5012W3A020C $6.11

View on Model

3008

ROTATING RING ASSY M LGE 5889W2A014A Contact Us For Availability

View on Model

3009

6549W1S011B LG Microwave Oven Synchronous Tur In Stock LGE 6549W1S011B $20.09

View on Model

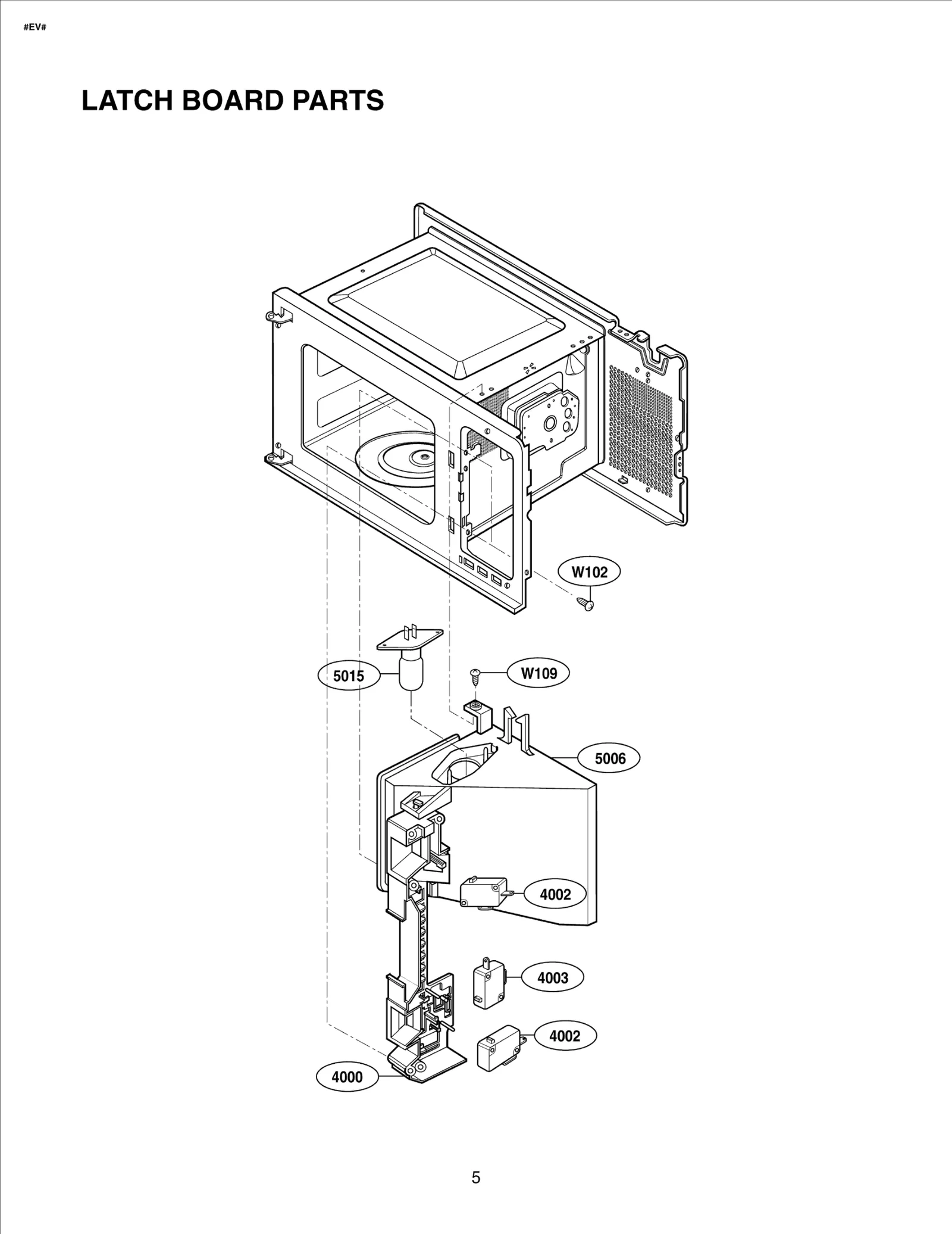

4000

3500W1A018C LG Locker Holder Backorder LGE 3500W1A018C $14.57

View on Model

4001

3501W1A053A LG Microwave Oven Latch Lock Hold In Stock LGE 3501W1A053A $18.52

View on Model

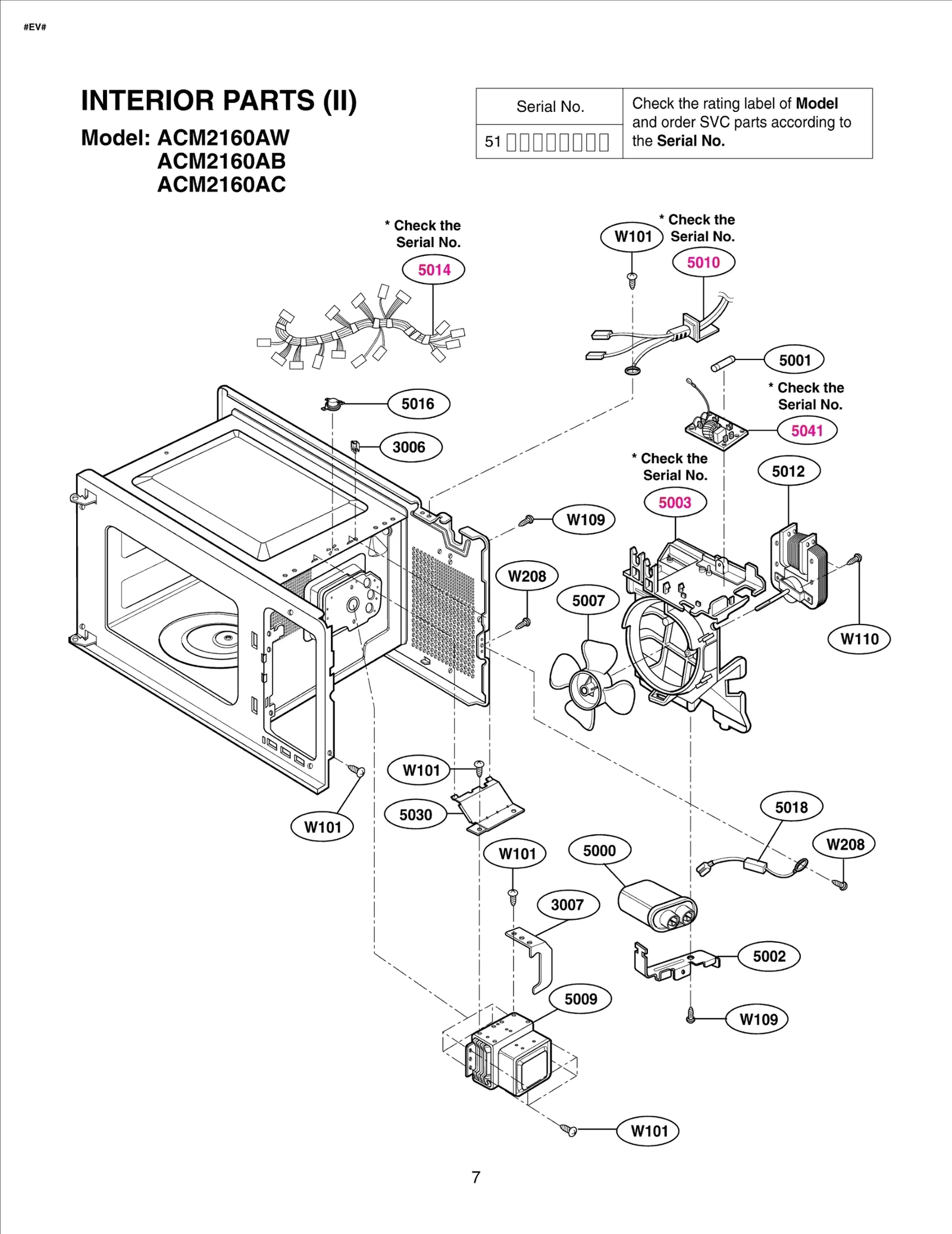

5000

0CZZW1H004B LG Microwave Oven High Voltage Ca In Stock LGE 0CZZW1H004B $23.75

View on Model

5001

3B74133Q LG Microwave Oven Main Inline Time D In Stock LGE 3B74133Q $4.74

View on Model

5002

4810W4C003B LG Capacitor Bracket Backorder LGE 4810W4C003B $6.11

View on Model

5003

GUIDE,SUCTION LGE 4974W1S048B Contact Us For Availability

View on Model

5004

BRACKET,SENSOR Backorder LGE 4810W1A254A $9.72

View on Model

5007

5900W1A025A LG Fan Propeller Backorder LGE 5900W1A025A $6.11

View on Model

5008

TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023P Contact Us For Availability

View on Model

5009

6324W1A001L LG Microwave Oven Magnetron In Stock LGE 6324W1A001L $111.70

View on Model

5010

POWER CORD ASSEMBLY LGE 6411W1A012T Contact Us For Availability

View on Model

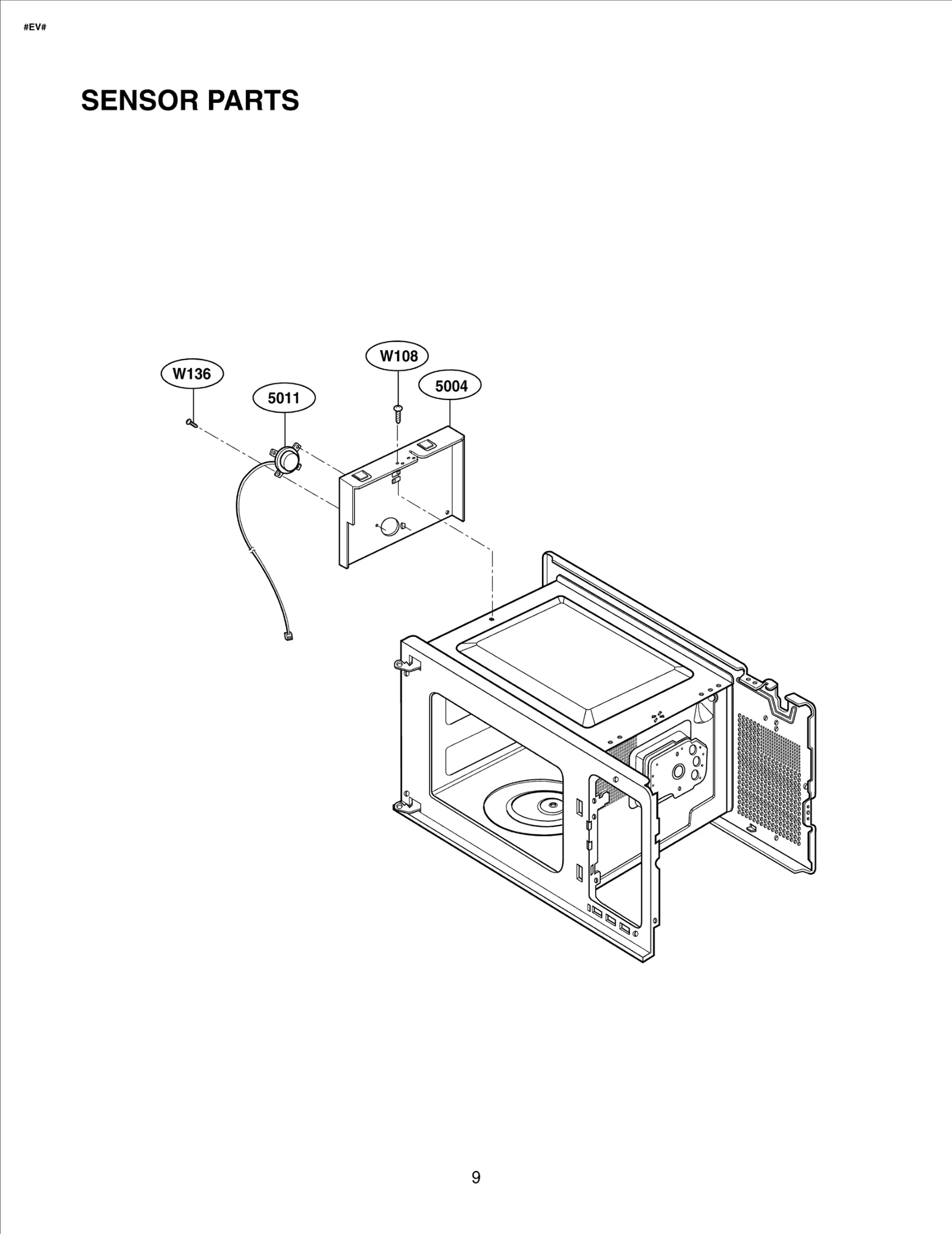

5011

6501W1A006A LG Sensor Assembly Backorder LGE 6501W1A006A $55.55

View on Model

5012

MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability

View on Model

5014

HARNESS LGE 6877W1A538D Contact Us For Availability

View on Model

5015

6912W3B002L LG Microwave Oven Incandescent Li Backorder LGE 6912W3B002L $9.72

View on Model

5016

6930WRT002F LG Thermostat Assembly Backorder LGE 6930WRT002F $8.45

View on Model

5018

CABLE ASSEMBLY LGE 6021W3B001Y Contact Us For Availability

View on Model

5030

BRACKET,MISC LGE 4810W2G052B Contact Us For Availability

View on Model

5041

6201W1A014A LG Noise Filter Assembly Backorder LGE 6201W1A014A $8.93

View on Model

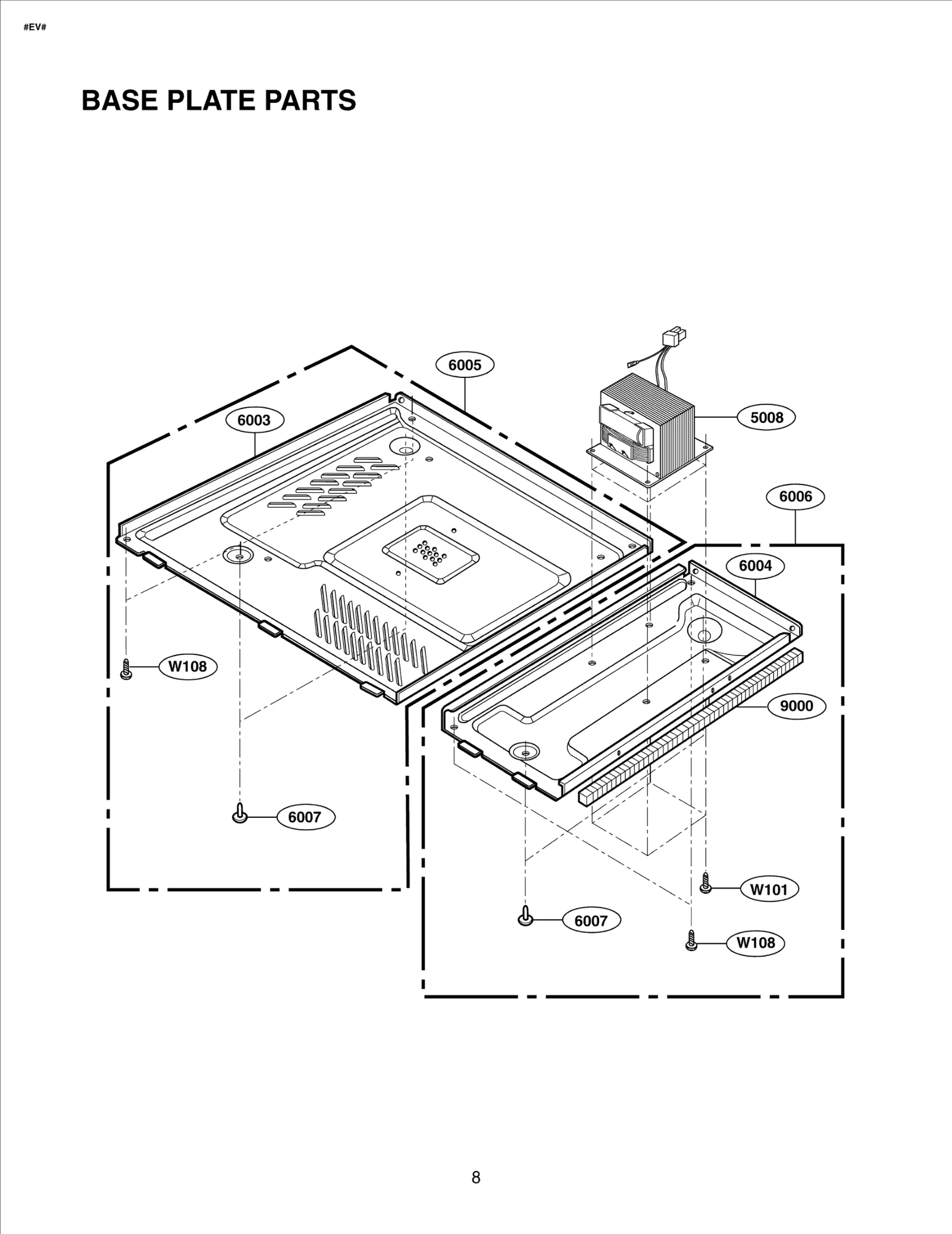

6003

BASE PLATE LGE 3302W0A014B Contact Us For Availability

View on Model

6004

LGE 3302W1A046E LGE 3302W1A046E Contact Us For Availability

View on Model

6005

BASE PLATE ASSEMBLY LGE 3303W0A010C Contact Us For Availability

View on Model

6006

BASE PLATE ASSEMBLY LGE 3303W1A040E Contact Us For Availability

View on Model

6007

5006W3A019A LG Cap-Base Plate Backorder LGE 5006W3A019A $6.11

View on Model

9000

3B72244T LG Damper Backorder LGE 3B72244T $6.11

View on Model

C02

CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability

View on Model

C04

CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability

View on Model

C13

CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability

View on Model

C55

CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability

View on Model

C62

CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability

View on Model

C81

LGE 0CH1221K566 LGE 0CH1221K566 Contact Us For Availability

View on Model

CR1

RESONATOR,CERAMIC LGE 6212BA3811A Contact Us For Availability

View on Model

D10

DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability

View on Model

D20

DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability

View on Model

D30

DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability

View on Model

J32

WIRE,JUMP Backorder LGE 6854B50001A $6.11

View on Model

J202

JUMP WIRE LGE 6854A50001A Contact Us For Availability

View on Model

Q01

TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability

View on Model

Q02

TRANSISTOR LGE 0TR150509AC Contact Us For Availability

View on Model

Q20

TRANSISTOR CHIP KTC3875S-Y-T1( LGE 0TR387509AB Contact Us For Availability

View on Model

Q30

TRANSISTOR LGE 0TR320209BA Contact Us For Availability

View on Model

Q34

TRANSISTOR LGE 0TR105008CA Contact Us For Availability

View on Model

Q75

TRANSISTOR LGE 0TR107009AC Contact Us For Availability

View on Model

R01

RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability

View on Model

R04

Resistor,Chip Backorder LGE 0RH1001L622 $6.11

View on Model

R10

RESISTOR,METAL GLAZED(CHIP) LGE 0RH1000L622 Contact Us For Availability

View on Model

R11

RESISTOR,METAL GLAZED(CHIP) LGE 0RJ0102E672 Contact Us For Availability

View on Model

R20

0RH2202L622 LG Resistor,Chip Backorder LGE 0RH2202L622 $6.11

View on Model

R25

RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability

View on Model

R26

0RD1001G609 LG Carbon Film Resistor Backorder LGE 0RD1001G609 $6.11

View on Model

R30

LGE 0RD5601G609 LGE 0RD5601G609 Contact Us For Availability

View on Model

R55

Resistor,Chip Backorder LGE 0RH1004L622 $6.11

View on Model

R62

LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability

View on Model

R63

Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability

View on Model

R80

RESISTOR,CARBON FILM Backorder LGE 0RD2202F609 $2.09

View on Model

R101

RESISTOR,CHIP Backorder LGE 0RH1002L622 $6.11

View on Model

R103

Resistor,Chip Backorder LGE 0RH4702L622 $6.11

View on Model

R110

RESISTOR,METAL GLAZED(CHIP) LGE 0RH4701L622 Contact Us For Availability

View on Model

RY2

RELAY LGE 6920W5A009A Contact Us For Availability

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.11

View on Model

W108

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $4.74

View on Model

W109

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.11

View on Model

W110

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.11

View on Model

W136

1TPL0302418 LG Tapping Screw Backorder LGE 1TPL0302418 $6.11

View on Model

W208

1EBF0402494 LG TAPTITE Screw Backorder LGE 1EBF0402494 $6.11

View on Model

ZD1

DIODE,ZENERS LGE 0DZSB00053B Contact Us For Availability

View on Model

ZD2

DIODE,ZENERS LGE 0DZSB00073B Contact Us For Availability

View on Model

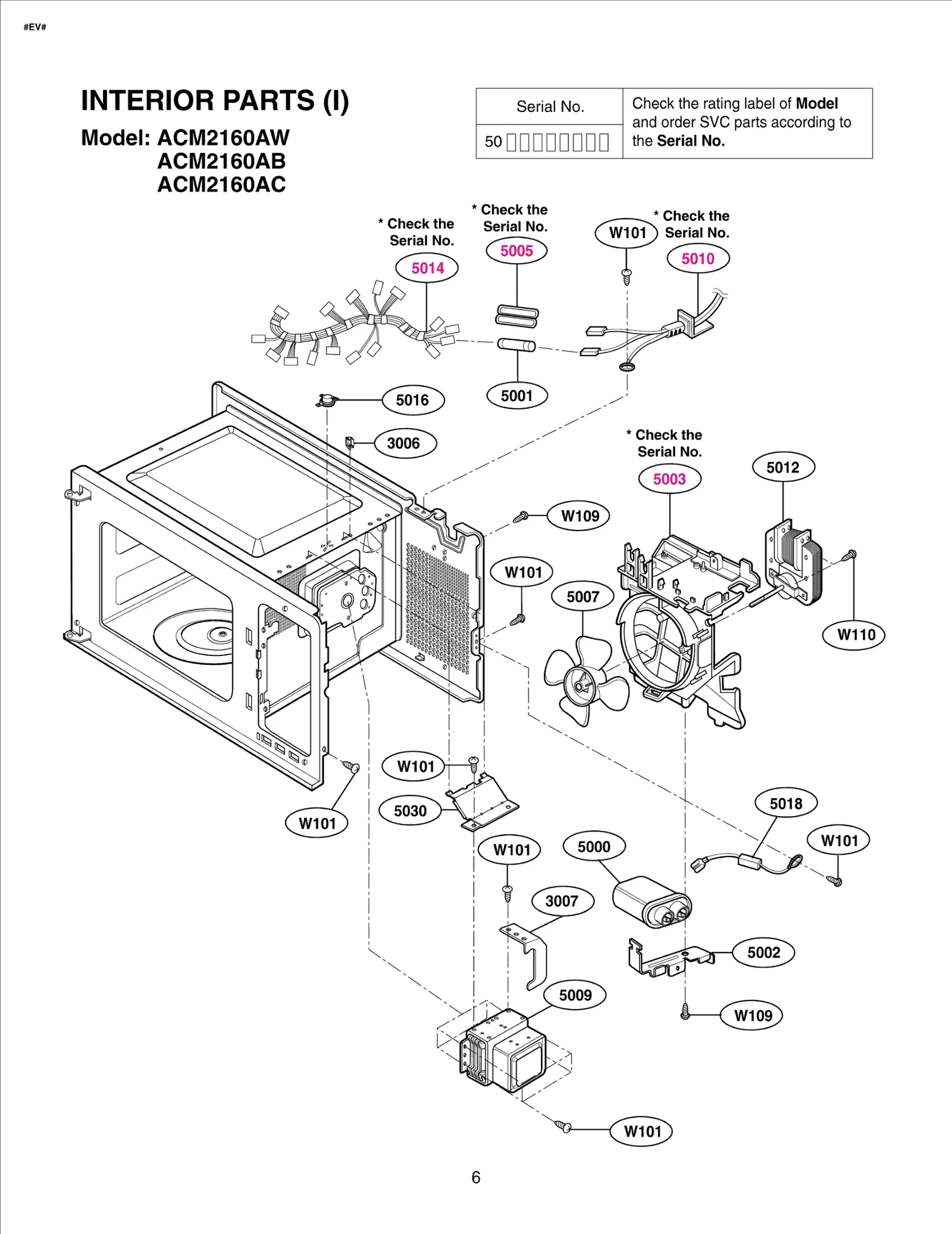

Model LG ACM2160AC MWO-J – Common Parts & Diagrams
