Model Whirlpool ACM214XL0 AIR CONDITIONER – Common Parts & Diagrams

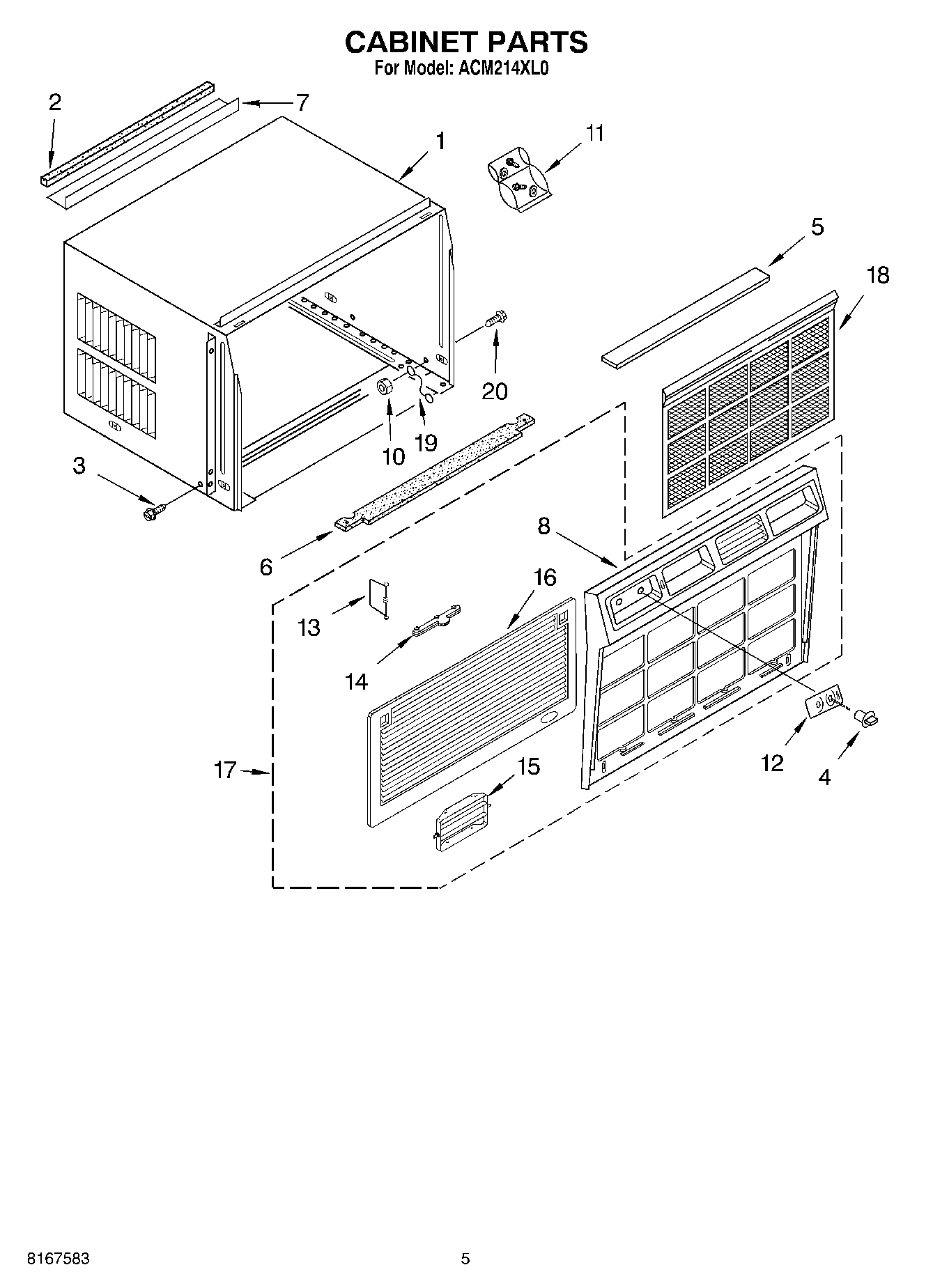

03 - CABINET

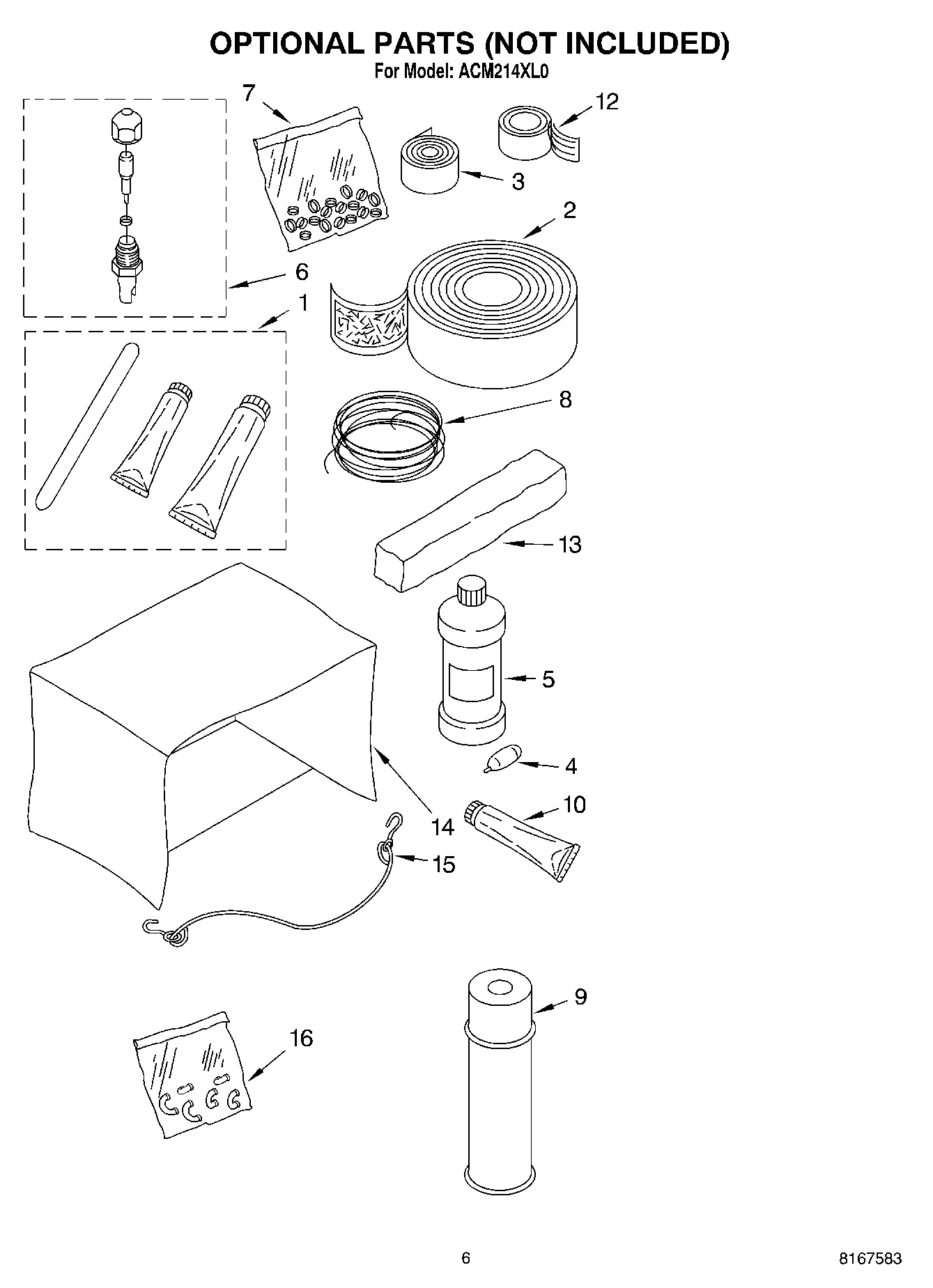

04 - OPTIONAL

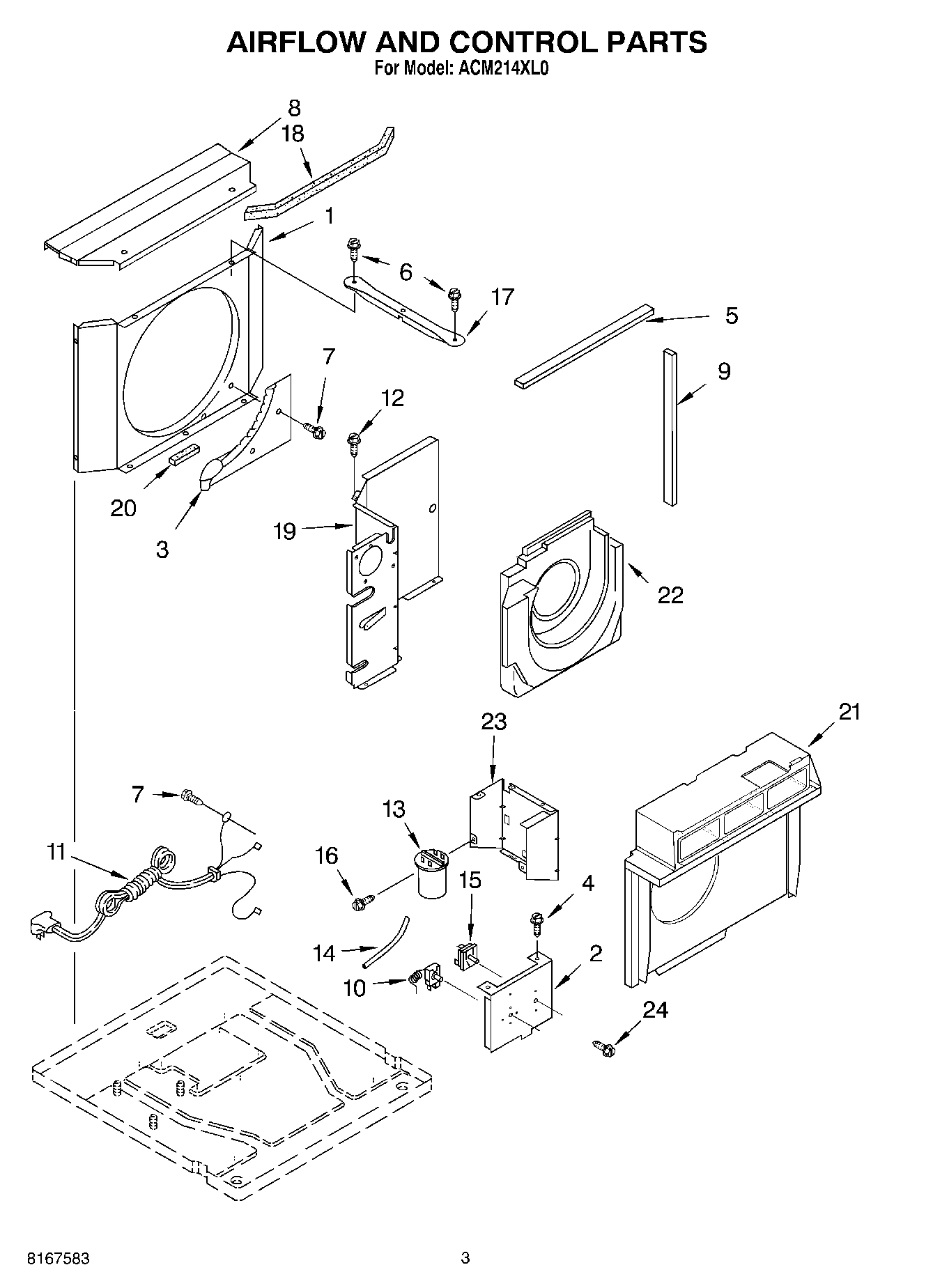

02 - AIR FLOW AND CONTROL

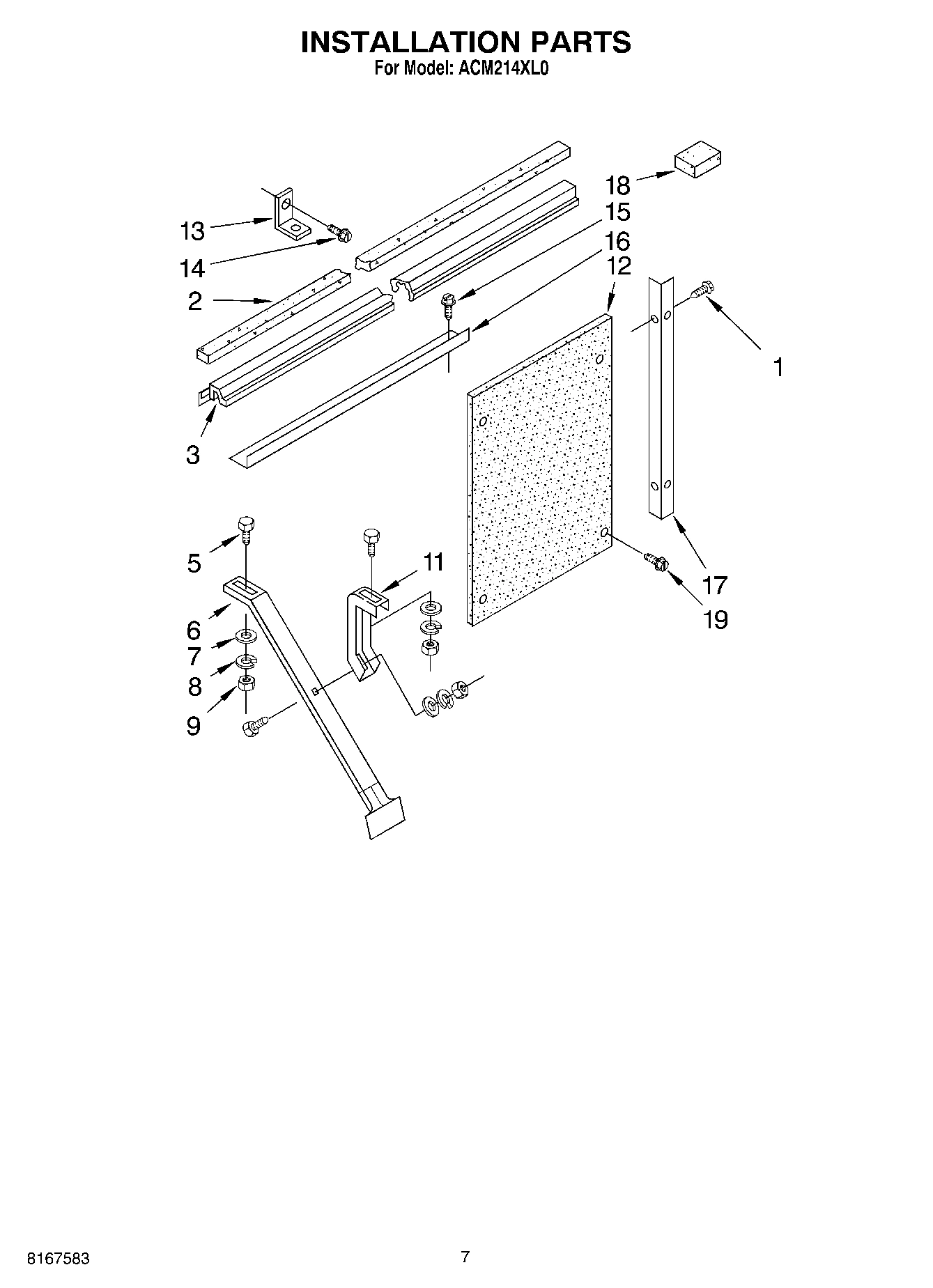

05 - INSTALLATION

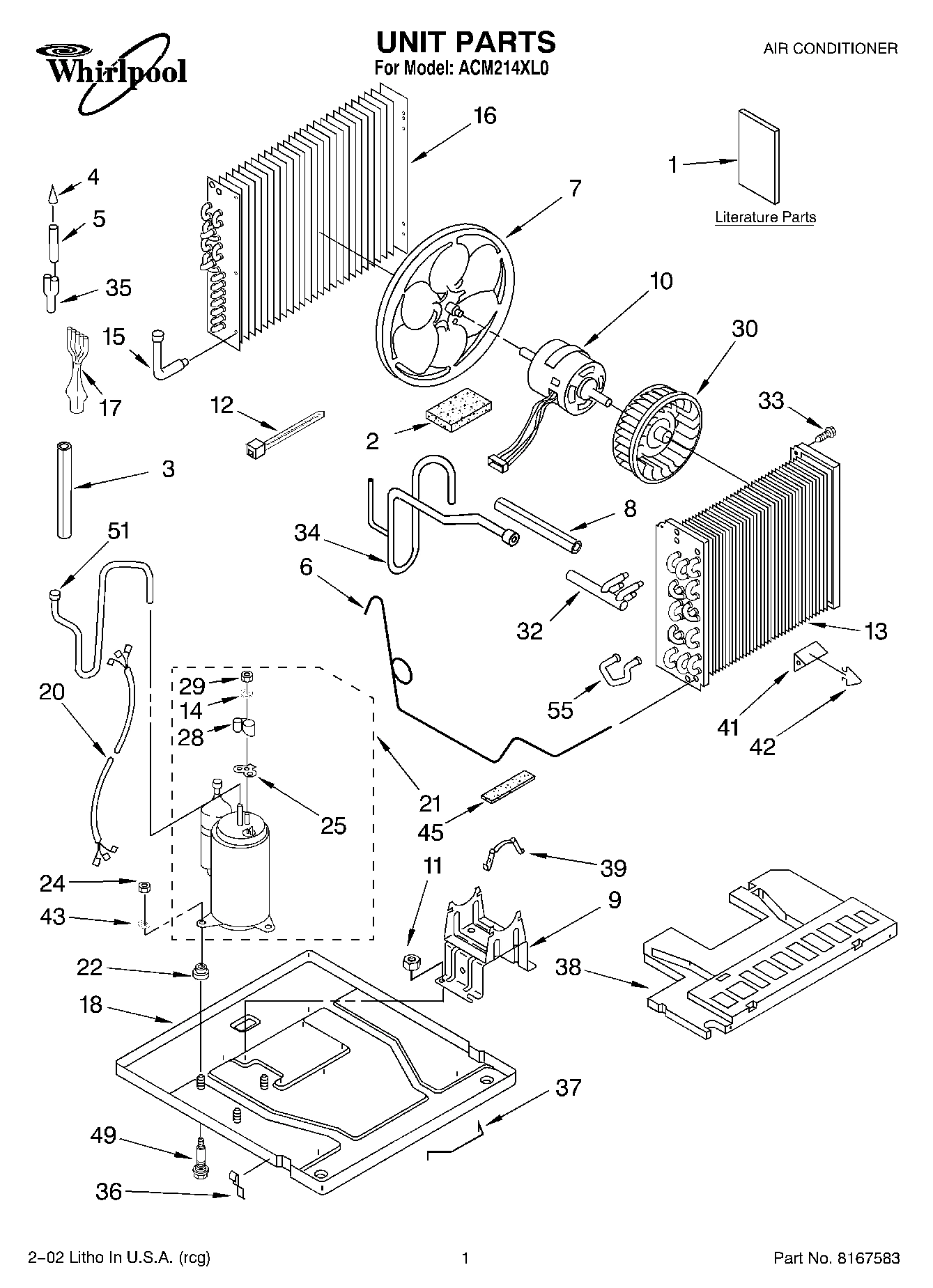

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACM214XL0 AIR CONDITIONER
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Screw (4) WPL 1159222 Contact Us For Availability
1
Wiring Diagram WPL LIT1182902 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1185536 Contact Us For Availability
1
Energy Guide WPL LIT1185827 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Panel, Control WPL 1185532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Cup, Condensate WPL 1160684 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Dampener WPL 1162344 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186053 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Thermostat WPL 1185752 Contact Us For Availability
10
Motor, Fan WPL 1186578 Contact Us For Availability
11
Cord, Appliance WPL 1185769 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
CAPACITOR WPL 1162606 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Sleeve, Insulator WPL 1185784 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
15
Switch, Rotary WPL 8031150 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Connect WPL 1186100 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Condenser WPL 1186032 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Distributor WPL 1184612 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
19
Dividing Wall WPL 1185524 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1185776 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1185508 Contact Us For Availability
21
Compressor WPL 1185994 Contact Us For Availability
22
Housing, Air WPL 1185952 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
28
Cover, Terminal WPL 1182355 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1186166 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Tube, Discharge WPL 1186175 Contact Us For Availability
55
Bend, Return Evaporator (2) WPL 1185265 Contact Us For Availability
× ![]()
