Model Whirlpool ACM184XA0 AIR CONDITIONER – Common Parts & Diagrams

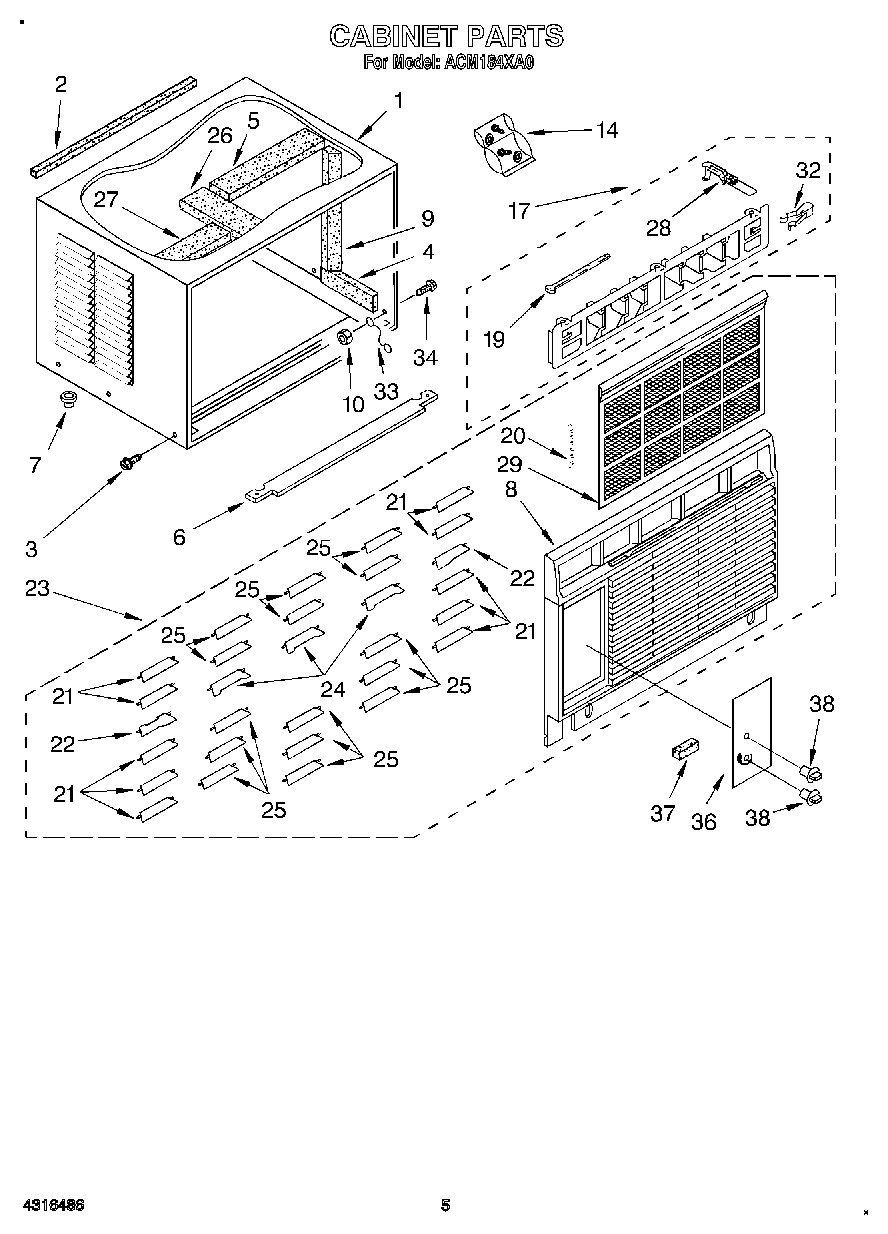

03 - CABINET

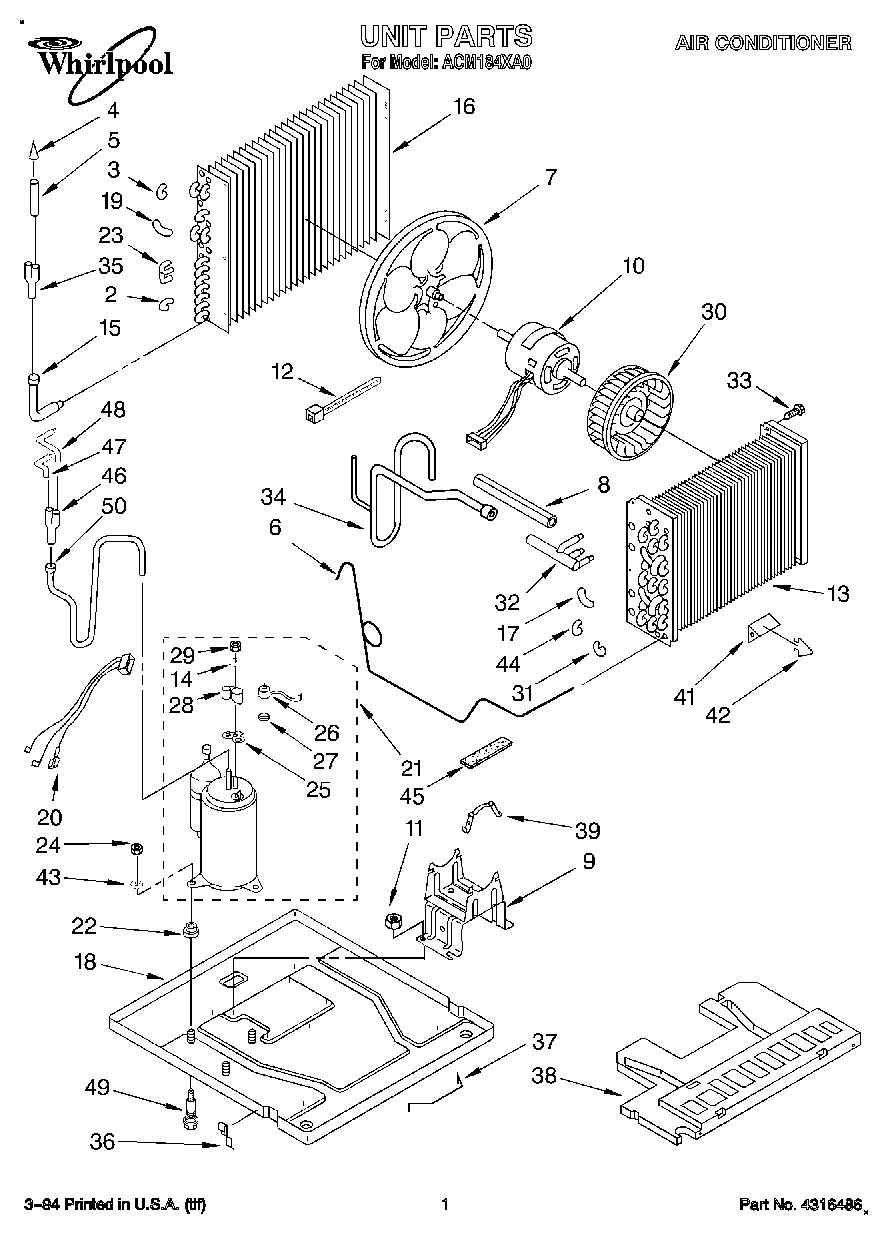

01 - UNIT, LITERATURE

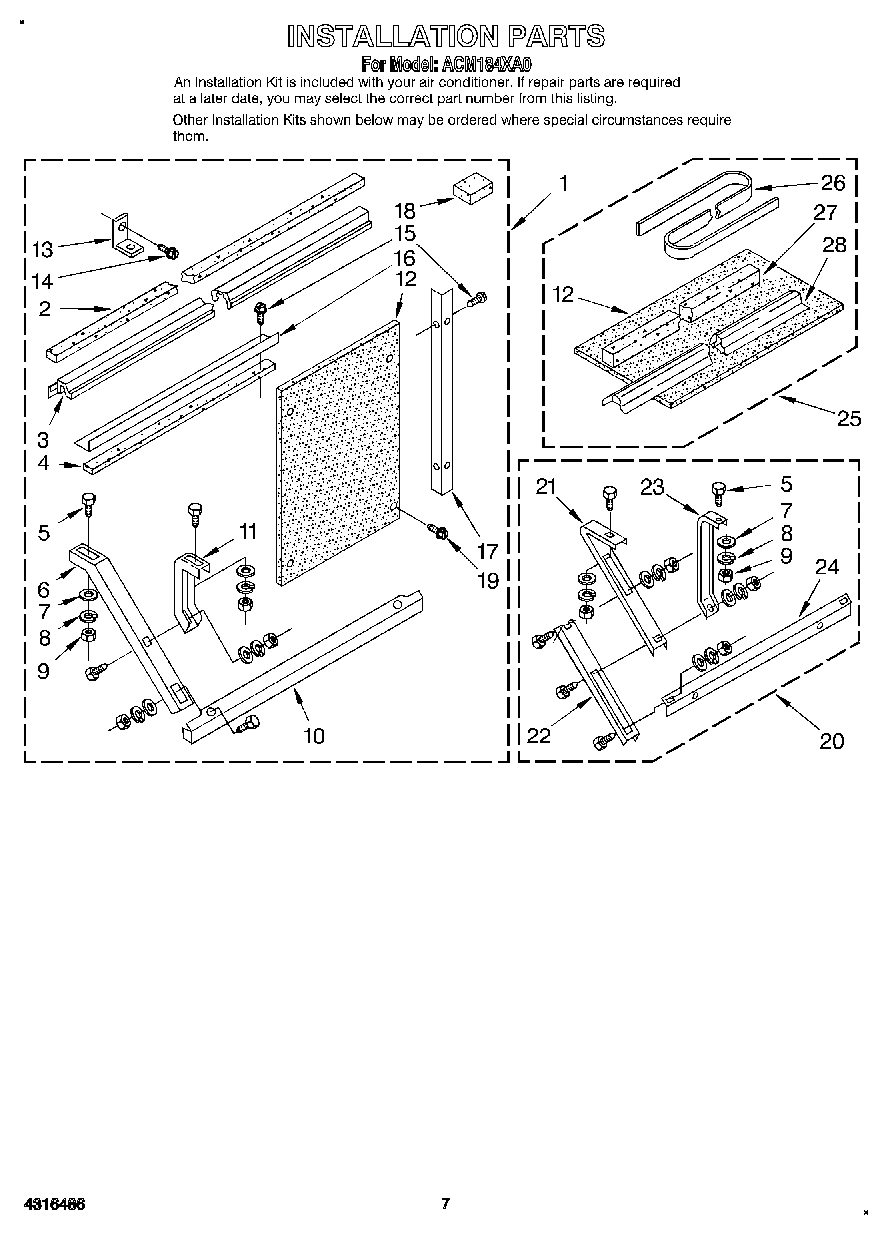

05 - INSTALLATION
02 - AIRFLOW AND CONTROL

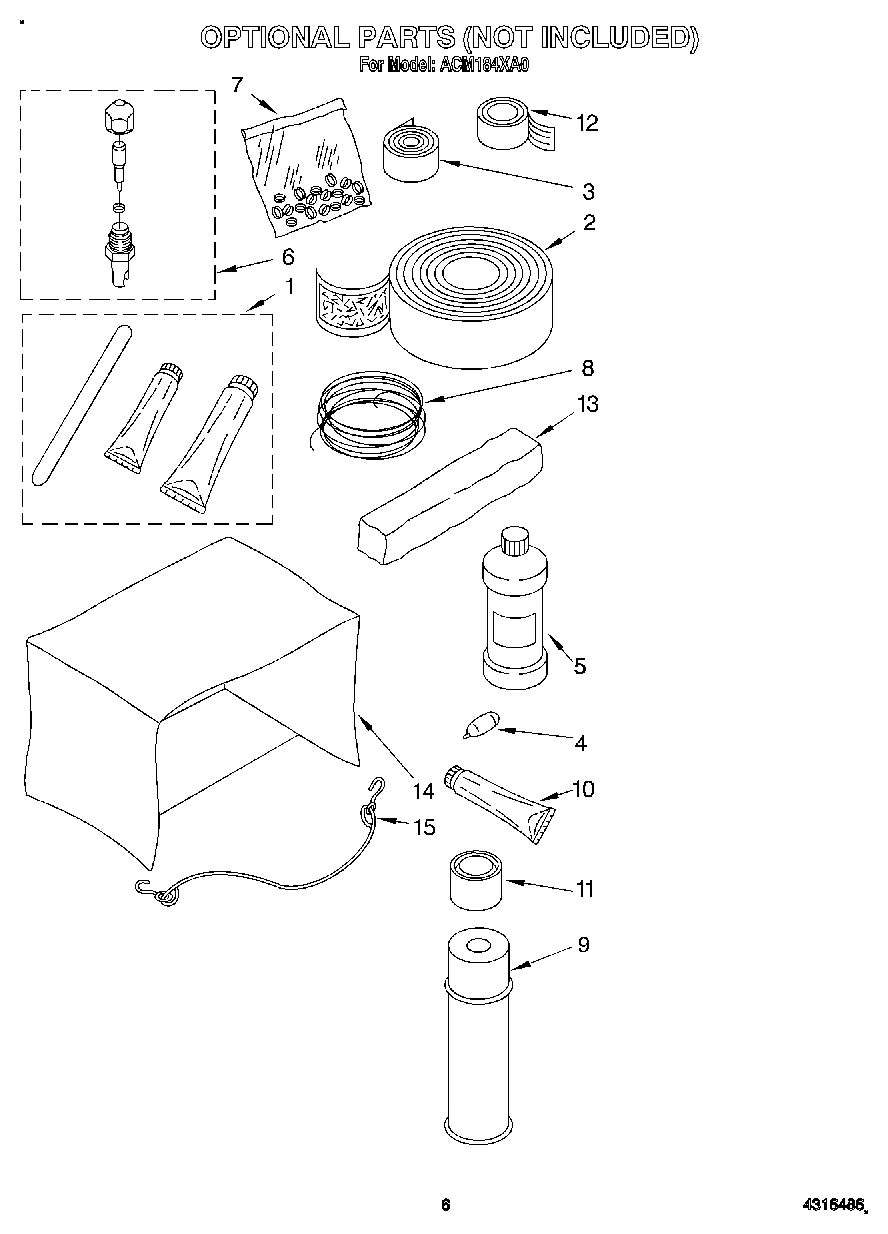

04 - OPTIONAL
Common parts from model Whirlpool ACM184XA0 AIR CONDITIONER
Wiring Diagram WPL LIT1157635 Contact Us For Availability
Tech Sheet WPL LIT1165596 Contact Us For Availability
Manual, Owners WPL LIT1165920 Contact Us For Availability
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Kit, Standard Installation WPL 1163842 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (10) WPL 708532 Contact Us For Availability
2
Seal WPL 1163784 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 708531 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Clamp, Wiring WPL 1163775 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1161074 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1164685 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Cord, Appliance WPL 1161710 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
13
Evaporator WPL 1161712 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1163756 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1161080 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
17
Bend, Return (3) WPL 854624 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1161523 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend (1) WPL 1158407 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1160709 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1161054 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Panel, Control WPL 1166165 Contact Us For Availability
21
Compressor WPL 1155501 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Support, Unit (2) WPL 1160708 Contact Us For Availability
22
Horzontal Louver W/ Handle (2) WPL 1165586 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Front, Complete WPL 1165060 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1165588 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1165589 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Insulation, Cabinet WPL 1162101 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
27
Insulation, Cabinet WPL 1162102 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
28
Louver, Actuator (2) WPL 1162078 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Filter WPL 1165591 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
31
Return Bend (10) WPL 855199 Contact Us For Availability
32
Spring, Detent (2) WPL 641484 Contact Us For Availability
32
Manifold, Suction WPL 1163753 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw No.8-3/8 WPL 488624 Contact Us For Availability
33
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1163921 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Plate, Escutcheon WPL 1165578 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1165936 Contact Us For Availability
38
Knob (2) WPL 1158645 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1161704 Contact Us For Availability
39
Control Box (L.S.) WPL 1166164 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
41
Cover, Top WPL 1160710 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
44
Bend, Return (3) WPL 855644 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Flow Divider WPL 1159832 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
47
Tube, Feeder WPL 1161071 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
49
Bolt, Compressor WPL 1158668 Contact Us For Availability
50
Tube, Discharge WPL 1161078 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
× ![]()
