Model Whirlpool ACM184PT0 AIR CONDITIONER – Common Parts & Diagrams

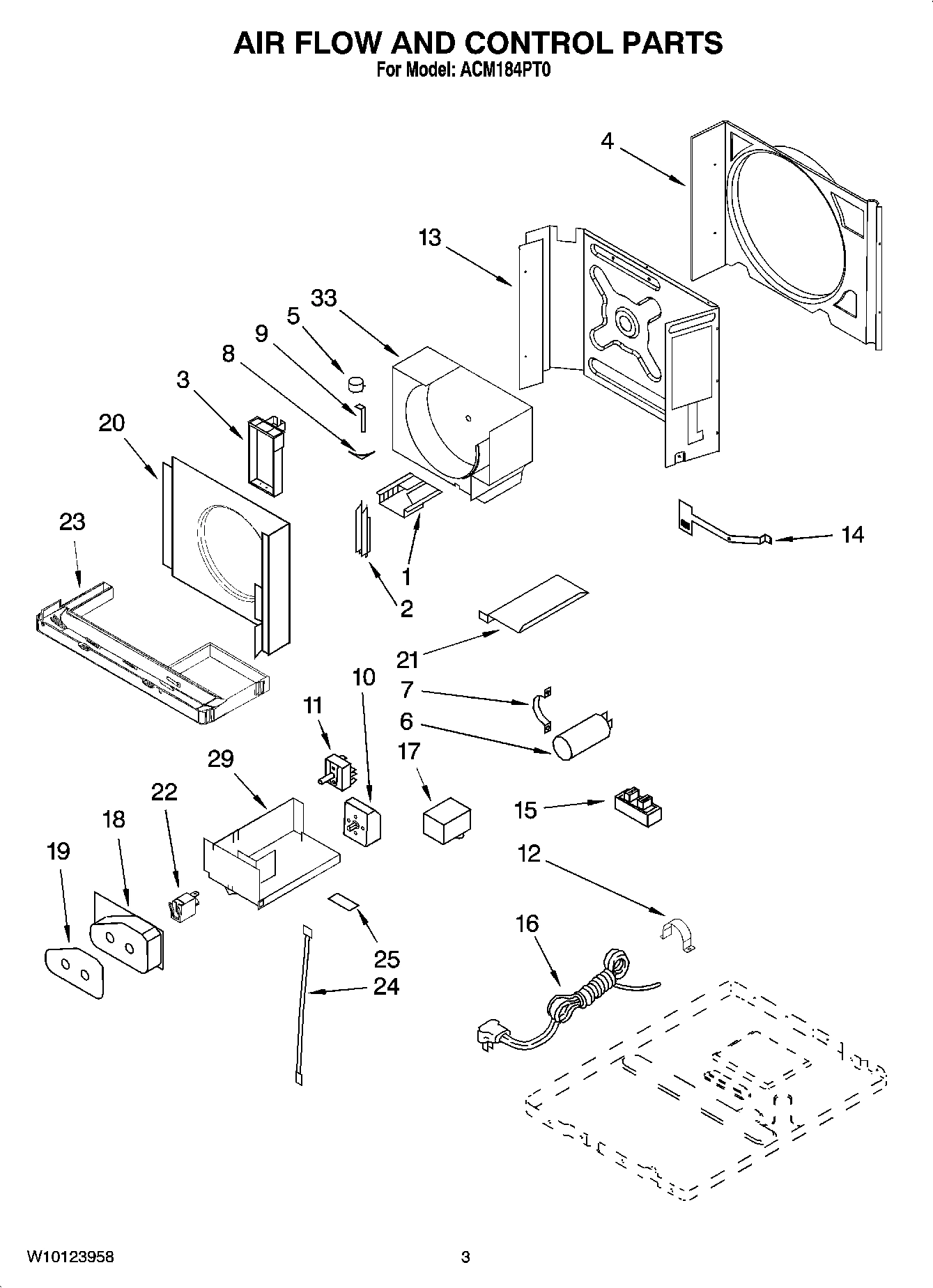

02 - AIR FLOW AND CONTROL PARTS

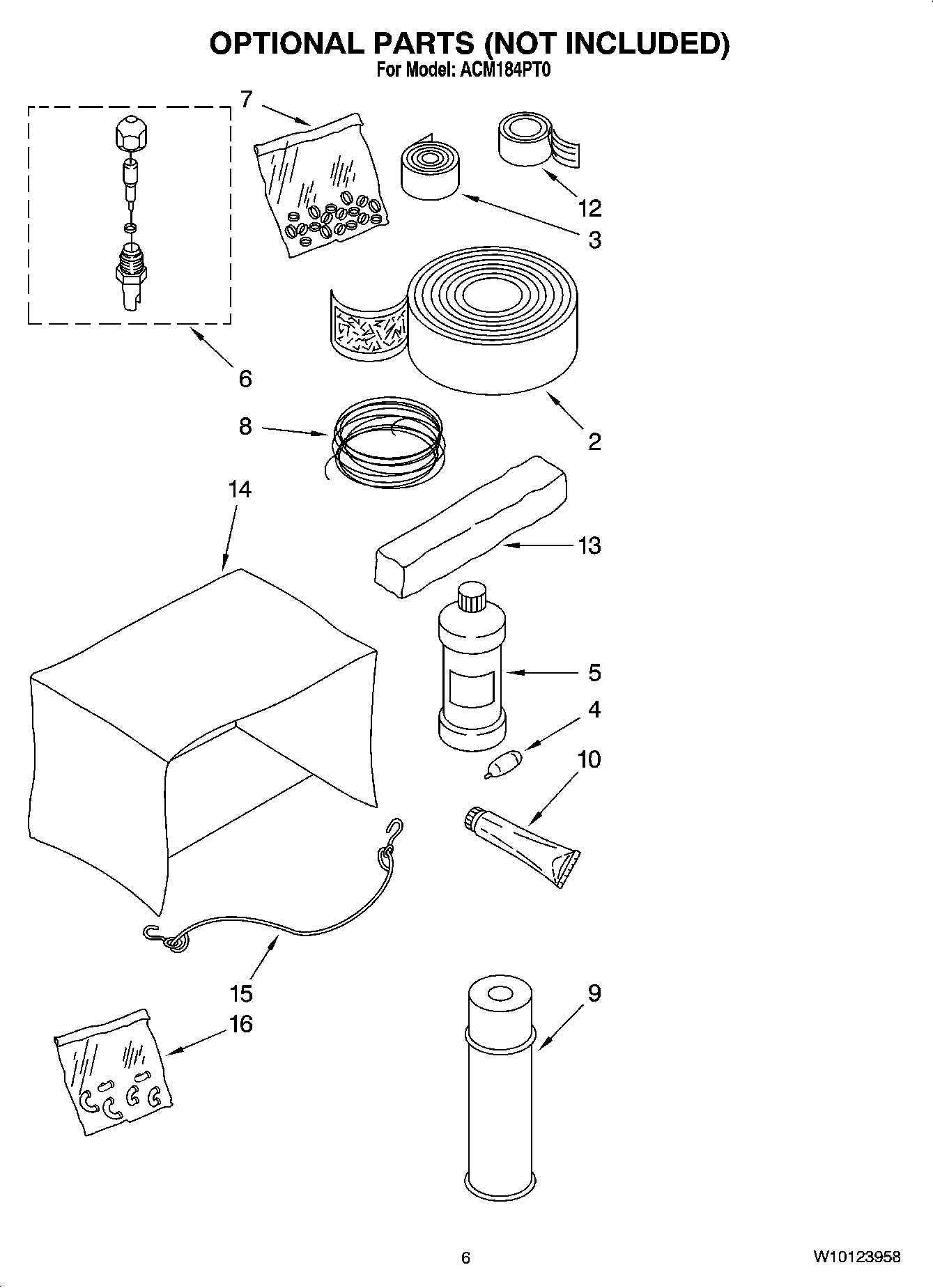

04 - OPTIONAL PARTS (NOT INCLUDED)

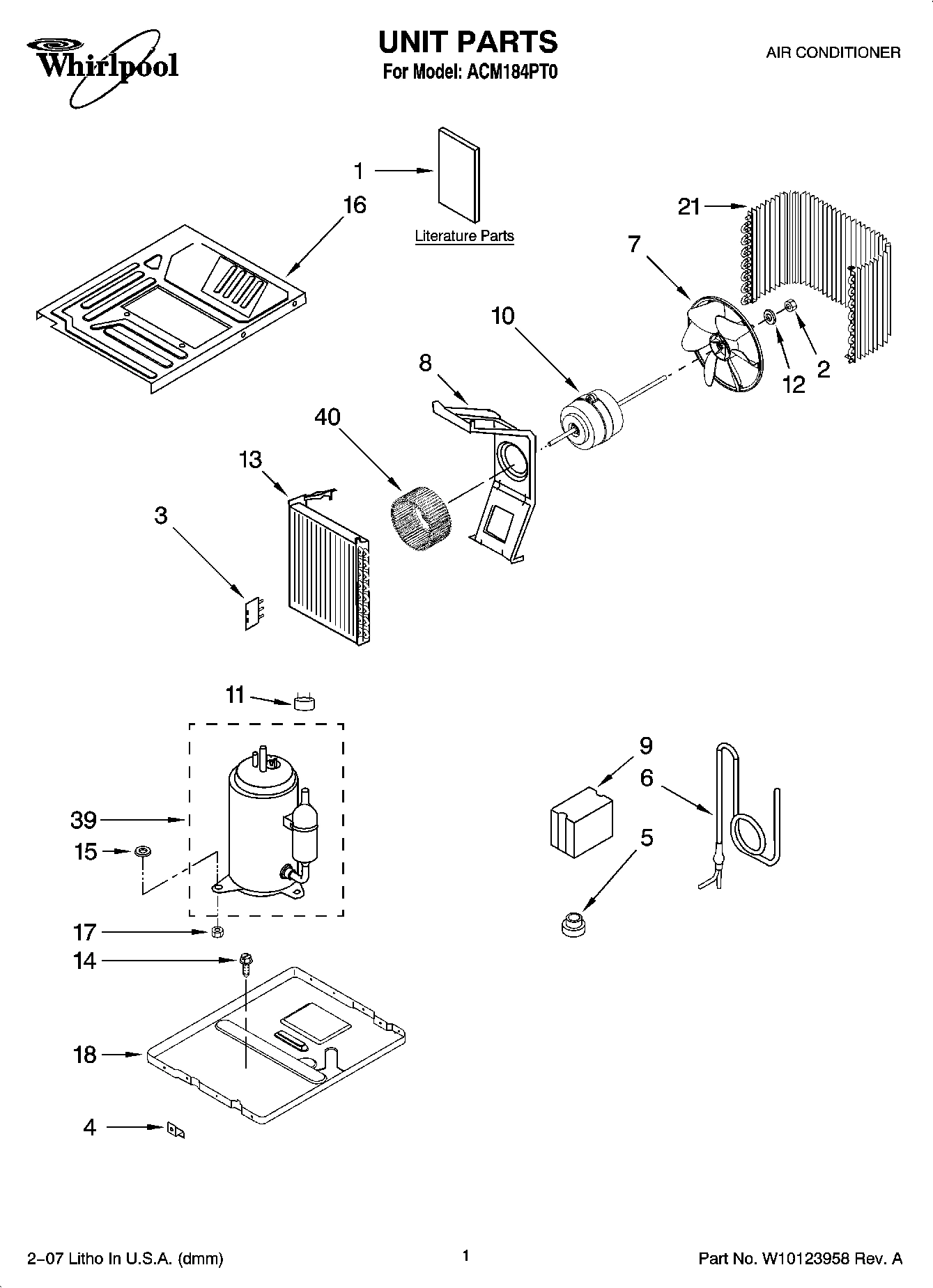

01 - UNIT PARTS

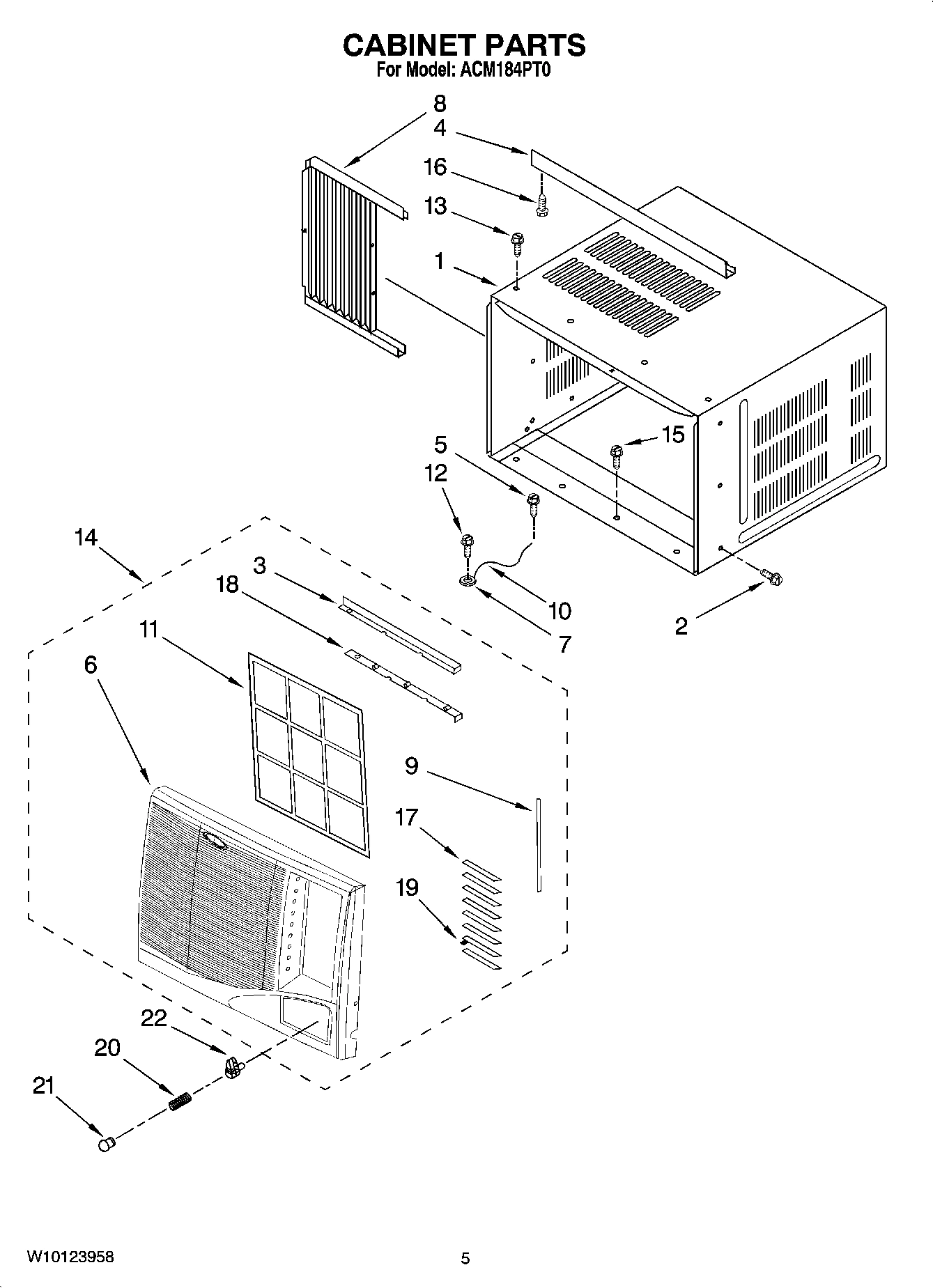

03 - CABINET PARTS

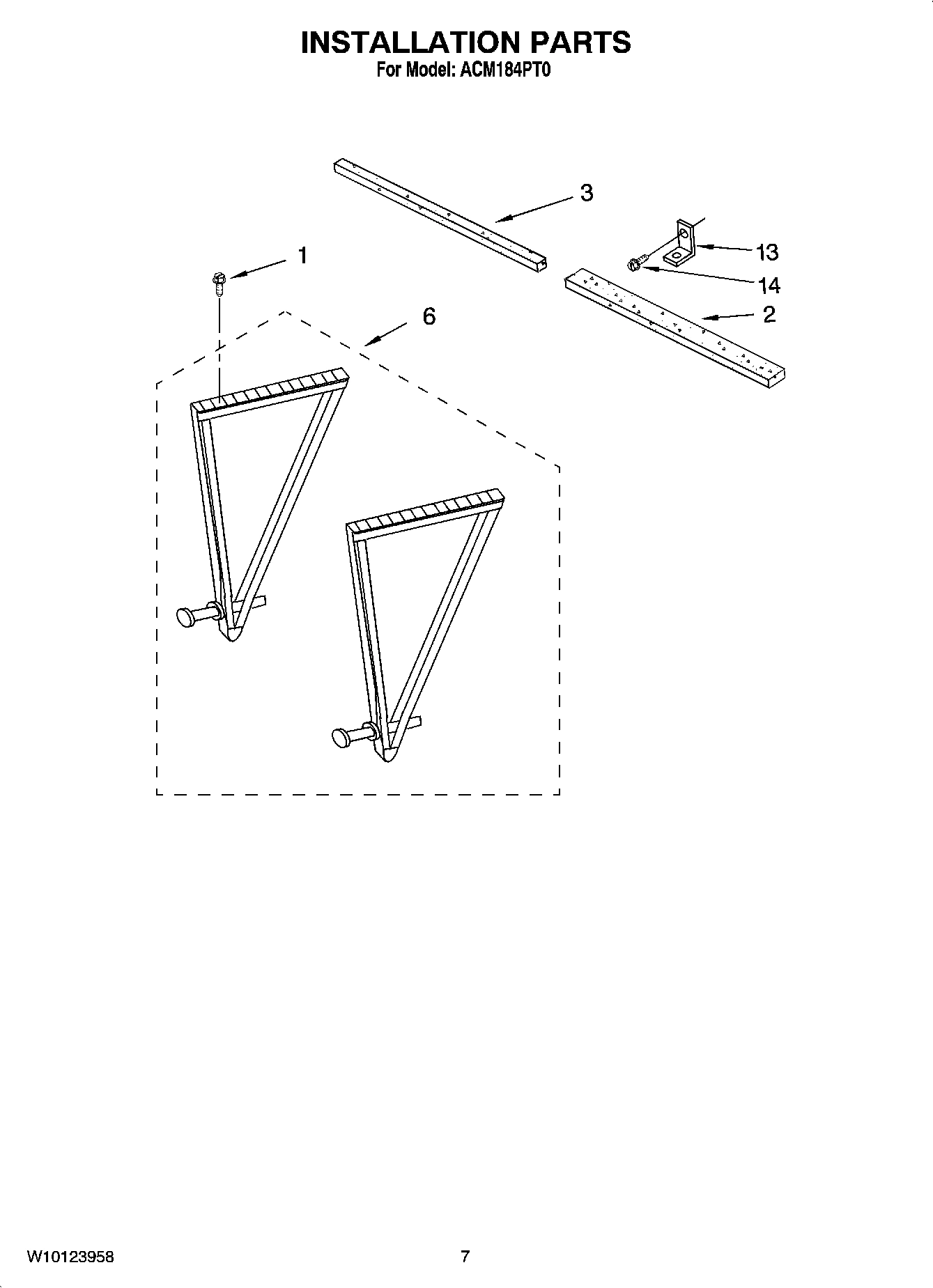

05 - INSTALLATION PARTS
Common parts from model Whirlpool ACM184PT0 AIR CONDITIONER
1
Use & Care Guide WPL 8215279 Contact Us For Availability
1
Wiring Diagram WPL W10121863 Contact Us For Availability
1
Energy Guide WPL W10122487 Contact Us For Availability
1
CABINET WPL 8215100 Contact Us For Availability
1
Screw (6) WPL 8215271 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Nut W/Washer WPL 8215290 Contact Us For Availability
2
SCREW WPL 8215282 Contact Us For Availability
2
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Support, Tube Sensor WPL 8209771 Contact Us For Availability
3
Membrane WPL 8215139 Contact Us For Availability
3
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
CLIP WPL 8215148 Contact Us For Availability
4
Channel, Top WPL 8215102 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
5
Drain Plug WPL 8215149 Contact Us For Availability
5
SCREW WPL 8215283 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 8215126 Contact Us For Availability
6
Front, Cabinet WPL 8215305 Contact Us For Availability
6
Support, Cabinet WPL 8215098 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 8215104 Contact Us For Availability
7
WASHER WPL 8215285 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Bracket, Fan Motor WPL 8215107 Contact Us For Availability
8
Curtain Assembly Right & Left Side WPL 8215099 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Relay WPL 8215130 Contact Us For Availability
9
Guide, Linkage WPL 8215141 Contact Us For Availability
10
Motor, Fan WPL 8215108 Contact Us For Availability
10
Ground Wire WPL 8215101 Contact Us For Availability
11
OVERLOAD WPL 8215123 Contact Us For Availability
11
Filter WPL 8215142 Contact Us For Availability
12
WASHER WPL 8215291 Contact Us For Availability
12
SCREW WPL 8215284 Contact Us For Availability
13
EVAPORATOR WPL 8215316 Contact Us For Availability
13
Screw WPL 8209777 Contact Us For Availability
13
Bracket WPL 8209930 Contact Us For Availability
14
Front, Cabinet Assembly WPL 8215140 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 8215272 Contact Us For Availability
15
Terminal Block WPL 8215089 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
SCREW WPL 8215286 Contact Us For Availability
16
Cord, Appliance WPL 8215314 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Cover, Evaporator WPL 8215106 Contact Us For Availability
16
Screw WPL 8215288 Contact Us For Availability
17
CAPACITOR WPL 8215128 Contact Us For Availability
17
Nut W/Washer WPL 8215297 Contact Us For Availability
17
Guide, Louver WPL 8215143 Contact Us For Availability
18
Cover, Control WPL 8215322 Contact Us For Availability
18
BASE WPL 8215147 Contact Us For Availability
18
Guide, Filter (Up) WPL 8215145 Contact Us For Availability
18
Guide, Filter (Down) WPL 8215146 Contact Us For Availability
19
ESCUTCHEON WPL 8215323 Contact Us For Availability
19
Guide, Louver WPL 8215144 Contact Us For Availability
20
Shroud, Evaporator WPL 8215119 Contact Us For Availability
20
SPRING WPL 8215325 Contact Us For Availability
21
Cover, Air Duct WPL 8215120 Contact Us For Availability
21
CONDENSER WPL 8215103 Contact Us For Availability
21
Button WPL 8215326 Contact Us For Availability
22
Switch WPL 8215321 Contact Us For Availability
22
Knob (2) WPL 8215324 Contact Us For Availability
23
Pan, Evaporator WPL 8215127 Contact Us For Availability
24
Thermistor WPL 8209739 Contact Us For Availability
25
WASHER WPL 8215320 Contact Us For Availability
29
Box, Control WPL 8215319 Contact Us For Availability
33
Housing, Air WPL 8215110 Contact Us For Availability
39
Compressor Assy. WPL 8215122 Contact Us For Availability
40
Wheel, Blower WPL 8215118 Contact Us For Availability
40
REFRIGERANT CHARGE 27.86 oz. WPL ARI144064A Contact Us For Availability
× ![]()
