Model Whirlpool ACM152XK0 AIR CONDITIONER – Common Parts & Diagrams

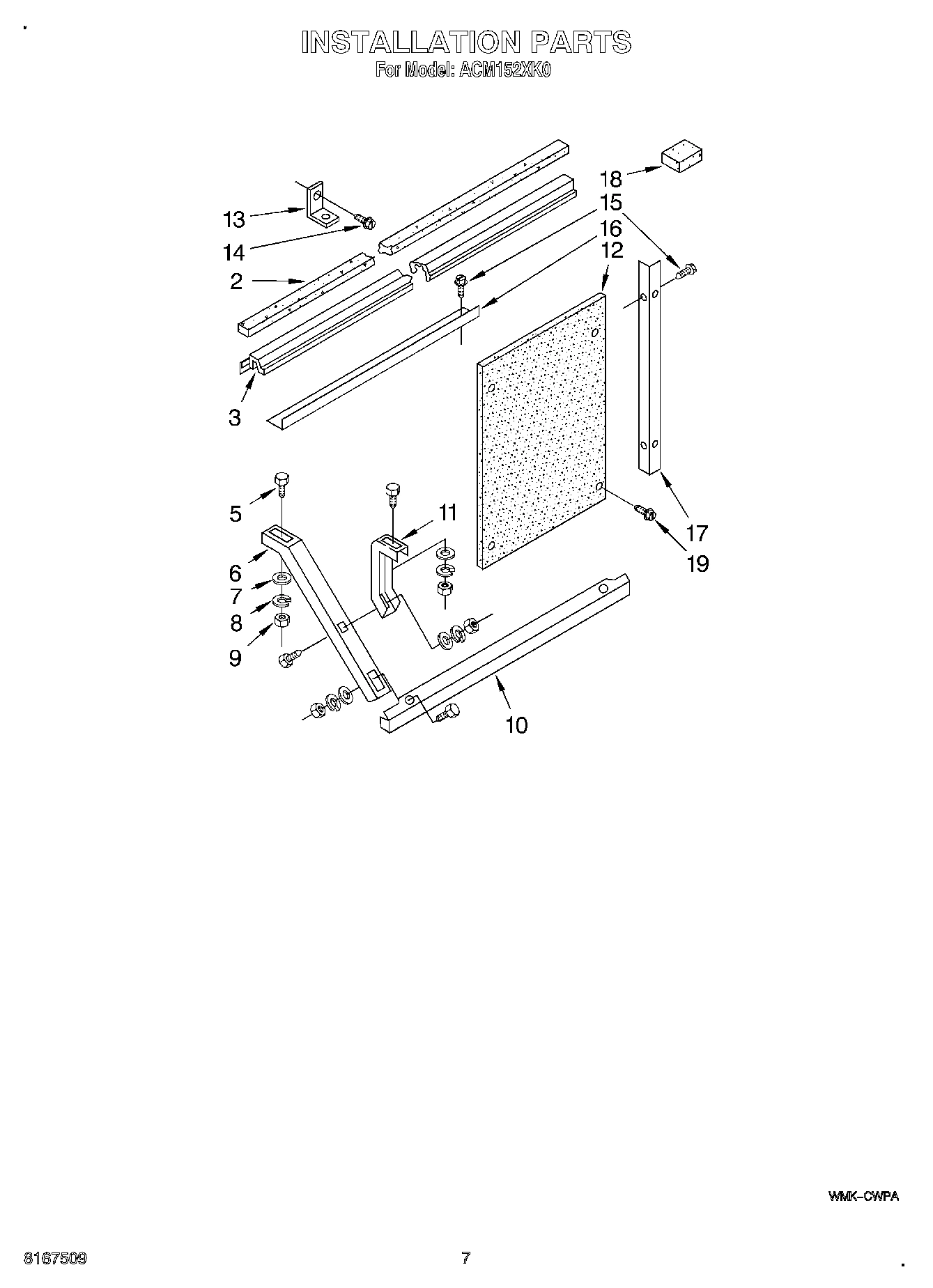

05 - INSTALLATION
01 - UNIT, LITERATURE

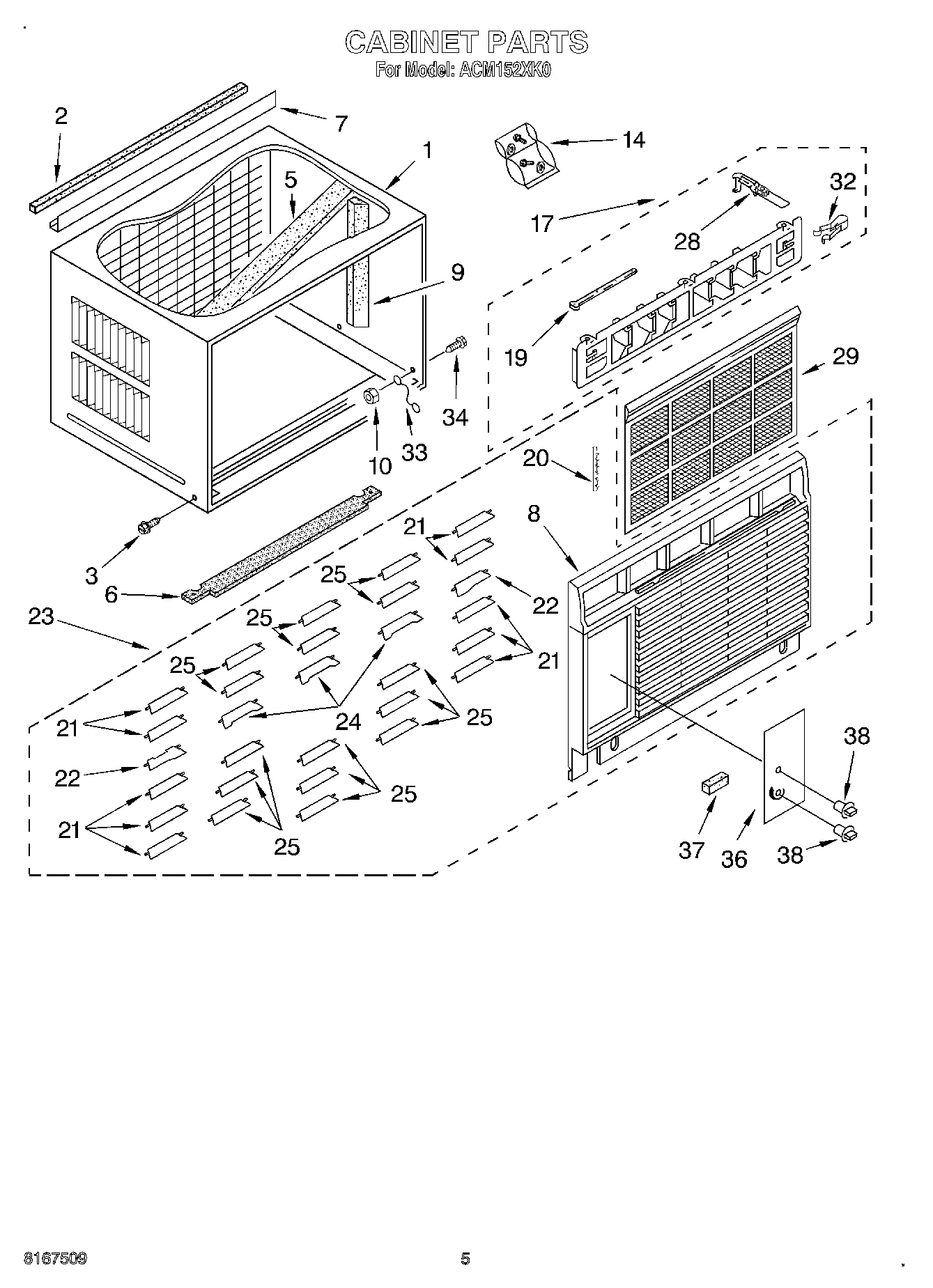

03 - CABINET

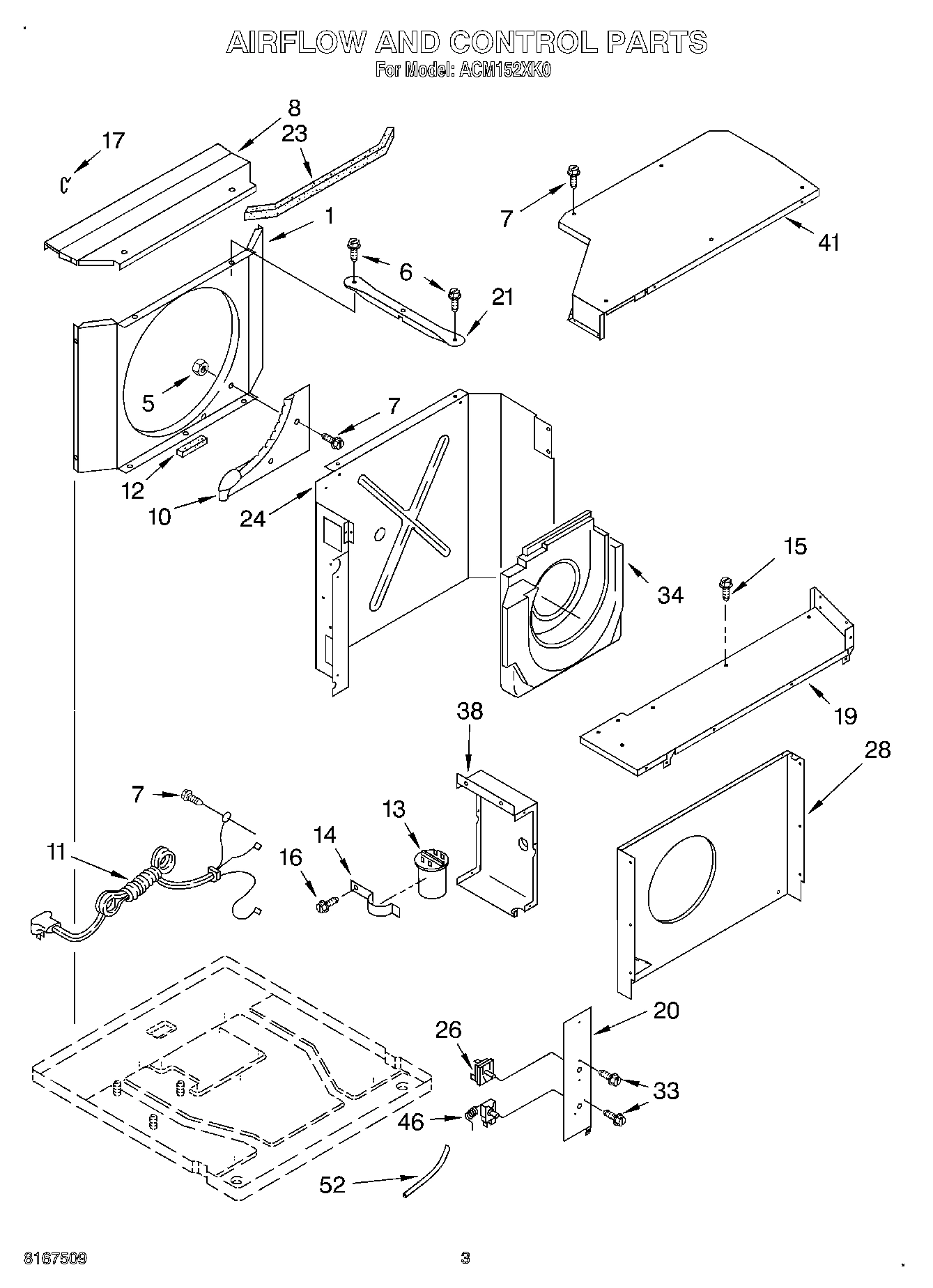

02 - AIRFLOW & CONTROL

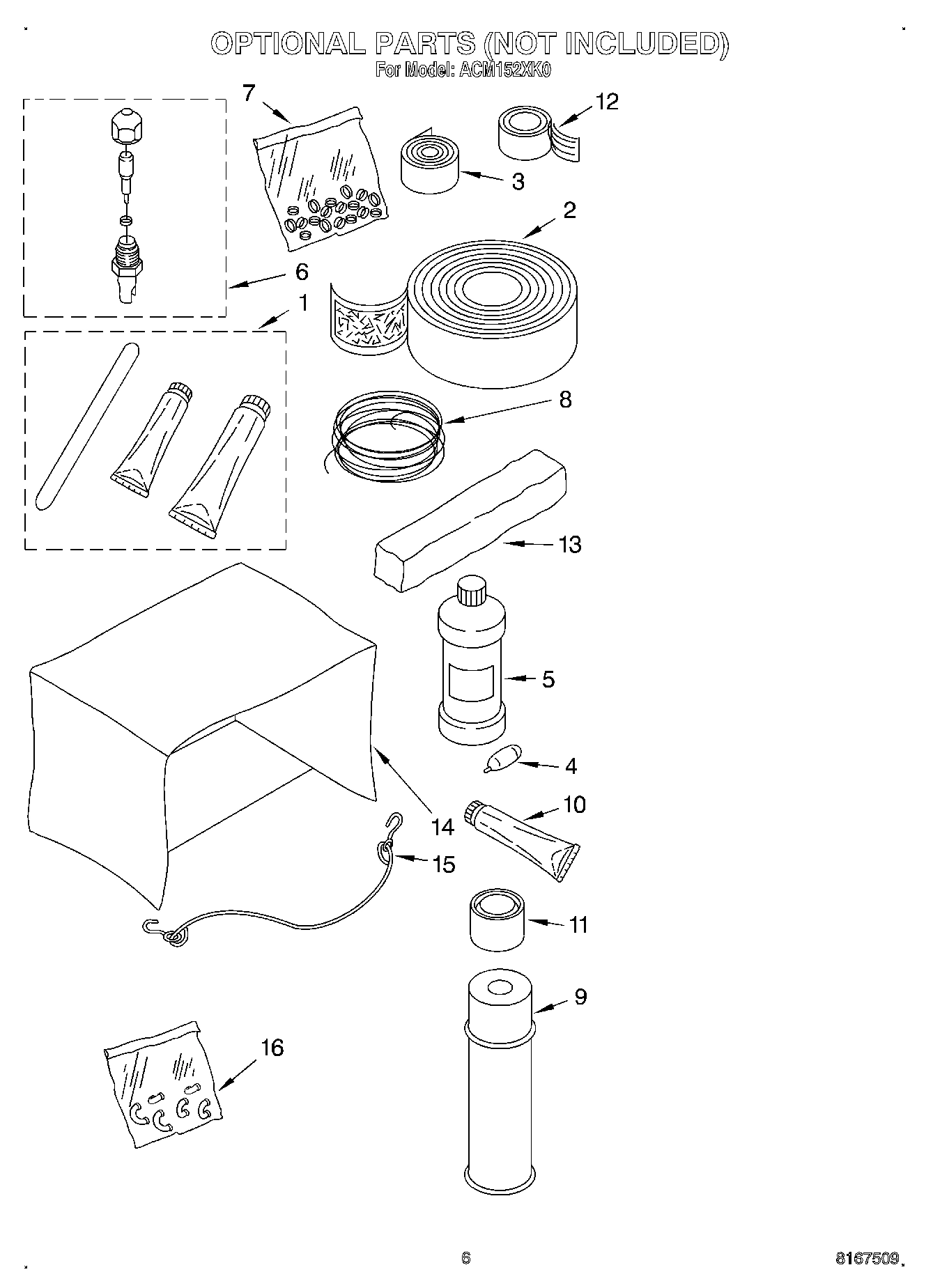

04 - OPTIONAL

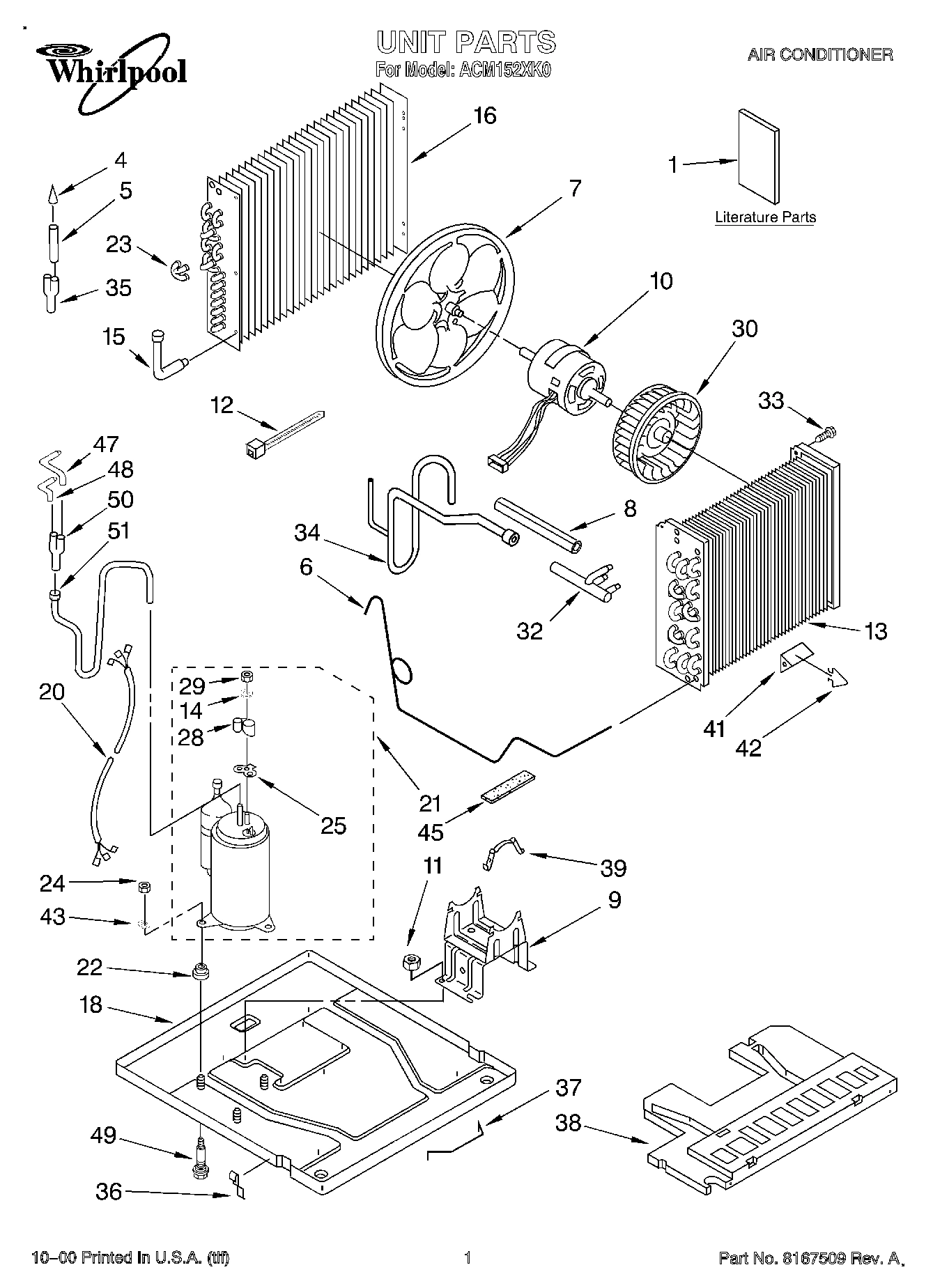

Common parts from model Whirlpool ACM152XK0 AIR CONDITIONER
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 950816 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1184652 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Seal, Suction Tube WPL 1161045 Contact Us For Availability
8
Frame, Front WPL 1168499 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1184428 Contact Us For Availability
10
Cup, Condensate WPL 1160684 Contact Us For Availability
11
Cord, Appliance WPL 1167644 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Cup WPL 1163332 Contact Us For Availability
13
Evaporator WPL 1169381 Contact Us For Availability
13
Capacitor WPL 1184737 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1184744 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183840 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1183656 Contact Us For Availability
20
Link, Horizontal Louver WPL 1168496 Contact Us For Availability
20
Panel, Control WPL 1182954 Contact Us For Availability
21
Compressor WPL 1165592 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch, Rotary WPL 1183369 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Filter WPL 1182336 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
32
Manifold, Suction WPL 1184757 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1182060 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1184596 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
41
Cover, Top WPL 1183839 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183372 Contact Us For Availability
47
Tube, Feeder WPL 1161071 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1166239 Contact Us For Availability
52
Sleeve, Insulating WPL 8011238 Contact Us For Availability
× ![]()
