Model Whirlpool ACM124XP0 AIR CONDITIONER – Common Parts & Diagrams

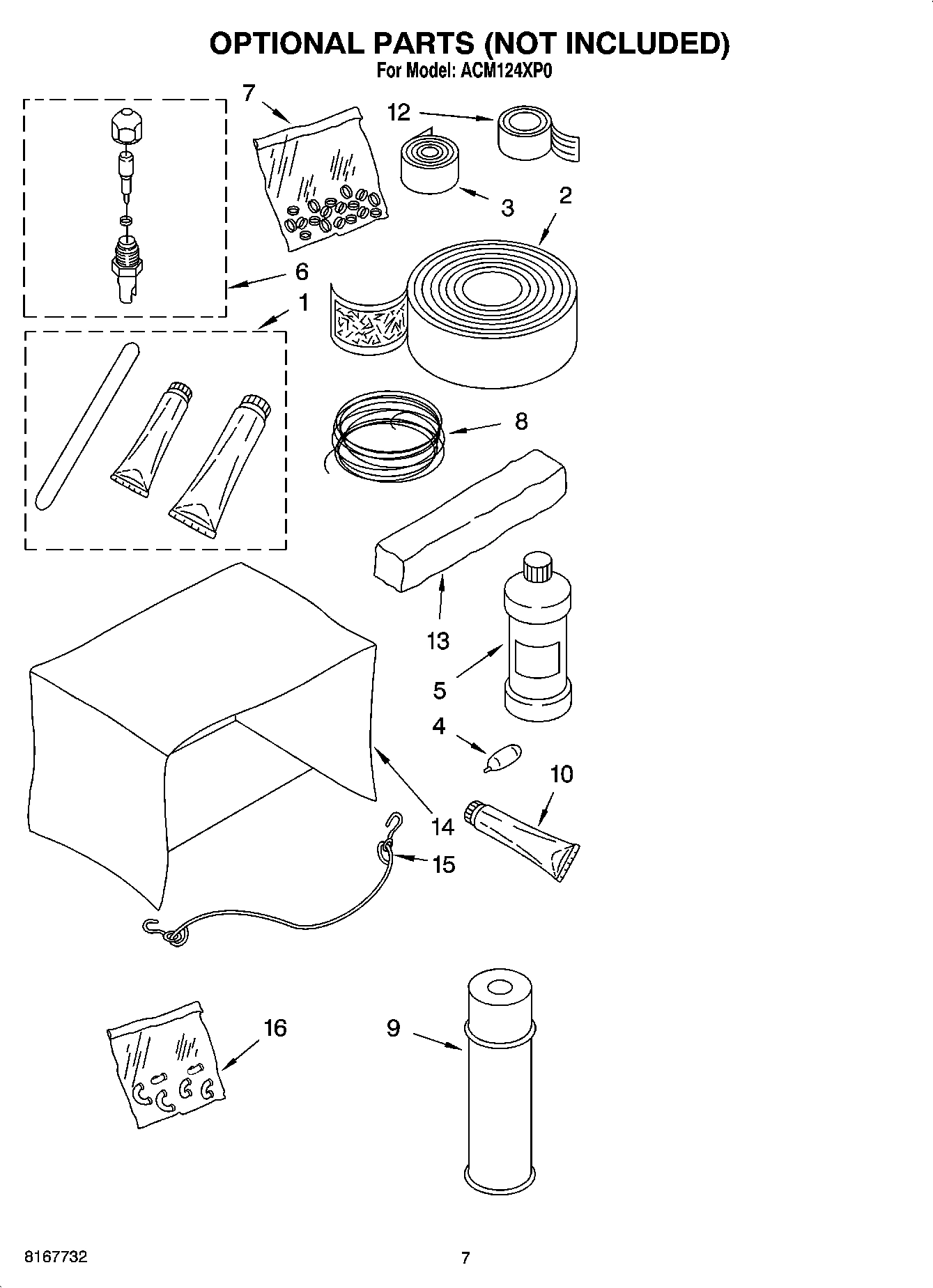

04 - OPTIONAL PARTS (NOT INCLUDED)
01 - UNIT PARTS

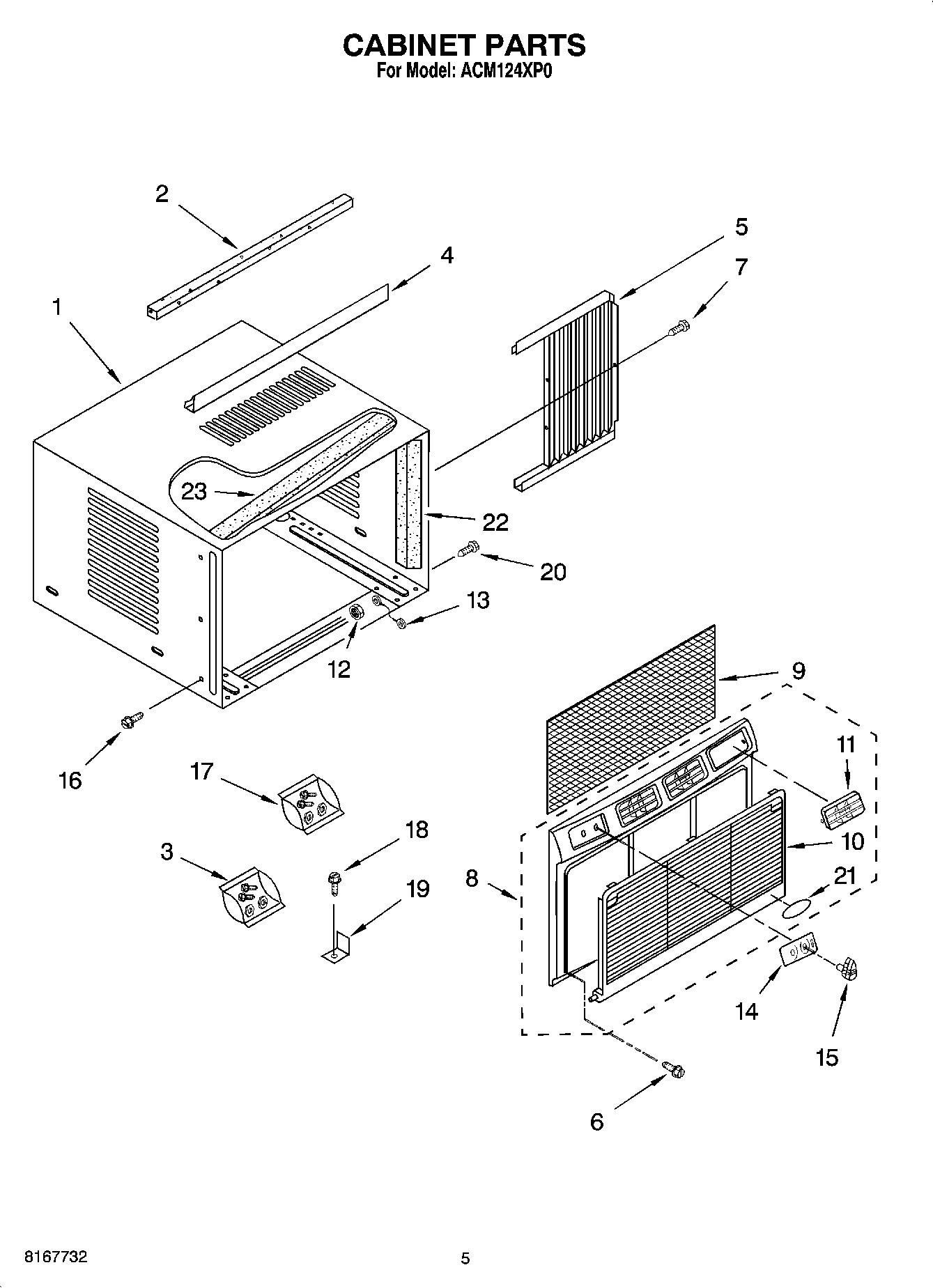

03 - CABINET PARTS

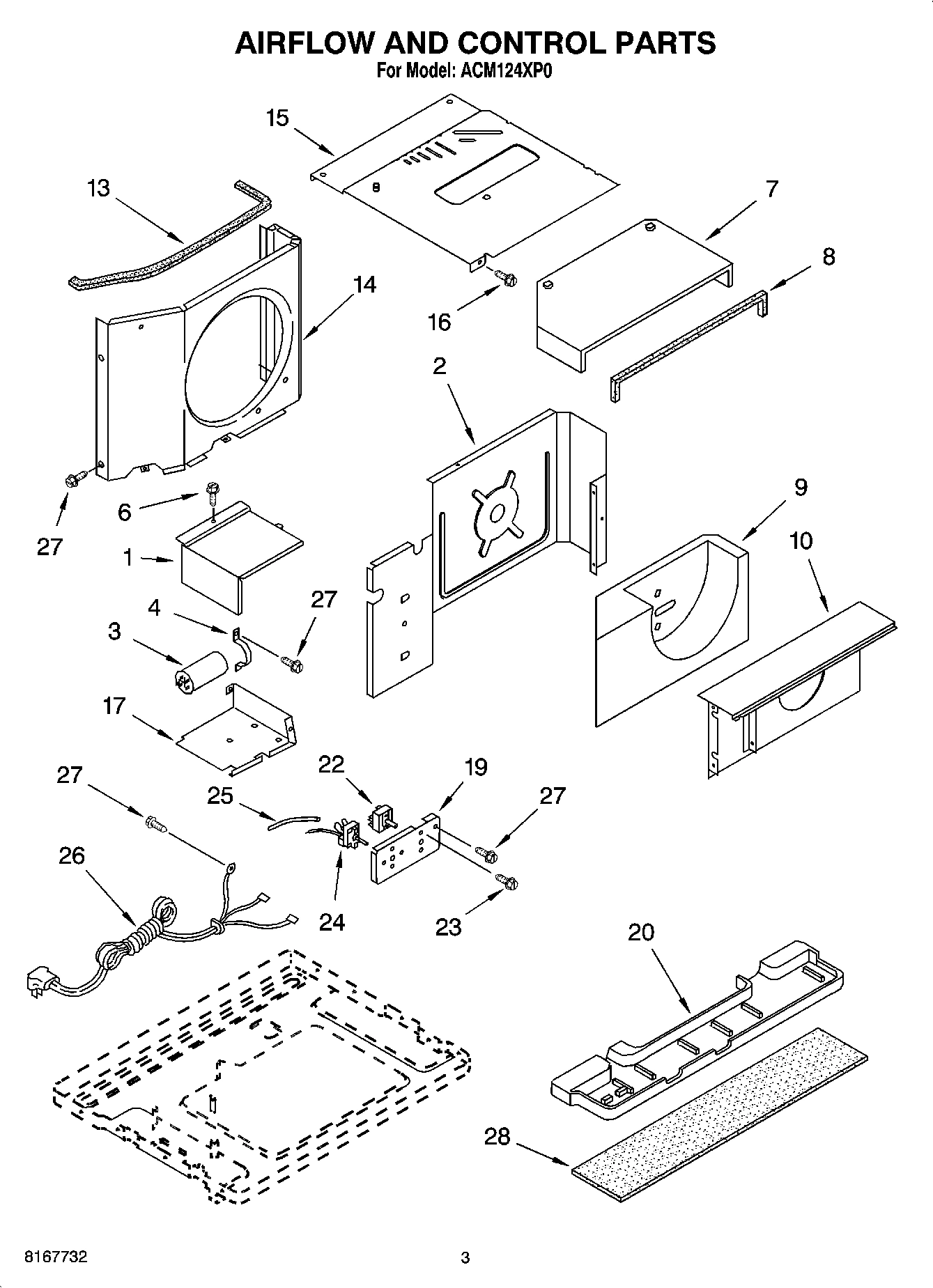

02 - AIR FLOW AND CONTROL PARTS

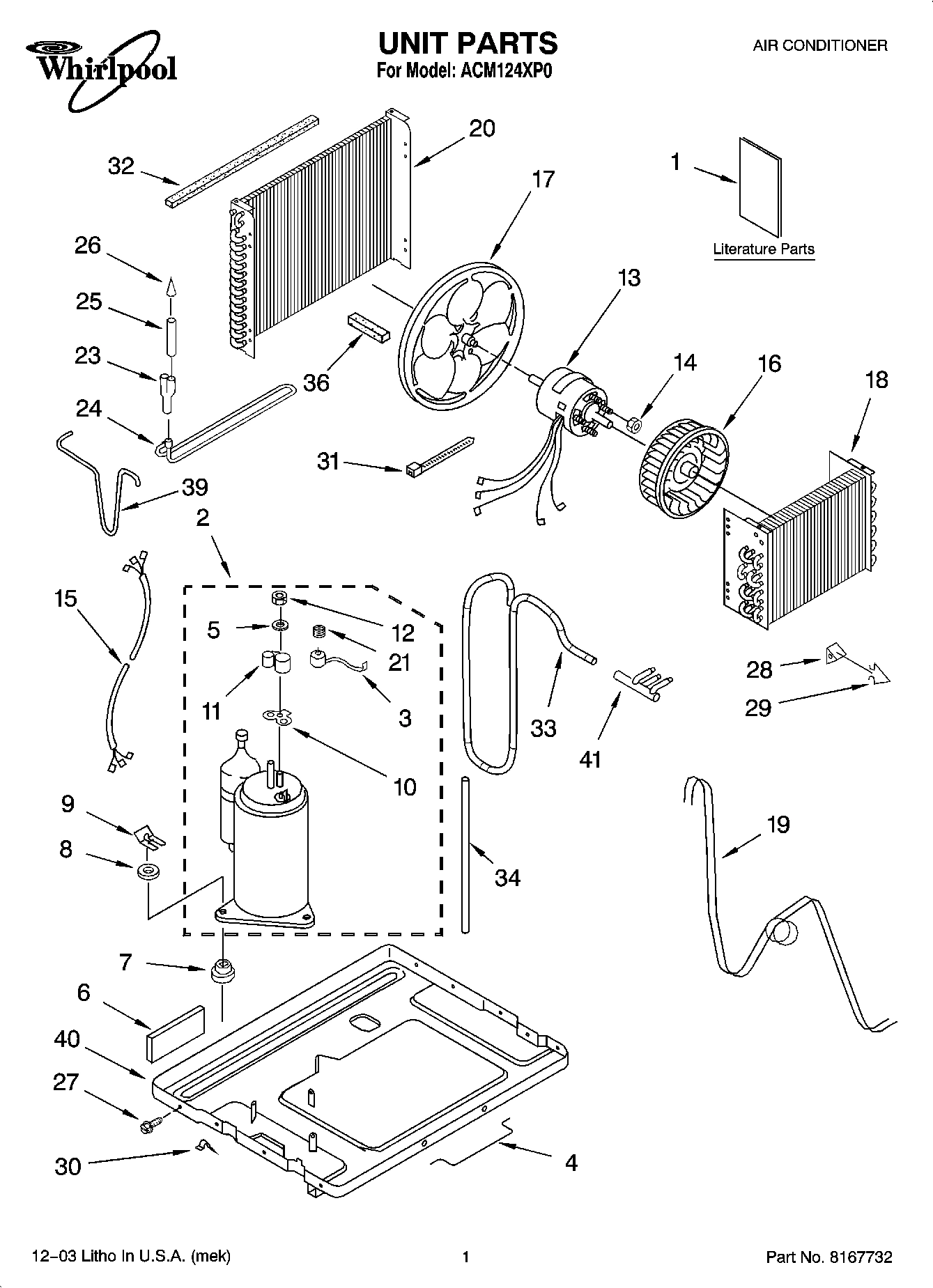

Common parts from model Whirlpool ACM124XP0 AIR CONDITIONER
1
Cabinet WPL 8031388 Contact Us For Availability
1
Cover, Control Box WPL 1186665 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1185613 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1186676 Contact Us For Availability
3
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
3
Capacitor, Running WPL 1187481 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
5
Washer WPL 1185794 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1187084 Contact Us For Availability
6
Screw WPL 1161561 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
8
Front WPL 1187332 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
10
Grille, Front WPL 1187325 Contact Us For Availability
10
Shroud, Evaporator WPL 8031479 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
13
Motor, Fan WPL 1187585 Contact Us For Availability
13
Wire, Ground WPL 1186626 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Escutcheon WPL 1184590 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
15
Wiring Harness, Compressor WPL 1186624 Contact Us For Availability
15
Cover, Unit WPL 1186766 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
16
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Bag, Accessory WPL 1157654 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1184498 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
21
Spring, Overload WPL 1185795 Contact Us For Availability
21
Nameplate WPL 1187171 Contact Us For Availability
22
Switch, Rotary WPL 8031150 Contact Us For Availability
22
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Seal, Top Cover WPL 8031322 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
25
Sleeve, Insulator WPL 8011238 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 1186583 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1186873 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1186874 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
41
REFRIGERANT CHARGE 20.50 oz. WPL ARI144061A Contact Us For Availability
× ![]()
