Model Whirlpool ACM122XR0 AIR CONDITIONER – Common Parts & Diagrams

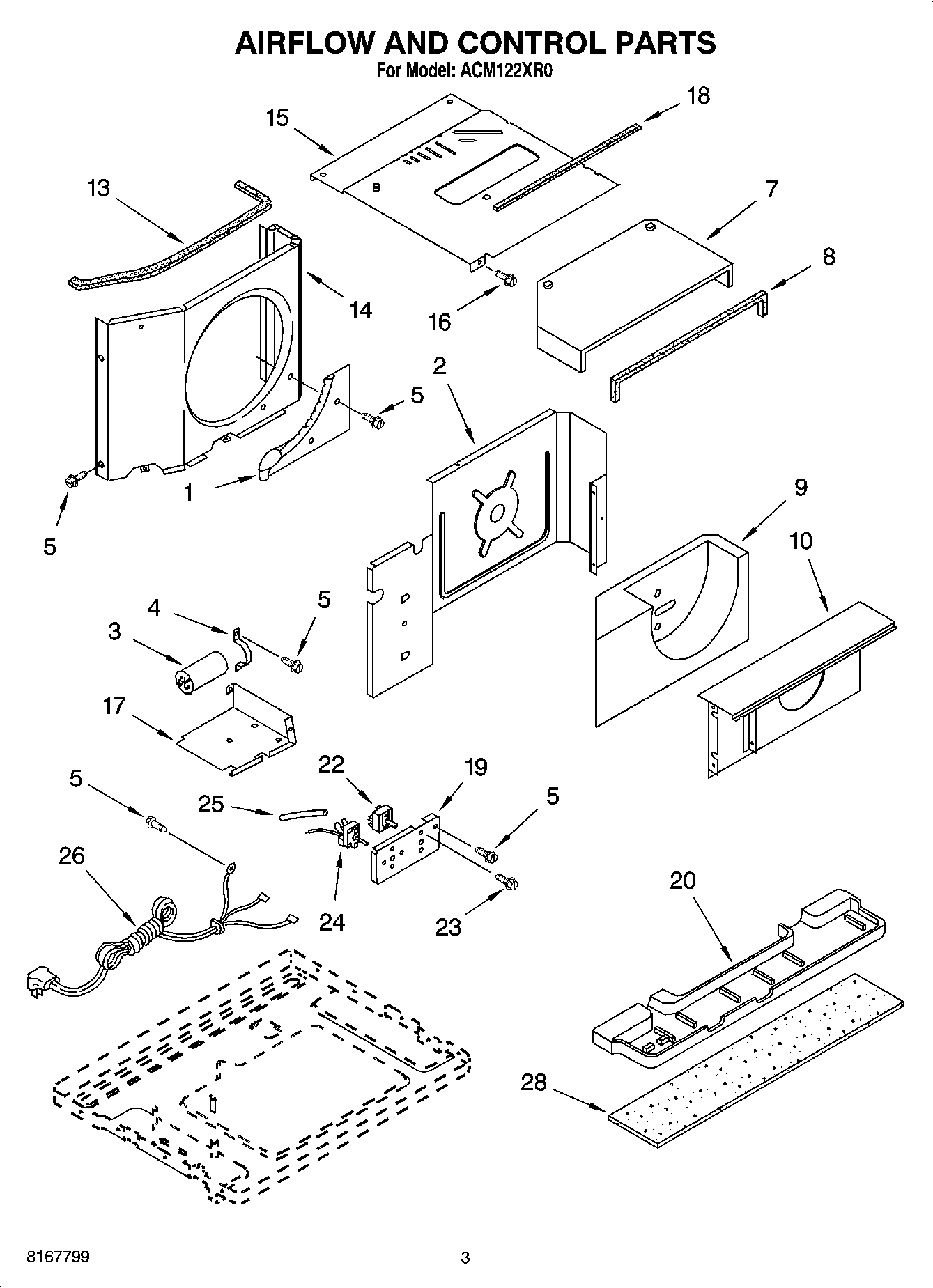

02 - AIR FLOW AND CONTROL PARTS

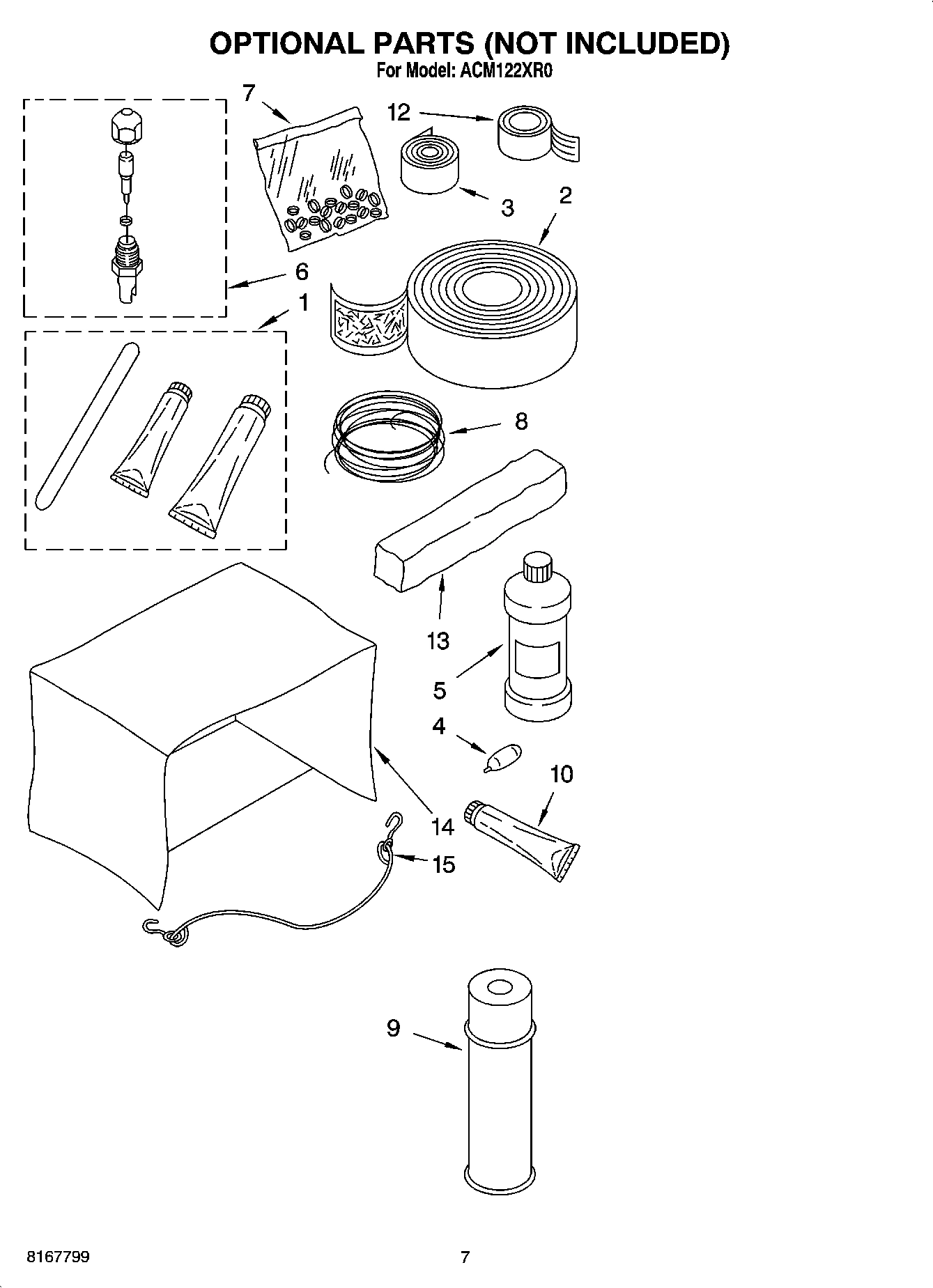

04 - OPTIONAL PARTS (NOT INCLUDED)
01 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool ACM122XR0 AIR CONDITIONER
1
Guide, Energy WPL 1188052 Contact Us For Availability
1
Use & Care Guide WPL 1188054 Contact Us For Availability
1
Wiring Diagram WPL 8031276 Contact Us For Availability
1
Cabinet WPL 8031120 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1187784 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
4
Channel, Top WPL 8031293 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031303 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031304 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Spring, Overload WPL 1185795 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Washer, Nylon WPL 8011418 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Screw, 8-15 x 3/8 WPL 488624 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1186624 Contact Us For Availability
8
Front WPL 1187323 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
10
Grille, Front WPL 1187325 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
12
Nameplate WPL 1187171 Contact Us For Availability
13
Motor, Fan WPL 1187584 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Escutcheon WPL 1184590 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Gasket, Nut WPL 1185794 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Bag, Accessory WPL 476180 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Screw, Wood 8-15 x 3/4 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1187802 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Condenser WPL 1185015 Contact Us For Availability
21
Bend, Return Evaporator (5) Condenser (1) WPL 8031222 Contact Us For Availability
22
Switch, Rotary WPL 8031150 Contact Us For Availability
22
Bend, Return (5) WPL 8031224 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Tube, Wet Loop WPL 1185063 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
27
Seal, Anti-Rub WPL 1187084 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal, Condenser Top WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1186873 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
37
Bend, Return Evaporator (5) Condenser (15) WPL 8031223 Contact Us For Availability
39
Tube, Discharge WPL 1186874 Contact Us For Availability
40
Base WPL 8031331 Contact Us For Availability
41
Tube, Flow Divider WPL 1187822 Contact Us For Availability
41
REFRIGERANT CHARGE 23.50 oz. WPL ARI144059A Contact Us For Availability
× ![]()
