Model Whirlpool ACM082PS0 AIR CONDITIONER – Common Parts & Diagrams

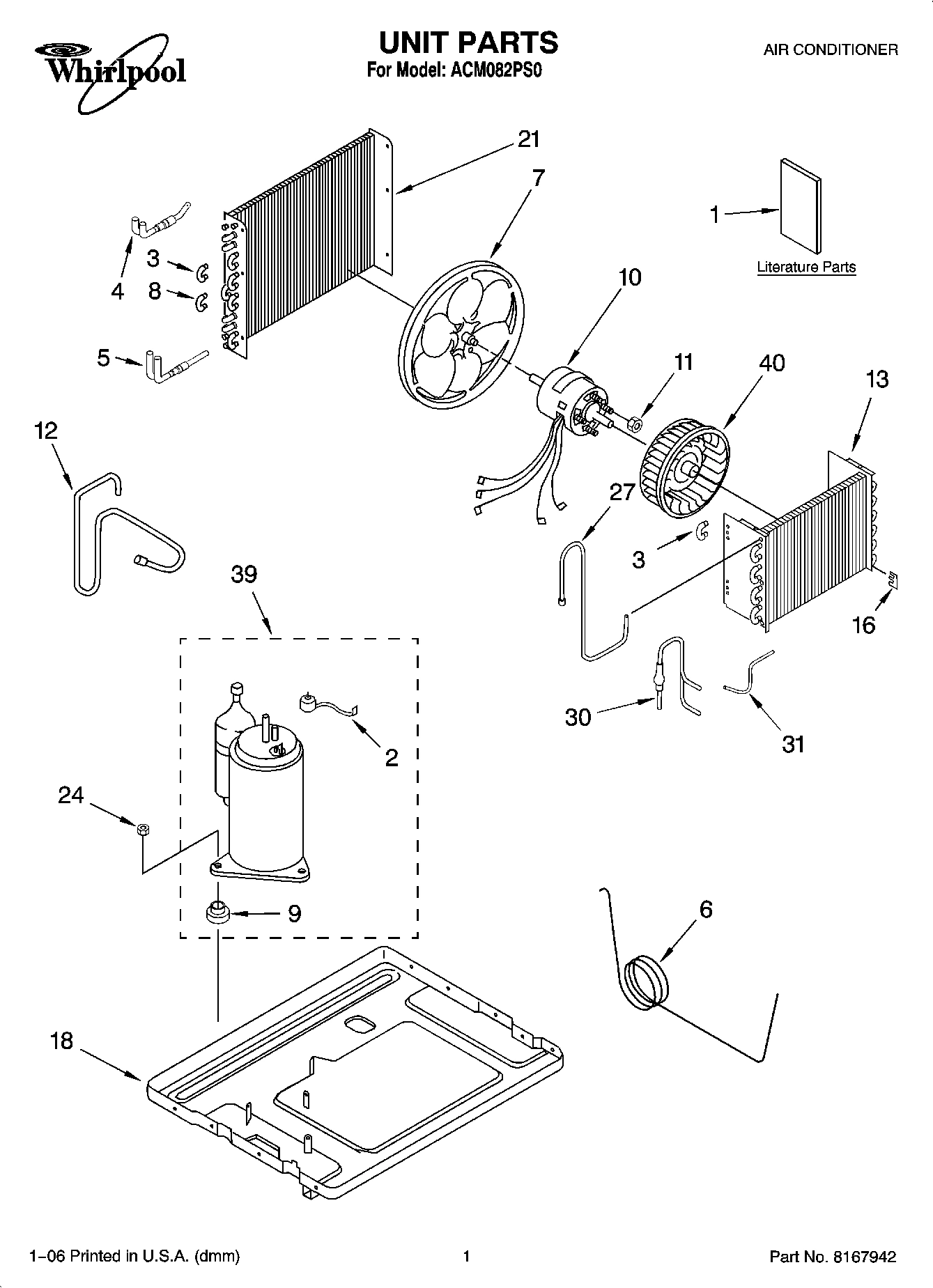

01 - UNIT PARTS

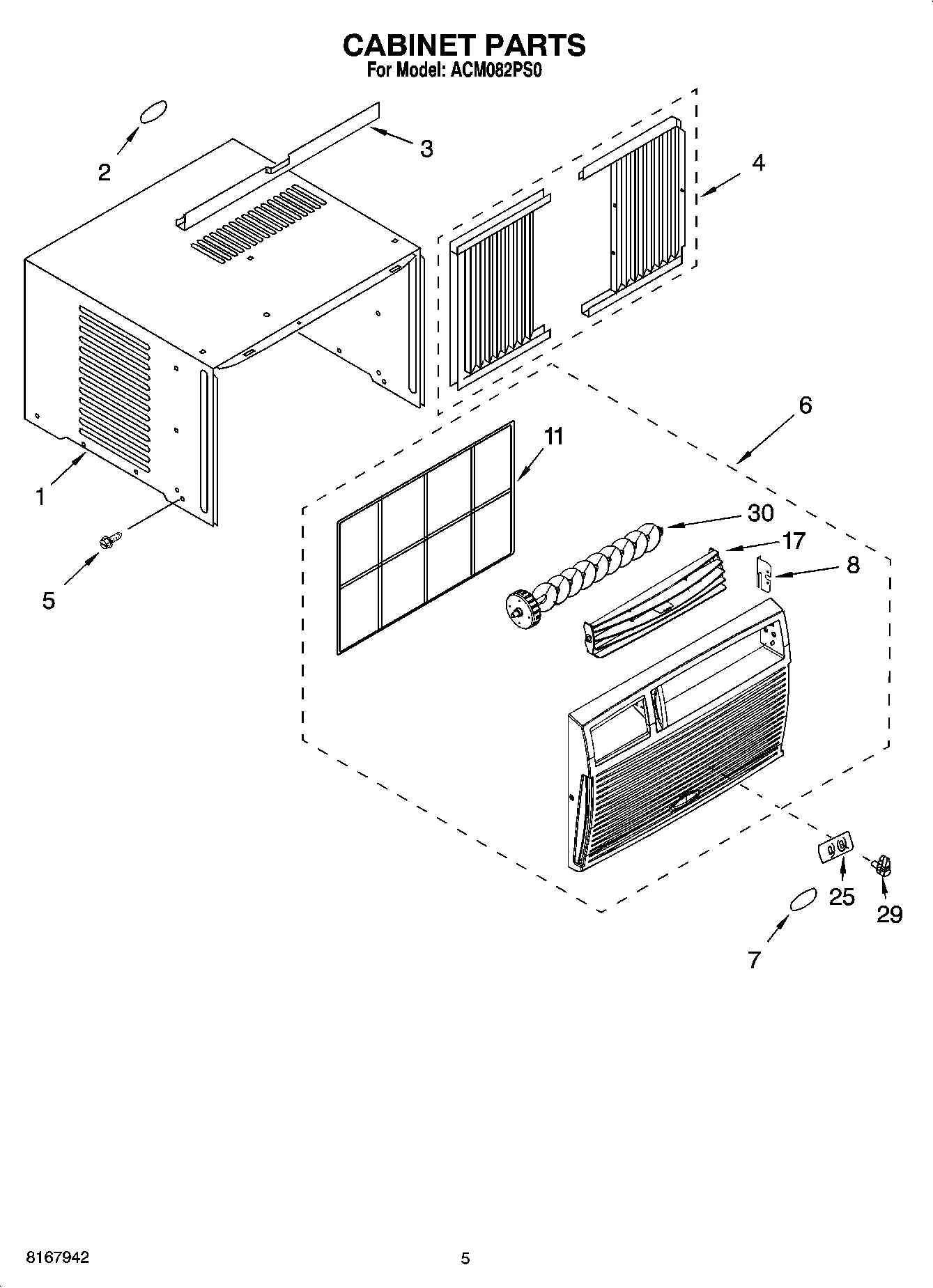

03 - CABINET PARTS
02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACM082PS0 AIR CONDITIONER
1
Wiring Diagram WPL 8209850 Contact Us For Availability
1
Energy Guide WPL 8209876 Contact Us For Availability
1
Cabinet WPL 8209862 Contact Us For Availability
1
Clamp, Cable WPL 8209875 Contact Us For Availability
2
Overload WPL 8209882 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Channel, Top WPL 8209897 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Curtain Assembly Right & Left Side (Includes WPL 8209896 Contact Us For Availability
4
Shroud, Condenser WPL 8209863 Contact Us For Availability
5
Tube, Outlet WPL 8209655 Contact Us For Availability
5
Screw WPL 8209777 Contact Us For Availability
6
Tube, Restrictor WPL 8209872 Contact Us For Availability
6
Front Cabinet Assembly WPL 8209705 Contact Us For Availability
6
Capacitor, Running WPL 8209883 Contact Us For Availability
7
Blade, Fan WPL 8209866 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
7
Bracket, Capacitor WPL 8209884 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Support, Louver WPL 8209940 Contact Us For Availability
9
Grommet (3) WPL 8209880 Contact Us For Availability
10
Motor, Fan WPL 8209867 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Filter WPL 8209704 Contact Us For Availability
12
Tube, Discharge WPL 8209865 Contact Us For Availability
13
Evaporator WPL 8209854 Contact Us For Availability
13
Wall, Dividing WPL 8209678 Contact Us For Availability
16
Support, Tube Sensor WPL 8215082 Contact Us For Availability
16
Cord, Appliance WPL 8209870 Contact Us For Availability
17
Louver, Assembly WPL 8209706 Contact Us For Availability
18
Base WPL 8209855 Contact Us For Availability
20
Shroud, Evaporator WPL 8209871 Contact Us For Availability
21
Condenser WPL 8209864 Contact Us For Availability
23
Pan, Evaporator WPL 8209858 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Escutcheon WPL 8209707 Contact Us For Availability
26
Hood, Air Housing WPL 8209868 Contact Us For Availability
27
Tube, Suction WPL 8209873 Contact Us For Availability
28
Switch, Rotary WPL 8209744 Contact Us For Availability
29
Knob WPL 8209708 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209874 Contact Us For Availability
30
Manifold WPL 8209670 Contact Us For Availability
30
Louver, Vertical WPL 8209709 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
33
Housing, Air WPL 8209869 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209745 Contact Us For Availability
36
Control, Temp. WPL 8209689 Contact Us For Availability
39
Compressor Assembly WPL 8209881 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 26.37 oz. WPL ARI19978A4 Contact Us For Availability
40
Screw WPL 8209690 Contact Us For Availability
× ![]()
