Model Whirlpool ACM072XZ0 AIR CONDITIONER – Common Parts & Diagrams

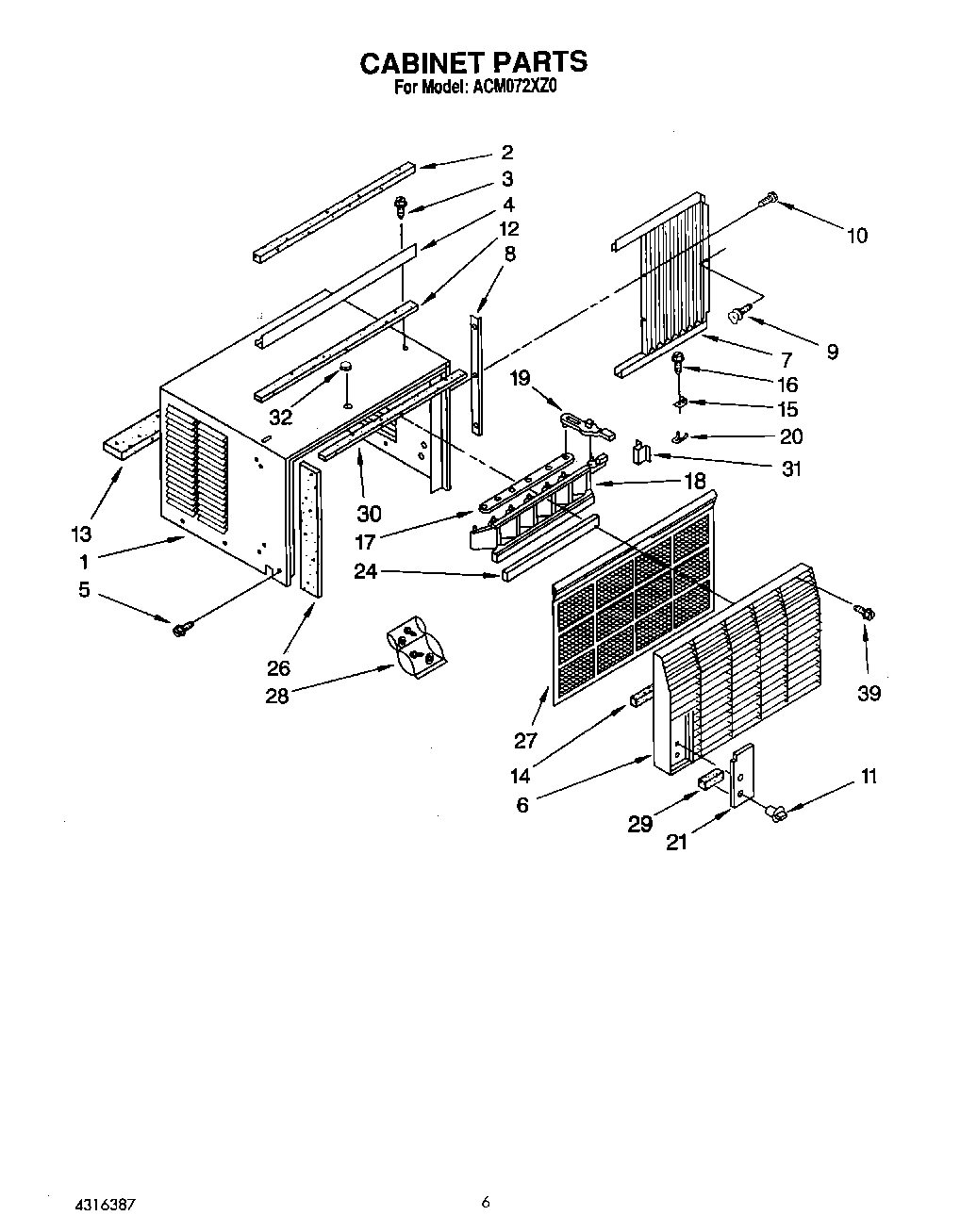

03 - CABINET

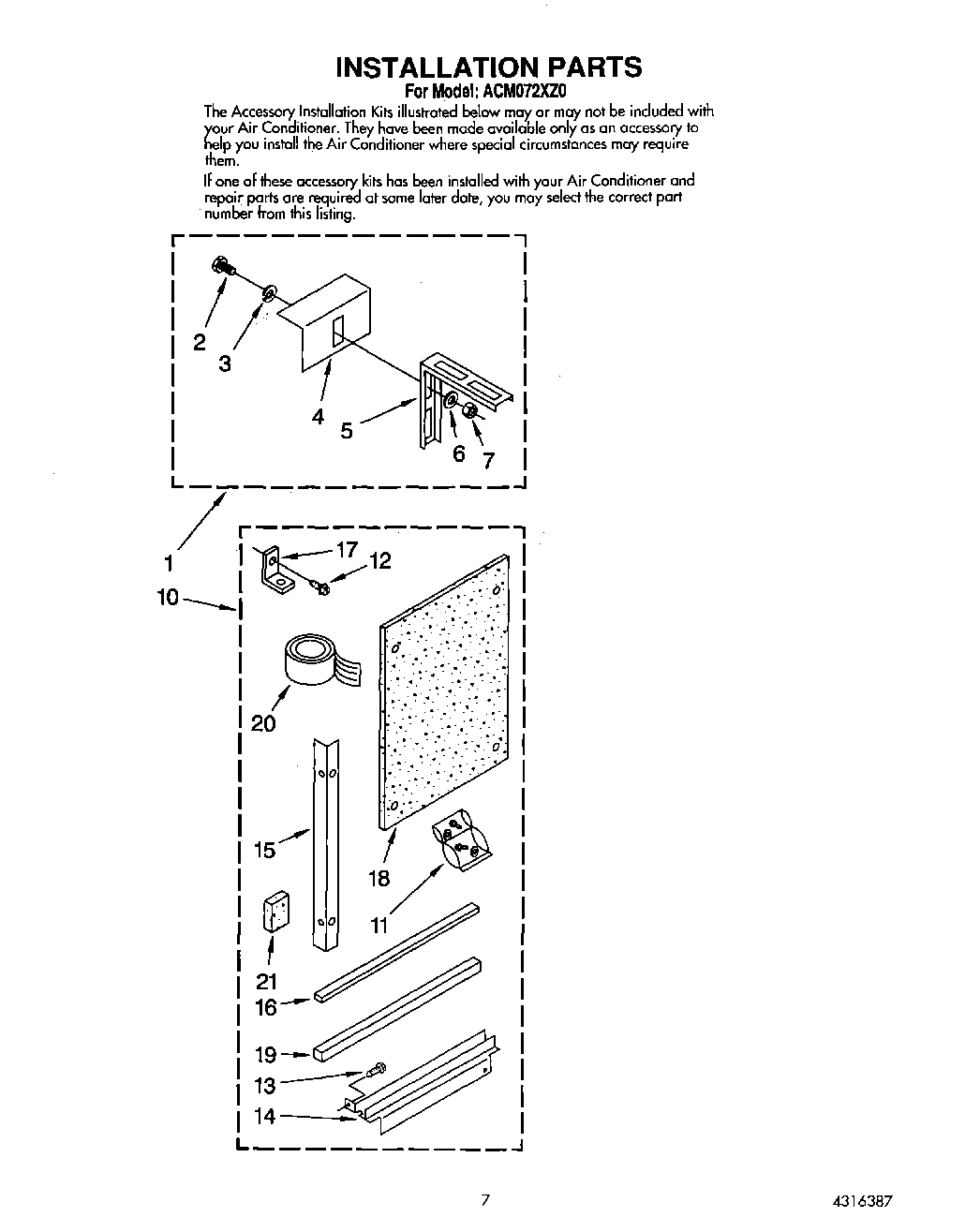

04 - INSTALLATION PARTS

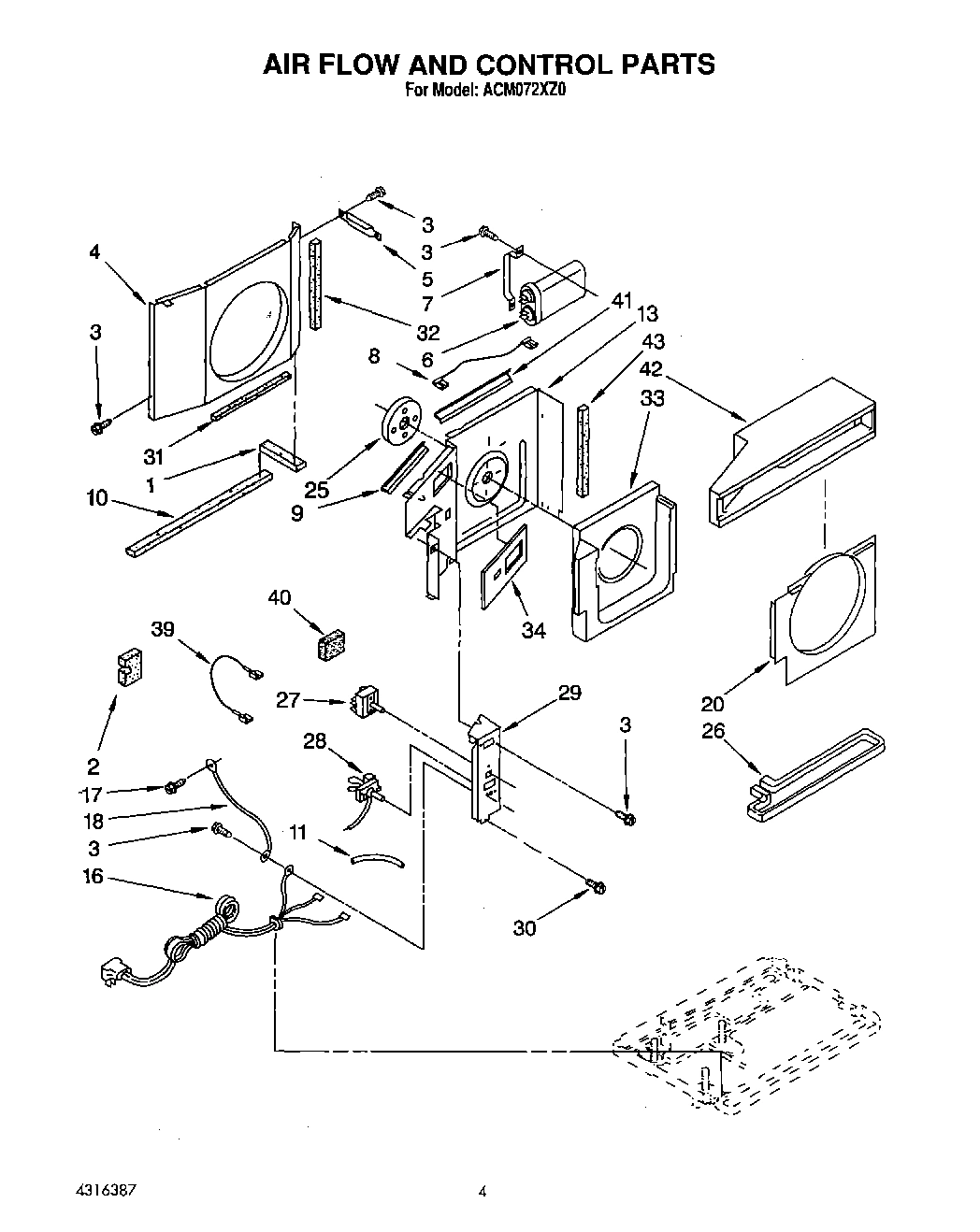

02 - AIR FLOW AND CONTROL

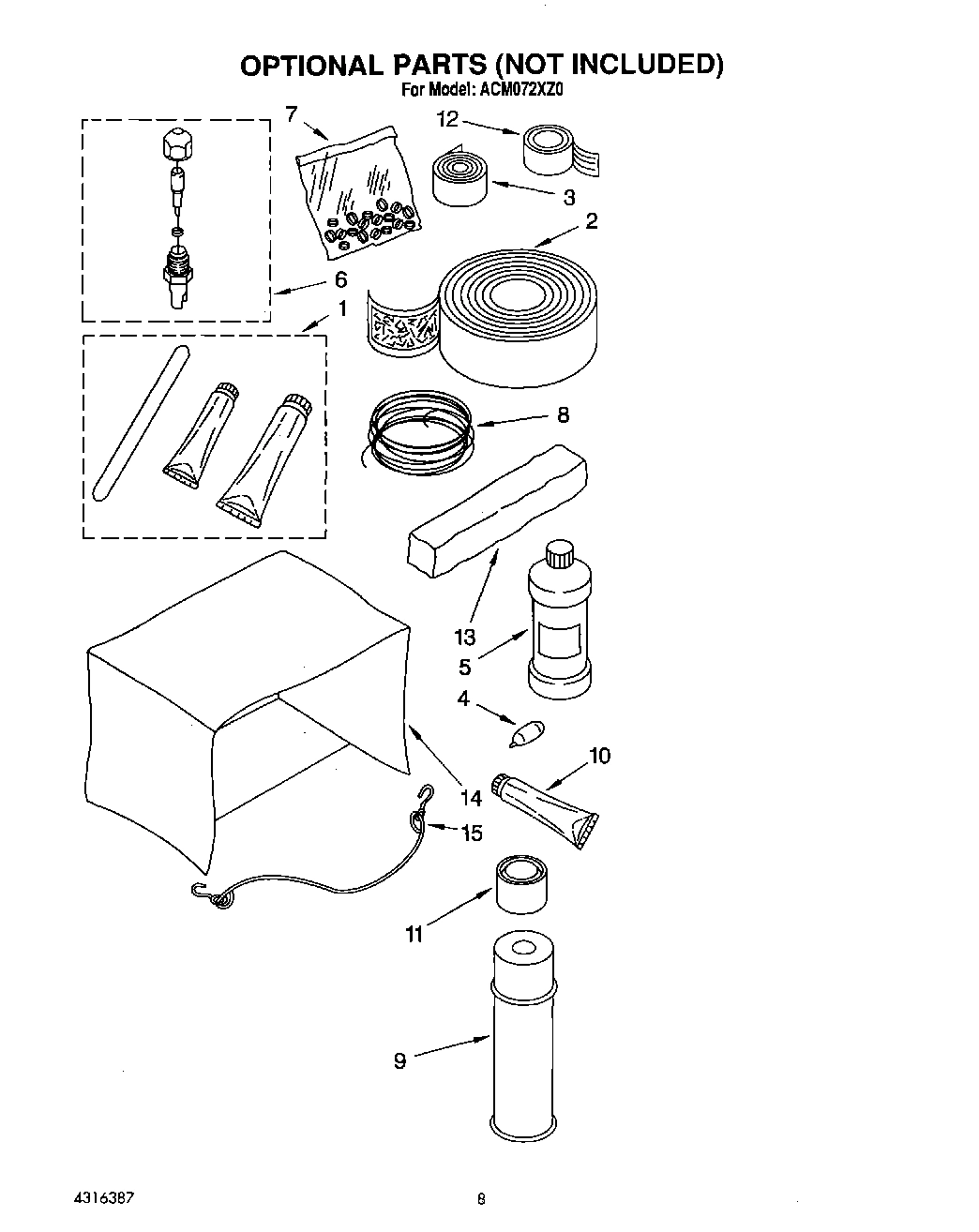

05 - OPTIONAL

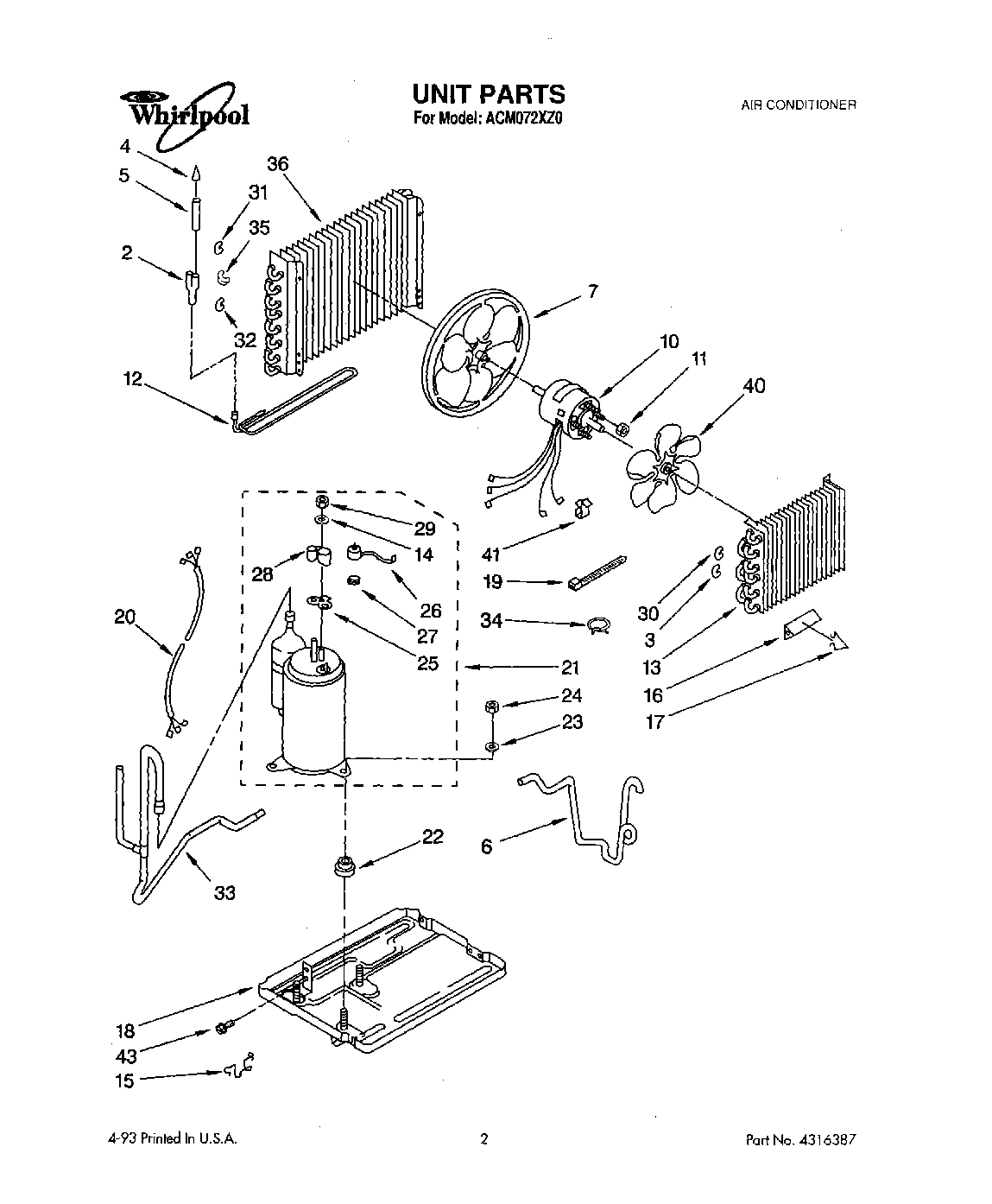

01 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool ACM072XZ0 AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Installation Instructions WPL LIT1158928 Contact Us For Availability
Tech Sheet WPL LIT1159431 Contact Us For Availability
Guide, Use And Care WPL LIT1162804 Contact Us For Availability
Buy Guide WPL LIT1163001 Contact Us For Availability
Repair Parts List WPL LIT4316387 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Sealer, Tube WPL 1160884 Contact Us For Availability
2
Tube, Flow Divider WPL 947364 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw WPL 1159222 Contact Us For Availability
3
Bend, Return Evaporator (3) WPL 855199 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950850 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1162765 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158524 Contact Us For Availability
8
Wire, Lead WPL 1160302 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Edge, Guard WPL 1161208 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Seal, Strip WPL 1158295 Contact Us For Availability
10
Motor, Fan WPL 1159364 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Insulator, Sleeve WPL 1163501 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Condenser Extension WPL 1163963 Contact Us For Availability
13
Wall, Dividing Assembly WPL 1158451 Contact Us For Availability
13
Evaporator WPL 1159352 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Clip, Front (2) WPL 949634 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Screw, 8-32 x 3/8 WPL 488624 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 1159348 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Escutcheon WPL 1162166 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Compressor WPL 1157026 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
24
Seal, Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
25
Insulation, Motor WPL 1158469 Contact Us For Availability
26
Insulation, Cabinet (LS) WPL 950169 Contact Us For Availability
26
Pan, Evaporator WPL 1159428 Contact Us For Availability
27
Filter, Air WPL 1162158 Contact Us For Availability
27
Switch, Rotary WPL 1162168 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 950403 Contact Us For Availability
29
Panel, Control WPL 1159409 Contact Us For Availability
30
Seal, Top WPL 1159283 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Bend, Return Evaporator (8) WPL 854624 Contact Us For Availability
31
Clip, Louver WPL 1158294 Contact Us For Availability
31
Bend, Return (13) WPL 708531 Contact Us For Availability
32
Cover, Hole WPL 1157126 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Bend, Return (4) WPL 708532 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
33
Tube, Suction WPL 1163998 Contact Us For Availability
34
Insulation, Exhaust Door WPL 1159414 Contact Us For Availability
34
Clamp, Tube WPL 855930 Contact Us For Availability
35
Bend Return Condenser (18) WPL 1157936 Contact Us For Availability
36
Condenser WPL 1159367 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
40
Seal, Foam WPL 1159443 Contact Us For Availability
40
Fan, Blade (Evaporator) WPL 1160094 Contact Us For Availability
41
Edge, Guard WPL 1161209 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Hood, Air Housing WPL 1159347 Contact Us For Availability
× ![]()
